RA64L-BCMSSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

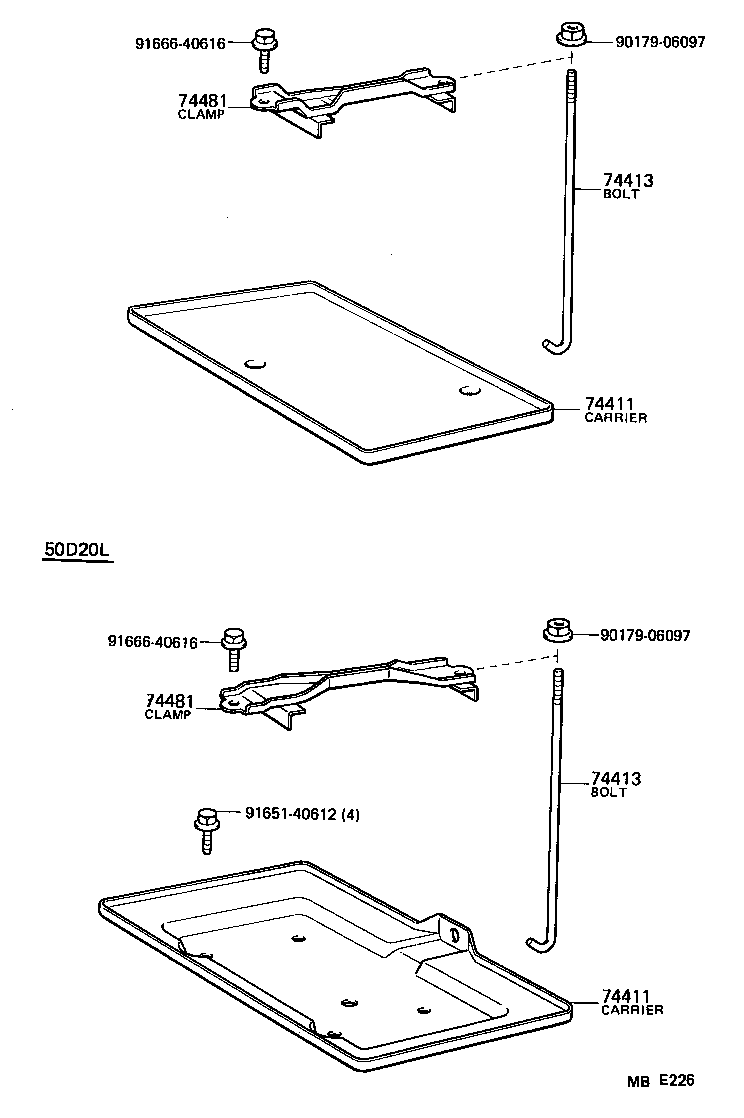

Click highlighted areas on diagram

diagram 74411 74411 74413 74413 74481 74481 9017906097 9017906097 9165140612 9166640616 9166640616
Part # Description Qty Price
74411 - CARRIER, BATTERY
74431-14020

RA6#..(CP,LB)..USA

N40,N40L,55D23R,55D23L

 1
74431-14030

RA64..CBR

50D20R

 1
74411 - CARRIER, BATTERY
74431-14020

RA6#..(CP,LB)..USA

N40,N40L,55D23R,55D23L

 1
74431-14030

RA64..CBR

50D20R

 1
74413 - BOLT, BATTERY CLAMP
74451-14010

MA61,RA6#..CP,LB

W/O 50D20L,55D23L

 1
74413 - BOLT, BATTERY CLAMP
74451-14010

MA61,RA6#..CP,LB

W/O 50D20L,55D23L

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-14250

RA64..CBR

50D20R

 1
74404-14230

RA6#..(CP,LB)..USA

N40,N40L,55D23R,55D23L

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-14250

RA64..CBR

50D20R

 1
74404-14230

RA6#..(CP,LB)..USA

N40,N40L,55D23R,55D23L

 1
Common parts
90179-06097
91651-40612
91666-40616
