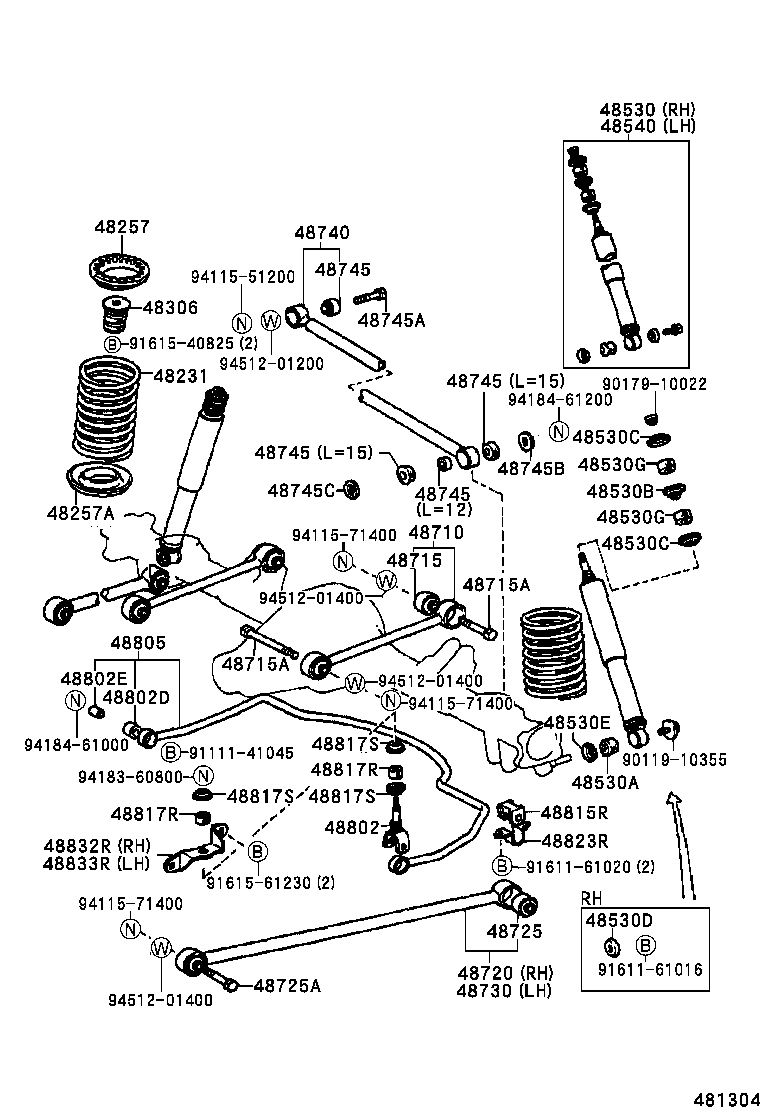

RA64L-BCMSSA (1981)
Toyota Celica
(8108-8507)RA64
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231 - SPRING, COIL, REAR | ||||
| 48231-14570 |
RA64 |
2 | ||
| 48257 - INSULATOR, REAR COIL SPRING | ||||
| 48257-14020 |
RA64 |
2 | ||
| 48257A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-14030 |
RA64 |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-14030 |
RA64 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-19795 |
RA64 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16001 |
MA61,RA6# |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02050 |
MA61,RA6# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
RA64 LWR |
2 | ||
| 90948-02045 |
RA64 UPR |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
RA64 LWR |
2 | ||
| 90948-02045 |
RA64 UPR |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-02047 |
MA61,RA6# RH |
1 | ||
| 90948-03012 |
MA61,RA6# LH |
1 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
MA61,RA6# |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90540-10005 |
RA64 UPR,OD=30,ID=10&14 |
2 | ||
| 90540-10002 |
RA64 LWR,OD=30,ID=10 |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90540-10005 |
RA64 UPR,OD=30,ID=10&14 |
2 | ||
| 90540-10002 |
RA64 LWR,OD=30,ID=10 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-19795 |
RA64 |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-14040 |
RA64 |
2 | ||
| 48715 - BUSH, UPPER CONTROL ARM | ||||
| 48702-22060 |
RA64 |
2 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90105-14006 |
RA64 L=77 |
2 | ||
| 90105-14009 |
RA64 L=141 |
2 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90105-14006 |
RA64 L=77 |
2 | ||
| 90105-14009 |
RA64 L=141 |
2 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-14040 |
RA64 |
1 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48702-14020 |
RA64 |
4 | ||
| 48725A - BOLT(FOR LOWER CONTROL ARM) | ||||
| 90105-14006 |
RA64 L=77 |
4 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-14040 |
RA64 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-20030 |
RA64 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-20001 |
RA64 L=15,HOUSING SIDE |
2 | ||
| 48706-14010 |
RA64 BODY SIDE |
1 | ||
| 90386-20001 |
RA64 L=12,HOUSING SIDE |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-20001 |
RA64 L=15,HOUSING SIDE |
2 | ||
| 48706-14010 |
RA64 BODY SIDE |
1 | ||
| 90386-20001 |
RA64 L=12,HOUSING SIDE |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-20001 |
RA64 L=15,HOUSING SIDE |
2 | ||
| 48706-14010 |
RA64 BODY SIDE |
1 | ||
| 90386-20001 |
RA64 L=12,HOUSING SIDE |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-20001 |
RA64 L=15,HOUSING SIDE |
2 | ||
| 48706-14010 |
RA64 BODY SIDE |
1 | ||
| 90386-20001 |
RA64 L=12,HOUSING SIDE |
1 | ||
| 48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD) | ||||
| 90106-12002 |
RA64 |
1 | ||
| 48745B - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90201-12010 |
RA64 |
1 | ||
| 48745C - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 94612-12000 |
RA64 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-14040 |
RA64 |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-11021 |
MA61,RA6# |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10275 |
MA61,RA6# |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-14110 |
RA64 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-14030 |
RA6# |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12010 |
MA61,RA6# |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12010 |
MA61,RA6# |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02024 |
MA61,RA6# T=1.2 |
4 | ||
| 90948-02025 |
MA61,RA6# T=1.0 |
2 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02024 |
MA61,RA6# T=1.2 |
4 | ||
| 90948-02025 |
MA61,RA6# T=1.0 |
2 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02024 |
MA61,RA6# T=1.2 |
4 | ||
| 90948-02025 |
MA61,RA6# T=1.0 |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48832-22020 |
RA64 |
2 | ||
| 48832R - BRACKET, REAR STABILIZER BAR, NO.1 RH | ||||
| 48832-14030 |
RA64 |
1 | ||
| 48833R - BRACKET, REAR STABILIZER BAR, NO.1 LH | ||||
| 48833-14020 |
RA64 |
1 | ||
| Common parts | ||||
| 90119-10355 | ||||
| 90179-10022 | ||||
| 91111-41045 | ||||
| 91611-61016 | ||||
| 91611-61020 | ||||
| 91615-40825 | ||||
| 91615-61230 | ||||
| 94115-51200 | ||||
| 94115-71400 | ||||
| 94183-60800 | ||||
| 94184-61000 | ||||
| 94184-61200 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
