RA64L-BCMSSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)

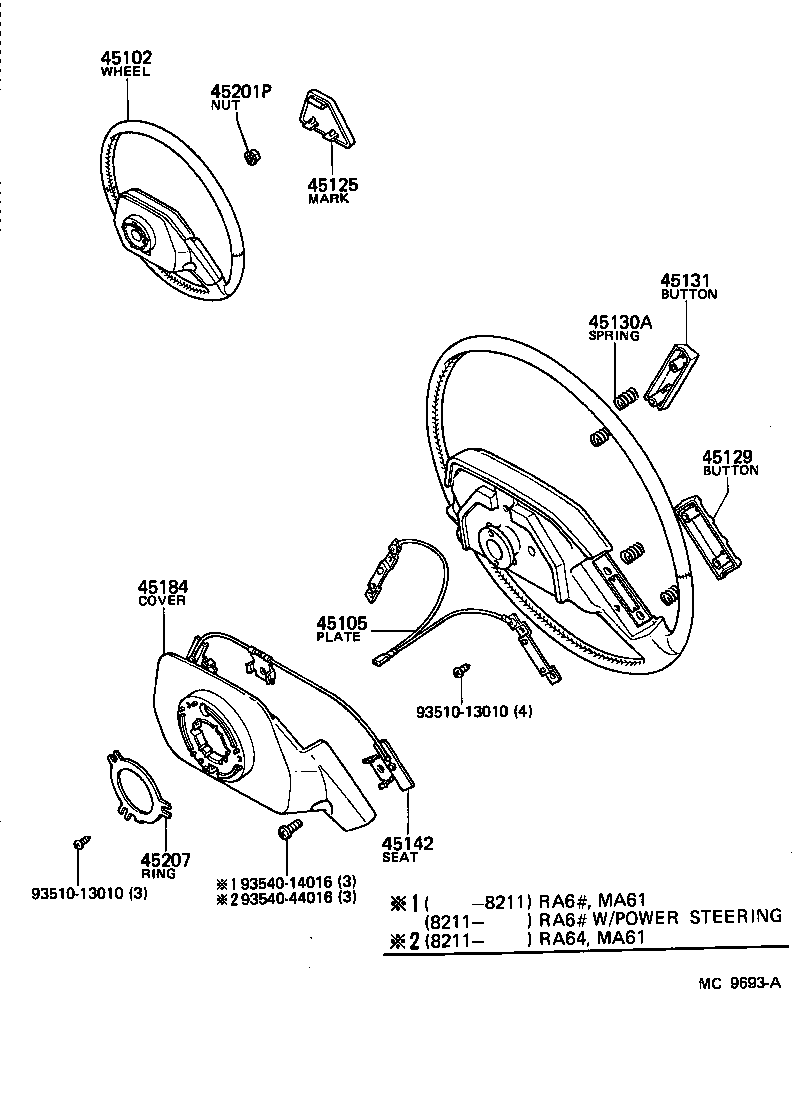

Click highlighted areas on diagram

diagram 45102 45105 45125 45129 45130A 45131 45142 45184 45201P 45207 9351013010 9351013010 9354014016 9354044016
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-1428001

RA6#

W/POWER STEERING,BLACK,BLACK

 1
45100-1431004

RA64

BLUE,BLUE

 1
45100-1431001

RA64

BLACK,BLACK

 1
45100-1428006

RA6#

W/POWER STEERING,DARK BROWN,BROWN

 1
45100-1428004

RA6#

W/POWER STEERING,BLUE,BLUE

 1
45100-1431006

RA64

DARK BROWN,BROWN

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-14040

MA61,RA6#

 1
45125 - MARK, STEERING WHEEL PAD
45125-14290

RA64..CBR

 1
45129 - BUTTON, HORN, NO.2
45129-1403001

MA61,RA6#

BLACK,BLACK

 1
45129-1403006

RA6#

DARK BROWN,BROWN

 1
45129-1403004

MA61,RA6#

BLUE,BLUE

 1
45130A - SPRING, COMPRESSION(FOR HORN BUTTON)
90501-09023

MA61,RA6#

 4
45131 - BUTTON, HORN, NO.1
45131-1409004

MA61,RA6#

BLUE,BLUE

 1
45131-1409006

RA6#

DARK BROWN,BROWN

 1
45131-1409001

MA61,RA6#

BLACK,BLACK

 1
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45109-14010

MA61,RA6#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-1404004

MA61,RA6#

BLUE,BLUE

 1
45184-1404001

MA61,RA6#

BLACK,BLACK

 1
45184-1404006

RA6#

DARK BROWN,BROWN

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

MA61,RA6#

 1
45207 - RING, HORN CONTACT
45176-14030

MA61,RA64

 1
45176-14050

MA61,RA6#

 1
Common parts
93510-13010
93540-14016
93540-44016
