RA64L-BCMSEA (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8507)RA6#

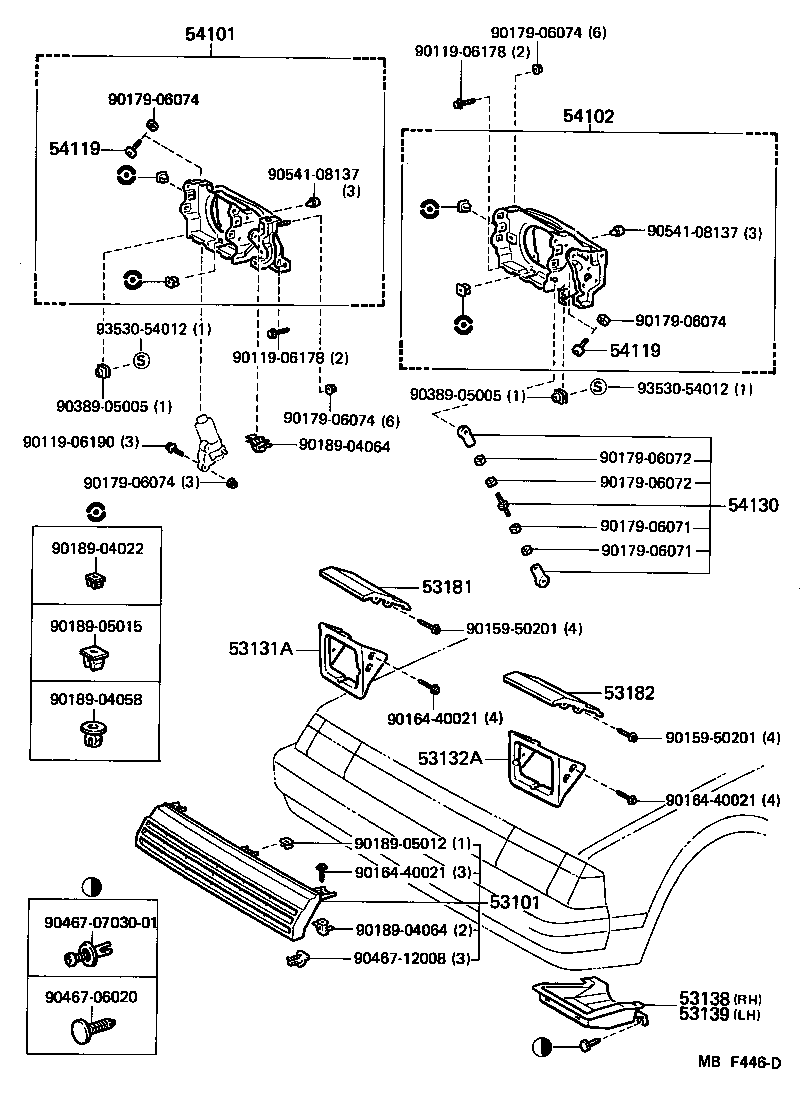

Click highlighted areas on diagram

diagram 53101 53131A 53132A 53138 53139 53181 53182 54101 54102 54119 54119 54130 9011906178 9011906178 9011906190 9015950201 9015950201 9016440021 9016440021 9016440021 9017906071 9017906071 9017906072 9017906072 9017906074 9017906074 9017906074 9017906074 9017906074 9018904022 9018904058 9018904064 9018904064 9018905012 9018905015 9038905005 9038905005 9046706020 904670703001 9046712008 9054108137 9054108137 9353054012 9353054012
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53111-19435

RA6#

 1
53111-19525

RA6#

 1
53131A - DOOR, HEADLAMP, RH
53131-14310

RA6#

 1
53132A - DOOR, HEADLAMP, LH
53132-14310

RA6#

 1
53138 - PROTECTOR, HEADLAMP DOOR, RH
53138-14060

RA6#

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53139-14110

RA6#

 1
53181 - COVER, HEADLAMP, RH
53181-14010

RA6#

 1
53182 - COVER, HEADLAMP, LH
53182-14010

RA6#

 1
54101 - BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, RH
54105-14011

RA6#

 1
54105-14010

RA6#

 1
54102 - BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, LH
54106-14011

RA6#

 1
54106-14010

RA6#

 1
54119 - STOP, RETRACTABLE HEADLAMP LINK
54119-14020

MA61,RA6#

 2
54119-14010

RA6#

 2
54119 - STOP, RETRACTABLE HEADLAMP LINK
54119-14020

MA61,RA6#

 2
54119-14010

RA6#

 2
54130 - ROD ASSY, RETRACTABLE HEADLAMP
54130-14010

RA6#

 2
54130-14011

RA6#

 2
Common parts
90119-06178
90119-06190
90159-50201
90164-40021
90179-06071
90179-06072
90179-06074
90189-04022
90189-04058
90189-04064
90189-05012
90189-05015
90389-05005
90467-06020
90467-0703001
90467-12008
90541-08137
93530-54012
