RA64L-BCMQSA (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8308)RA6#

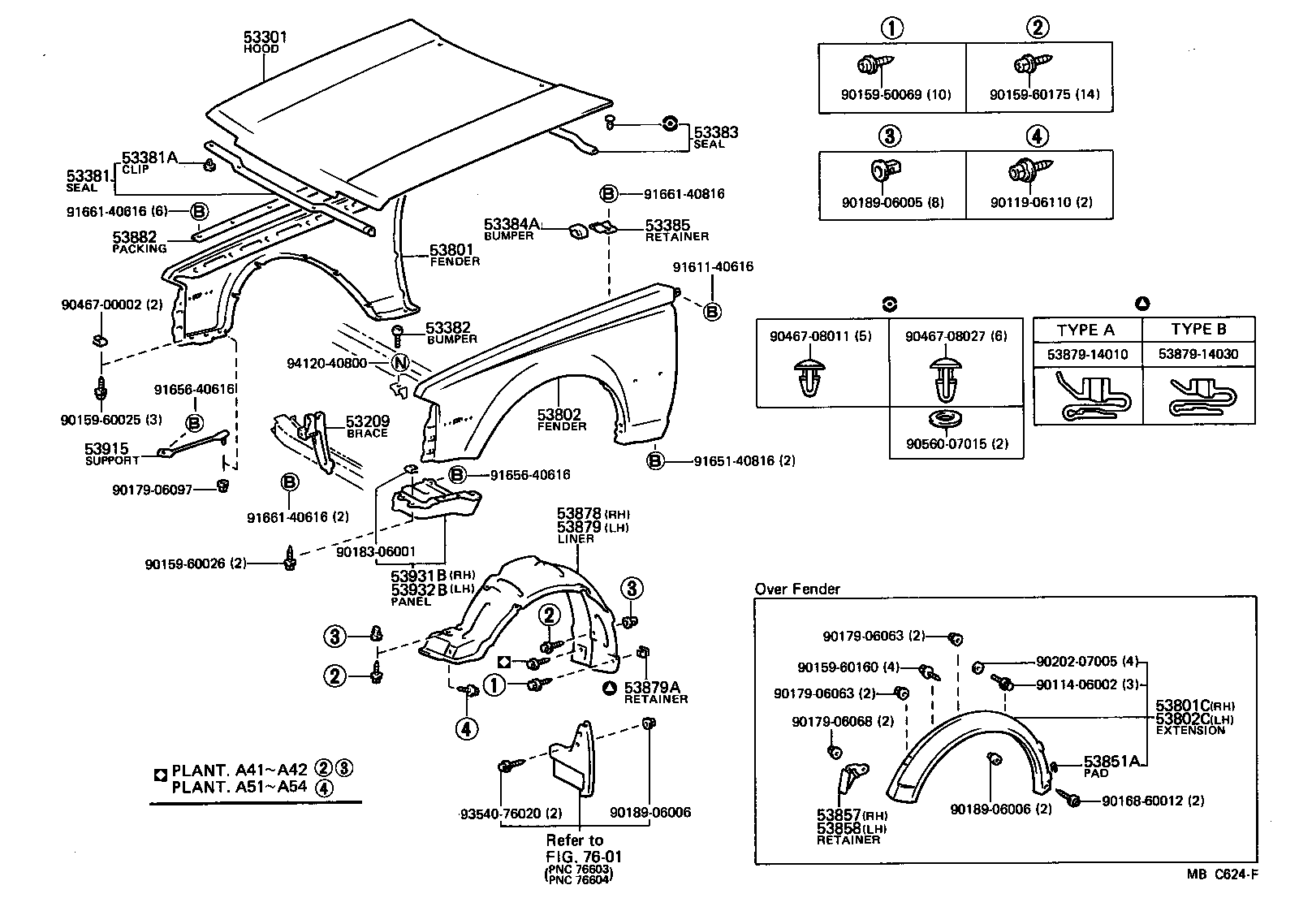

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53209 - BRACE SUB-ASSY, HOOD LOCK | ||||
| 53208-14140 |
RA6# |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-14220 |
RA6# |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-14100 |
RA6# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08028 |
RA6# |
7 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-20011 |
MA61,RA6# |
4 | ||
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-14080 |
MA61,RA64 |
1 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-14030 |
MA61,RA6# |
2 | ||
| 53385 - RETAINER, HOOD, BUMPER | ||||
| 53385-14010 |
MA61,RA6# LH |
1 | ||
| 53386-14010 |
MA61,RA6# RH |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-14620 |
RA64 |
1 | ||
| 53801-14650 |
RA64..GT W/OVER FENDER |
1 | ||
| 53801C - EXTENSION, FRONT WING, RH | ||||
| 53847-14040 |
RA64..GT |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-14640 |
RA64..GT W/OVER FENDER |
1 | ||
| 53802-14610 |
RA64 |
1 | ||
| 53802C - EXTENSION, FRONT WING, LH | ||||
| 53848-14040 |
RA64..GT |
1 | ||
| 53851A - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53852-14020 |
MA61,RA6# L=972 |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-14010 |
RA64..GT W/OVER FENDER |
1 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53858-14010 |
RA64..GT W/OVER FENDER |
1 | ||
| 53878 - LINER, FRONT FENDER, RH | ||||
| 53875-14120 |
RA64..GT W/OVER FENDER |
1 | ||
| 53875-14110 |
RA64 |
1 | ||
| 53879 - LINER, FRONT FENDER, LH | ||||
| 53876-14120 |
RA64..GT W/OVER FENDER |
1 | ||
| 53876-14110 |
RA64 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-14010 |
MA61,RA6# TYPE A |
10 | ||
| 53879-14030 |
MA61,RA64..GT,SPR TYPE B W/OVER FENDER |
8 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-14090 |
RA6# |
2 | ||
| 53915 - SUPPORT, FRONT VALANCE PANEL | ||||
| 53915-14060 |
RA6# RH |
1 | ||
| 53916-14070 |
RA6# LH |
1 | ||
| 53931B - PANEL, FRONT END, RH | ||||
| 53931-14040 |
RA64 |
1 | ||
| 53931-14050 |
RA64..GT W/OVER FENDER |
1 | ||
| 53932B - PANEL, FRONT END, LH | ||||
| 53932-14020 |
RA64..GT W/OVER FENDER |
1 | ||
| 53932-14010 |
RA64 |
1 | ||
| Common parts | ||||
| 53879-14010 | ||||
| 53879-14030 | ||||
| 90114-06002 | ||||
| 90119-06110 | ||||
| 90159-50069 | ||||
| 90159-60025 | ||||
| 90159-60026 | ||||
| 90159-60160 | ||||
| 90159-60175 | ||||
| 90168-60012 | ||||
| 90179-06063 | ||||
| 90179-06068 | ||||
| 90179-06097 | ||||
| 90183-06001 | ||||
| 90189-06005 | ||||
| 90189-06006 | ||||
| 90202-07005 | ||||
| 90467-00002 | ||||
| 90467-08011 | ||||
| 90467-08027 | ||||
| 90560-07015 | ||||
| 91611-40616 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
| 91661-40616 | ||||
| 91661-40816 | ||||
| 93540-76020 | ||||
| 94120-40800 | ||||
| Linked diagrams | ||||
| 7601 | ||||
