RA64L-BCMQSA (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )

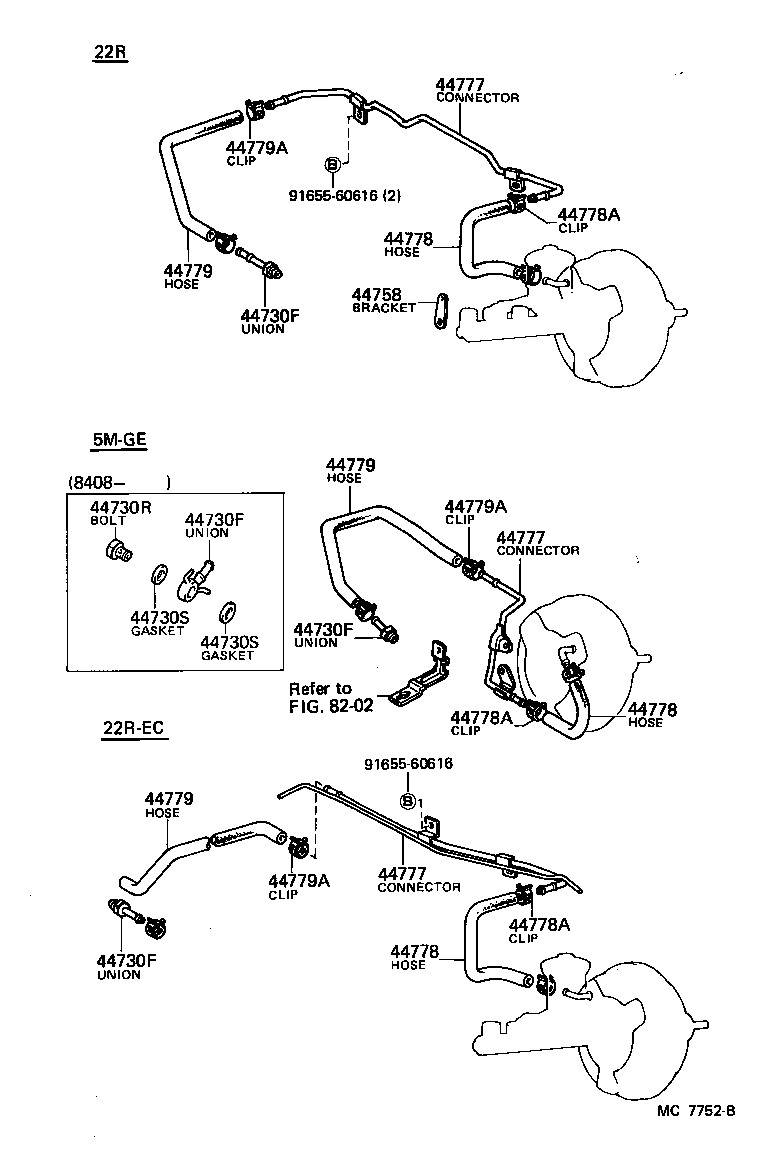

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51039 |
RA64..CBR |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51039 |
RA64..CBR |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51039 |
RA64..CBR |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51039 |
RA64..CBR |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-22030 |
RA6# |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-14040 |
RA64..CBR |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-14040 |
RA64..CBR |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-14040 |
RA64..CBR |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-14050 |
RA6# |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-14050 |
RA6# |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-14050 |
RA6# |
1 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
MA61,RA6# |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
MA61,RA6# |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
MA61,RA6# |
2 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44779-14070 |
RA64..CBR |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44779-14070 |
RA64..CBR |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44779-14070 |
RA64..CBR |
1 | ||
| 44779A - CLIP(FOR UNION TO CONNECTOR HOSE) | ||||
| 90467-16002 |
MA61,RA6# |
2 | ||
| 44779A - CLIP(FOR UNION TO CONNECTOR HOSE) | ||||
| 90467-16002 |
MA61,RA6# |
2 | ||
| 44779A - CLIP(FOR UNION TO CONNECTOR HOSE) | ||||
| 90467-16002 |
MA61,RA6# |
2 | ||
| Common parts | ||||
| 91655-60616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(8108-8308)RA6#

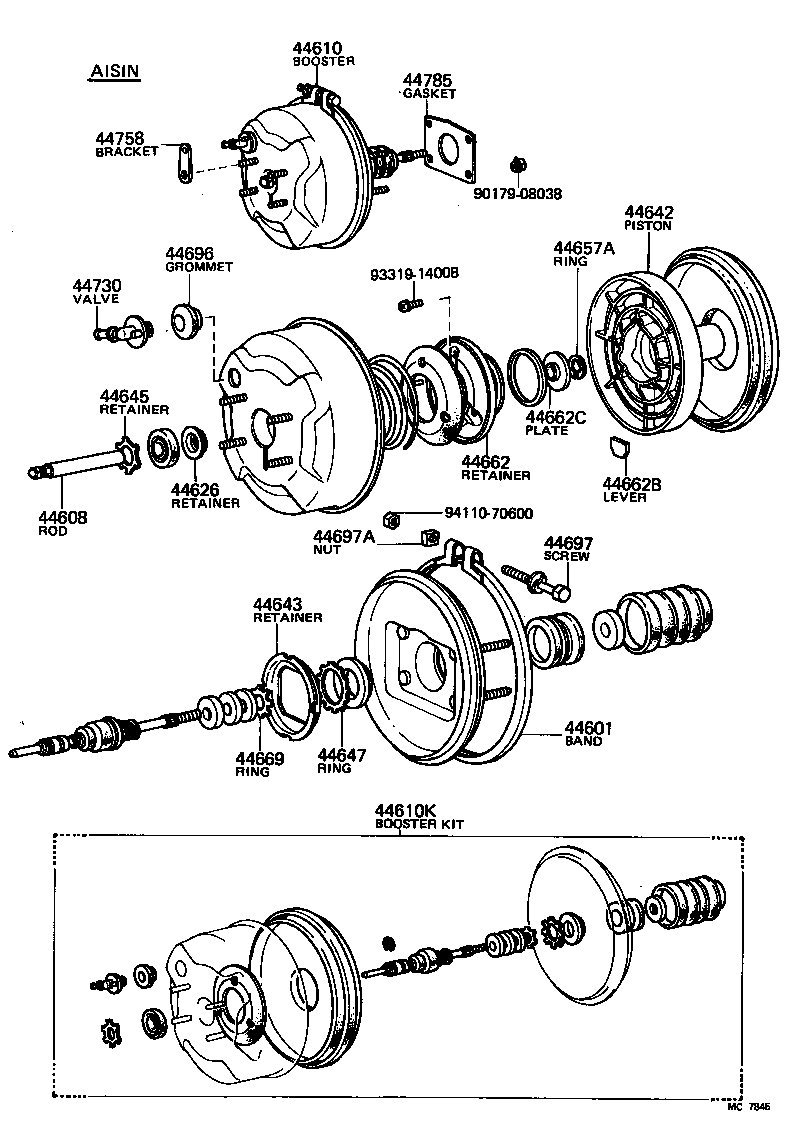

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44601 - BAND SUB-ASSY, BOOSTER BODY | ||||
| 44605-30030 |
RA6# |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-35100 |
RA6# AISIN |
1 | ||
| 44608-22090 |
RA6# JKC |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-14580 |
RA6# |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-14400 |
RA6# JKC |
1 | ||
| 04443-14390 |
RA6# AISIN |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
RA6# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-30310 |
RA6# JKC |
1 | ||
| 44642-30030 |
RA6# AISIN |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
RA6# |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
MA61,RA6# AISIN |
1 | ||
| 44645-22020 |
RA6# JKC |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
RA6# |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
RA6# |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-20460 |
RA6# |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
RA6# |
1 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-30300 |
RA6# |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
RA6# |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
MA61,RA6# AISIN |
1 | ||
| 90480-24517 |
RA6# JKC |
1 | ||
| 44697 - SCREW, BOOSTER BAND SET | ||||
| 44681-30170 |
RA6# |
1 | ||
| 44697A - NUT(FOR BOOSTER BAND SET) | ||||
| 44686-30030 |
RA6# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22090 |
RA6# JKC |
1 | ||
| 44730-20060 |
MA61,RA6# AISIN |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-22030 |
RA6# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20030 |
MA61,RA6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||
| 94110-70600 | ||||
(8108-8308)RA6#

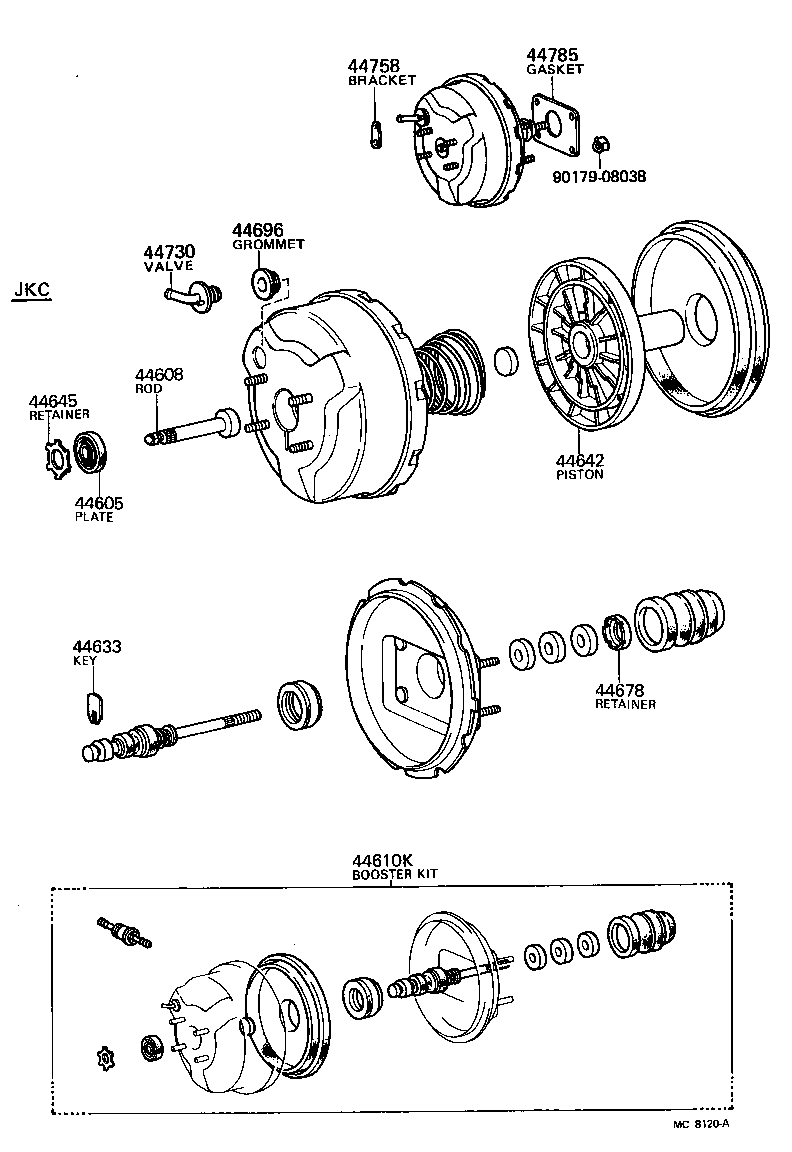

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
RA6# |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-35100 |
RA6# AISIN |
1 | ||
| 44608-22090 |
RA6# JKC |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-14400 |
RA6# JKC |
1 | ||
| 04443-14390 |
RA6# AISIN |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
RA6# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-30310 |
RA6# JKC |
1 | ||
| 44642-30030 |
RA6# AISIN |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
MA61,RA6# AISIN |
1 | ||
| 44645-22020 |
RA6# JKC |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
RA6# |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
MA61,RA6# AISIN |
1 | ||
| 90480-24517 |
RA6# JKC |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22090 |
RA6# JKC |
1 | ||
| 44730-20060 |
MA61,RA6# AISIN |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-22030 |
RA6# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20030 |
MA61,RA6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
