RA64L-BCMQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)RA6#..5F

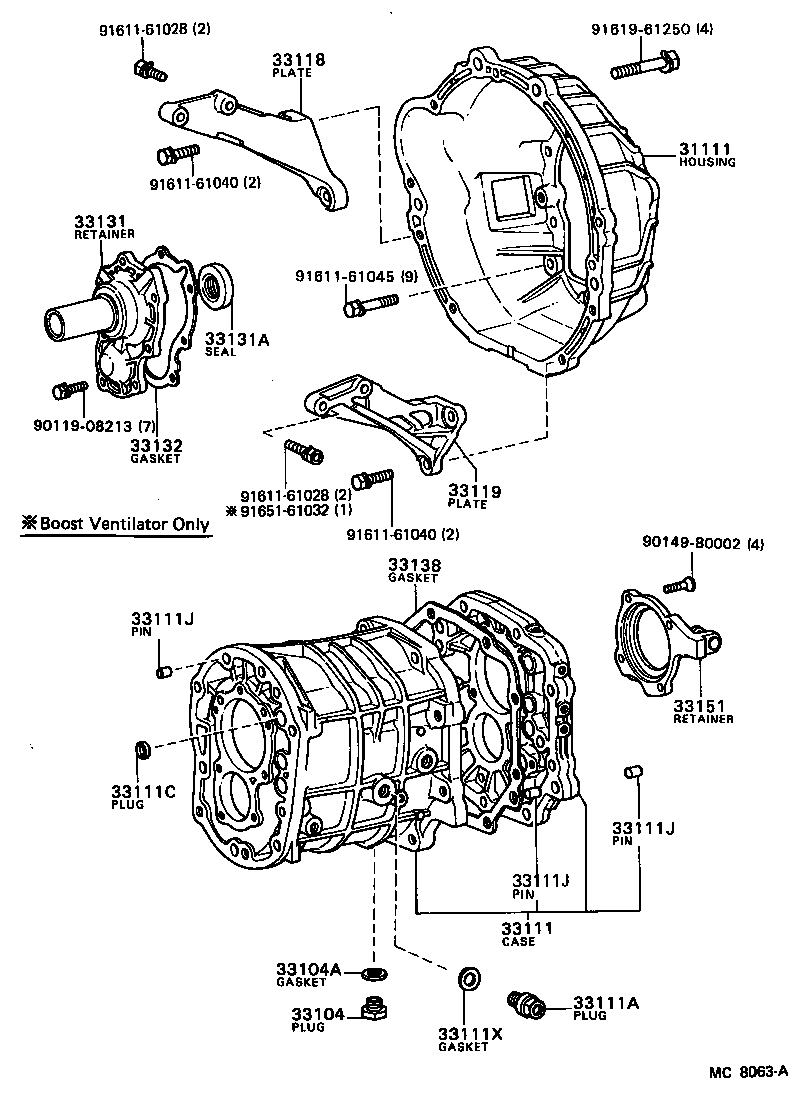

Click highlighted areas on diagram

diagram 31111 33104 33104A 33111 33111A 33111C 33111J 33111J 33111J 33111X 33118 33119 33131 33131A 33132 33138 33151 9011908213 9014980002 9161161028 9161161028 9161161040 9161161040 9161161045 9161961250 9165161032
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-20171

RA6#..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

MA61,RA6#..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18007

MA61,RA6#..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33101-22021

MA61,RA6#..5F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

MA61,RA6#..5F

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

MA61,RA6#..5F

OD=14

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12146

MA61,RA64..5F

L=17,OD=12,L=17

 2
90250-12002

MA61,RA64..5F

L=16,OD=12,L=16

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12146

MA61,RA64..5F

L=17,OD=12,L=17

 2
90250-12002

MA61,RA64..5F

L=16,OD=12,L=16

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12146

MA61,RA64..5F

L=17,OD=12,L=17

 2
90250-12002

MA61,RA64..5F

L=16,OD=12,L=16

 4
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18007

MA61,RA6#..5F

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-22030

RA6#..5F

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-22021

RA6#..5F

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-22020

MA61,RA6#..5F

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

MA61,RA6#..5F

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-22010

MA61,RA6#..5F

 1
33138 - GASKET, INTERMEDIATE PLATE
33142-22010

MA61,RA6#..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33107-22010

MA61,RA6#..5F

 1
Common parts
90119-08213
90149-80002
91611-61028
91611-61040
91611-61045
91619-61250
91651-61032
