RA64L-BCMQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)22R..USA

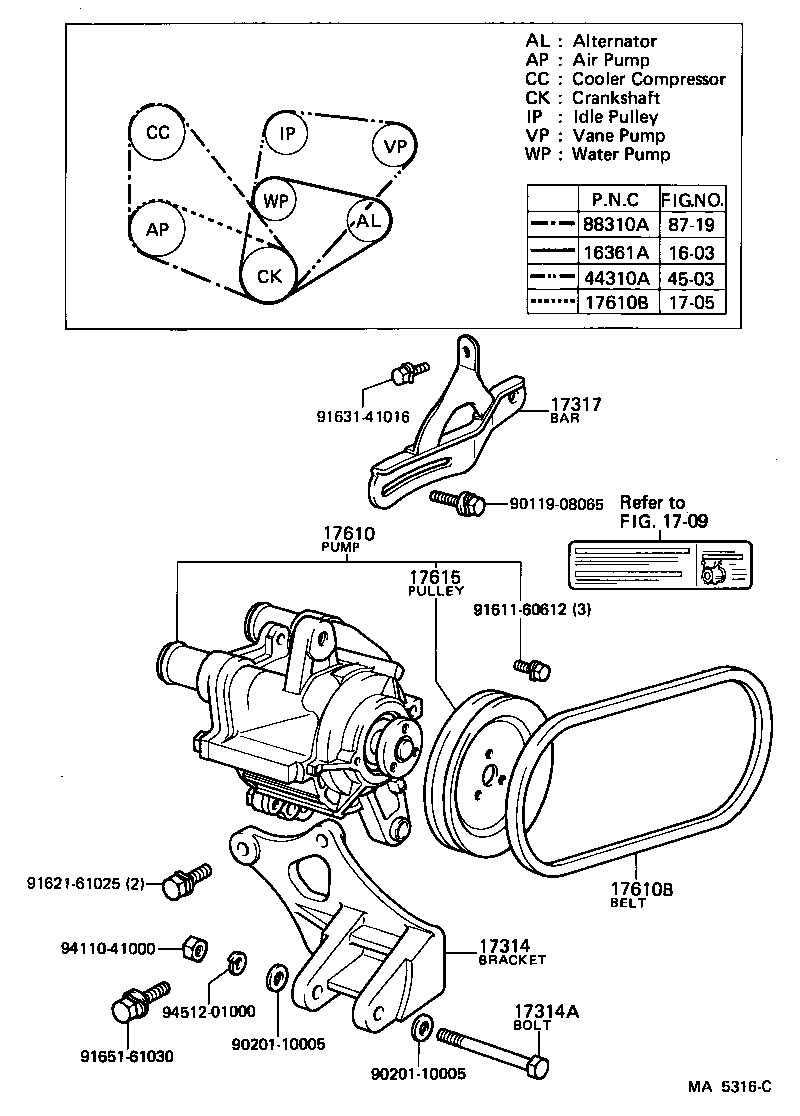

Click highlighted areas on diagram

diagram 1603 16361A 1705 1709 17314 17314A 17317 17610 17610B 17610B 17615 44310A 4503 8719 88310A 9011908065 9020110005 9020110005 9161160612 9162161025 9163141016 9165161030 9411041000 9451201000
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99331-10880

22R#..RA6#

L=880

 1
17314 - BRACKET, AIR PUMP
17314-35010

22R..RA64..USA

 1
17314A - BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)
90101-10463

22R..RA64..USA

 1
17317 - BAR, AIR PUMP ADJUSTING, NO.1
17317-38020

22R..RA64..USA

 1
17610 - PUMP ASSY, AIR
17610-35010

22R..RA64..USA

 1
17610B - BELT, V(FOR AIR PUMP)
99332-10820

22R..RA64..USA

L=820

 1
99332-10820

22R..RA64..USA

 1
17610B - BELT, V(FOR AIR PUMP)
99332-10820

22R..RA64..USA

L=820

 1
99332-10820

22R..RA64..USA

 1
17615 - PULLEY(FOR AIR PUMP)
17615-35010

22R..RA64..USA

 1
44310A - BELT, V(FOR VANE PUMP)
99332-11135

RA6#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-11120

RA64..CBR..USA

 1
Common parts
90119-08065
90201-10005
91611-60612
91621-61025
91631-41016
91651-61030
94110-41000
94512-01000
