RA64L-BCMQEK (1982)
Toyota Celica
Production
Aug 1982
-
Jul 1985
Engine
22REC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )

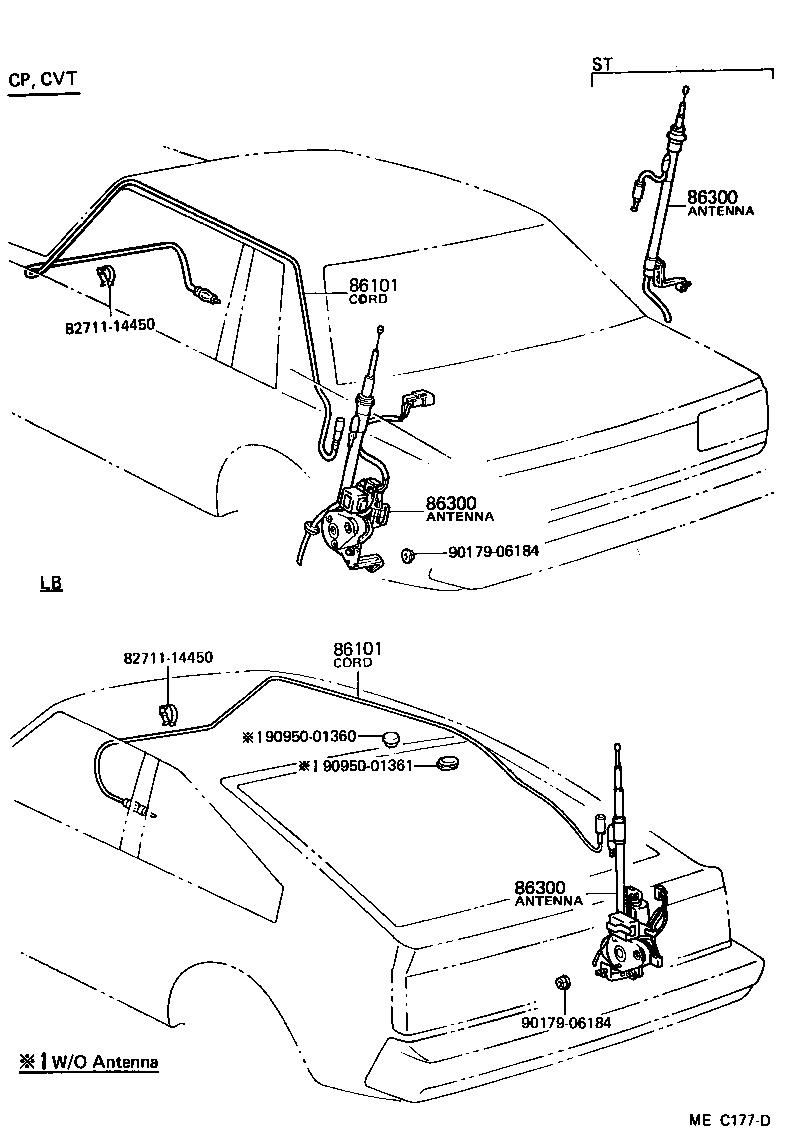

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-14260 |
MA61,RA64 |
1 | ||
| 86101-14280 |
RA6#..CP |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-14260 |
MA61,RA64 |
1 | ||
| 86101-14280 |
RA6#..CP |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-14321 |
RA6#..CP,CVT MOTOR TYPE |
1 | ||
| 86300-14320 |
RA6#..CP,CVT MOTOR TYPE |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-14321 |
RA6#..CP,CVT MOTOR TYPE |
1 | ||
| 86300-14320 |
RA6#..CP,CVT MOTOR TYPE |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-14321 |
RA6#..CP,CVT MOTOR TYPE |
1 | ||
| 86300-14320 |
RA6#..CP,CVT MOTOR TYPE |
1 | ||
| Common parts | ||||
| 82711-14450 | ||||
| 90179-06184 | ||||
| 90950-01360 | ||||
| 90950-01361 | ||||
(8208- )

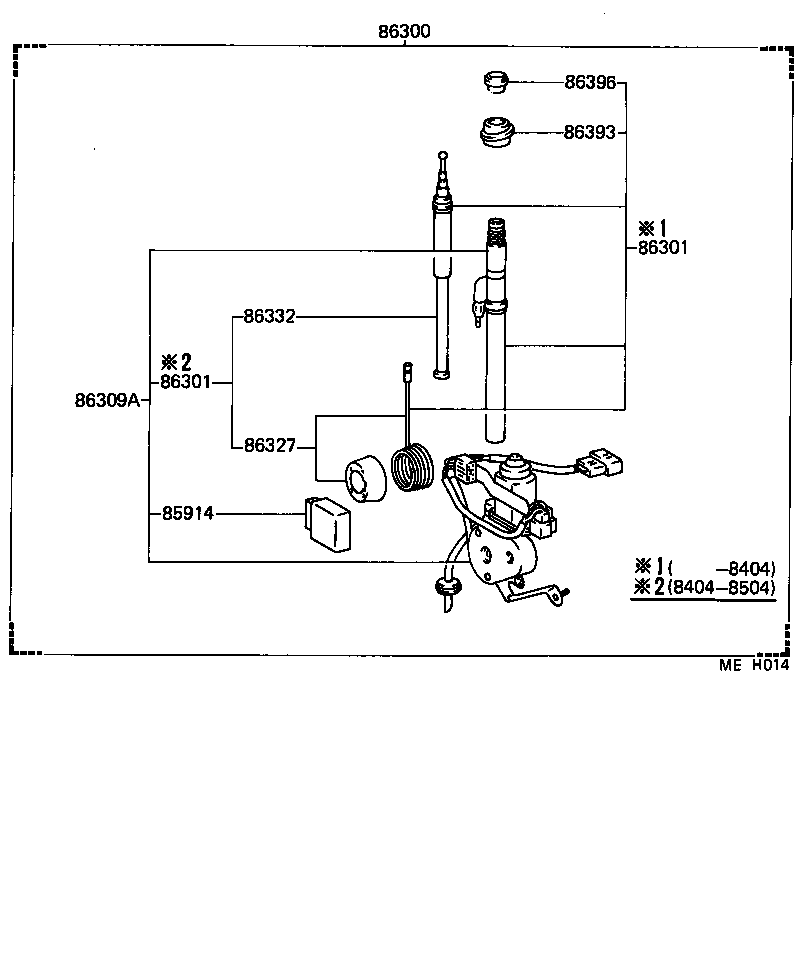

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85914 - RELAY, MOTOR ANTENNA CONTROL | ||||
| 85914-14010 |
MA61,RA6# |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-14321 |
RA6#..CP,CVT MOTOR TYPE |
1 | ||
| 86300-14320 |
RA6#..CP,CVT MOTOR TYPE |
1 | ||
| 86301 - POLE SUB-ASSY, ANTENNA | ||||
| 86353-14330 |
MA61,RA6# |
1 | ||
| 86301-14251 |
RA6#..CP |
1 | ||
| 86353-32070 |
MA61,RA6# |
1 | ||
| 86353-14320 |
MA61,RA6# |
1 | ||
| 86301 - POLE SUB-ASSY, ANTENNA | ||||
| 86353-14330 |
MA61,RA6# |
1 | ||
| 86301-14251 |
RA6#..CP |
1 | ||
| 86353-32070 |
MA61,RA6# |
1 | ||
| 86353-14320 |
MA61,RA6# |
1 | ||
| 86309A - POLE SUB-ASSY, MOTOR ANTENNA | ||||
| 86309-14191 |
RA6#..CP,CVT |
1 | ||
| 86309-14190 |
RA6#..CP,CVT |
1 | ||
| 86332 - ROD, ANTENNA | ||||
| 86332-14321 |
MA61,RA6# |
1 | ||
| 86393 - ORNAMENT, ANTENNA | ||||
| 86392-14051 |
RA6#..CP,CVT |
1 | ||
| 86392-14050 |
RA6#..CP,CVT |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-14040 |
MA61,RA6# |
1 | ||
