RA64L-BCMQEK (1982)

Toyota Celica

Production Aug 1982 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208-8507)RA6#..EFI

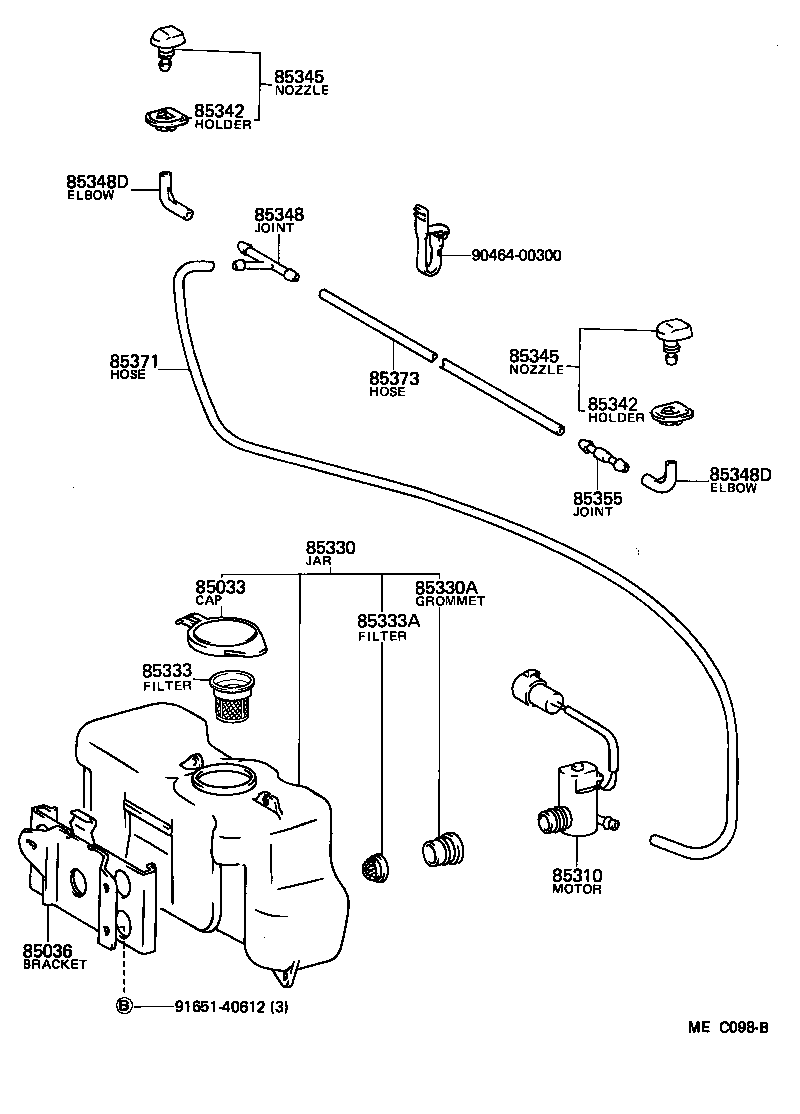

Click highlighted areas on diagram

diagram 85033 85036 85310 85330 85330A 85333 85333A 85342 85342 85345 85345 85348 85348D 85348D 85355 85371 85373 9046400300 9165140612
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-20060

RA6#..EFI

 1
85036 - BRACKET, SUB-ASSY, WASHER
85036-14140

RA6#..EFI

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-14060

MA61,RA6#

 1
85310-20130

RA6#..EFI

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-14060

RA6#..EFI

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32103

MA61,RA6#..EFI

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20010

RA6#..EFI

 1
85333A - FILTER, WINDSHIELD WASHER JAR, NO.2
85333-20020

RA6#..EFI

 1
85342 - HOLDER, WASHER NOZZLE
85342-14010

MA61,RA6#

 2
85342 - HOLDER, WASHER NOZZLE
85342-14010

MA61,RA6#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

MA61,RA6#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

MA61,RA6#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-14010

RA6#..EFI

3-WAY

 1
85348-40010

RA6#

3-WAY

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

MA61,RA6#

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

MA61,RA6#

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-14080

MA61,RA6#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33332

RA6#

*H,L=800

 1
90099-33072

RA6#

L=800

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

RA6#..EFI

L=1000

 2
90099-33299

RA6#

*H,L=550

 1
Common parts
90464-00300
91651-40612
