RA64L-BCMQEK (1982)

Toyota Celica

Production Aug 1982 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

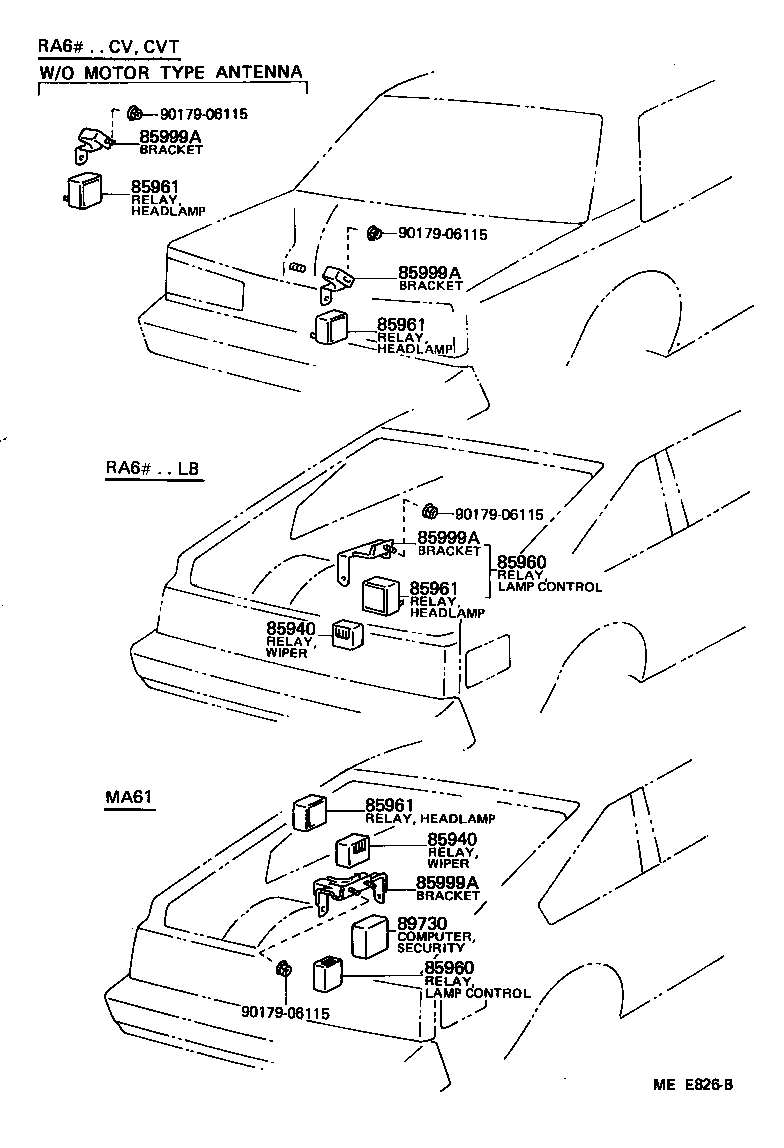

Click highlighted areas on diagram

diagram 85940 85940 85960 85960 85961 85961 85961 85961 85999A 85999A 85999A 85999A 89730 9017906115 9017906115 9017906115 9017906115
Part # Description Qty Price
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-12020

RA6#

FR WIPER

 1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-12020

RA6#

FR WIPER

 1
85999A - BRACKET, RELAY, NO.2
85999-14170

RA6#..CP,CVT

W/ANTENNA

 1
85999-14190

RA6#..CP

 1
85999A - BRACKET, RELAY, NO.2
85999-14170

RA6#..CP,CVT

W/ANTENNA

 1
85999-14190

RA6#..CP

 1
85999A - BRACKET, RELAY, NO.2
85999-14170

RA6#..CP,CVT

W/ANTENNA

 1
85999-14190

RA6#..CP

 1
85999A - BRACKET, RELAY, NO.2
85999-14170

RA6#..CP,CVT

W/ANTENNA

 1
85999-14190

RA6#..CP

 1
Common parts
90179-06115
