RA64L-BCMQEK (1982)

Toyota Celica

Production Aug 1982 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208-8507)RA6#..EFI

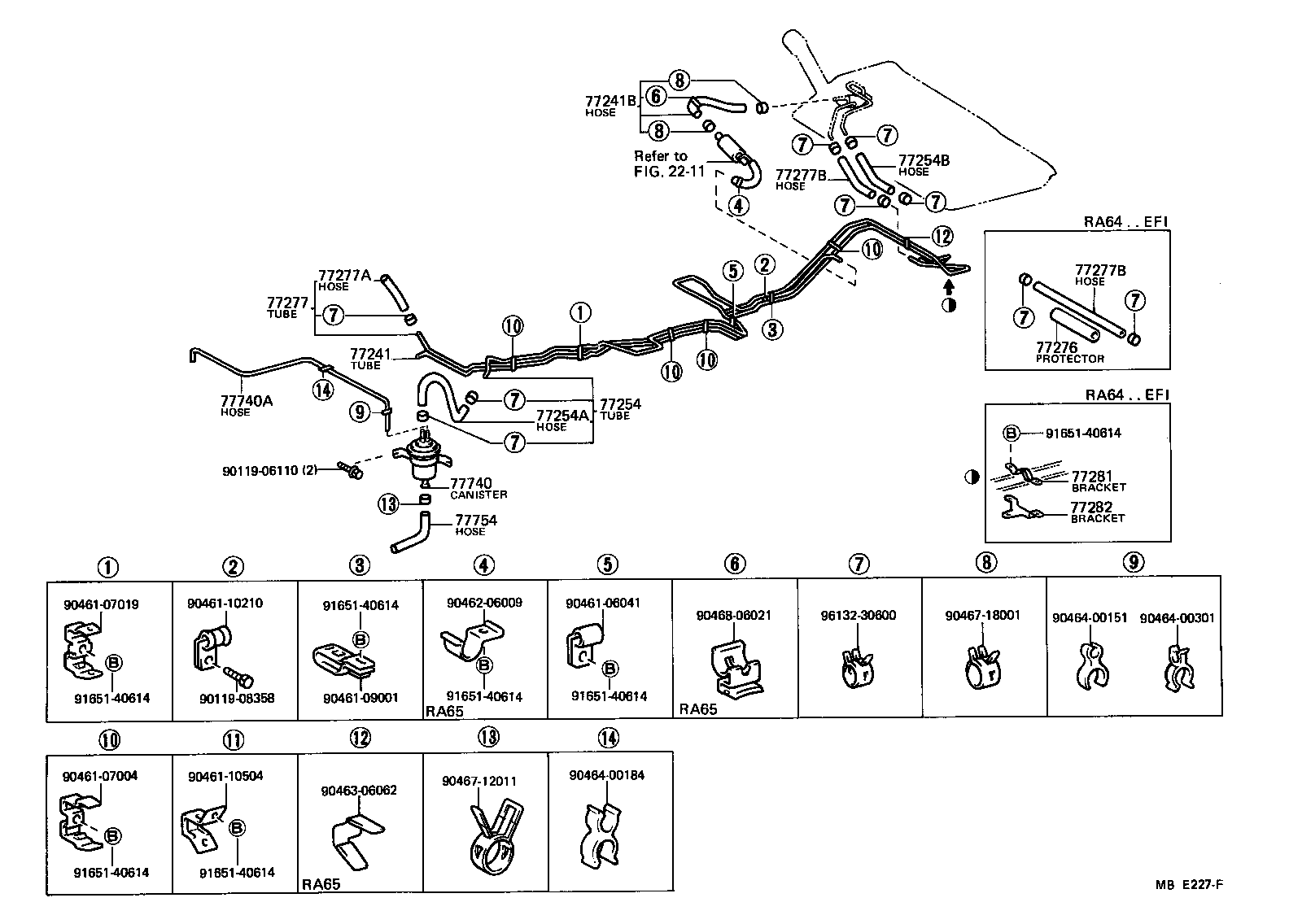

Click highlighted areas on diagram

diagram 2211 77241 77241B 77254 77254A 77254B 77276 77277 77277A 77277B 77277B 77281 77282 77740 77740A 77754 9011906110 9011908358 9046106041 9046107004 9046107019 9046109001 9046110210 9046110504 9046206009 9046306062 9046400151 9046400184 9046400301 9046712011 9046718001 9046806021 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-14320

RA64

 1
77251-14220

RA64..EFI

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77259-14031

RA64..EFI

 1
77254 - TUBE, FUEL EMISSION, NO.1
77261-14150

RA64..EFI

 1
77261-14151

RA64

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
77019-14060

RA64

L=300

 1
95332-06030

RA6#..EFI

*H,L=220

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06020

RA64..EFI

*H,L=180

 1
77276 - PROTECTOR, FUEL HOSE
77276-14050

RA64..EFI

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-14320

RA64

 1
77255-14250

RA64..EFI

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-06030

RA6#..EFI

*H,L=300

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06030

RA64..EFI

*H,L=260

 1
95332-06020

RA64

*H,L=180

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06030

RA64..EFI

*H,L=260

 1
95332-06020

RA64

*H,L=180

 1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-14020

RA64..EFI

 1
77282 - BRACKET, FUEL MAIN TUBE, NO.2
77282-14020

RA64..EFI

 1
77740 - CANISTER ASSY, CHARCOAL
77740-14310

RA64

 1
77740-14340

RA6#..EFI

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

RA6#..EFI

*H,L=330,MARK=#*

 1
95411-19995

RA6#

*H,L=900,MARK=#*

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
90445-12124

RA6#..EFI

 1
Common parts
90119-06110
90119-08358
90461-06041
90461-07004
90461-07019
90461-09001
90461-10210
90461-10504
90462-06009
90463-06062
90464-00151
90464-00184
90464-00301
90467-12011
90467-18001
90468-06021
91651-40614
96132-30600
