RA64L-BCMQEK (1982)
Toyota Celica
(8108-8507)RA6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-14050 |
MA61,RA6# |
1 | ||
| 55477C - COVER, COOLER SWITCH HOLE | ||||
| 55477-10010 |
RA6#..CP,LB |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1410001 |
MA61,RA6#..5F BLACK,BLACK |
1 | ||
| 58808-1410006 |
RA6#..(CP,LB)..5F DARK BROWN,BROWN |
1 | ||
| 58808-1410004 |
MA61,RA6#..(CP,LB)..5F BLUE,BLUE |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58811-1418004 |
MA61,RA6# BLUE,BLUE |
1 | ||
| 58811-1418006 |
RA6#..CP,LB DARK BROWN,BROWN |
1 | ||
| 58811-1418001 |
RA6# BLACK,BLACK |
1 | ||
| 58811-1418001 |
MA61,RA6# BLACK,BLACK |
1 | ||
| 58811-1418004 |
RA6#..CP,LB BLUE,BLUE |
1 | ||
| 58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58827-20021 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 58836 - PANEL, CONSOLE, UPPER FRONT | ||||
| 58821-14080 |
RA6# |
1 | ||
| 58821-14081 |
RA6# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-1401001 |
RA6# BLACK,BLACK |
1 | ||
| 58839-1401004 |
RA6#..CP,LB BLUE,BLUE |
1 | ||
| 58839-1401006 |
RA6#..CP,LB DARK BROWN,BROWN |
1 | ||
| 58884 - COVER, STEREO OPENING | ||||
| 55521-14050 |
MA61,RA6#..CP,LB |
1 | ||
| 58885 - COVER, CONSOLE BOX OPENING | ||||
| 55522-14080 |
MA61,RA6#..CP,LB |
1 | ||
| 58895 - COVER, SWITCH HOLE, NO.1 | ||||
| 55539-2401004 |
RA6#..CP,LB BLUE,BLUE |
1 | ||
| 55539-2401001 |
RA6# BLACK,BLACK |
1 | ||
| 55539-2401006 |
RA6#..CP,LB DARK BROWN,BROWN |
1 | ||
| 58896 - COVER, SWITCH HOLE, NO.2 | ||||
| 55539-1403004 |
RA64 BLUE,BLUE |
1 | ||
| 55539-1403001 |
RA64 BLACK,BLACK |
1 | ||
| 55539-1403104 |
RA6#..CP,CVT BLUE,BLUE |
1 | ||
| 55539-1403006 |
RA64 DARK BROWN,BROWN |
1 | ||
| 55539-1403101 |
RA6# BLACK,BLACK |
1 | ||
| 55539-1403106 |
RA6#..CP,CVT DARK BROWN,BROWN |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1404001 |
RA6#..GT,GTS BLACK,BLACK |
1 | ||
| 58905-1404006 |
RA6#..(CP,LB)..(GT,GTS) DARK BROWN,BROWN |
1 | ||
| 58905-1404004 |
RA6#..(CP,LB)..(GT,GTS) BLUE,BLUE |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-14010 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-22010 |
RA6#..GT,GTS |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1408001 |
RA6#..GT,GTS BLACK,BLACK |
1 | ||
| 58901-1408004 |
RA6#..(CP,LB)..(GT,GTS) BLUE,BLUE |
1 | ||
| 58901-1408006 |
RA6#..(CP,LB)..(GT,GTS) DARK BROWN,BROWN |
1 | ||
| 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58996-14010 |
MA61,RA6# |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-24010 |
MA61,RA6# |
1 | ||
| Common parts | ||||
| 55419-14020 | ||||
| 90176-04015 | ||||
| 90183-05094 | ||||
| 90189-05003 | ||||
| 90541-04079 | ||||
| 93560-15014 | ||||
| 93560-55014 | ||||
| 93566-54512 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| 93568-15014 | ||||

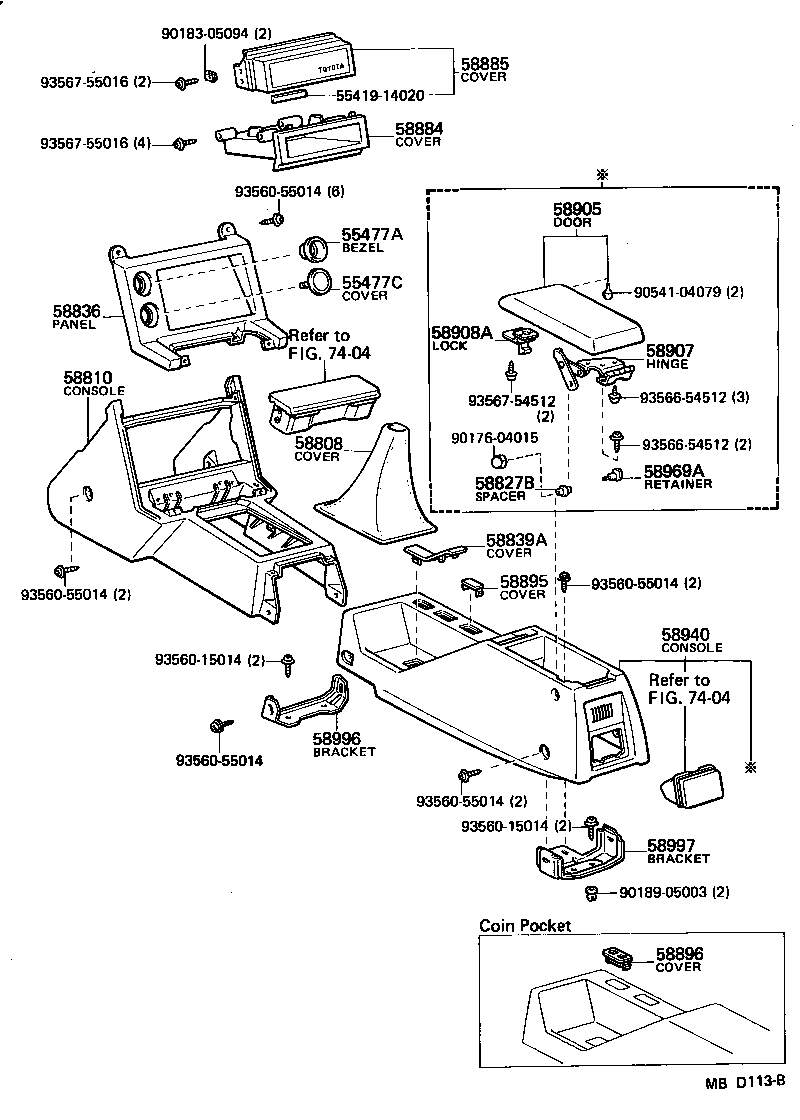

| Linked diagrams | ||||
| 7404 | ||||
