RA64L-BCMQEK (1982)

Toyota Celica

Production Aug 1982 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

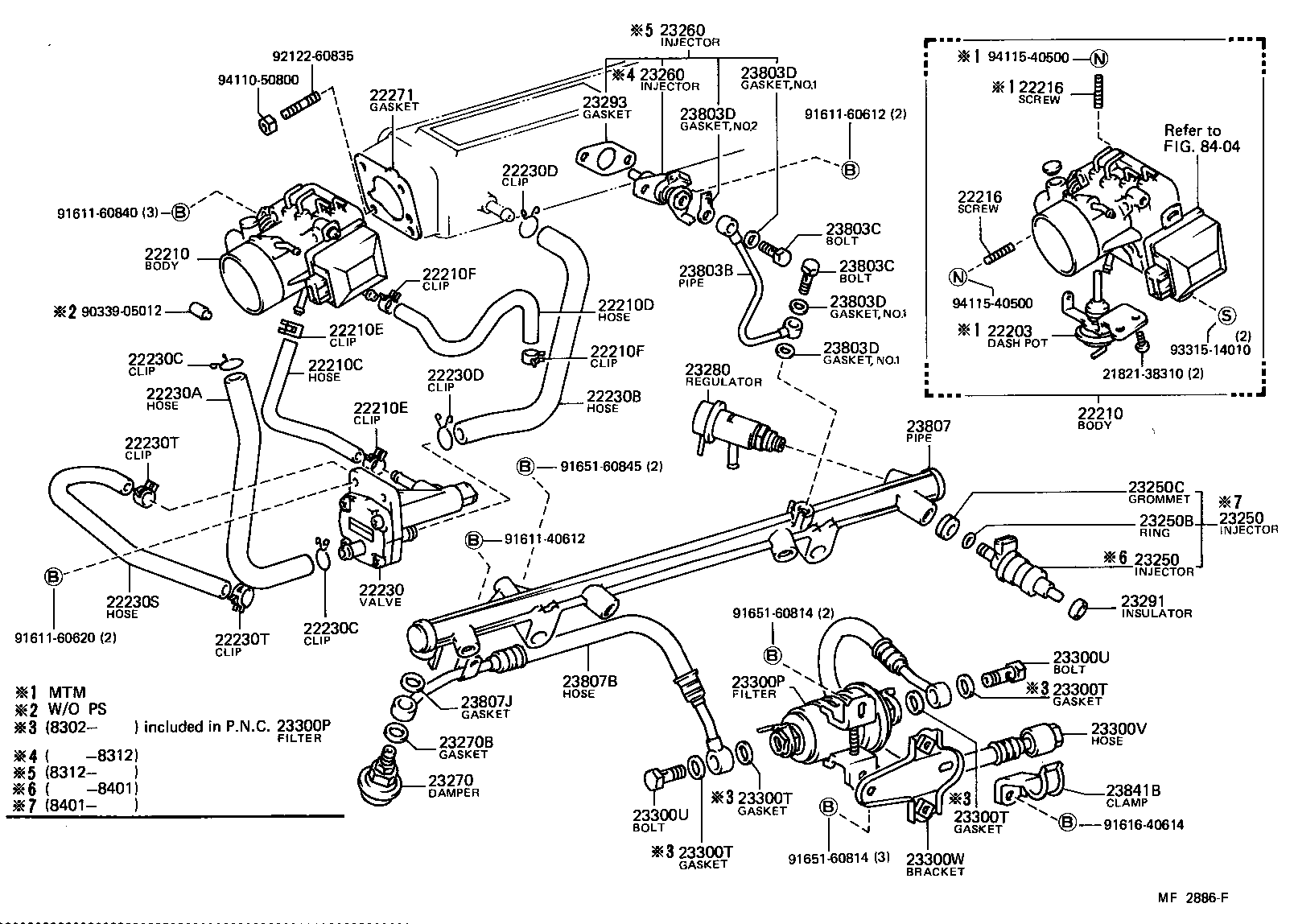

(8208-8408)22REC

Click highlighted areas on diagram

diagram 2182138310 22203 22210 22210 22210C 22210D 22210E 22210E 22210F 22210F 22216 22216 22230 22230A 22230B 22230C 22230C 22230D 22230D 22230S 22230T 22230T 22271 23250 23250 23250B 23250C 23260 23260 23270 23270B 23280 23291 23293 23300P 23300T 23300T 23300T 23300T 23300U 23300U 23300V 23300W 23803B 23803C 23803C 23803D 23803D 23803D 23803D 23807 23807B 23807J 23841B 8404 9033905012 9161140612 9161160612 9161160620 9161160840 9161640614 9165160814 9165160814 9165160845 9212260835 9331514010 9411050800 9411540500 9411540500
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22202-35012

22REC..RA6#..5F

 1
22202-35050

22REC..RA6#..5F

 1
22210 - BODY ASSY, THROTTLE
22210-35010

22REC..RA6#..5F

 1
22210-35030

22REC..RA6#..5F

 1
22210-35090

22REC..RA64..5F

 1
22210 - BODY ASSY, THROTTLE
22210-35010

22REC..RA6#..5F

 1
22210-35030

22REC..RA6#..5F

 1
22210-35090

22REC..RA64..5F

 1
22210C - HOSE, WATER BY-PASS, NO.1
16267-35010

22REC..RA6#

 1
22210D - HOSE, WATER BY-PASS, NO.2
16264-35010

22REC..RA6#

 1
16264-35012

22REC..RA6#

 1
16264-35011

22REC..RA6#

 1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

22REC..RA6#

 2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

22REC..RA6#

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001

22REC..RA6#

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001

22REC..RA6#

 2
22216 - SCREW, DASH POT ADJUSTING
22216-74010

22REC..RA6#

 2
22216 - SCREW, DASH POT ADJUSTING
22216-74010

22REC..RA6#

 2
22230 - VALVE ASSY, AUXILIARY AIR
22230-35010

22REC..RA6#

 1
22230A - HOSE, AUXILIARY AIR VALVE, NO.1
22233-35010

22REC..RA6#

 1
22230B - HOSE, AUXILIARY AIR VALVE, NO.2
22234-35010

22REC..RA6#

 1
22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1
90467-19003

22REC..RA6#

 2
22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1
90467-19003

22REC..RA6#

 2
22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2
90467-19003

22REC..RA6#

 2
22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2
90467-19003

22REC..RA6#

 2
22230S - HOSE, WATER BY-PASS(FOR AUXILIARY AIR VALVE)
16281-35010

22REC..RA6#

 1
22230T - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS)
90467-13001

22REC..RA6#

 2
22230T - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS)
90467-13001

22REC..RA6#

 2
22271 - GASKET, THROTTLE BODY
22271-35010

22REC..RA6#

 1
23250 - INJECTOR ASSY, FUEL
23250-45011

22REC..RA6#

 6
23250 - INJECTOR ASSY, FUEL
23250-45011

22REC..RA6#

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

22REC..RA6#

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

22REC..RA6#

 6
23260 - INJECTOR ASSY, COLD START FUEL
23260-35010

22REC..RA6#

 1
23260-39055

22REC..RA6#

 1
23260 - INJECTOR ASSY, COLD START FUEL
23260-35010

22REC..RA6#

 1
23260-39055

22REC..RA6#

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-70010

22REC..RA6#

 1
23270-35010

22REC..RA6#

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-17002

22REC..RA6#

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-35011

22REC..RA6#

 1
23280-35010

22REC..RA6#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

22REC..RA6#

 6
23293 - GASKET, COLD START INJECTOR
23293-35010

22REC..RA6#

 1
23300P - FILTER, FUEL(FOR EFI)
23300-39025

22REC..RA6#

 1
23300-39035

22REC..RA6#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

22REC..RA6#

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

22REC..RA6#

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

22REC..RA6#

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

22REC..RA6#

 4
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

22REC..RA6#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

22REC..RA6#

 2
23300V - HOSE, FUEL(FOR FUEL INLET)
90923-01218

22REC..RA6#

 1
23300W - BRACKET, FUEL FILTER
23264-35020

22REC..RA6#

 1
23264-35010

22REC..RA6#

 1
23803B - PIPE SUB-ASSY, FUEL, NO.3
23801-35010

22REC..RA6#

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

22REC..RA6#

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

22REC..RA6#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

22REC..RA6#

NO.1

 3
90430-08007

22REC..RA6#

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

22REC..RA6#

NO.1

 3
90430-08007

22REC..RA6#

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

22REC..RA6#

NO.1

 3
90430-08007

22REC..RA6#

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

22REC..RA6#

NO.1

 3
90430-08007

22REC..RA6#

NO.2

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-35010

22REC..RA6#

 1
23807B - HOSE, FUEL DELIVERY PIPE
90923-01263

22REC..RA6#

 1
90923-01326

22REC..RA6#

 1
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-14002

22REC..RA6#

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-35020

22REC..RA6#

 1
Common parts
21821-38310
90339-05012
91611-40612
91611-60612
91611-60620
91611-60840
91616-40614
91651-60814
91651-60845
92122-60835
93315-14010
94110-50800
94115-40500
Linked diagrams
8404

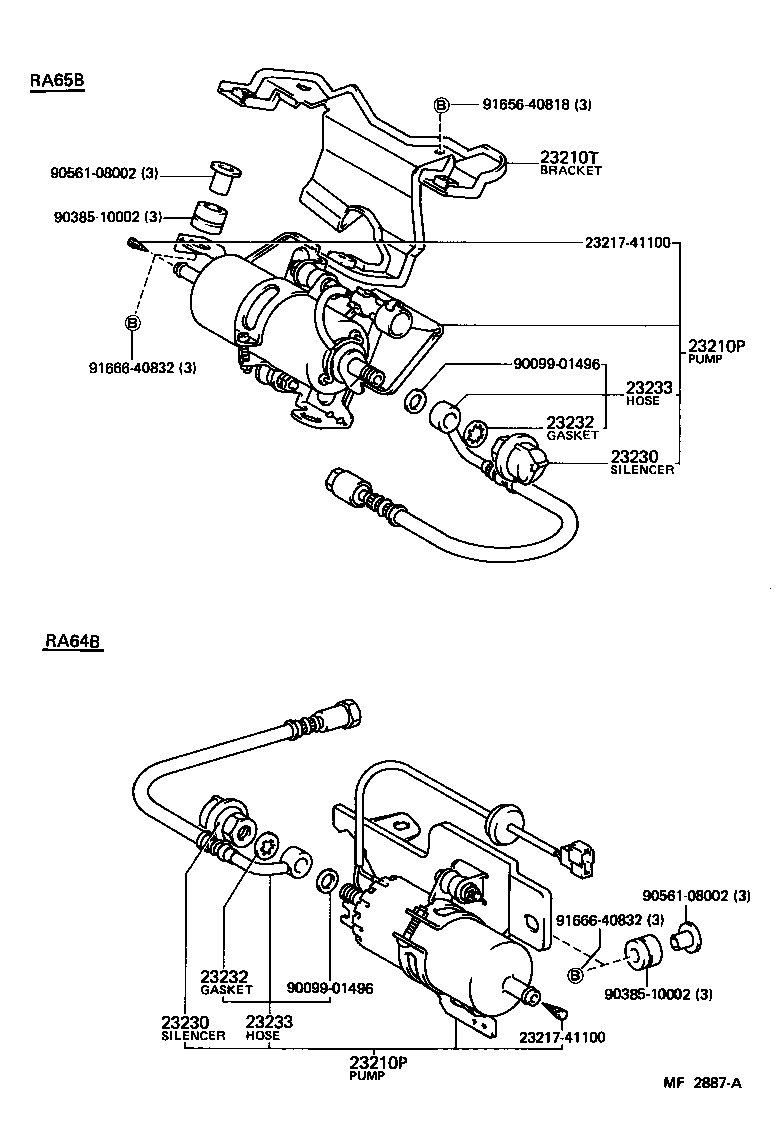

(8208-8308)22REC

Click highlighted areas on diagram

diagram 23210P 23210P 23210T 2321741100 2321741100 23230 23230 23232 23232 23233 23233 9009901496 9009901496 9038510002 9038510002 9056108002 9056108002 9165640818 9166640832 9166640832
Part # Description Qty Price
23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET
23210-35010

22REC..RA64

 1
23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET
23210-35010

22REC..RA64

 1
23230 - SILENCER ASSY
23230-74020

22REC..RA6#

 1
23230-26080

22REC..RA6#

 1
23230 - SILENCER ASSY
23230-74020

22REC..RA6#

 1
23230-26080

22REC..RA6#

 1
23233 - HOSE, FUEL PUMP
90999-99107

22REC..RA64

 1
90923-01292

22REC..RA64

BRACKET TO FUEL PIPE

 1
23233 - HOSE, FUEL PUMP
90999-99107

22REC..RA64

 1
90923-01292

22REC..RA64

BRACKET TO FUEL PIPE

 1
Common parts
23217-41100
90099-01496
90385-10002
90561-08002
91656-40818
91666-40832

(8308- )22REC

Click highlighted areas on diagram

diagram 23206A 23206B 23217A 23220P 23220P 23229 23233 23233 23233B 23233B 23249 9098901008 9338115010 9411540400 9411540500 9451100400 9451100500
Part # Description Qty Price
23206A - BRACKET, FUEL PUMP
23206-35020

22REC..RA64

DENSO

 1
23206-35020

22REC..RA64

DENSO

 1
23206-35060

22REC..RA64

 1
23206-35060

22REC..RA64

 1
23206-35060

22REC..RA64

AISAN

 1
23206-35060

22REC..RA64

AISAN

 1
23220P - PUMP ASSY, FUEL
23220-16080

22REC..RA6#

 1
23220-16080

22REC..RA6#

 1
23220-16080

22REC..RA6#

AISAN

 1
23220-16080

22REC..RA6#

AISAN

 1
23220-16070

22REC..RA6#

DENSO

 1
23220-16070

22REC..RA6#

DENSO

 1
23220-16081

22REC..RA6#

 1
23220-16081

22REC..RA6#

 1
23220-19015

22REC..RA6#

DENSO

 1
23220-19015

22REC..RA6#

DENSO

 1
23220P - PUMP ASSY, FUEL
23220-16080

22REC..RA6#

 1
23220-16080

22REC..RA6#

 1
23220-16080

22REC..RA6#

AISAN

 1
23220-16080

22REC..RA6#

AISAN

 1
23220-16070

22REC..RA6#

DENSO

 1
23220-16070

22REC..RA6#

DENSO

 1
23220-16081

22REC..RA6#

 1
23220-16081

22REC..RA6#

 1
23220-19015

22REC..RA6#

DENSO

 1
23220-19015

22REC..RA6#

DENSO

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

22REC..RA6#

DENSO

 1
23229-16010

22REC..RA6#

DENSO

 1
23229-16020

22REC..RA6#

AISAN

 1
23229-16020

22REC..RA6#

AISAN

 1
23233 - HOSE, FUEL PUMP
90999-99107

22REC..RA64

 1
90999-99107

22REC..RA64

 1
90923-01292

22REC..RA64

BRACKET TO FUEL PIPE

 1
90923-01292

22REC..RA64

BRACKET TO FUEL PIPE

 1
23233 - HOSE, FUEL PUMP
90999-99107

22REC..RA64

 1
90999-99107

22REC..RA64

 1
90923-01292

22REC..RA64

BRACKET TO FUEL PIPE

 1
90923-01292

22REC..RA64

BRACKET TO FUEL PIPE

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-16010

22REC..RA6#

 1
23249-16010

22REC..RA6#

 1
Common parts
90989-01008
93381-15010
94115-40400
94115-40500
94511-00400
94511-00500

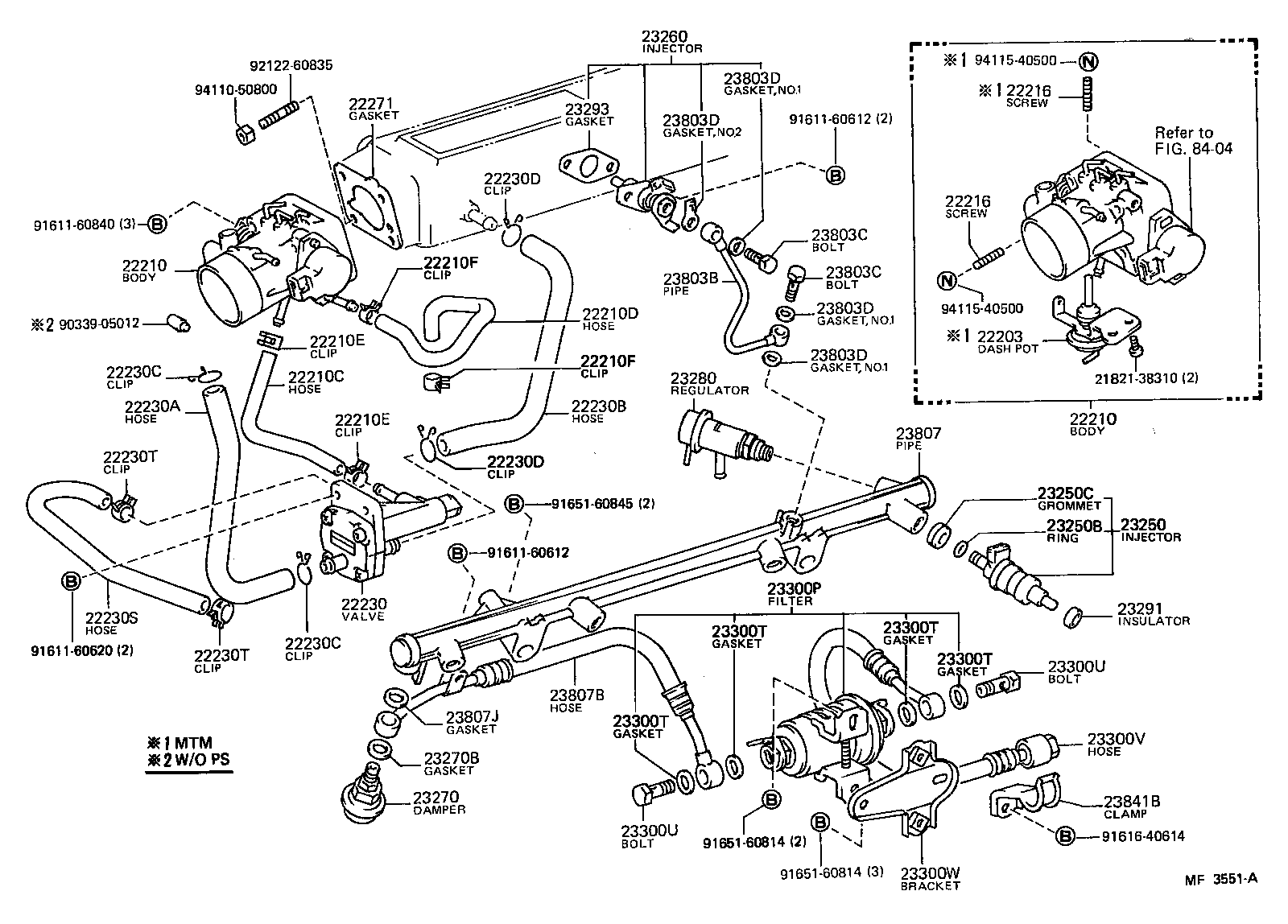

(8408-8507)22REC

Click highlighted areas on diagram

diagram 2182138310 22203 22210 22210 22210C 22210D 22210E 22210E 22210F 22210F 22216 22216 22230 22230A 22230B 22230C 22230C 22230D 22230D 22230S 22230T 22230T 22271 23250 23250B 23250C 23260 23270 23270B 23280 23291 23293 23300P 23300T 23300T 23300T 23300T 23300U 23300U 23300V 23300W 23803B 23803C 23803C 23803D 23803D 23803D 23803D 23807 23807B 23807J 23841B 8404 9033905012 9161160612 9161160612 9161160620 9161160840 9161640614 9165160814 9165160814 9165160845 9212260835 9411050800 9411540500 9411540500
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22202-35012

22REC..RA6#..5F

 1
22202-35050

22REC..RA6#..5F

 1
22210 - BODY ASSY, THROTTLE
22210-35010

22REC..RA6#..5F

 1
22210-35030

22REC..RA6#..5F

 1
22210-35090

22REC..RA64..5F

 1
22210 - BODY ASSY, THROTTLE
22210-35010

22REC..RA6#..5F

 1
22210-35030

22REC..RA6#..5F

 1
22210-35090

22REC..RA64..5F

 1
22210C - HOSE, WATER BY-PASS, NO.1
16267-35010

22REC..RA6#

 1
22210D - HOSE, WATER BY-PASS, NO.2
16264-35010

22REC..RA6#

 1
16264-35012

22REC..RA6#

 1
16264-35011

22REC..RA6#

 1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

22REC..RA6#

 2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

22REC..RA6#

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001

22REC..RA6#

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001

22REC..RA6#

 2
22216 - SCREW, DASH POT ADJUSTING
22216-74010

22REC..RA6#

 2
22216 - SCREW, DASH POT ADJUSTING
22216-74010

22REC..RA6#

 2
22230 - VALVE ASSY, AUXILIARY AIR
22230-35010

22REC..RA6#

 1
22230A - HOSE, AUXILIARY AIR VALVE, NO.1
22233-35010

22REC..RA6#

 1
22230B - HOSE, AUXILIARY AIR VALVE, NO.2
22234-35010

22REC..RA6#

 1
22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1
90467-19003

22REC..RA6#

 2
22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1
90467-19003

22REC..RA6#

 2
22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2
90467-19003

22REC..RA6#

 2
22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2
90467-19003

22REC..RA6#

 2
22230S - HOSE, WATER BY-PASS(FOR AUXILIARY AIR VALVE)
16281-35010

22REC..RA6#

 1
22230T - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS)
90467-13001

22REC..RA6#

 2
22230T - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS)
90467-13001

22REC..RA6#

 2
22271 - GASKET, THROTTLE BODY
22271-35010

22REC..RA6#

 1
23250 - INJECTOR ASSY, FUEL
23250-45011

22REC..RA6#

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

22REC..RA6#

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

22REC..RA6#

 6
23260 - INJECTOR ASSY, COLD START FUEL
23260-35010

22REC..RA6#

 1
23260-39055

22REC..RA6#

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-70010

22REC..RA6#

 1
23270-35010

22REC..RA6#

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-17002

22REC..RA6#

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-35011

22REC..RA6#

 1
23280-35010

22REC..RA6#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

22REC..RA6#

 6
23293 - GASKET, COLD START INJECTOR
23293-35010

22REC..RA6#

 1
23300P - FILTER, FUEL(FOR EFI)
23300-39025

22REC..RA6#

 1
23300-39035

22REC..RA6#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

22REC..RA6#

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

22REC..RA6#

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

22REC..RA6#

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

22REC..RA6#

 4
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

22REC..RA6#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

22REC..RA6#

 2
23300V - HOSE, FUEL(FOR FUEL INLET)
90923-01218

22REC..RA6#

 1
23300W - BRACKET, FUEL FILTER
23264-35020

22REC..RA6#

 1
23264-35010

22REC..RA6#

 1
23803B - PIPE SUB-ASSY, FUEL, NO.3
23801-35010

22REC..RA6#

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

22REC..RA6#

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

22REC..RA6#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

22REC..RA6#

NO.1

 3
90430-08007

22REC..RA6#

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

22REC..RA6#

NO.1

 3
90430-08007

22REC..RA6#

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

22REC..RA6#

NO.1

 3
90430-08007

22REC..RA6#

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

22REC..RA6#

NO.1

 3
90430-08007

22REC..RA6#

NO.2

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-35010

22REC..RA6#

 1
23807B - HOSE, FUEL DELIVERY PIPE
90923-01263

22REC..RA6#

 1
90923-01326

22REC..RA6#

 1
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-14002

22REC..RA6#

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-35020

22REC..RA6#

 1
Common parts
21821-38310
90339-05012
91611-60612
91611-60620
91611-60840
91616-40614
91651-60814
91651-60845
92122-60835
94110-50800
94115-40500
Linked diagrams
8404
