RA64L-BCMQEK (1982)

Toyota Celica

Production Aug 1982 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)22R ; (8208-8408)22REC

Click highlighted areas on diagram

diagram 27020 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27359 27362 27371 27372 2737845090 2738745022 2738745110 27410 27411 27412 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110083 9011908065 9017010015 9017906158 9020110005 9020110005 9451101400 9451201000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-35060

22REC..RA6#

12V 60A,12V 60A

 1
27060-35020

22R#..RA6#

12V 60A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

22R#,5MGE..MA61,RA6#

12V 55A,60A,65A

 1
27412-45070

22REC..RA6#

12V 55A,60A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-35020

22R#..RA6#

12V 55A,60A

 1
27310-38061

22R#..RA6#

12V 55A,60A

 1
27310-35060

22REC..RA6#

12V 60A

 1
27310-35061

22REC..RA6#

12V 60A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

22R#,5MGE..MA61,RA6#

12V 55A,60A,65A

 1
27412-31040

22REC..RA6#

12V 55A,60A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

22REC..RA6#

12V 55A,60A

 1
90099-10125

22R#,5MGE..MA61,RA6#

12V 55A,60A,65A

 1
90099-10152

22REC..RA6#

12V 60A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-63021

22REC..RA6#

12V 60A

 1
27330-15070

22R#..RA6#

12V 55A,60A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

22REC..RA6#

12V 55A,60A

 1
90099-10140

22REC..RA6#

12V 60A

 1
90099-10116

22R#,5MGE..MA61,RA6#

12V 55A,60A,65A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

22R#,5MGE..MA61,RA6#

12V 55A,60A,65A

 1
90099-52065

22REC..RA6#

12V 55A,60A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

22REC..RA6#

12V 55A,60A

 1
27351-38051

22R#,5MGE..MA61,RA6#

12V 55A,60A,65A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16011

22REC..RA6#

12V 60A

 1
27359-28030

22R#..RA6#

12V 55A,60A

 1
27359-34080

22R#..RA6#

12V 55A,60A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-43040

22R#..RA6#

12V 60A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

22REC..RA6#

12V 55A,60A

 2
27371-31011

22R#,5MGE..MA61,RA6#

12V 55A,60A,65A

 2
27371-63020

22REC..RA6#

12V 60A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

22REC..RA6#

12V 60A

 2
27372-31011

22REC..RA6#

12V 55A,60A

 2
27372-31011

22R#,5MGE..MA61,RA6#

12V 55A,60A,65A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-45120

22R#..RA6#

12V 60A

 1
27411 - PULLEY, ALTERNATOR
27411-35060

22REC..RA6#

12V 60A

 1
27411-31042

22R#..RA6#

12V 55A,60A

 1
27411-35061

22REC..RA6#

12V 60A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44031

22R#..RA6#

12V 55A,60A

 1
27441 - FAN, ALTERNATOR
27441-70040

22R#..RA6#

12V 55A,60A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-43010

22REC..RA6#

12V 55A,60A

 1
27700-43010

22R#,5MGE..MA61,RA6#

12V 55A,60A,65A

 1
27700-63021

22REC..RA6#

12V 60A

 1
Common parts
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10083
90119-08065
90170-10015
90179-06158
90201-10005
94511-01400
94512-01000

(8308- )5MGE ; (8408-8507)22REC

Click highlighted areas on diagram

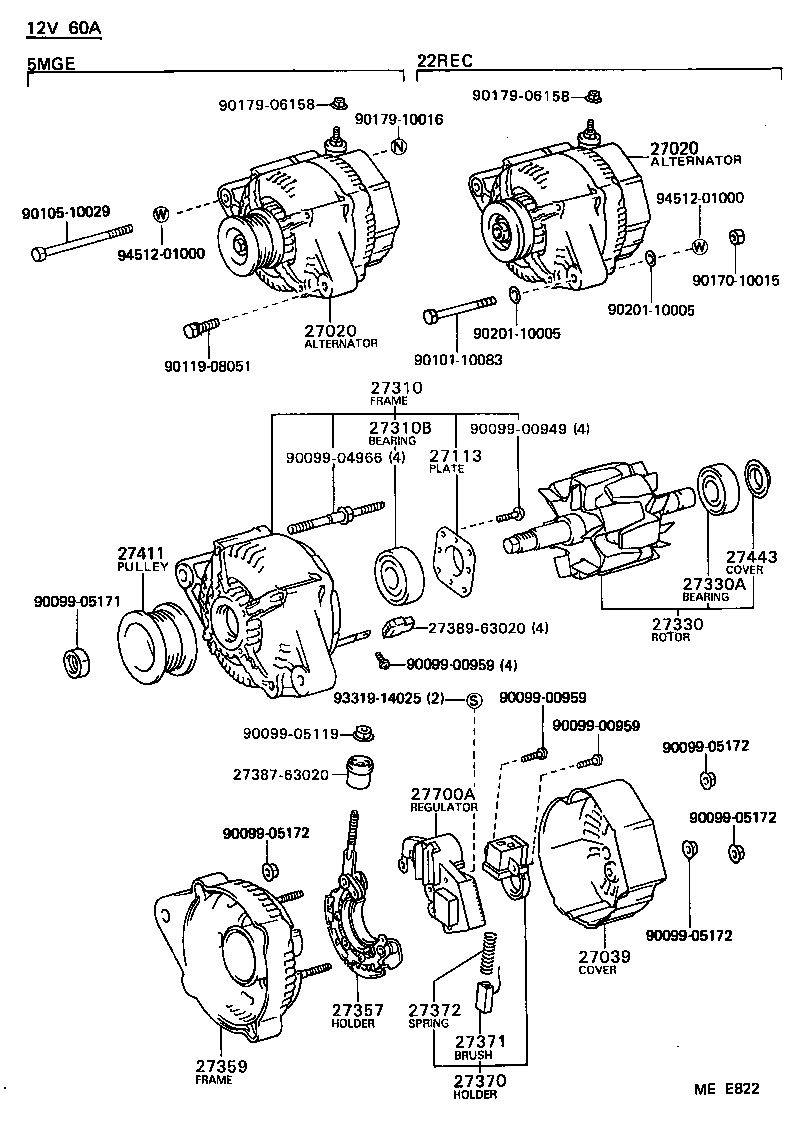

diagram 27020 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 2738763020 2738963020 27411 27443 27700A 9009900949 9009900959 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9009905172 9009905172 9010110083 9010510029 9011908051 9017010015 9017906158 9017906158 9017910016 9020110005 9020110005 9331914025 9451201000 9451201000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-35060

22REC..RA6#

12V 60A,12V 60A

 1
27060-35020

22R#..RA6#

12V 60A

 1
27020 - ALTERNATOR ASSY
27060-35060

22REC..RA6#

12V 60A,12V 60A

 1
27060-35020

22R#..RA6#

12V 60A

 1
27039 - COVER, ALTERNATOR REAR END
27039-63021

22REC..RA6#

12V 60A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-63020

22REC..RA6#

12V 60A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-35020

22R#..RA6#

12V 55A,60A

 1
27310-38061

22R#..RA6#

12V 55A,60A

 1
27310-35060

22REC..RA6#

12V 60A

 1
27310-35061

22REC..RA6#

12V 60A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

22REC..RA6#

12V 55A,60A

 1
90099-10125

22R#,5MGE..MA61,RA6#

12V 55A,60A,65A

 1
90099-10152

22REC..RA6#

12V 60A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-63021

22REC..RA6#

12V 60A

 1
27330-15070

22R#..RA6#

12V 55A,60A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

22REC..RA6#

12V 55A,60A

 1
90099-10140

22REC..RA6#

12V 60A

 1
90099-10116

22R#,5MGE..MA61,RA6#

12V 55A,60A,65A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

22REC..RA6#

12V 60A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16011

22REC..RA6#

12V 60A

 1
27359-28030

22R#..RA6#

12V 55A,60A

 1
27359-34080

22R#..RA6#

12V 55A,60A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-63020

22REC..RA6#

12V 60A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

22REC..RA6#

12V 55A,60A

 2
27371-31011

22R#,5MGE..MA61,RA6#

12V 55A,60A,65A

 2
27371-63020

22REC..RA6#

12V 60A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

22REC..RA6#

12V 60A

 2
27372-31011

22REC..RA6#

12V 55A,60A

 2
27372-31011

22R#,5MGE..MA61,RA6#

12V 55A,60A,65A

 2
27411 - PULLEY, ALTERNATOR
27411-35060

22REC..RA6#

12V 60A

 1
27411-31042

22R#..RA6#

12V 55A,60A

 1
27411-35061

22REC..RA6#

12V 60A

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

22REC..RA6#

12V 60A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-43010

22REC..RA6#

12V 55A,60A

 1
27700-43010

22R#,5MGE..MA61,RA6#

12V 55A,60A,65A

 1
27700-63021

22REC..RA6#

12V 60A

 1
Common parts
27387-63020
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90101-10083
90105-10029
90119-08051
90170-10015
90179-06158
90179-10016
90201-10005
93319-14025
94512-01000
