RA64L-BCMQEK (1982)

Toyota Celica

Production Aug 1982 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)22REC

Click highlighted areas on diagram

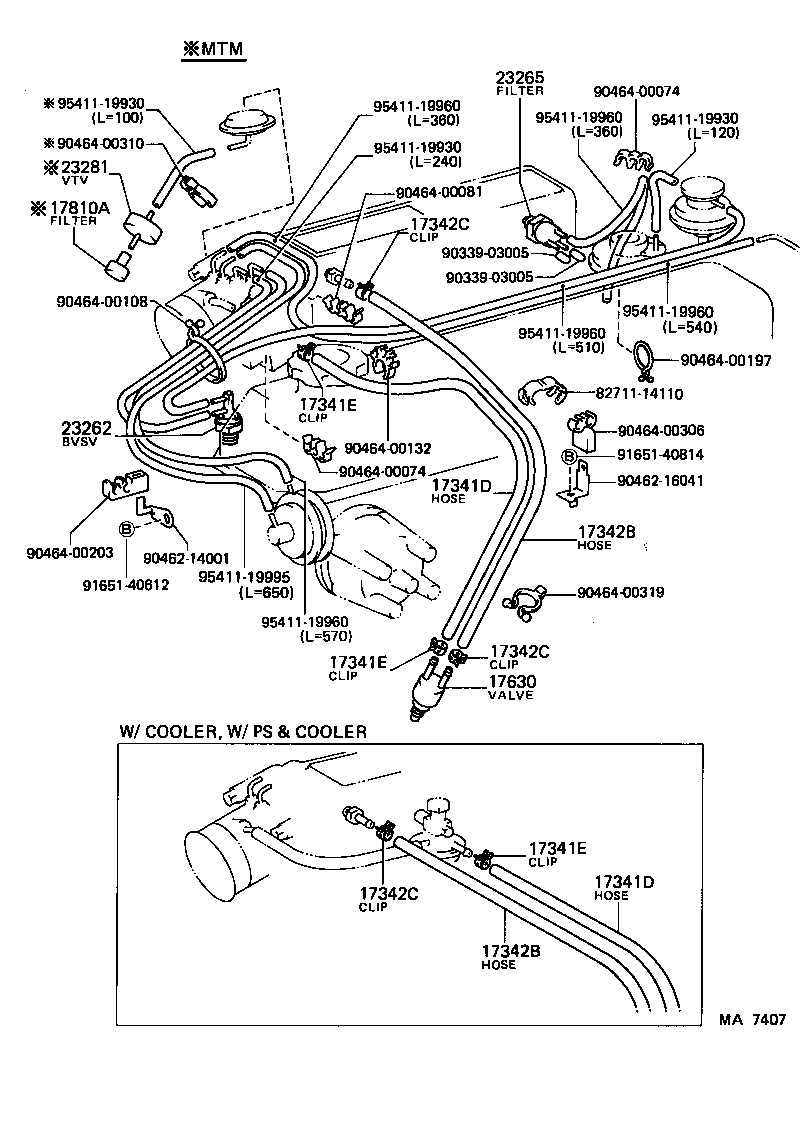

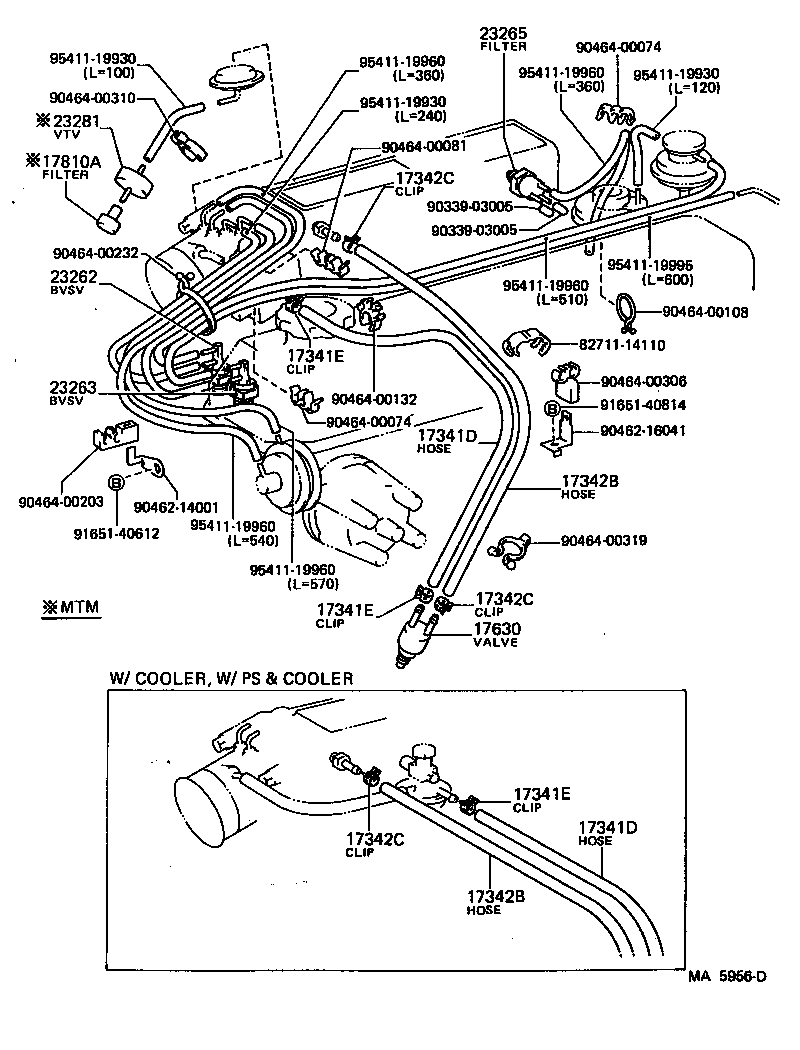

diagram 17341D 17341D 17341E 17341E 17341E 17342B 17342B 17342C 17342C 17342C 17630 17810A 23262 23263 23265 23281 8271114110 9033903005 9033903005 9046214001 9046216041 9046400074 9046400074 9046400081 9046400108 9046400132 9046400203 9046400232 9046400306 9046400310 9046400319 9165140612 9165140814 9541119930 9541119930 9541119930 9541119960 9541119960 9541119960 9541119960 9541119960 9541119995
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-35030

22REC..RA6#

W/PS

 1
17342-35050

22REC..RA6#

W/COOLER

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-35030

22REC..RA6#

W/PS

 1
17342-35050

22REC..RA6#

W/COOLER

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-35050

22REC..RA6#

W/PS OR COOLER

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-35050

22REC..RA6#

W/PS OR COOLER

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17630 - VALVE ASSY, AIR CONTROL
17630-28010

22REC..RA6#

W/PS OR COOLER

 1
17810A - FILTER ASSY, AIR
90925-06006

22REC..RA6#..5F

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05035

22R..RA64..CND

 1
90925-05035

22REC..RA6#

 1
25810-27010

22R..RA64

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13010

22REC..RA6#

 1
90925-05047

22REC..RA6#

 1
23265 - FILTER, GAS, NO.1
90917-11023

22R..RA64..CND

 1
90917-11024

22REC..RA6#

 1
90917-11022

22R..RA64

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01027

22R..RA64

 1
90925-01014

22REC..RA6#..5F

 1
Common parts
82711-14110
90339-03005
90462-14001
90462-16041
90464-00074
90464-00081
90464-00108
90464-00132
90464-00203
90464-00232
90464-00306
90464-00310
90464-00319
91651-40612
91651-40814
95411-19930
95411-19960
95411-19995

(8208-8308)22R

Click highlighted areas on diagram

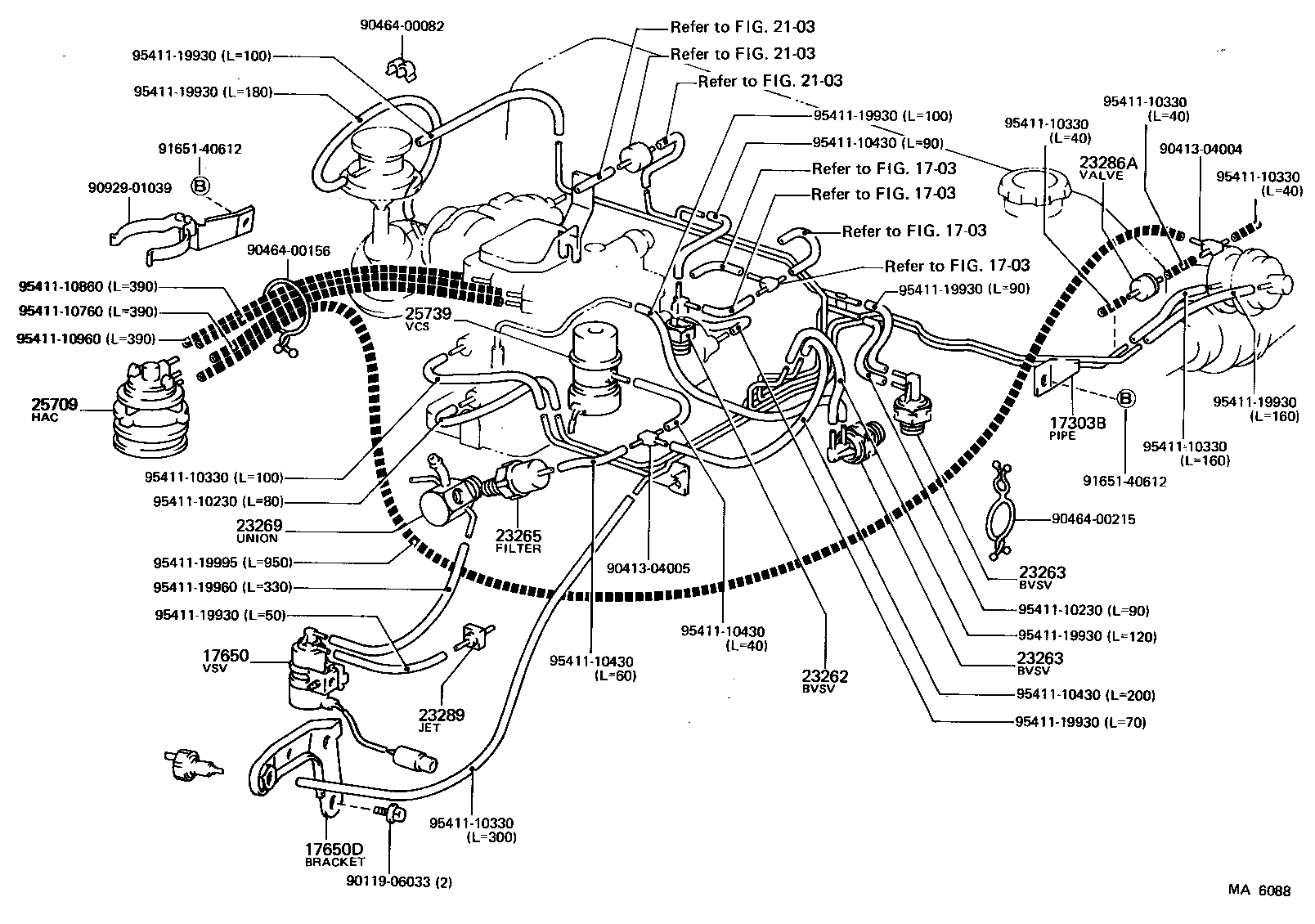

diagram 1703 1703 1703 1703 17303B 17650 17650D 2103 2103 2103 23262 23263 23263 23265 23269 23286A 23289 25709 25739 9011906033 9041304004 9041304005 9046400082 9046400156 9046400215 9092901039 9165140612 9165140612 9541110230 9541110230 9541110330 9541110330 9541110330 9541110330 9541110330 9541110330 9541110430 9541110430 9541110430 9541110430 9541110760 9541110860 9541110960 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119995
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35140

22R..RA64

 1
17303-35190

22REC..RA6#

 1
17303-35120

22R..RA64..5F..CND

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-14060

22R..RA64

 1
89570-14160

22R..RA64..5F..CND

 1
89570-14140

22R..RA64

AI&EVAP

 1
89570-14170

22R..RA64

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-14020

22R..RA64

 1
89579-14010

22R..RA64

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05035

22R..RA64..CND

 1
90925-05035

22REC..RA6#

 1
25810-27010

22R..RA64

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13010

22REC..RA6#

 1
90925-05047

22REC..RA6#

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13010

22REC..RA6#

 1
90925-05047

22REC..RA6#

 1
23265 - FILTER, GAS, NO.1
90917-11023

22R..RA64..CND

 1
90917-11024

22REC..RA6#

 1
90917-11022

22R..RA64

 1
23269 - UNION(FOR GAS FILTER)
90404-54018

22R..RA64..4FC;22R..RA64..5F..CND

 1
23289 - JET, NO.2
90925-04028

22R..RA64

EVAP

 1
90925-04024

22R..RA64

EVAP

 1
25739 - SWITCH, VACUUM CONTROL
25739-35010

22R..RA64

 1
Common parts
90119-06033
90413-04004
90413-04005
90464-00082
90464-00156
90464-00215
90929-01039
91651-40612
95411-10230
95411-10330
95411-10430
95411-10760
95411-10860
95411-10960
95411-19930
95411-19960
95411-19995
Linked diagrams
1703
2103

(8208-8308)22R

Click highlighted areas on diagram

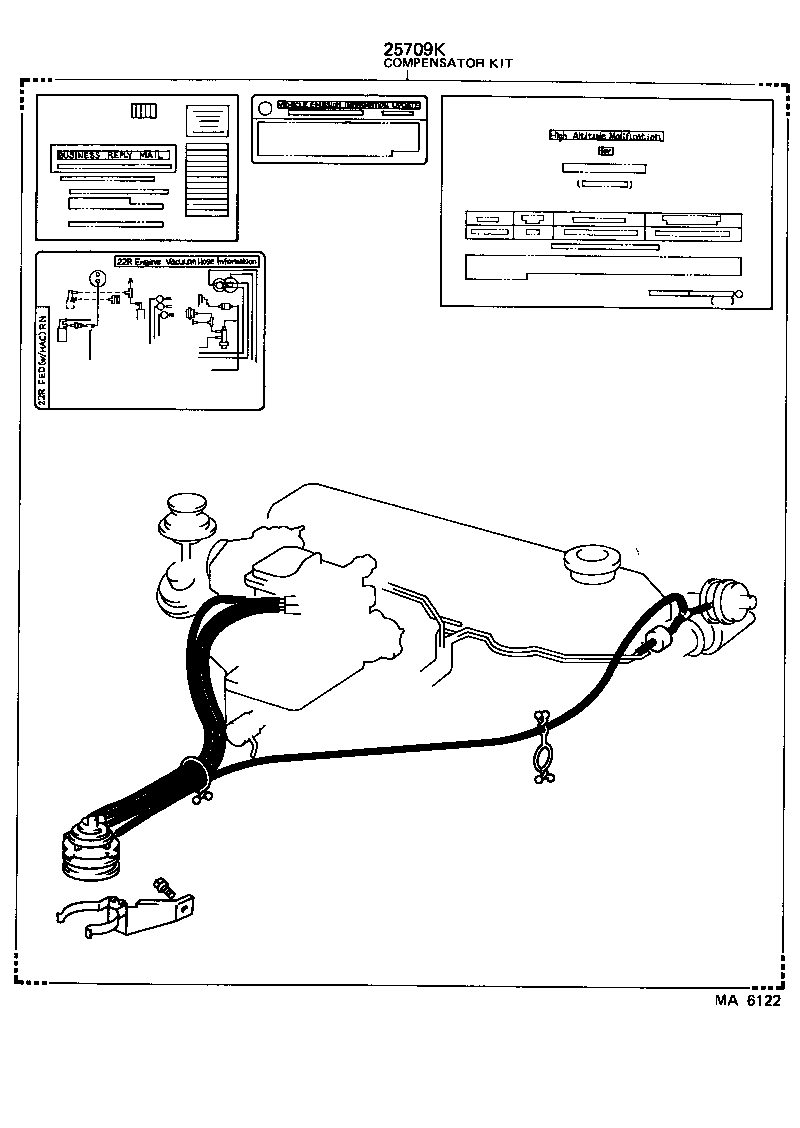

diagram 25709K
Part # Description Qty Price
25709K - COMPENSATOR KIT, HIGH ALTITUDE
04215-35070

22R..RA64

 1

(8308-8408)22REC

Click highlighted areas on diagram

diagram 17341D 17341D 17341E 17341E 17341E 17342B 17342B 17342C 17342C 17342C 17630 17810A 23262 23265 23281 8271114110 9033903005 9033903005 9046214001 9046216041 9046400074 9046400074 9046400081 9046400108 9046400132 9046400197 9046400203 9046400306 9046400310 9046400319 9165140612 9165140814 9541119930 9541119930 9541119930 9541119960 9541119960 9541119960 9541119960 9541119960 9541119995
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-35030

22REC..RA6#

W/PS

 1
17342-35050

22REC..RA6#

W/COOLER

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-35030

22REC..RA6#

W/PS

 1
17342-35050

22REC..RA6#

W/COOLER

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-35050

22REC..RA6#

W/PS OR COOLER

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-35050

22REC..RA6#

W/PS OR COOLER

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17630 - VALVE ASSY, AIR CONTROL
17630-28010

22REC..RA6#

W/PS OR COOLER

 1
17810A - FILTER ASSY, AIR
90925-06006

22REC..RA6#..5F

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05035

22R..RA64..CND

 1
90925-05035

22REC..RA6#

 1
25810-27010

22R..RA64

 1
23265 - FILTER, GAS, NO.1
90917-11023

22R..RA64..CND

 1
90917-11024

22REC..RA6#

 1
90917-11022

22R..RA64

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01027

22R..RA64

 1
90925-01014

22REC..RA6#..5F

 1
Common parts
82711-14110
90339-03005
90462-14001
90462-16041
90464-00074
90464-00081
90464-00108
90464-00132
90464-00197
90464-00203
90464-00306
90464-00310
90464-00319
91651-40612
91651-40814
95411-19930
95411-19960
95411-19995

(8408-8507)22REC

Click highlighted areas on diagram

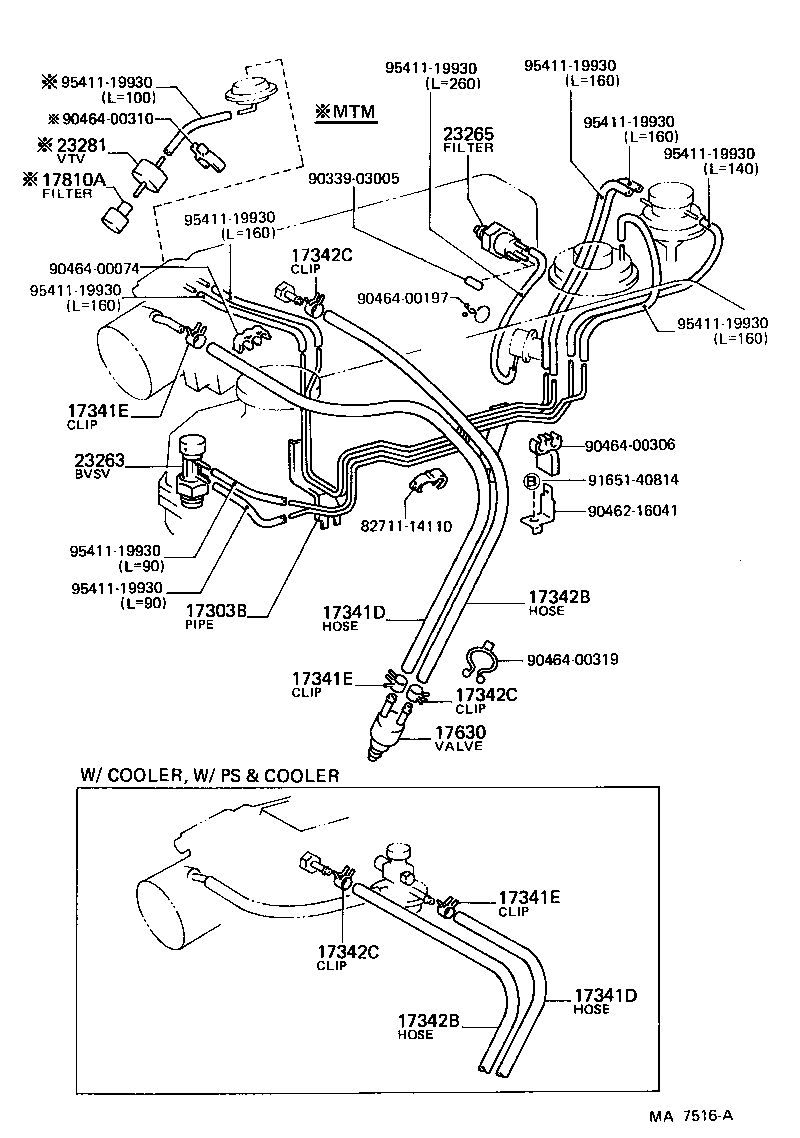

diagram 17303B 17341D 17341D 17341E 17341E 17341E 17342B 17342B 17342C 17342C 17342C 17630 17810A 23263 23265 23281 8271114110 9033903005 9046216041 9046400074 9046400197 9046400306 9046400310 9046400319 9165140814 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35140

22R..RA64

 1
17303-35190

22REC..RA6#

 1
17303-35120

22R..RA64..5F..CND

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-35030

22REC..RA6#

W/PS

 1
17342-35050

22REC..RA6#

W/COOLER

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-35030

22REC..RA6#

W/PS

 1
17342-35050

22REC..RA6#

W/COOLER

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-35050

22REC..RA6#

W/PS OR COOLER

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-35050

22REC..RA6#

W/PS OR COOLER

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400

22REC..RA6#

W/PS OR COOLER

 2
17630 - VALVE ASSY, AIR CONTROL
17630-28010

22REC..RA6#

W/PS OR COOLER

 1
17810A - FILTER ASSY, AIR
90925-06006

22REC..RA6#..5F

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13010

22REC..RA6#

 1
90925-05047

22REC..RA6#

 1
23265 - FILTER, GAS, NO.1
90917-11023

22R..RA64..CND

 1
90917-11024

22REC..RA6#

 1
90917-11022

22R..RA64

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01027

22R..RA64

 1
90925-01014

22REC..RA6#..5F

 1
Common parts
82711-14110
90339-03005
90462-16041
90464-00074
90464-00197
90464-00306
90464-00310
90464-00319
91651-40814
95411-19930
