RA64L-BCMQEK (1982)

Toyota Celica

Production Aug 1982 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208-8308)22R

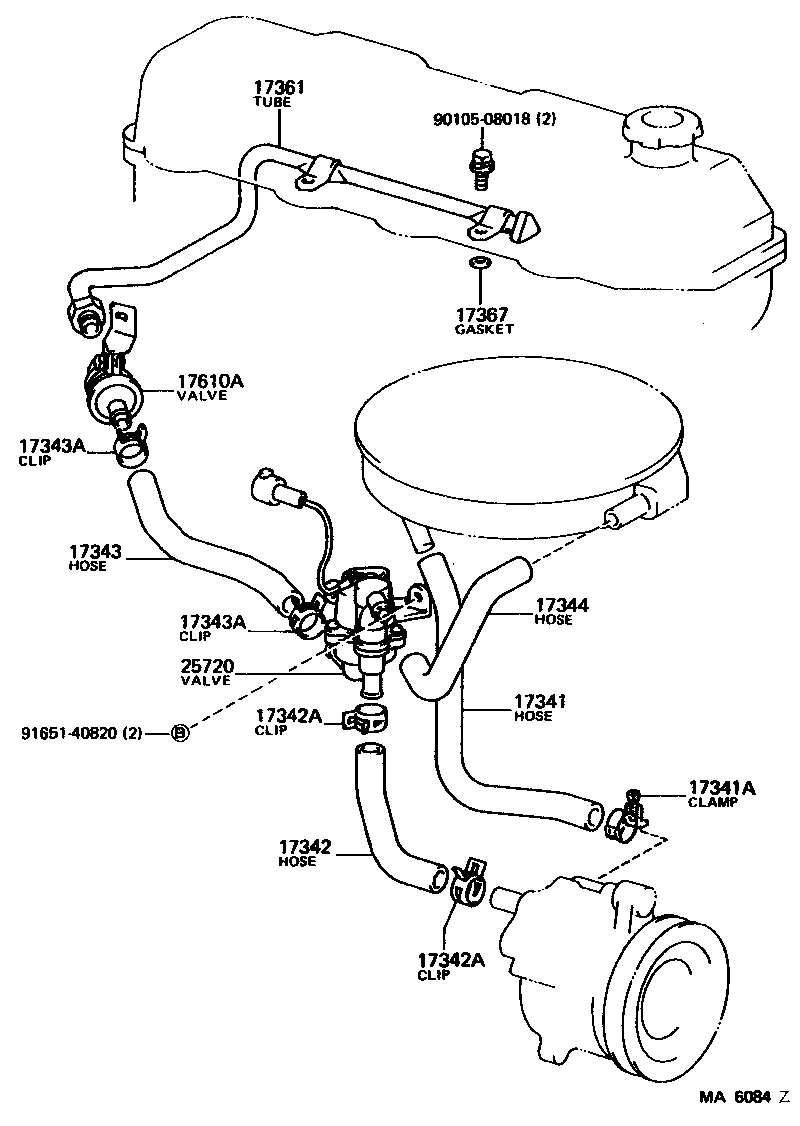

Click highlighted areas on diagram

diagram 17341 17341A 17342 17342A 17342A 17343 17343A 17343A 17344 17361 17367 17610A 25720 9010508018 9165140820
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-35020

22R..RA64..CND

 1
17341-35011

22R..RA64

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-35020

22R..RA64..CND

 1
17342-35040

22R..RA64

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-31002

22R..RA64..CND

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-31002

22R..RA64..CND

 1
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-35020

22R..RA64

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-28003

22R..RA64

 2
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-28003

22R..RA64

 2
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17344-35011

22R..RA64

 1
25720 - VALVE ASSY, ELECTRIC AIR CONTROL
25720-35010

22R..RA64

 1
Common parts
90105-08018
91651-40820
