RA64L-BCMQEK (1982)

Toyota Celica

Production Aug 1982 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208-8308)22R

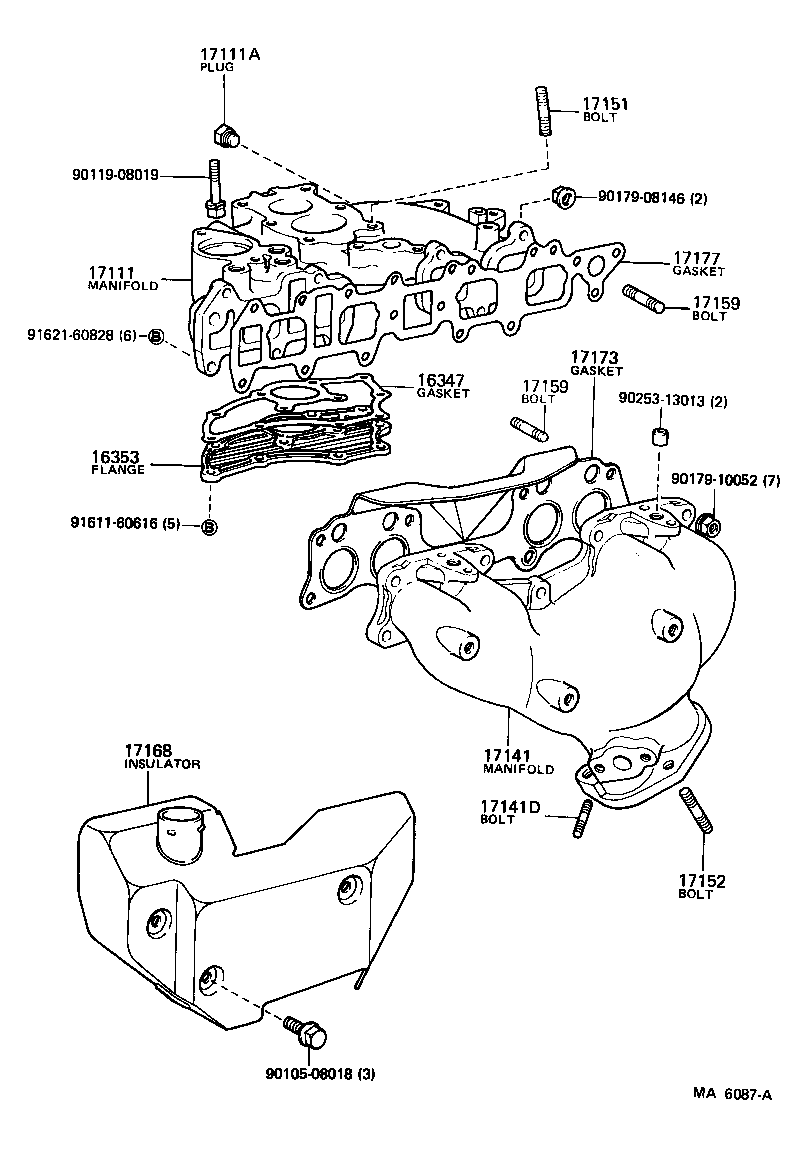

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17141 17141D 17151 17152 17159 17159 17168 17173 17177 9010508018 9011908019 9017908146 9017910052 9025313013 9161160616 9162160828
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35010

22R..RA64

 1
16347-35020

22R..RA64

 1
16353 - FLANGE, WATER BY-PASS
16353-35010

22R..RA64

 1
16353-35020

22R..RA64

 1
17111 - MANIFOLD, INTAKE
17101-35010

22REC..RA6#

 1
17111-35030

22R..RA64

 1
17101-35011

22REC..RA6#

 1
17101-35012

22REC..RA6#

 1
17111-35012

22R..RA64

 1
17101-35013

22REC..RA6#

 1
17111A - PLUG, NO.1
90345-51025

22R..RA64

 1
17141 - MANIFOLD, EXHAUST
17141-35020

22R..RA64..CND

 1
17141-35080

22REC..RA6#

 1
17141-35070

22REC..RA6#

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

22R#..RA6#

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

22R..RA64

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

22R#..RA6#

 3
90116-10058

22R#..RA6#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

22R#..RA6#

INTAKE MANIFOLD

 2
90116-10317

22R..RA64

EXHAUST MANIFOLD,L=36,S=13&13

 3
90116-08013

22R#..RA6#

INTAKE MANIFOLD,L=34.5,S=9&16

 2
90116-10011

22R..RA64

EXHAUST MANIFOLD,L=42,S=12&25

 4
92122-60825

22REC..RA6#

SURGE TANK TO INTAKE MANIFOLD

 2
92122-60822

22REC..RA6#

INTAKE MANIFOLD,L=32,S=10&16

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

22R#..RA6#

INTAKE MANIFOLD

 2
90116-10317

22R..RA64

EXHAUST MANIFOLD,L=36,S=13&13

 3
90116-08013

22R#..RA6#

INTAKE MANIFOLD,L=34.5,S=9&16

 2
90116-10011

22R..RA64

EXHAUST MANIFOLD,L=42,S=12&25

 4
92122-60825

22REC..RA6#

SURGE TANK TO INTAKE MANIFOLD

 2
92122-60822

22REC..RA6#

INTAKE MANIFOLD,L=32,S=10&16

 2
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35090

22REC..RA6#

 1
17167-35040

22R..RA64

 1
17167-35030

22REC..RA6#

 1
17168-35020

22R..RA64..CND

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35060

22REC..RA6#

 1
17173-35020

22R#..RA6#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35011

22R..RA64

 1
17177-35020

22R#..RA6#

 1
17177-35030

22REC..RA6#

 1
17177-35021

22R#..RA6#

 1
Common parts
90105-08018
90119-08019
90179-08146
90179-10052
90253-13013
91611-60616
91621-60828

(8208-8408)22REC

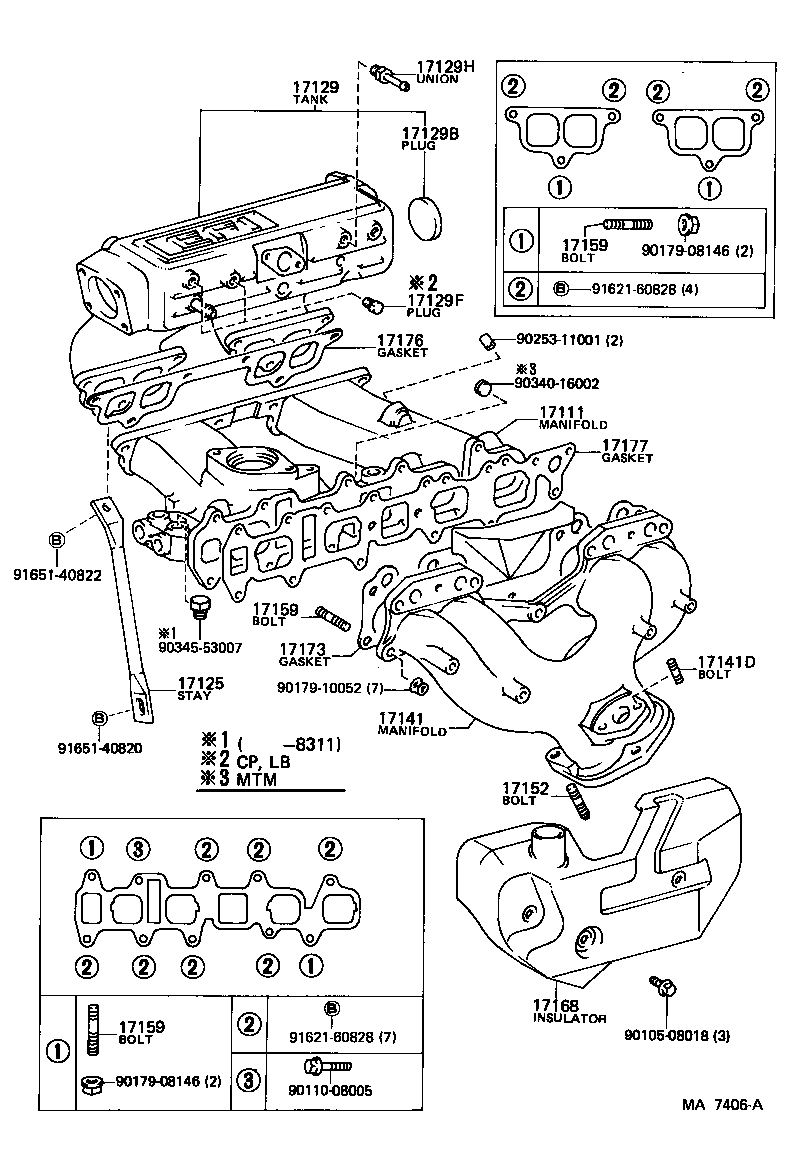

Click highlighted areas on diagram

diagram 17111 17125 17129 17129B 17129F 17129H 17141 17141D 17152 17159 17159 17159 17168 17173 17176 17177 9010508018 9011008005 9017908146 9017908146 9017910052 9025311001 9034016002 9034553007 9162160828 9162160828 9165140820 9165140822
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-35010

22REC..RA6#

 1
17111-35030

22R..RA64

 1
17101-35011

22REC..RA6#

 1
17101-35012

22REC..RA6#

 1
17111-35012

22R..RA64

 1
17101-35013

22REC..RA6#

 1
17125 - STAY, SURGE TANK, NO.1
17125-35040

22REC..RA6#

 1
17125-35010

22REC..RA6#

 1
17129 - TANK, INTAKE AIR SURGE
17109-35010

22REC..RA6#

 1
17129B - PLUG
96411-44000

22REC..RA6#

 1
17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE
90345-51025

22REC..RA6#..CP,LB

 2
17129H - UNION, NO.4
90404-51026

22REC..RA6#

W/PS OR COOLER

 1
17141 - MANIFOLD, EXHAUST
17141-35020

22R..RA64..CND

 1
17141-35080

22REC..RA6#

 1
17141-35070

22REC..RA6#

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

22R#..RA6#

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

22R#..RA6#

 3
90116-10058

22R#..RA6#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

22R#..RA6#

INTAKE MANIFOLD

 2
90116-10317

22R..RA64

EXHAUST MANIFOLD,L=36,S=13&13

 3
90116-08013

22R#..RA6#

INTAKE MANIFOLD,L=34.5,S=9&16

 2
90116-10011

22R..RA64

EXHAUST MANIFOLD,L=42,S=12&25

 4
92122-60825

22REC..RA6#

SURGE TANK TO INTAKE MANIFOLD

 2
92122-60822

22REC..RA6#

INTAKE MANIFOLD,L=32,S=10&16

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

22R#..RA6#

INTAKE MANIFOLD

 2
90116-10317

22R..RA64

EXHAUST MANIFOLD,L=36,S=13&13

 3
90116-08013

22R#..RA6#

INTAKE MANIFOLD,L=34.5,S=9&16

 2
90116-10011

22R..RA64

EXHAUST MANIFOLD,L=42,S=12&25

 4
92122-60825

22REC..RA6#

SURGE TANK TO INTAKE MANIFOLD

 2
92122-60822

22REC..RA6#

INTAKE MANIFOLD,L=32,S=10&16

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

22R#..RA6#

INTAKE MANIFOLD

 2
90116-10317

22R..RA64

EXHAUST MANIFOLD,L=36,S=13&13

 3
90116-08013

22R#..RA6#

INTAKE MANIFOLD,L=34.5,S=9&16

 2
90116-10011

22R..RA64

EXHAUST MANIFOLD,L=42,S=12&25

 4
92122-60825

22REC..RA6#

SURGE TANK TO INTAKE MANIFOLD

 2
92122-60822

22REC..RA6#

INTAKE MANIFOLD,L=32,S=10&16

 2
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35090

22REC..RA6#

 1
17167-35040

22R..RA64

 1
17167-35030

22REC..RA6#

 1
17168-35020

22R..RA64..CND

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35060

22REC..RA6#

 1
17173-35020

22R#..RA6#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-35010

22REC..RA6#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35011

22R..RA64

 1
17177-35020

22R#..RA6#

 1
17177-35030

22REC..RA6#

 1
17177-35021

22R#..RA6#

 1
Common parts
90105-08018
90110-08005
90179-08146
90179-10052
90253-11001
90340-16002
90345-53007
91621-60828
91651-40820
91651-40822

(8408-8507)22REC

Click highlighted areas on diagram

diagram 17111 17125 17129 17129B 17129F 17129H 17141 17141D 17141E 17141F 17152 17159 17159 17159 17168 17173 17176 17177 9010508112 9010510116 9011008005 9017908146 9017908146 9017910052 9025311001 9162160828 9162160828 9165140820
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-35010

22REC..RA6#

 1
17111-35030

22R..RA64

 1
17101-35011

22REC..RA6#

 1
17101-35012

22REC..RA6#

 1
17111-35012

22R..RA64

 1
17101-35013

22REC..RA6#

 1
17125 - STAY, SURGE TANK, NO.1
17125-35040

22REC..RA6#

 1
17125-35010

22REC..RA6#

 1
17129 - TANK, INTAKE AIR SURGE
17109-35010

22REC..RA6#

 1
17129B - PLUG
96411-44000

22REC..RA6#

 1
17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE
90345-51025

22REC..RA6#..CP,LB

 2
17129H - UNION, NO.4
90404-51026

22REC..RA6#

W/PS OR COOLER

 1
17141 - MANIFOLD, EXHAUST
17141-35020

22R..RA64..CND

 1
17141-35080

22REC..RA6#

 1
17141-35070

22REC..RA6#

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

22R#..RA6#

 2
17141E - PLATE, EXHAUST MANIFOLD
17148-35030

22REC..RA6#

 2
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
17378-35010

22REC..RA6#

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

22R#..RA6#

 3
90116-10058

22R#..RA6#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

22R#..RA6#

INTAKE MANIFOLD

 2
90116-10317

22R..RA64

EXHAUST MANIFOLD,L=36,S=13&13

 3
90116-08013

22R#..RA6#

INTAKE MANIFOLD,L=34.5,S=9&16

 2
90116-10011

22R..RA64

EXHAUST MANIFOLD,L=42,S=12&25

 4
92122-60825

22REC..RA6#

SURGE TANK TO INTAKE MANIFOLD

 2
92122-60822

22REC..RA6#

INTAKE MANIFOLD,L=32,S=10&16

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

22R#..RA6#

INTAKE MANIFOLD

 2
90116-10317

22R..RA64

EXHAUST MANIFOLD,L=36,S=13&13

 3
90116-08013

22R#..RA6#

INTAKE MANIFOLD,L=34.5,S=9&16

 2
90116-10011

22R..RA64

EXHAUST MANIFOLD,L=42,S=12&25

 4
92122-60825

22REC..RA6#

SURGE TANK TO INTAKE MANIFOLD

 2
92122-60822

22REC..RA6#

INTAKE MANIFOLD,L=32,S=10&16

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

22R#..RA6#

INTAKE MANIFOLD

 2
90116-10317

22R..RA64

EXHAUST MANIFOLD,L=36,S=13&13

 3
90116-08013

22R#..RA6#

INTAKE MANIFOLD,L=34.5,S=9&16

 2
90116-10011

22R..RA64

EXHAUST MANIFOLD,L=42,S=12&25

 4
92122-60825

22REC..RA6#

SURGE TANK TO INTAKE MANIFOLD

 2
92122-60822

22REC..RA6#

INTAKE MANIFOLD,L=32,S=10&16

 2
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35090

22REC..RA6#

 1
17167-35040

22R..RA64

 1
17167-35030

22REC..RA6#

 1
17168-35020

22R..RA64..CND

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35060

22REC..RA6#

 1
17173-35020

22R#..RA6#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-35010

22REC..RA6#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35011

22R..RA64

 1
17177-35020

22R#..RA6#

 1
17177-35030

22REC..RA6#

 1
17177-35021

22R#..RA6#

 1
Common parts
90105-08112
90105-10116
90110-08005
90179-08146
90179-10052
90253-11001
91621-60828
91651-40820
