RA64L-BCMQEA (1982)

Toyota Celica

Production Aug 1982 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208-8507)RA6#..EFI

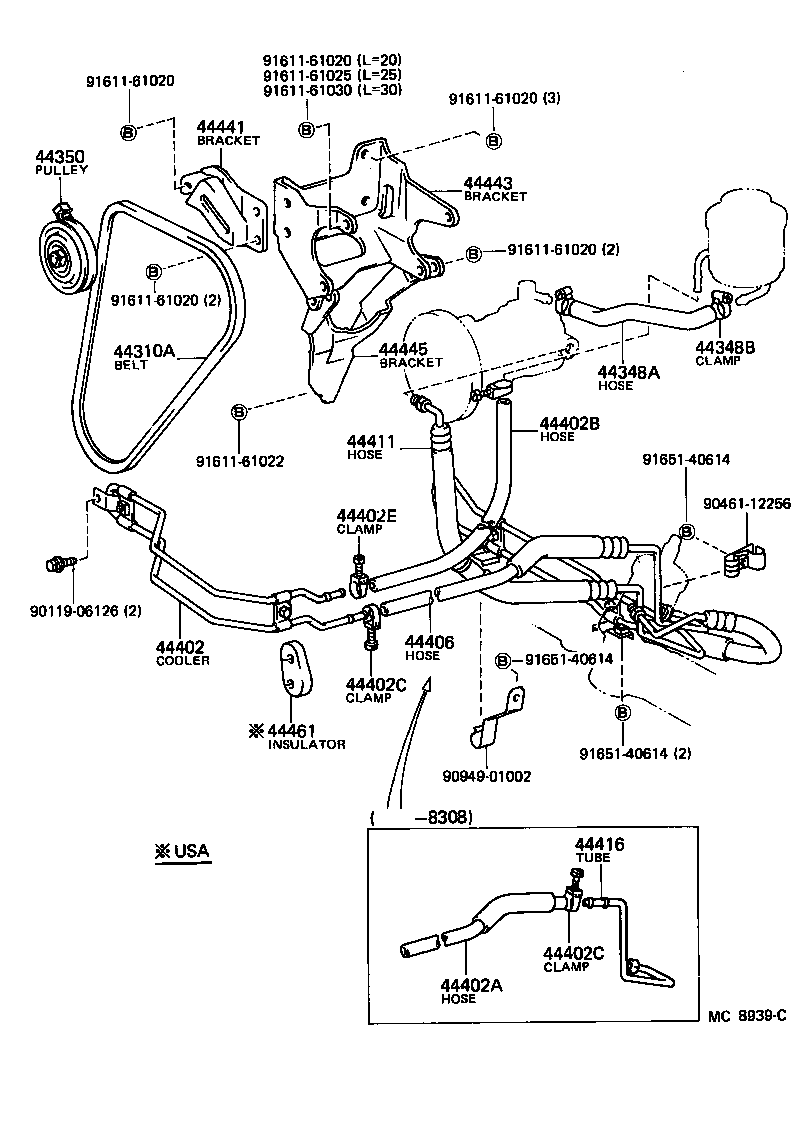

Click highlighted areas on diagram

diagram 44310A 44348A 44348B 44350 44402 44402A 44402B 44402C 44402C 44402E 44406 44411 44416 44441 44443 44445 44461 9011906126 9046112256 9094901002 9161161020 9161161020 9161161020 9161161020 9161161020 9161161022 9161161025 9161161030 9165140614 9165140614 9165140614
Part # Description Qty Price
44310A - BELT, V(FOR VANE PUMP)
99332-11135

RA6#

 1
99332-11120

RA6#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-14020

RA6#

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

RA6#

 2
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-20020

RA6#

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-14090

RA6#..EFI

 1
44402-14130

RA6#

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
44412-14140

RA6#..EFI

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
44412-14150

RA6#..EFI

 1
44412-14040

RA64

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

MA61,RA6#

 2
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

MA61,RA6#

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

MA61,RA6#

 2
44406 - TUBE SUB-ASSY, RETURN
44406-14020

RA6#

 1
44411 - HOSE, PRESSURE FEED
44410-14051

RA6#

 1
44410-14050

RA6#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-14110

RA6#

 1
44441 - BRACKET, PUMP, FRONT
44441-20010

RA6#

 1
44443 - BRACKET, PUMP
44443-20031

RA6#

 1
44443-35020

RA6#

 1
44445 - BRACKET, PUMP, LOWER
44445-35010

RA6#

 1
44445-20010

RA6#

 1
44461 - INSULATOR, TUBE REFRIGERANT
44461-14010

RA6#..EFI..USA

 1
Common parts
90119-06126
90461-12256
90949-01002
91611-61020
91611-61022
91611-61025
91611-61030
91651-40614
