RA43L-BLMQSA (1980)
Toyota Celica
Production
Aug 1980
-
Jul 1981
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7708-8011)RA4#

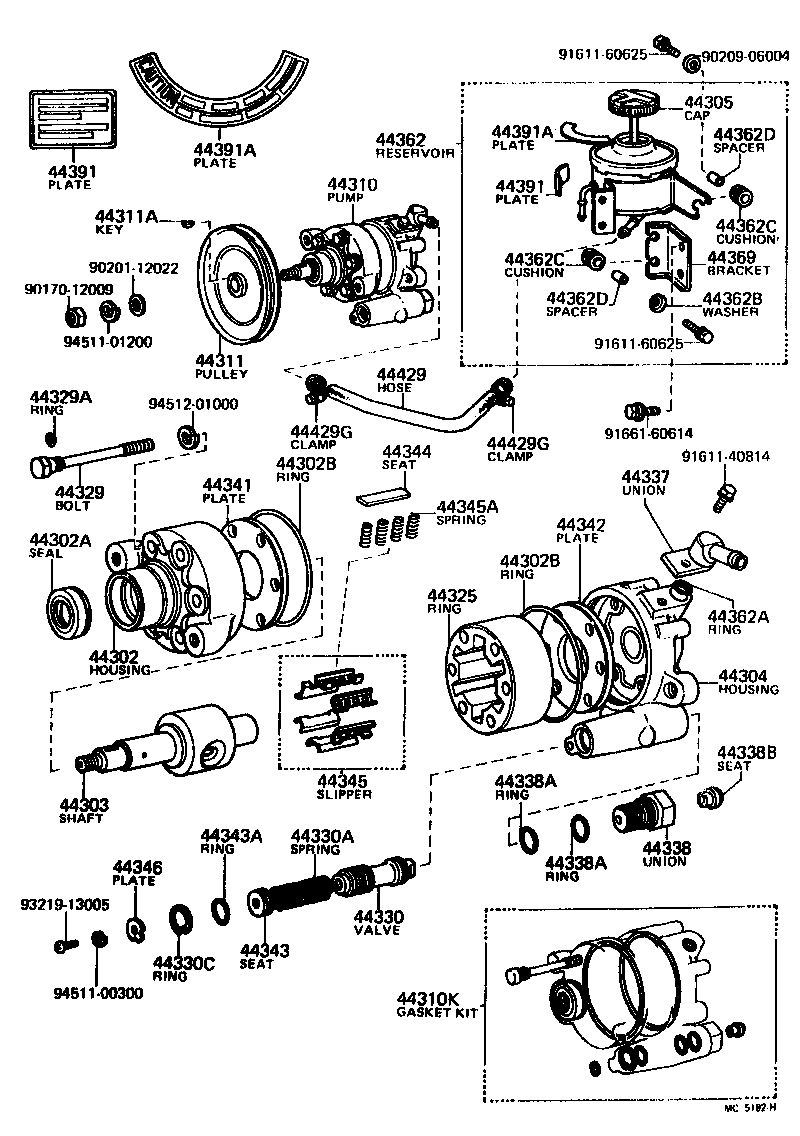

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-30020 |
RA43 |
1 | ||
| 44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90310-21034 |
RA43 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-69170 |
RA43 |
2 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-69170 |
RA43 |
2 | ||
| 44303 - SHAFT SUB-ASSY, W/ROTOR | ||||
| 44303-22011 |
RA43 L=39.9825-39.9800 |
1 | ||
| 44303-22021 |
RA43 L=39.9800-39.9775 |
1 | ||
| 44310K - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-30010 |
RA43 |
1 | ||
| 44325 - RING, FIXED(FOR VANE PUMP) | ||||
| 44325-30040 |
RA43 MARK 2,L=40.0000-40.0025 |
1 | ||
| 44325-30030 |
RA43 MARK 1,L=40.0025-40.0050 |
1 | ||
| 44329 - BOLT, VANE PUMP FRONT HOUSING & REAR HOUSING SET | ||||
| 44329-30010 |
RA43 L=76.5 |
6 | ||
| 44329A - RING, O(FOR VANE PUMP HOUSING SET BOLT) | ||||
| 96710-01007 |
RA43 |
6 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-30041 |
RA43 MARK A |
1 | ||
| 44330-30081 |
RA43 MARK E |
1 | ||
| 44330-30051 |
RA43 MARK B |
1 | ||
| 44330-30071 |
RA43 MARK D |
1 | ||
| 44330-30061 |
RA43 MARK C |
1 | ||
| 44330-30091 |
RA43 MARK F |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44338-30011 |
RA43 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96710-01014 |
RA43 ID=14,OD=17 |
2 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96710-01014 |
RA43 ID=14,OD=17 |
2 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-30020 |
RA43 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-30020 |
RA43 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-30020 |
RA43 |
1 | ||
| 44344 - SEAT, SPRING(FOR VANE PUMP) | ||||
| 44344-30010 |
RA43 |
6 | ||
| 44345 - SLIPPER, VANE PUMP | ||||
| 44307-22020 |
RA43 NO MARK,L=39.937-39.932 |
1 | ||
| 44307-22010 |
RA43 NO MARK,L=39.942-39.937 |
1 | ||
| 44345A - SPRING, COMPRESSION(FOR VANE PUMP SLIPPER) | ||||
| 90501-06445 |
RA43 |
24 | ||
| 44346 - PLATE, SNAP RING LOCK | ||||
| 44346-30020 |
RA43 |
1 | ||
| Common parts | ||||
| 90170-12009 | ||||
| 90201-12022 | ||||
| 90209-06004 | ||||
| 91611-40814 | ||||
| 91611-60625 | ||||
| 91661-60614 | ||||
| 93219-13005 | ||||
| 94511-00300 | ||||
| 94511-01200 | ||||
| 94512-01000 | ||||
(8011- )RA43
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-30020 |
RA43 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-69170 |
RA43 |
2 | ||
| 44310K - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-30010 |
RA43 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-30041 |
RA43 MARK A |
1 | ||
| 44330-30081 |
RA43 MARK E |
1 | ||
| 44330-30051 |
RA43 MARK B |
1 | ||
| 44330-30071 |
RA43 MARK D |
1 | ||
| 44330-30061 |
RA43 MARK C |
1 | ||
| 44330-30091 |
RA43 MARK F |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44338-30011 |
RA43 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96710-01014 |
RA43 ID=14,OD=17 |
2 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-30020 |
RA43 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-30020 |
RA43 |
1 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 90170-12011 | ||||
| 90201-12022 | ||||
| 90209-06004 | ||||
| 91611-40814 | ||||
| 91611-60625 | ||||
| 91661-60614 | ||||
| 94511-01200 | ||||
