RA43L-BCHQSA (1980)
Toyota Celica
Production
Aug 1980
-
Jul 1981
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )22R

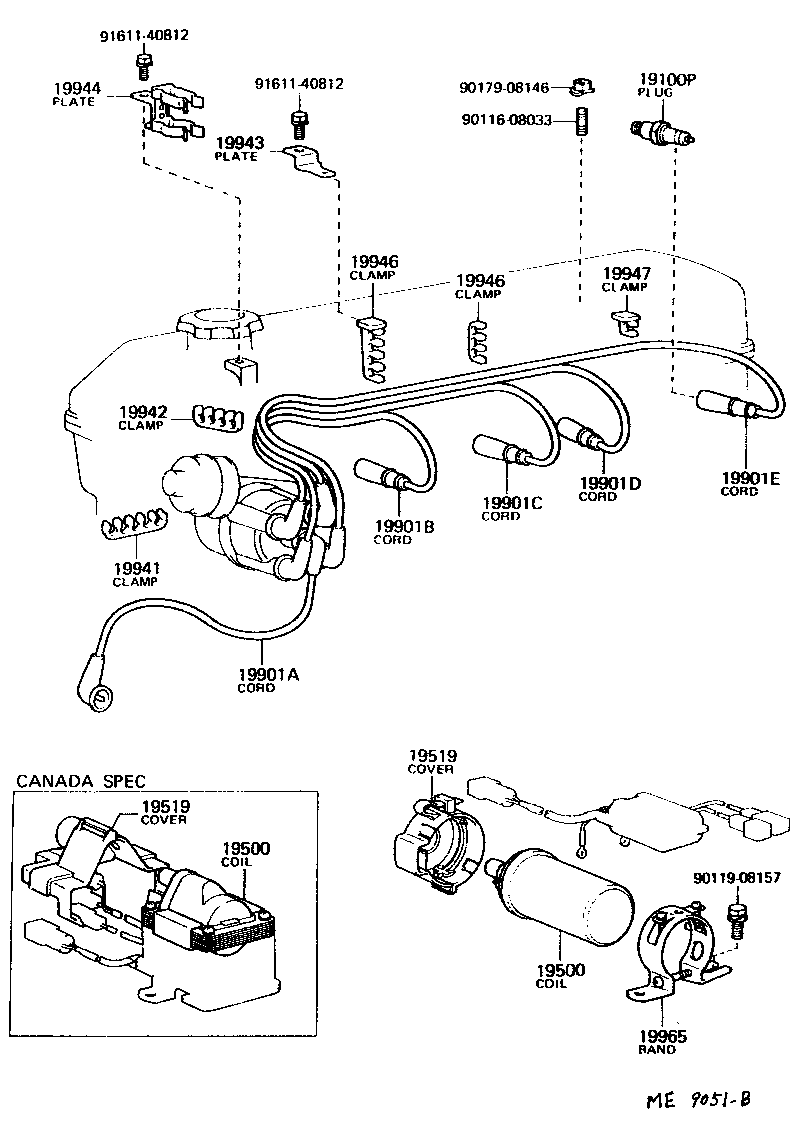

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02106 |
22R..RA43..GT CANADA SPEC |
1 | ||
| 90919-02117 |
22R..RA43 USA SPEC |
1 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02106 |
22R..RA43..GT CANADA SPEC |
1 | ||
| 90919-02117 |
22R..RA43 USA SPEC |
1 | ||
| 19519 - COVER, IGNITION COIL | ||||
| 19519-28010 |
22R..RA43..GT CANADA SPEC |
1 | ||
| 19519-28020 |
22R..RA43 COLD SPEC |
1 | ||
| 19519 - COVER, IGNITION COIL | ||||
| 19519-28010 |
22R..RA43..GT CANADA SPEC |
1 | ||
| 19519-28020 |
22R..RA43 COLD SPEC |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13169 |
22R..RA43 USA SPEC |
1 | ||
| 90919-13166 |
22R..RA43..GT CANADA SPEC |
1 | ||
| 19965 - BAND, IGNITION COIL, NO.1 | ||||
| 90919-03083 |
22R..RA43 USA & COLD SPEC |
1 | ||
| 90919-03076 |
22R..RA43 USA SPEC |
1 | ||
| Common parts | ||||
| 90116-08033 | ||||
| 90119-08157 | ||||
| 90179-08146 | ||||
| 91611-40812 | ||||
