RA42L-BLMQSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708-7808)

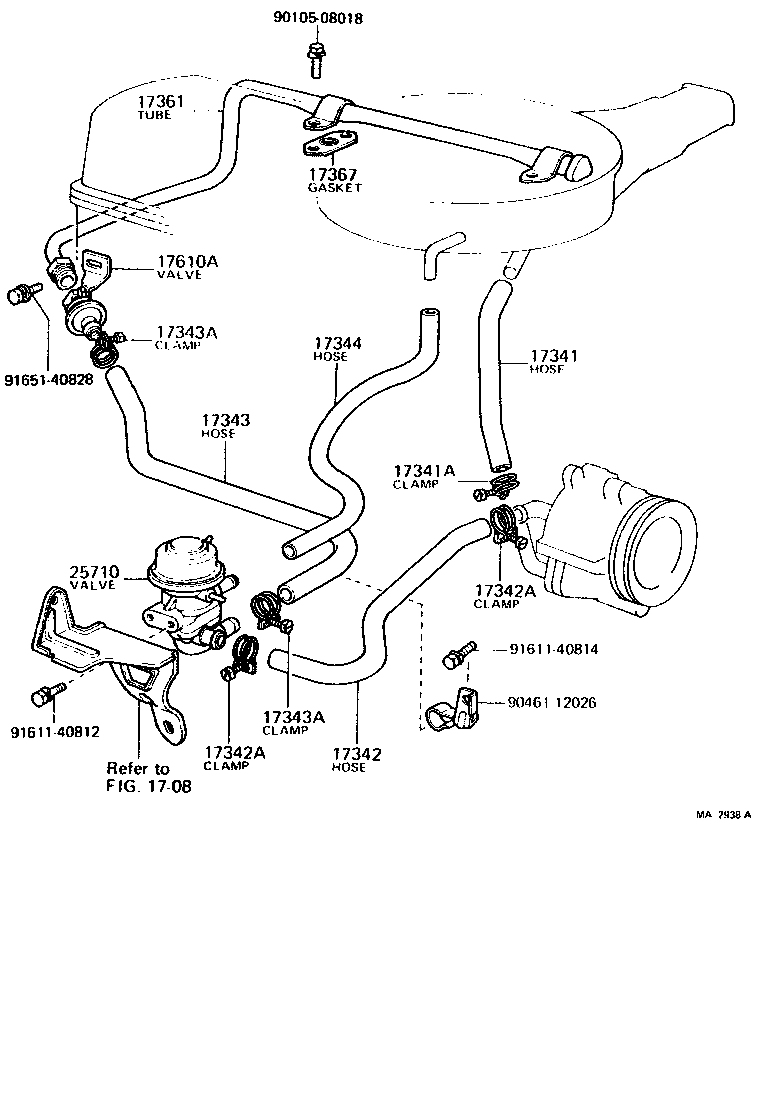

Click highlighted areas on diagram

diagram 1708 17341 17341A 17342 17342A 17342A 17343 17343A 17343A 17344 17361 17367 17610A 25710 9010508018 9046112026 9161140812 9161140814 9165140828
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-38020

20R..RA42

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-38011

20R..RA42

 1
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17344-38021

20R..RA42

 1
17367 - GASKET, AIR TUBE
17376-38010

20R..RA42

 2
25710 - VALVE ASSY, AIR SWITCHING
25710-38020

20R..RA42

 1
Common parts
90105-08018
90461-12026
91611-40812
91611-40814
91651-40828
Linked diagrams
1708

(7808-7908)20R

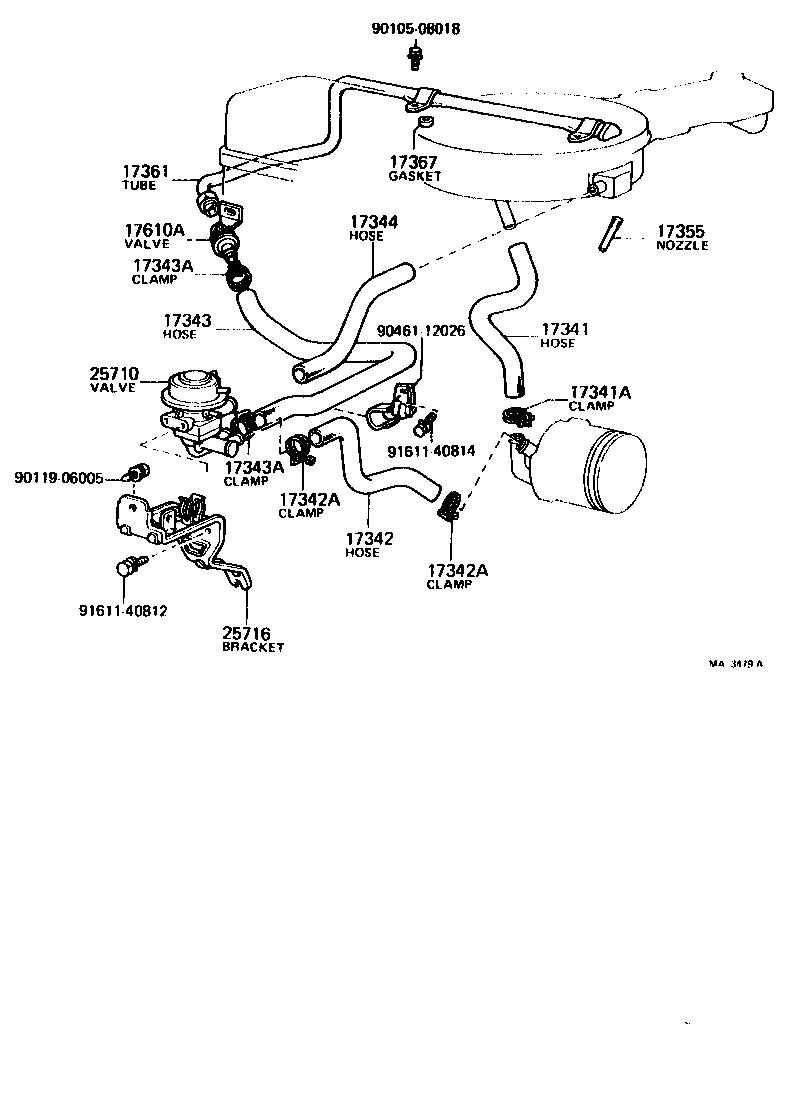

Click highlighted areas on diagram

diagram 17341 17341A 17342 17342A 17342A 17343 17343A 17343A 17344 17355 17361 17367 17610A 25710 25716 9010508018 9011906005 9046112026 9161140812 9161140814
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-38020

20R..RA42

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-38011

20R..RA42

 1
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17344-38021

20R..RA42

 1
17367 - GASKET, AIR TUBE
17376-38010

20R..RA42

 2
25710 - VALVE ASSY, AIR SWITCHING
25710-38020

20R..RA42

 1
Common parts
90105-08018
90119-06005
90461-12026
91611-40812
91611-40814

(7908-8008)20R

Click highlighted areas on diagram

diagram 17341 17341A 17342 17342A 17342A 17343 17344 17355 17361 17367 17610A 25710 9010508018 9161140820
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-38020

20R..RA42

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-38011

20R..RA42

 1
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17344-38021

20R..RA42

 1
17367 - GASKET, AIR TUBE
17376-38010

20R..RA42

 2
25710 - VALVE ASSY, AIR SWITCHING
25710-38020

20R..RA42

 1
Common parts
90105-08018
91611-40820
