RA42L-BLHSSA (1977)
Toyota Celica

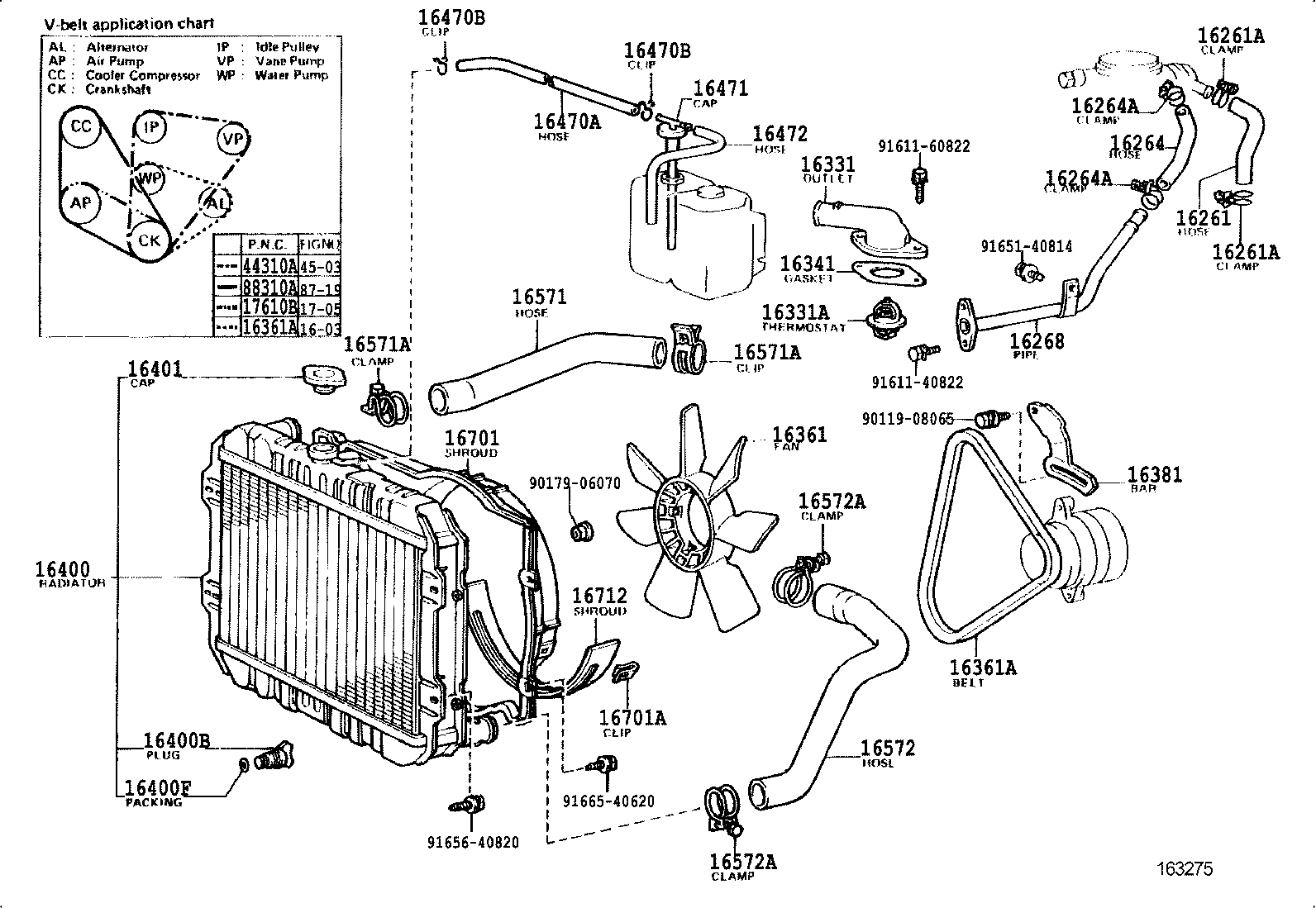

(7708-7908)20R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-38010 |
20R..RA42 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-25002 |
20R..RA42 |
2 | ||
| 96112-10250 |
20R..RA42 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-25002 |
20R..RA42 |
2 | ||
| 96112-10250 |
20R..RA42 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-38030 |
20R..RA42 |
1 | ||
| 16264-38020 |
20R..RA42 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90460-25002 |
20R..RA42 |
2 | ||
| 96112-10250 |
20R..RA42 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90460-25002 |
20R..RA42 |
2 | ||
| 96112-10250 |
20R..RA42 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-38010 |
20R..RA42 |
1 | ||
| 16268-38020 |
20R..RA42 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-38011 |
20R..RA42 |
1 | ||
| 16331-38012 |
20R..RA42 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03036 |
20R..RA42 FEDERAL SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03034 |
20R..RA42 *WAX 82-95,*(F) |
1 | ||
| 90916-03036 |
20R..RA42 CANADA SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03034 |
20R..RA42 USA SPEC,*WAX 82-95,*(F) |
1 | ||
| 90916-03034 |
20R..RA42 CALIFORNIA SPEC,*WAX82-95,*(F) |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
20R..RA42 |
1 | ||
| 16341-49010 |
20R..RA42 |
1 | ||
| 16341-38010 |
20R..RA42 |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
20R,22R..RA4# 7 BLADES,OD=380 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-00880 |
20R..RA42 L=880 |
1 | ||
| 99331-00870 |
20R..RA42 L=870 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-00880 |
20R..RA42 L=880 |
1 | ||
| 99331-00870 |
20R..RA42 L=870 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-38013 |
20R..RA42 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-38080 |
20R..RA42..3FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
20R,22R..RA4# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
20R,22R..RA4# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36010 |
20R..RA42 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12897 |
20R..RA42 L=550 |
1 | ||
| 90445-12730 |
20R..RA42 *H,L=410,COLD SPEC |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
20R,22R..RA4# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
20R,22R..RA4# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85037-14010 |
20R..RA42 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-38012 |
20R..RA42 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10450 |
20R..RA42 RADIATOR SIDE,ID=45 |
1 | ||
| 96111-10430 |
20R..RA42 RADIATOR SIDE,ID=43 |
1 | ||
| 90467-37001 |
20R..RA42 OUTLET SIDE,ID=37 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10450 |
20R..RA42 RADIATOR SIDE,ID=45 |
1 | ||
| 96111-10430 |
20R..RA42 RADIATOR SIDE,ID=43 |
1 | ||
| 90467-37001 |
20R..RA42 OUTLET SIDE,ID=37 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-38050 |
20R..RA42 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10480 |
20R,22R..RA4# PUMP SIDE,ID=48 |
1 | ||
| 96111-10450 |
20R..RA42 RADIATOR SIDE,ID=45 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10480 |
20R,22R..RA4# PUMP SIDE,ID=48 |
1 | ||
| 96111-10450 |
20R..RA42 RADIATOR SIDE,ID=45 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-38021 |
20R..RA42 |
1 | ||
| Common parts | ||||
| 90119-08065 | ||||
| 90179-06070 | ||||
| 91611-40822 | ||||
| 91611-60820 | ||||
| 91651-40814 | ||||
| 91656-40820 | ||||
| 91665-40620 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1705 | ||||
| 4503 | ||||
| 8719 | ||||

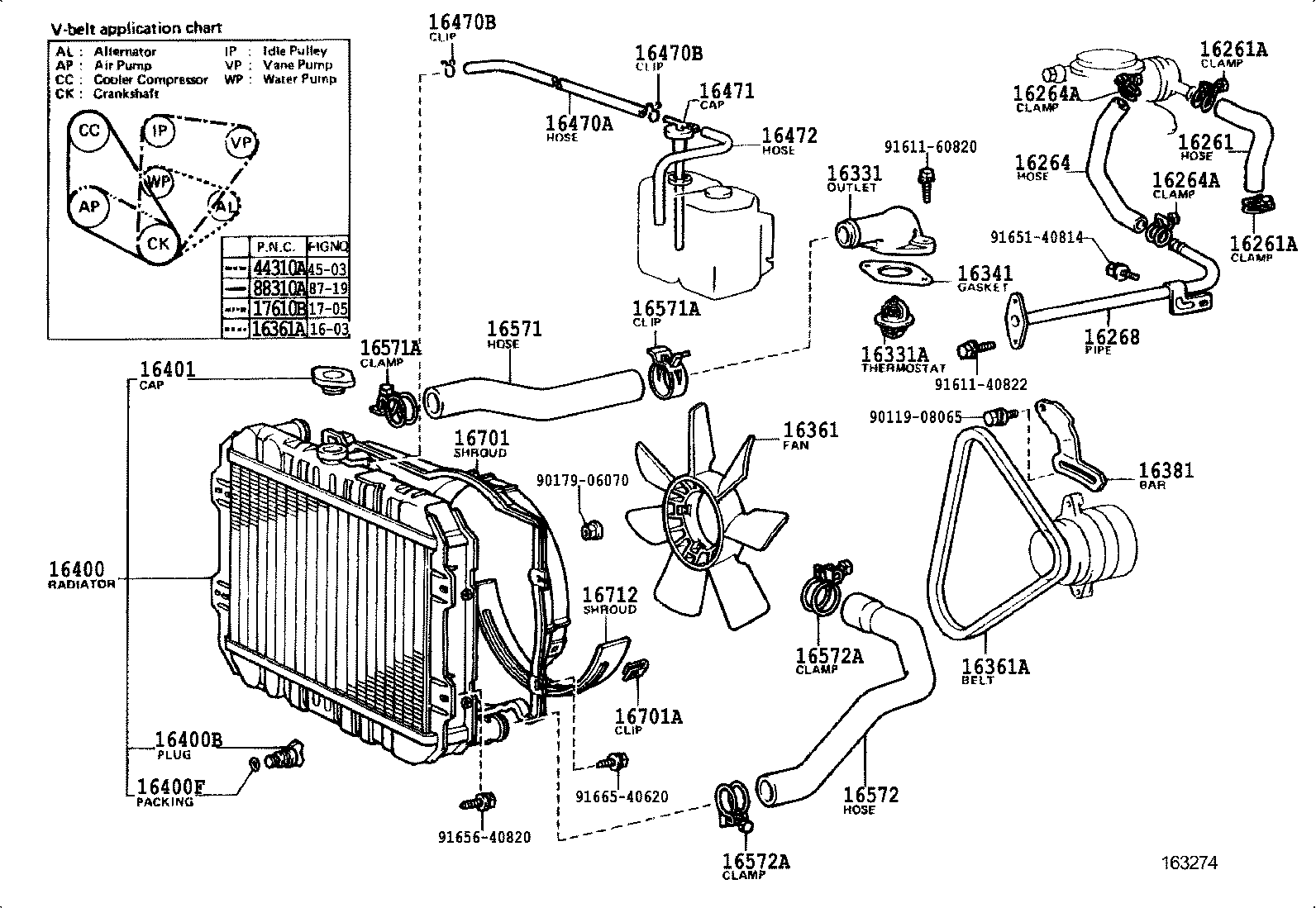

(7908-8008)20R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-38010 |
20R..RA42 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-25002 |
20R..RA42 |
2 | ||
| 96112-10250 |
20R..RA42 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-25002 |
20R..RA42 |
2 | ||
| 96112-10250 |
20R..RA42 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-38030 |
20R..RA42 |
1 | ||
| 16264-38020 |
20R..RA42 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90460-25002 |
20R..RA42 |
2 | ||
| 96112-10250 |
20R..RA42 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90460-25002 |
20R..RA42 |
2 | ||
| 96112-10250 |
20R..RA42 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-38010 |
20R..RA42 |
1 | ||
| 16268-38020 |
20R..RA42 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-38011 |
20R..RA42 |
1 | ||
| 16331-38012 |
20R..RA42 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03036 |
20R..RA42 FEDERAL SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03034 |
20R..RA42 *WAX 82-95,*(F) |
1 | ||
| 90916-03036 |
20R..RA42 CANADA SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03034 |
20R..RA42 USA SPEC,*WAX 82-95,*(F) |
1 | ||
| 90916-03034 |
20R..RA42 CALIFORNIA SPEC,*WAX82-95,*(F) |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
20R..RA42 |
1 | ||
| 16341-49010 |
20R..RA42 |
1 | ||
| 16341-38010 |
20R..RA42 |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
20R,22R..RA4# 7 BLADES,OD=380 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-00880 |
20R..RA42 L=880 |
1 | ||
| 99331-00870 |
20R..RA42 L=870 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-00880 |
20R..RA42 L=880 |
1 | ||
| 99331-00870 |
20R..RA42 L=870 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-38013 |
20R..RA42 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-38080 |
20R..RA42..3FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
20R,22R..RA4# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
20R,22R..RA4# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36010 |
20R..RA42 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12897 |
20R..RA42 L=550 |
1 | ||
| 90445-12730 |
20R..RA42 *H,L=410,COLD SPEC |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
20R,22R..RA4# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
20R,22R..RA4# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85037-14010 |
20R..RA42 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-38012 |
20R..RA42 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10450 |
20R..RA42 RADIATOR SIDE,ID=45 |
1 | ||
| 96111-10430 |
20R..RA42 RADIATOR SIDE,ID=43 |
1 | ||
| 90467-37001 |
20R..RA42 OUTLET SIDE,ID=37 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10450 |
20R..RA42 RADIATOR SIDE,ID=45 |
1 | ||
| 96111-10430 |
20R..RA42 RADIATOR SIDE,ID=43 |
1 | ||
| 90467-37001 |
20R..RA42 OUTLET SIDE,ID=37 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-38050 |
20R..RA42 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10480 |
20R,22R..RA4# PUMP SIDE,ID=48 |
1 | ||
| 96111-10450 |
20R..RA42 RADIATOR SIDE,ID=45 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10480 |
20R,22R..RA4# PUMP SIDE,ID=48 |
1 | ||
| 96111-10450 |
20R..RA42 RADIATOR SIDE,ID=45 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-38021 |
20R..RA42 |
1 | ||
| Common parts | ||||
| 90119-08065 | ||||
| 90179-06070 | ||||
| 91611-40822 | ||||
| 91611-60822 | ||||
| 91651-40814 | ||||
| 91656-40820 | ||||
| 91665-40620 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1705 | ||||
| 4503 | ||||
| 8719 | ||||
