RA42L-BLHQSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

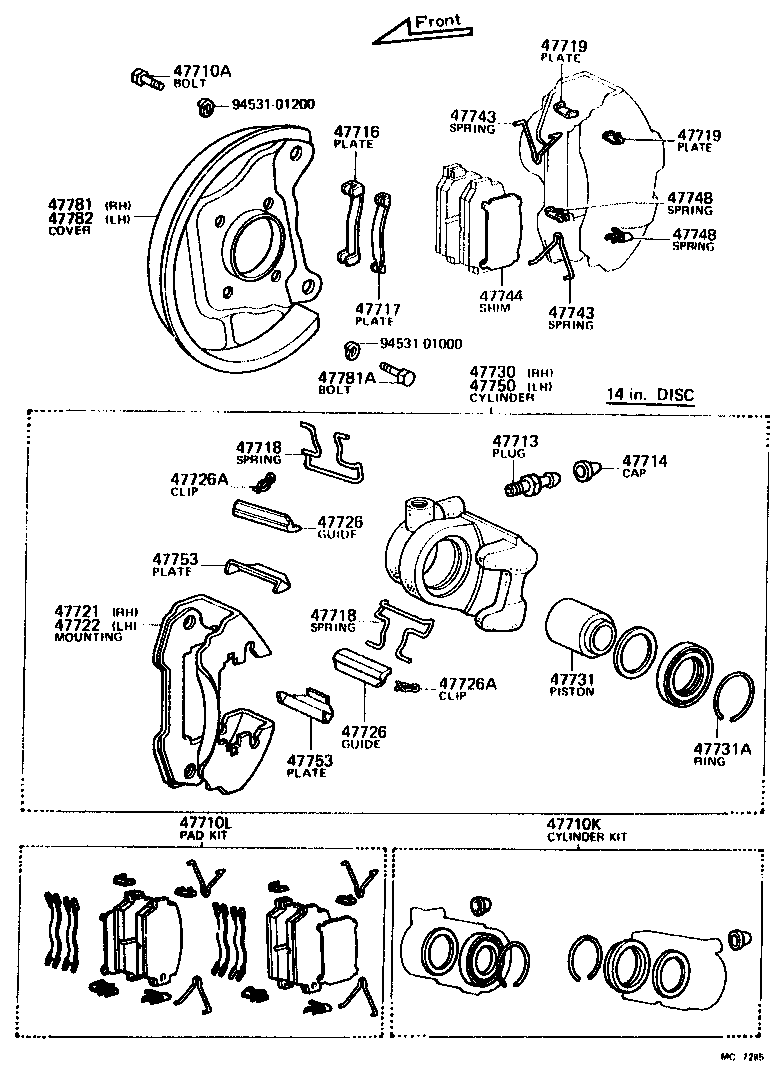

ILLUST NO. 1 OF 2(7708- )

Click highlighted areas on diagram

diagram 47710A 47710K 47710L 47713 47714 47716 47717 47718 47718 47719 47719 47721 47722 47726 47726 47726A 47726A 47730 47731 47731A 47743 47743 47744 47748 47748 47750 47753 47753 47781 47781A 47782 9453101000 9453101200
Part # Description Qty Price
Common parts
94531-01000
94531-01200

ILLUST NO. 2 OF 2(7708- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-14290

RA42

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-20160

RA42

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-14210

MA46,RA42

 1
04947-14190

RA42

 1
