RA42L-BCMSSA (1977)
Toyota Celica
Production
Aug 1977
-
Aug 1980
Engine
20R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7708- )

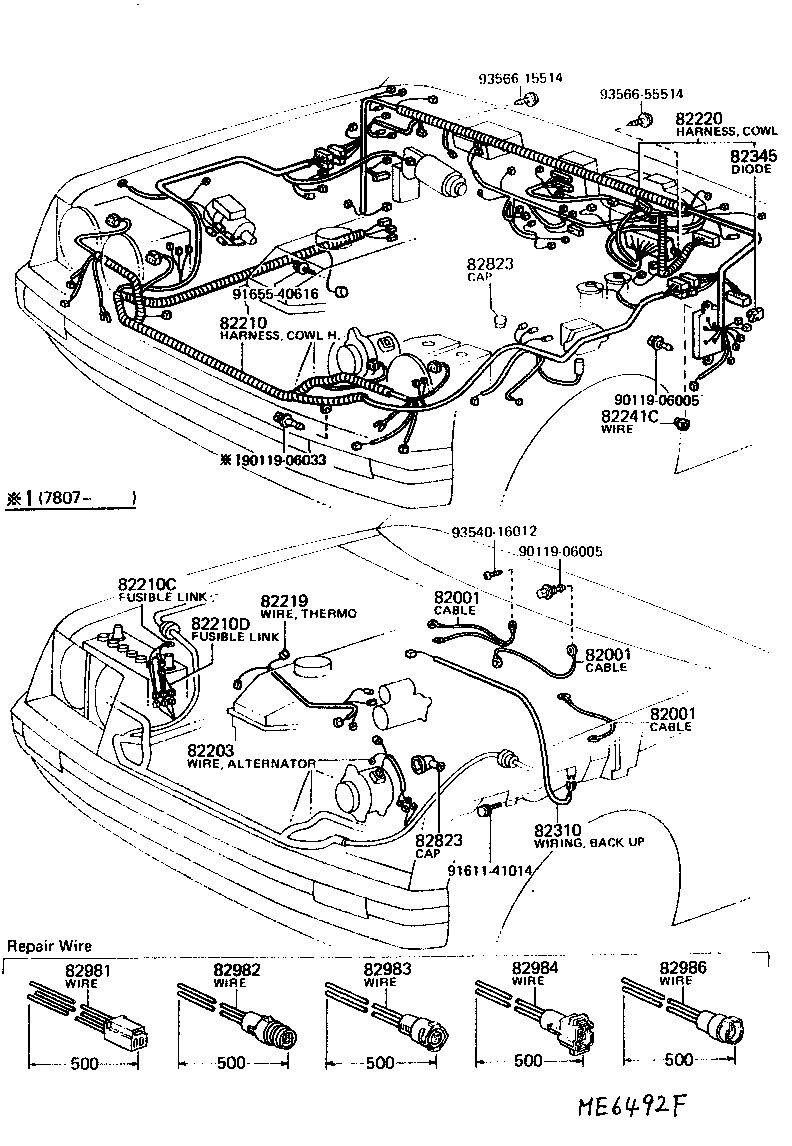

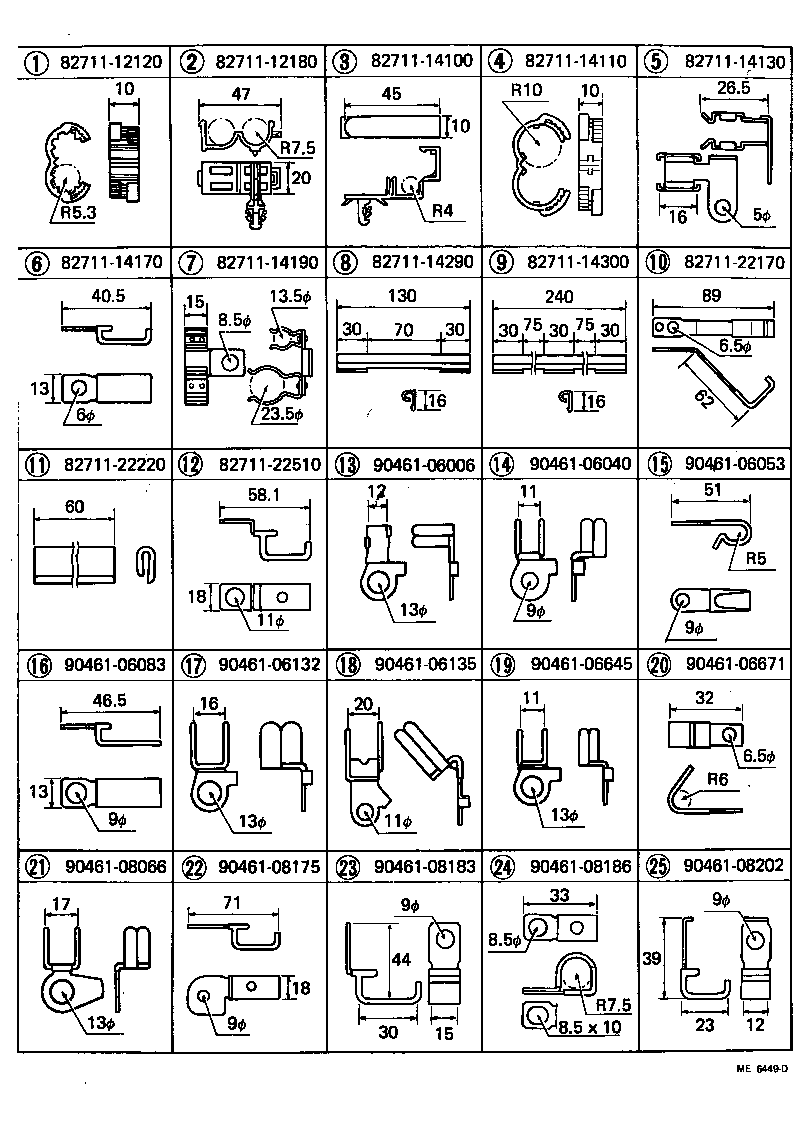

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-12180 | ||||
| 82711-14100 | ||||
| 82711-14110 | ||||
| 82711-14130 | ||||
| 82711-14170 | ||||
| 82711-14190 | ||||
| 82711-14290 | ||||
| 82711-14300 | ||||
| 82711-22170 | ||||
| 82711-22220 | ||||
| 82711-22510 | ||||
| 90461-06006 | ||||
| 90461-06040 | ||||
| 90461-06053 | ||||
| 90461-06083 | ||||
| 90461-06132 | ||||
| 90461-06135 | ||||
| 90461-06645 | ||||
| 90461-06671 | ||||
| 90461-08066 | ||||
| 90461-08175 | ||||
| 90461-08183 | ||||
| 90461-08186 | ||||
| 90461-08202 | ||||

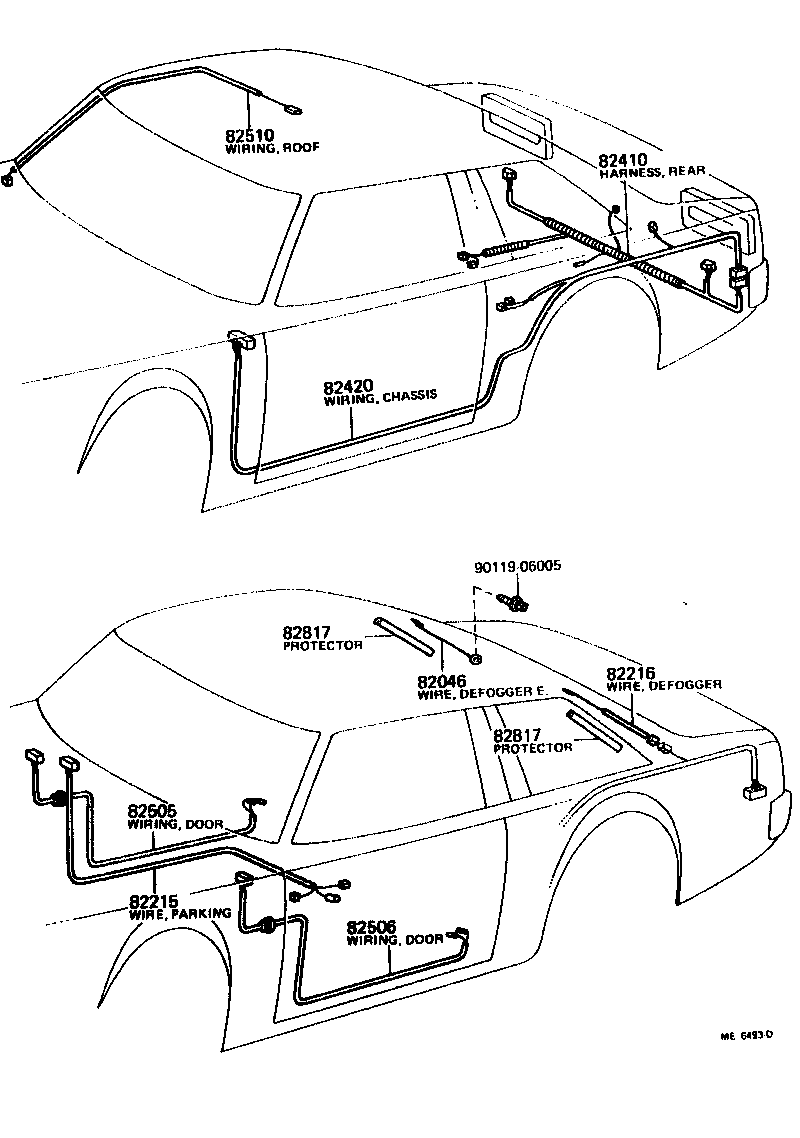

(7708- )RA4#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06033 | ||||
| 91611-41014 | ||||
| 91655-40616 | ||||
| 93540-16012 | ||||
| 93566-15514 | ||||
| 93566-55514 | ||||
(7708- )CP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06005 | ||||

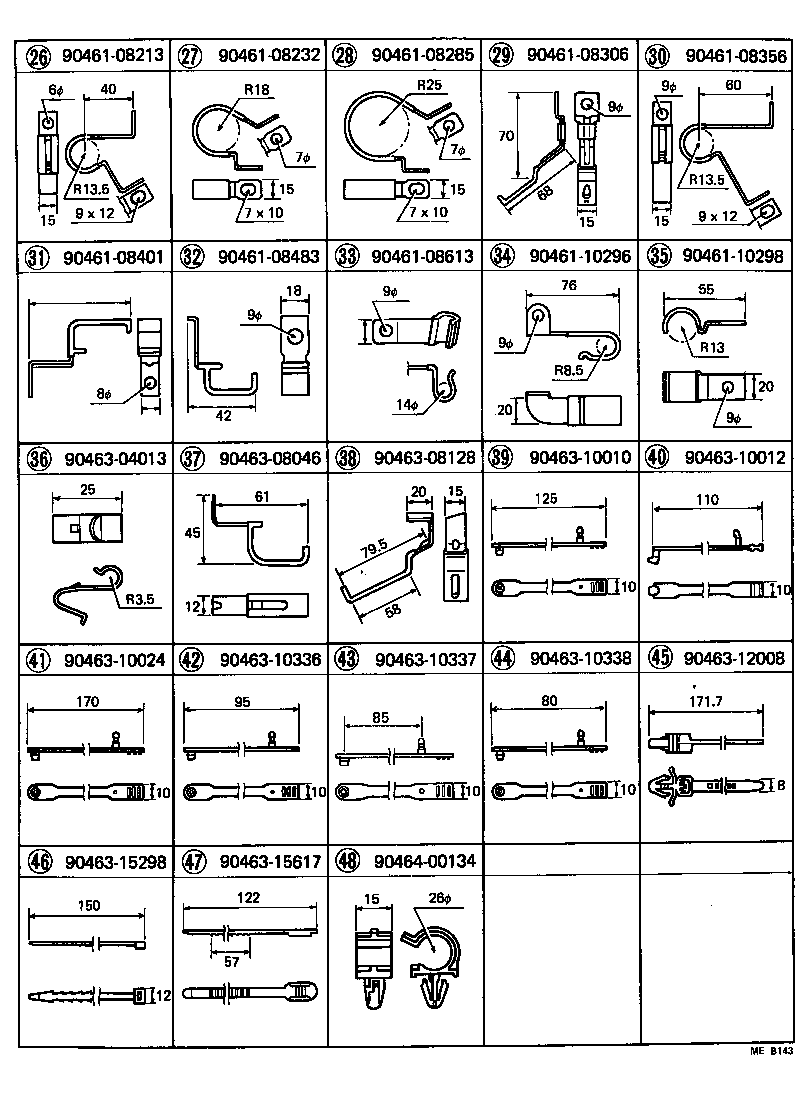

(7708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-08213 | ||||
| 90461-08232 | ||||
| 90461-08285 | ||||
| 90461-08306 | ||||
| 90461-08356 | ||||
| 90461-08401 | ||||
| 90461-08483 | ||||
| 90461-08613 | ||||
| 90461-10296 | ||||
| 90461-10298 | ||||
| 90463-04013 | ||||
| 90463-08046 | ||||
| 90463-08128 | ||||
| 90463-10010 | ||||
| 90463-10012 | ||||
| 90463-10024 | ||||
| 90463-10336 | ||||
| 90463-10337 | ||||
| 90463-10338 | ||||
| 90463-12008 | ||||
| 90463-15298 | ||||
| 90463-15617 | ||||
| 90464-00134 | ||||
