RA42L-BCMSSA (1977)
Toyota Celica

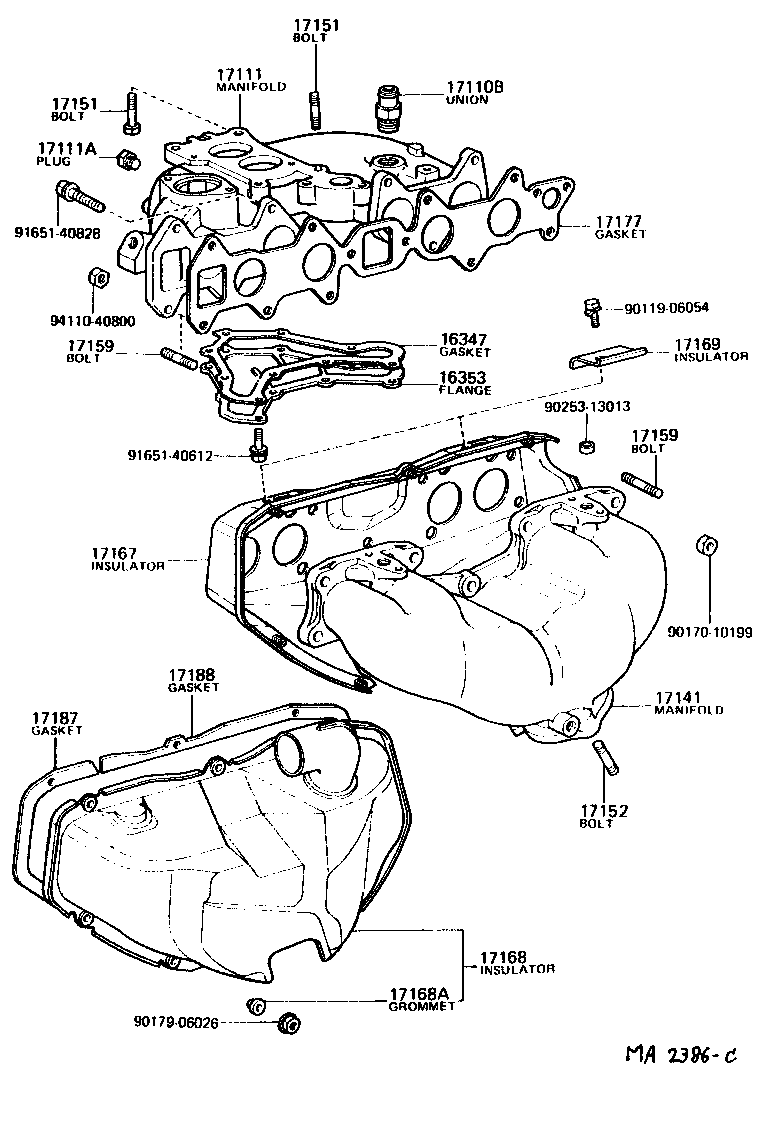

(7708-7808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-38010 |
20R..RA42 |
1 | ||
| 16347-38011 |
20R..RA42 |
1 | ||
| 16353 - FLANGE, WATER BY-PASS | ||||
| 16353-38020 |
20R..RA42 |
1 | ||
| 16353-38010 |
20R..RA42 |
1 | ||
| 17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD) | ||||
| 90404-54009 |
20R..RA42 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-38030 |
20R..RA42 |
1 | ||
| 17111-38031 |
20R..RA42 |
1 | ||
| 17111-38020 |
20R..RA42 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90340-16002 |
20R..RA42 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-38011 |
20R..RA42 CANADA SPEC |
1 | ||
| 17141-38020 |
20R..RA42 USA SPEC |
1 | ||
| 17141-38011 |
20R..RA42 |
1 | ||
| 17141-38012 |
20R..RA42 CANADA SPEC |
1 | ||
| 17141-38021 |
20R..RA42 USA SPEC |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08051 |
20R,22R..RA4# L=40,S=11&11 |
2 | ||
| 90119-08019 |
20R,22R..RA4# HEXAGON CAP,L=48 |
2 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08051 |
20R,22R..RA4# L=40,S=11&11 |
2 | ||
| 90119-08019 |
20R,22R..RA4# HEXAGON CAP,L=48 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10001 |
20R..RA42 L=36,S=15&15 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10317 |
20R..RA42 L=36,S=13&13 |
7 | ||
| 90116-08013 |
20R,22R..RA4# L=34.5,S=9&16 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10317 |
20R..RA42 L=36,S=13&13 |
7 | ||
| 90116-08013 |
20R,22R..RA4# L=34.5,S=9&16 |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-38040 |
20R..RA42 |
1 | ||
| 17167-38020 |
20R..RA42 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-38011 |
20R..RA42 |
1 | ||
| 17168-38040 |
20R..RA42 |
1 | ||
| 17168A - GROMMET(FOR EXHAUST MANIFOLD HEAT INSULATOR) | ||||
| 90480-11001 |
20R,22R..RA4# OD=11.5 |
2 | ||
| 90480-12001 |
20R,22R..RA4# OD=12.5 |
4 | ||
| 17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 | ||||
| 17169-38010 |
20R..RA42 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-38021 |
20R..RA42 |
1 | ||
| 17177-38020 |
20R..RA42 |
1 | ||
| 17187 - GASKET, HEAT INSULATOR, NO.1 | ||||
| 17187-38010 |
20R..RA42 |
1 | ||
| 17188 - GASKET, HEAT INSULATOR, NO.2 | ||||
| 17188-38010 |
20R,22R..RA4# |
1 | ||
| Common parts | ||||
| 90119-06054 | ||||
| 90170-10199 | ||||
| 90179-06026 | ||||
| 90253-13013 | ||||
| 91651-40612 | ||||
| 91651-40828 | ||||
| 94110-40800 | ||||

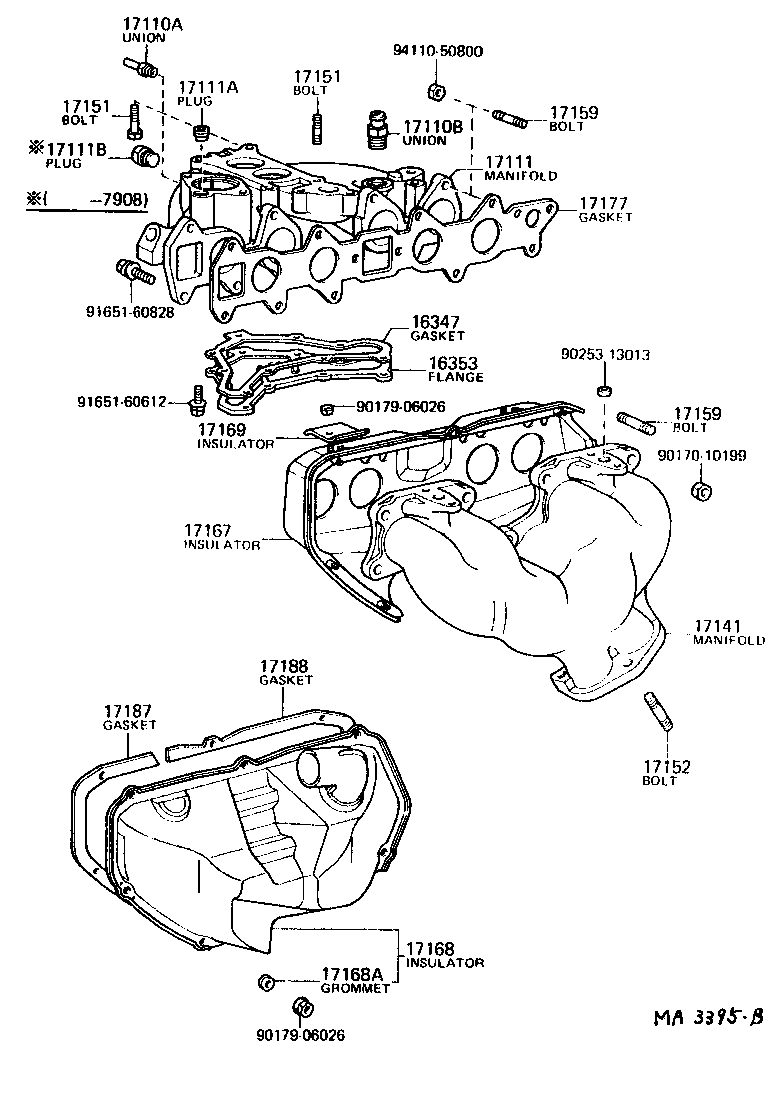

(7808-8008)20R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-38010 |
20R..RA42 |
1 | ||
| 16347-38011 |
20R..RA42 |
1 | ||
| 16353 - FLANGE, WATER BY-PASS | ||||
| 16353-38020 |
20R..RA42 |
1 | ||
| 16353-38010 |
20R..RA42 |
1 | ||
| 17110A - UNION, VACUUM HOSE | ||||
| 90404-51010 |
20R..RA42 |
1 | ||
| 17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD) | ||||
| 90404-54009 |
20R..RA42 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-38030 |
20R..RA42 |
1 | ||
| 17111-38031 |
20R..RA42 |
1 | ||
| 17111-38020 |
20R..RA42 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90340-16002 |
20R..RA42 |
1 | ||
| 17111B - PLUG, NO.2 | ||||
| 90345-53007 |
20R..RA42 CANADA SPEC |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-38011 |
20R..RA42 CANADA SPEC |
1 | ||
| 17141-38020 |
20R..RA42 USA SPEC |
1 | ||
| 17141-38011 |
20R..RA42 |
1 | ||
| 17141-38012 |
20R..RA42 CANADA SPEC |
1 | ||
| 17141-38021 |
20R..RA42 USA SPEC |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08051 |
20R,22R..RA4# L=40,S=11&11 |
2 | ||
| 90119-08019 |
20R,22R..RA4# HEXAGON CAP,L=48 |
2 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08051 |
20R,22R..RA4# L=40,S=11&11 |
2 | ||
| 90119-08019 |
20R,22R..RA4# HEXAGON CAP,L=48 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10001 |
20R..RA42 L=36,S=15&15 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10317 |
20R..RA42 L=36,S=13&13 |
7 | ||
| 90116-08013 |
20R,22R..RA4# L=34.5,S=9&16 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10317 |
20R..RA42 L=36,S=13&13 |
7 | ||
| 90116-08013 |
20R,22R..RA4# L=34.5,S=9&16 |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-38040 |
20R..RA42 |
1 | ||
| 17167-38020 |
20R..RA42 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-38011 |
20R..RA42 |
1 | ||
| 17168-38040 |
20R..RA42 |
1 | ||
| 17168A - GROMMET(FOR EXHAUST MANIFOLD HEAT INSULATOR) | ||||
| 90480-11001 |
20R,22R..RA4# OD=11.5 |
2 | ||
| 90480-12001 |
20R,22R..RA4# OD=12.5 |
4 | ||
| 17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 | ||||
| 17169-38010 |
20R..RA42 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-38021 |
20R..RA42 |
1 | ||
| 17177-38020 |
20R..RA42 |
1 | ||
| 17187 - GASKET, HEAT INSULATOR, NO.1 | ||||
| 17187-38010 |
20R..RA42 |
1 | ||
| 17188 - GASKET, HEAT INSULATOR, NO.2 | ||||
| 17188-38010 |
20R,22R..RA4# |
1 | ||
| Common parts | ||||
| 90170-10199 | ||||
| 90179-06026 | ||||
| 90253-13013 | ||||
| 91651-60612 | ||||
| 91651-60828 | ||||
| 94110-50800 | ||||
