RA42L-BCHSSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-7908)20R

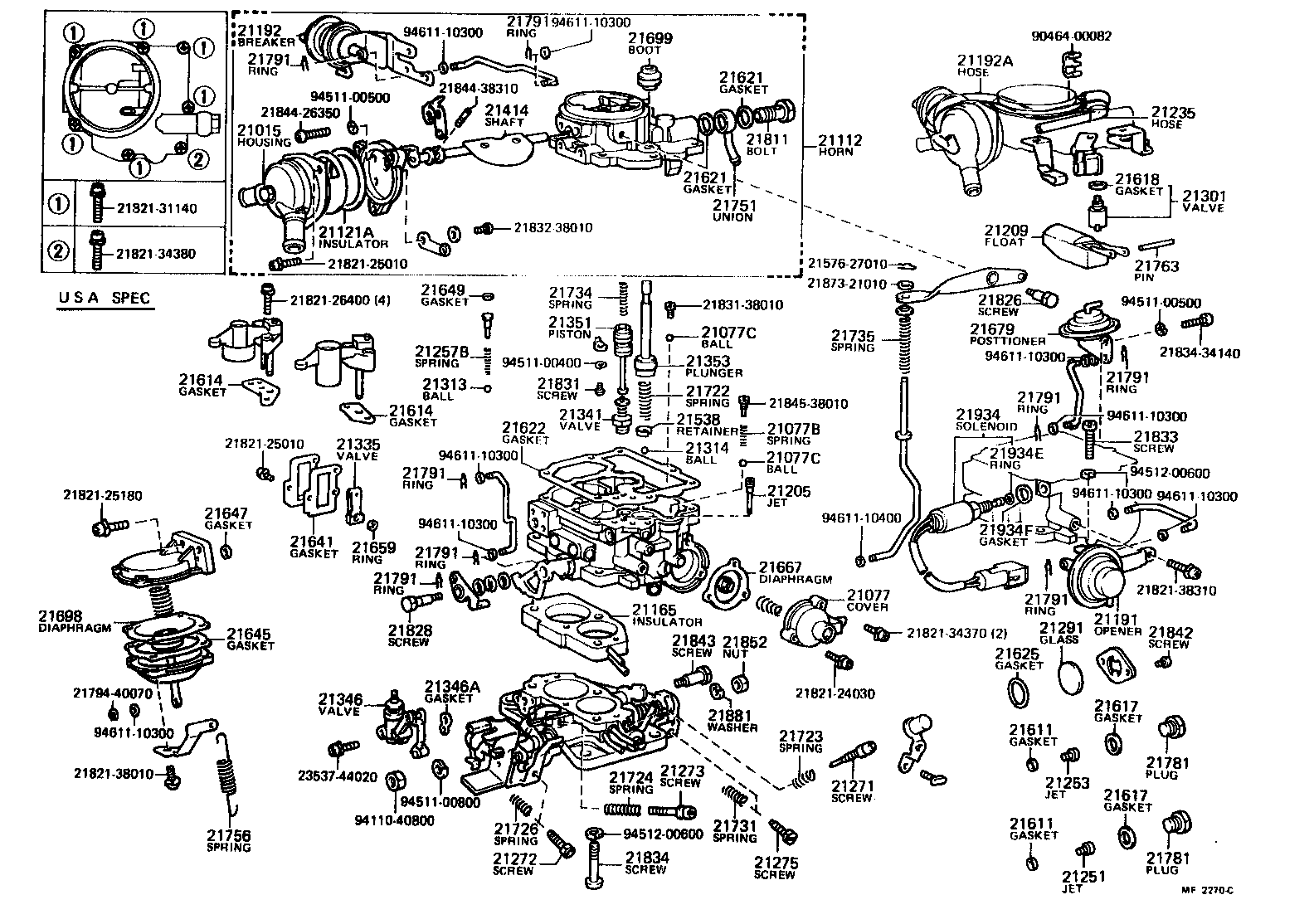

Click highlighted areas on diagram

diagram 1708 21015 21077 21077B 21077C 21077C 21112 21121A 21165 21191 21192 21192A 21192B 21205 21209 21235 21236A 21236B 21251 21253 21257 21257A 21257B 21271 21272 21273 21275 21291 21301 21313 21314 21335 21341 21346 21346A 21351 21353 21414 21538 2157627010 21611 21611 21614 21614 21617 21617 21618 21621 21621 21622 21625 21627 21641 21645 21647 21659 21667 21679 21698 21699 21722 21723 21724 21726 21731 21734 21735 21751 21756 21763 21781 21781 21791 21791 21791 21791 21791 21791 21791 2179440070 21811 2182124030 2182125010 2182125010 2182125180 2182126400 2182131140 2182131140 2182131140 2182134370 2182134380 2182134380 2182138010 2182138310 21826 21828 21831 2183138010 21833 21834 2183434140 21842 21843 2184426350 2184538010 21852 2187321010 21881 21934 21934E 21934F 2353744020 9041304005 9046400082 9046400082 9311913012 9411040800 9451100400 9451100500 9451100500 9451100800 9451200600 9451200600 9461110300 9461110300 9461110300 9461110300 9461110300 9461110300 9461110400
Part # Description Qty Price
21015 - HOUSING SUB-ASSY, COIL
21015-38011

20R..RA42

 1
21077 - COVER(FOR AUXILIARY ACCELERATION PUMP)
21077-38013

20R..RA42

 1
21112 - HORN, AIR
21112-38252

20R..RA42

HIGH ALTITUDE SPEC

 1
21112-38261

20R..RA42

CANADA SPEC

 1
21112-38016

20R..RA42

 1
21165 - INSULATOR
21165-38012

20R..RA42

 1
21165-38220

20R..RA42

CALIFORNIA SPEC;HIGH ALTITUDE SPEC

 1
21192 - BREAKER
21192-38210

20R..RA42

 1
21192A - HOSE, NO.1(FOR BREAKER)
95411-19930

20R..RA42..3FC

*H,L=260

 1
21209 - FLOAT SUB-ASSY
21209-38010

20R..RA42

 1
21235 - PIPE OR HOSE, CONNECTING
95411-19930

20R..RA42

*H,L=140

 1
21251 - JET, 1ST MAIN
90999-41123

20R..RA42..3FC

CALIFORNIA SPEC,ID=1.23

 1
90999-41117

20R..RA42..3FC

ID=1.17

 1
90999-41121

20R..RA42..3FC

HIGH ALTITUDE SPEC,ID=1.21

 1
21253 - JET, 2ND MAIN
90999-42165

20R..RA42

HIGH ALTITUDE SPEC,ID=1.65

 1
21275 - SCREW, ADJUSTING
21844-26030

20R..RA42

 1
21335 - VALVE, THERMOSTATIC
21335-38010

20R..RA42

 1
21622 - GASKET, AIR HORN
21622-38240

20R..RA42

 1
21679 - POSITIONER
21609-38220

20R..RA42

 1
21609-38010

20R..RA42

 1
21731 - SPRING, DASH POT OR POSITIONER ADJUSTING
21723-10010

20R..RA42

 1
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21826 - SCREW, PUMP ARM SET
21826-38010

20R..RA42

 1
21828 - SCREW, 1ST IDLE SET
21828-38010

20R..RA42

 1
21843 - SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER)
21842-38010

20R..RA42

 1
21934 - SOLENOID, THROTTLE VALVE
21062-38220

20R..RA42

CALIFORNIA SPEC;HIGH ALTITUDE SPEC

 1
21062-38013

20R..RA42

 1
Common parts
21576-27010
21794-40070
21821-24030
21821-25010
21821-25180
21821-26400
21821-31140
21821-34370
21821-34380
21821-38010
21821-38310
21831-38010
21834-34140
21844-26350
21845-38010
21873-21010
23537-44020
90413-04005
90464-00082
93119-13012
94110-40800
94511-00400
94511-00500
94511-00800
94512-00600
94611-10300
94611-10400
Linked diagrams
1708

(7708-7808)

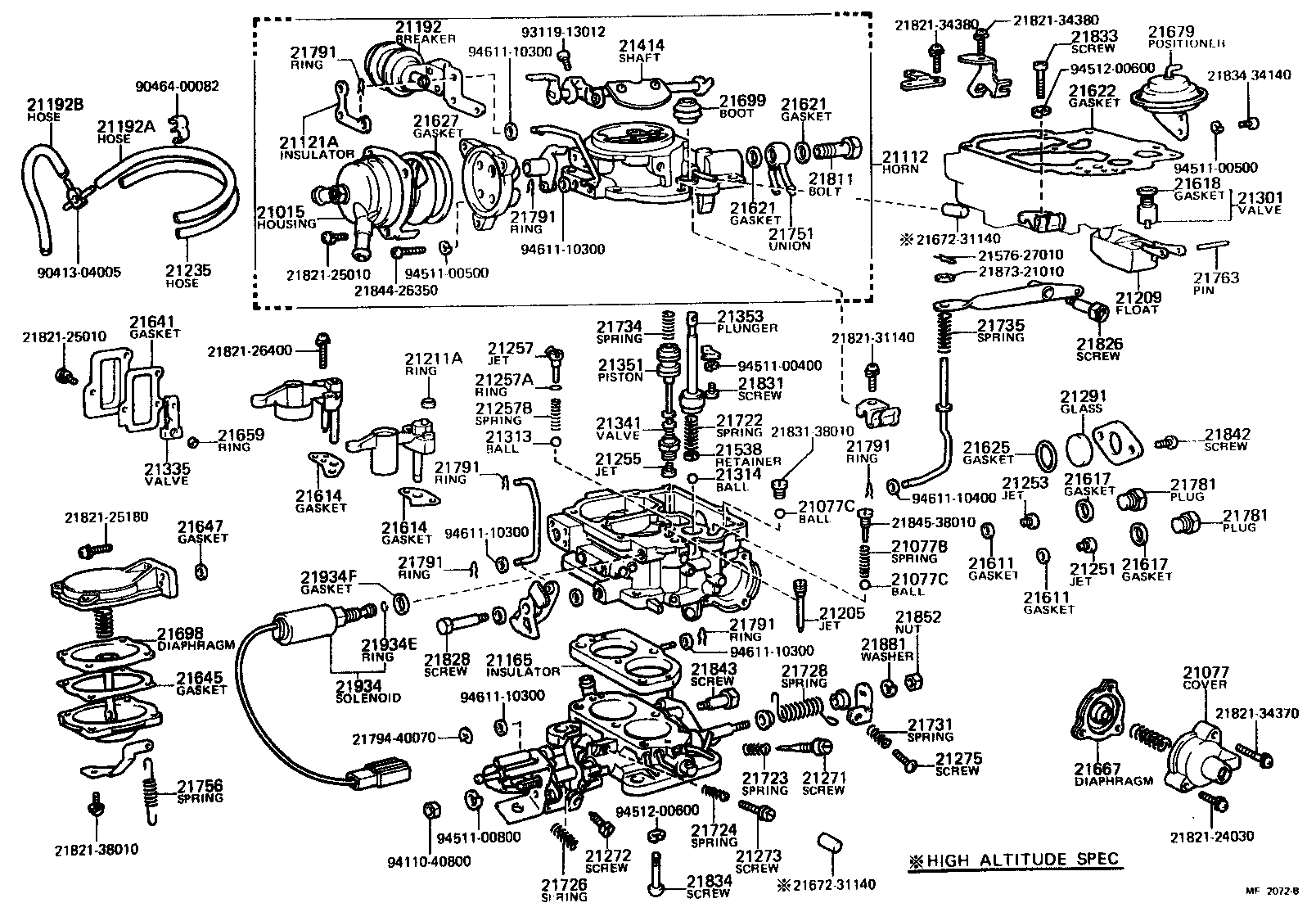

Click highlighted areas on diagram

diagram 21015 21077 21077B 21077C 21077C 21112 21121A 21165 21192 21192A 21192B 21205 21209 21211A 21235 21251 21253 21255 21257 21257A 21257B 21271 21272 21273 21275 21291 21301 21313 21314 21335 21341 21351 21353 21414 21538 2157627010 21611 21611 21614 21614 21617 21617 21618 21621 21621 21622 21625 21627 21641 21645 21647 21659 21667 2167231140 2167231140 21679 21698 21699 21722 21723 21724 21726 21728 21731 21734 21735 21751 21756 21763 21781 21781 21791 21791 21791 21791 21791 21791 2179440070 21811 2182124030 2182125010 2182125010 2182125180 2182126400 2182131140 2182134370 2182134380 2182134380 2182138010 21826 21828 21831 2183138010 21833 21834 2183434140 21842 21843 2184426350 2184538010 21852 2187321010 21881 21934 21934E 21934F 9041304005 9046400082 9311913012 9411040800 9451100400 9451100500 9451100500 9451100800 9451200600 9451200600 9461110300 9461110300 9461110300 9461110300 9461110300 9461110400
Part # Description Qty Price
21015 - HOUSING SUB-ASSY, COIL
21015-38011

20R..RA42

 1
21077 - COVER(FOR AUXILIARY ACCELERATION PUMP)
21077-38013

20R..RA42

 1
21112 - HORN, AIR
21112-38252

20R..RA42

HIGH ALTITUDE SPEC

 1
21112-38261

20R..RA42

CANADA SPEC

 1
21112-38016

20R..RA42

 1
21165 - INSULATOR
21165-38012

20R..RA42

 1
21165-38220

20R..RA42

CALIFORNIA SPEC;HIGH ALTITUDE SPEC

 1
21192 - BREAKER
21192-38210

20R..RA42

 1
21192A - HOSE, NO.1(FOR BREAKER)
95411-19930

20R..RA42..3FC

*H,L=260

 1
21209 - FLOAT SUB-ASSY
21209-38010

20R..RA42

 1
21211A - RING(FOR SMALL VENTURI)
21659-38110

20R..RA42

HIGH ALTITUDE SPEC

 1
21235 - PIPE OR HOSE, CONNECTING
95411-19930

20R..RA42

*H,L=140

 1
21251 - JET, 1ST MAIN
90999-41123

20R..RA42..3FC

CALIFORNIA SPEC,ID=1.23

 1
90999-41117

20R..RA42..3FC

ID=1.17

 1
90999-41121

20R..RA42..3FC

HIGH ALTITUDE SPEC,ID=1.21

 1
21253 - JET, 2ND MAIN
90999-42165

20R..RA42

HIGH ALTITUDE SPEC,ID=1.65

 1
21255 - JET, POWER
90999-43050

20R..RA42

ID=0.50

 1
21275 - SCREW, ADJUSTING
21844-26030

20R..RA42

 1
21335 - VALVE, THERMOSTATIC
21335-38010

20R..RA42

 1
21622 - GASKET, AIR HORN
21622-38240

20R..RA42

 1
21679 - POSITIONER
21609-38220

20R..RA42

 1
21609-38010

20R..RA42

 1
21728 - SPRING, THROTTLE VALVE RETURN
21756-34330

20R..RA42

 1
21731 - SPRING, DASH POT OR POSITIONER ADJUSTING
21723-10010

20R..RA42

 1
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21826 - SCREW, PUMP ARM SET
21826-38010

20R..RA42

 1
21828 - SCREW, 1ST IDLE SET
21828-38010

20R..RA42

 1
21843 - SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER)
21842-38010

20R..RA42

 1
21934 - SOLENOID, THROTTLE VALVE
21062-38220

20R..RA42

CALIFORNIA SPEC;HIGH ALTITUDE SPEC

 1
21062-38013

20R..RA42

 1
Common parts
21576-27010
21672-31140
21794-40070
21821-24030
21821-25010
21821-25180
21821-26400
21821-31140
21821-34370
21821-34380
21821-38010
21831-38010
21834-34140
21844-26350
21845-38010
21873-21010
90413-04005
90464-00082
93119-13012
94110-40800
94511-00400
94511-00500
94511-00800
94512-00600
94611-10300
94611-10400

(7808-7908)20R

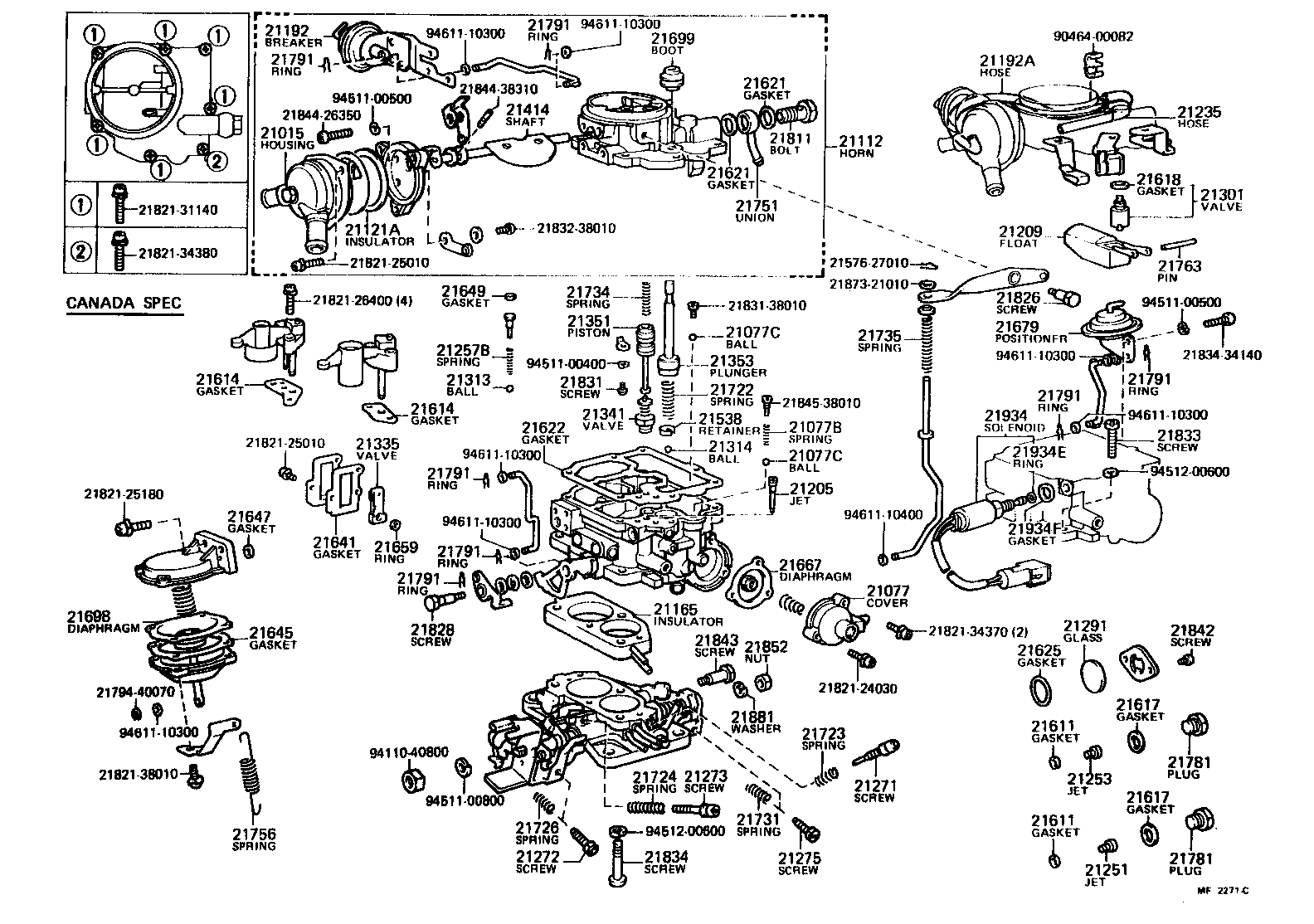

Click highlighted areas on diagram

diagram 21077 21077B 21077C 21077C 21112 21121A 21165 21192 21192A 21205 21209 21235 21251 21253 21257 21257A 21257B 21271 21272 21273 21275 21291 21301 21313 21314 21335 21341 21351 21353 21414 21538 2157627010 21611 21611 21614 21614 21617 21617 21618 21621 21621 21622 21625 21627 21641 21645 21647 21659 21667 21698 21699 21722 21723 21724 21726 21731 21734 21735 21751 21756 21763 21781 21781 21791 21791 21791 21791 21791 2179440070 21811 2182124030 2182125010 2182125010 2182125180 2182126400 2182131140 2182131140 2182131140 2182134370 2182134380 2182134380 2182138010 21826 21828 21831 2183138010 21833 21834 21842 2184426350 2184538010 21852 2187321010 21881 21934 21934E 21934F 9046400082 9311913012 9411040800 9451100400 9451100500 9451100800 9451200600 9451200600 9461110300 9461110300 9461110300 9461110300 9461110400
Part # Description Qty Price
21077 - COVER(FOR AUXILIARY ACCELERATION PUMP)
21077-38013

20R..RA42

 1
21112 - HORN, AIR
21112-38252

20R..RA42

HIGH ALTITUDE SPEC

 1
21112-38261

20R..RA42

CANADA SPEC

 1
21112-38016

20R..RA42

 1
21165 - INSULATOR
21165-38012

20R..RA42

 1
21165-38220

20R..RA42

CALIFORNIA SPEC;HIGH ALTITUDE SPEC

 1
21192 - BREAKER
21192-38210

20R..RA42

 1
21192A - HOSE, NO.1(FOR BREAKER)
95411-19930

20R..RA42..3FC

*H,L=260

 1
21209 - FLOAT SUB-ASSY
21209-38010

20R..RA42

 1
21235 - PIPE OR HOSE, CONNECTING
95411-19930

20R..RA42

*H,L=140

 1
21251 - JET, 1ST MAIN
90999-41123

20R..RA42..3FC

CALIFORNIA SPEC,ID=1.23

 1
90999-41117

20R..RA42..3FC

ID=1.17

 1
90999-41121

20R..RA42..3FC

HIGH ALTITUDE SPEC,ID=1.21

 1
21253 - JET, 2ND MAIN
90999-42165

20R..RA42

HIGH ALTITUDE SPEC,ID=1.65

 1
21275 - SCREW, ADJUSTING
21844-26030

20R..RA42

 1
21335 - VALVE, THERMOSTATIC
21335-38010

20R..RA42

 1
21622 - GASKET, AIR HORN
21622-38240

20R..RA42

 1
21731 - SPRING, DASH POT OR POSITIONER ADJUSTING
21723-10010

20R..RA42

 1
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21826 - SCREW, PUMP ARM SET
21826-38010

20R..RA42

 1
21828 - SCREW, 1ST IDLE SET
21828-38010

20R..RA42

 1
21934 - SOLENOID, THROTTLE VALVE
21062-38220

20R..RA42

CALIFORNIA SPEC;HIGH ALTITUDE SPEC

 1
21062-38013

20R..RA42

 1
Common parts
21576-27010
21794-40070
21821-24030
21821-25010
21821-25180
21821-26400
21821-31140
21821-34370
21821-34380
21821-38010
21831-38010
21844-26350
21845-38010
21873-21010
90464-00082
93119-13012
94110-40800
94511-00400
94511-00500
94511-00800
94512-00600
94611-10300
94611-10400

(7908-8008)20R

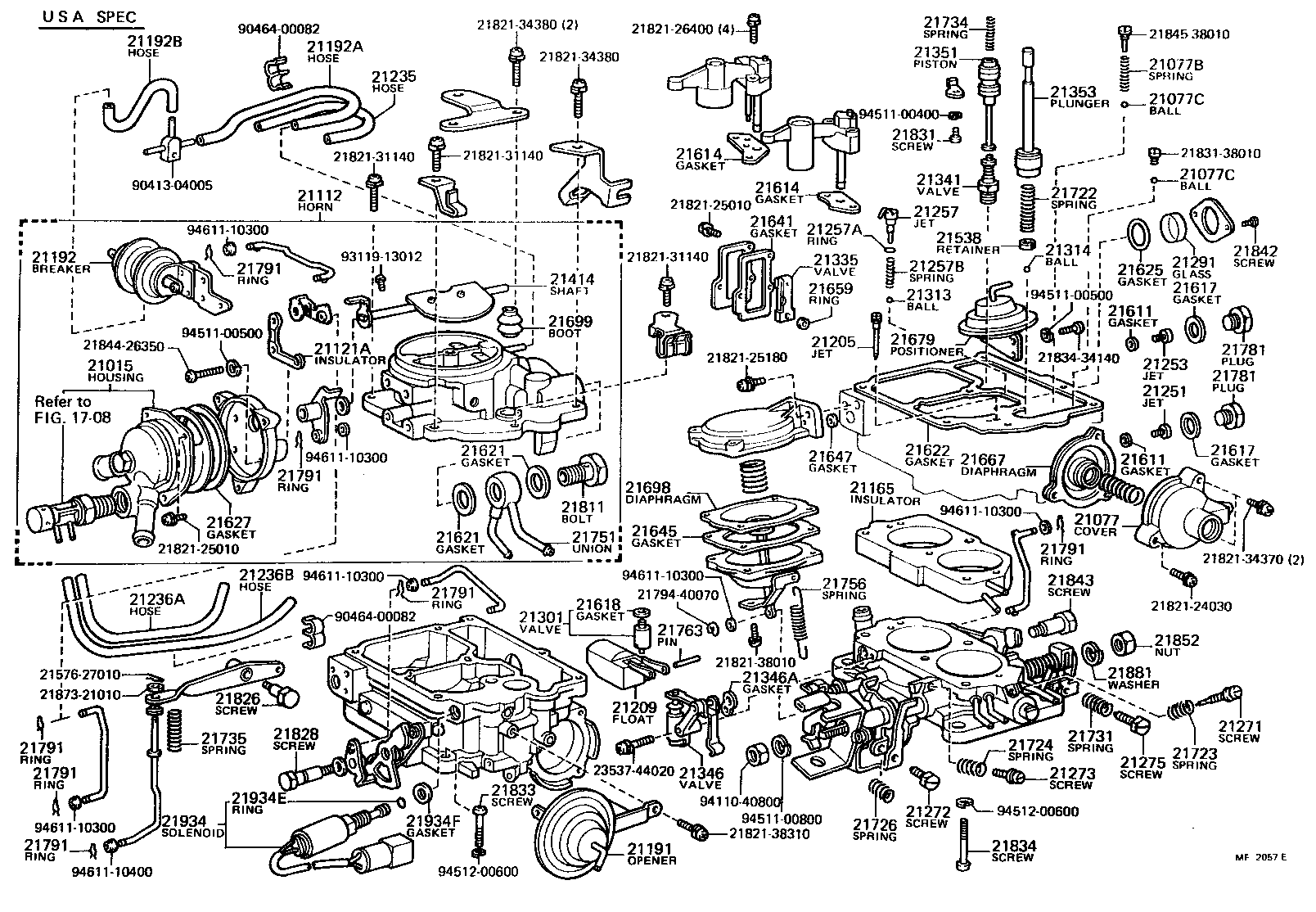

Click highlighted areas on diagram

diagram 21015 21077 21077B 21077C 21077C 21112 21121A 21165 21191 21192 21192A 21205 21209 21235 21251 21253 21257B 21271 21272 21273 21275 21291 21301 21313 21314 21335 21341 21346 21346A 21351 21353 21414 21538 2157627010 21611 21611 21614 21614 21617 21617 21618 21621 21621 21622 21625 21641 21645 21647 21649 21659 21667 21679 21698 21699 21722 21723 21724 21726 21731 21734 21735 21751 21756 21763 21781 21781 21791 21791 21791 21791 21791 21791 21791 21791 2179440070 21811 2182124030 2182125010 2182125010 2182125180 2182126400 2182131140 2182134370 2182134380 2182138010 2182138310 21826 21828 21831 2183138010 2183238010 21833 21834 2183434140 21842 21843 2184426350 2184438310 2184538010 21852 2187321010 21881 21934 21934E 21934F 2353744020 9046400082 9411040800 9451100400 9451100500 9451100500 9451100800 9451200600 9451200600 9461110300 9461110300 9461110300 9461110300 9461110300 9461110300 9461110300 9461110300 9461110300 9461110400
Part # Description Qty Price
21015 - HOUSING SUB-ASSY, COIL
21015-38011

20R..RA42

 1
21077 - COVER(FOR AUXILIARY ACCELERATION PUMP)
21077-38013

20R..RA42

 1
21112 - HORN, AIR
21112-38252

20R..RA42

HIGH ALTITUDE SPEC

 1
21112-38261

20R..RA42

CANADA SPEC

 1
21112-38016

20R..RA42

 1
21165 - INSULATOR
21165-38012

20R..RA42

 1
21165-38220

20R..RA42

CALIFORNIA SPEC;HIGH ALTITUDE SPEC

 1
21192 - BREAKER
21192-38210

20R..RA42

 1
21192A - HOSE, NO.1(FOR BREAKER)
95411-19930

20R..RA42..3FC

*H,L=260

 1
21209 - FLOAT SUB-ASSY
21209-38010

20R..RA42

 1
21235 - PIPE OR HOSE, CONNECTING
95411-19930

20R..RA42

*H,L=140

 1
21251 - JET, 1ST MAIN
90999-41123

20R..RA42..3FC

CALIFORNIA SPEC,ID=1.23

 1
90999-41117

20R..RA42..3FC

ID=1.17

 1
90999-41121

20R..RA42..3FC

HIGH ALTITUDE SPEC,ID=1.21

 1
21253 - JET, 2ND MAIN
90999-42165

20R..RA42

HIGH ALTITUDE SPEC,ID=1.65

 1
21275 - SCREW, ADJUSTING
21844-26030

20R..RA42

 1
21335 - VALVE, THERMOSTATIC
21335-38010

20R..RA42

 1
21622 - GASKET, AIR HORN
21622-38240

20R..RA42

 1
21679 - POSITIONER
21609-38220

20R..RA42

 1
21609-38010

20R..RA42

 1
21731 - SPRING, DASH POT OR POSITIONER ADJUSTING
21723-10010

20R..RA42

 1
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21826 - SCREW, PUMP ARM SET
21826-38010

20R..RA42

 1
21828 - SCREW, 1ST IDLE SET
21828-38010

20R..RA42

 1
21843 - SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER)
21842-38010

20R..RA42

 1
21934 - SOLENOID, THROTTLE VALVE
21062-38220

20R..RA42

CALIFORNIA SPEC;HIGH ALTITUDE SPEC

 1
21062-38013

20R..RA42

 1
Common parts
21576-27010
21794-40070
21821-24030
21821-25010
21821-25180
21821-26400
21821-31140
21821-34370
21821-34380
21821-38010
21821-38310
21831-38010
21832-38010
21834-34140
21844-26350
21844-38310
21845-38010
21873-21010
23537-44020
90464-00082
94110-40800
94511-00400
94511-00500
94511-00800
94512-00600
94611-10300
94611-10400

(7908-8008)20R

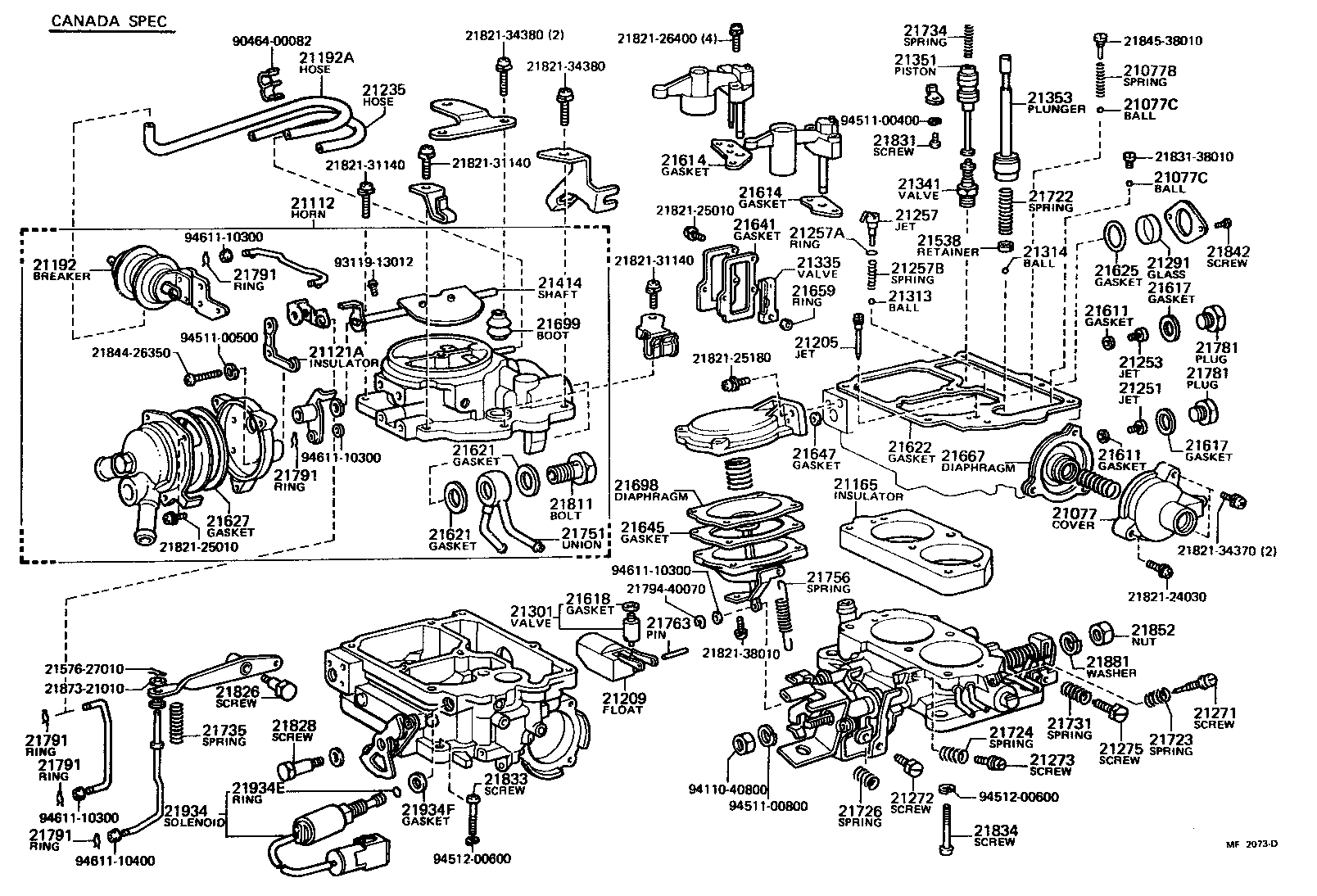

Click highlighted areas on diagram

diagram 21015 21077 21077B 21077C 21077C 21112 21121A 21165 21192 21192A 21205 21209 21235 21251 21253 21257B 21271 21272 21273 21275 21291 21301 21313 21314 21335 21341 21351 21353 21414 21538 2157627010 21611 21611 21614 21614 21617 21617 21618 21621 21621 21622 21625 21641 21645 21647 21649 21659 21667 21679 21698 21699 21722 21723 21724 21726 21731 21734 21735 21751 21756 21763 21781 21781 21791 21791 21791 21791 21791 21791 21791 2179440070 21811 2182124030 2182125010 2182125010 2182125180 2182126400 2182131140 2182134370 2182134380 2182138010 21826 21828 21831 2183138010 2183238010 21833 21834 2183434140 21842 21843 2184426350 2184438310 2184538010 21852 2187321010 21881 21934 21934E 21934F 9046400082 9411040800 9451100400 9451100500 9451100500 9451100800 9451200600 9451200600 9461110300 9461110300 9461110300 9461110300 9461110300 9461110300 9461110300 9461110400
Part # Description Qty Price
21015 - HOUSING SUB-ASSY, COIL
21015-38011

20R..RA42

 1
21077 - COVER(FOR AUXILIARY ACCELERATION PUMP)
21077-38013

20R..RA42

 1
21112 - HORN, AIR
21112-38252

20R..RA42

HIGH ALTITUDE SPEC

 1
21112-38261

20R..RA42

CANADA SPEC

 1
21112-38016

20R..RA42

 1
21165 - INSULATOR
21165-38012

20R..RA42

 1
21165-38220

20R..RA42

CALIFORNIA SPEC;HIGH ALTITUDE SPEC

 1
21192 - BREAKER
21192-38210

20R..RA42

 1
21192A - HOSE, NO.1(FOR BREAKER)
95411-19930

20R..RA42..3FC

*H,L=260

 1
21209 - FLOAT SUB-ASSY
21209-38010

20R..RA42

 1
21235 - PIPE OR HOSE, CONNECTING
95411-19930

20R..RA42

*H,L=140

 1
21251 - JET, 1ST MAIN
90999-41123

20R..RA42..3FC

CALIFORNIA SPEC,ID=1.23

 1
90999-41117

20R..RA42..3FC

ID=1.17

 1
90999-41121

20R..RA42..3FC

HIGH ALTITUDE SPEC,ID=1.21

 1
21253 - JET, 2ND MAIN
90999-42165

20R..RA42

HIGH ALTITUDE SPEC,ID=1.65

 1
21275 - SCREW, ADJUSTING
21844-26030

20R..RA42

 1
21335 - VALVE, THERMOSTATIC
21335-38010

20R..RA42

 1
21622 - GASKET, AIR HORN
21622-38240

20R..RA42

 1
21679 - POSITIONER
21609-38220

20R..RA42

 1
21609-38010

20R..RA42

 1
21731 - SPRING, DASH POT OR POSITIONER ADJUSTING
21723-10010

20R..RA42

 1
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R..RA42

 6
21826 - SCREW, PUMP ARM SET
21826-38010

20R..RA42

 1
21828 - SCREW, 1ST IDLE SET
21828-38010

20R..RA42

 1
21843 - SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER)
21842-38010

20R..RA42

 1
21934 - SOLENOID, THROTTLE VALVE
21062-38220

20R..RA42

CALIFORNIA SPEC;HIGH ALTITUDE SPEC

 1
21062-38013

20R..RA42

 1
Common parts
21576-27010
21794-40070
21821-24030
21821-25010
21821-25180
21821-26400
21821-31140
21821-34370
21821-34380
21821-38010
21831-38010
21832-38010
21834-34140
21844-26350
21844-38310
21845-38010
21873-21010
90464-00082
94110-40800
94511-00400
94511-00500
94511-00800
94512-00600
94611-10300
94611-10400
