RA42L-BCHSSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )20R,22R

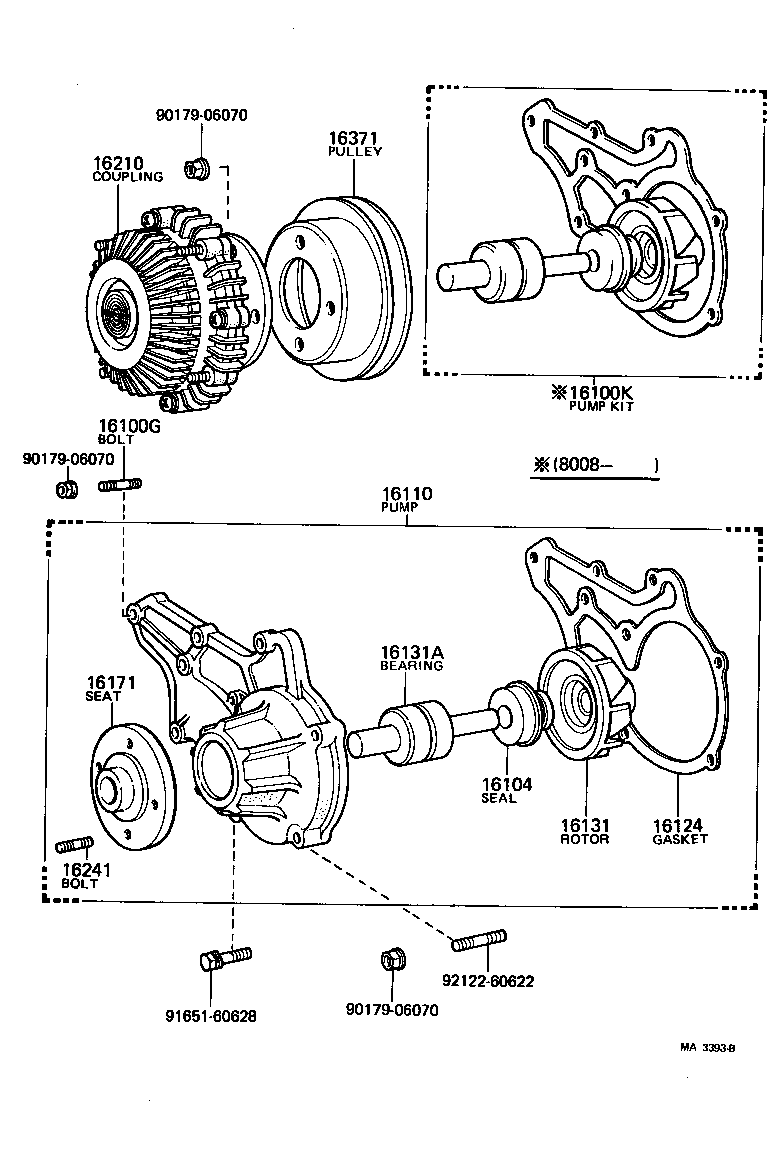

Click highlighted areas on diagram

diagram 16100G 16100K 16104 16110 16124 16131 16131A 16171 16210 16241 16371 9017906070 9017906070 9017906070 9165160628 9212260622
Part # Description Qty Price
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-38030

20R..RA42

 1
16131A - BEARING, WATER PUMP
16140-38011

20R..RA42

WPB16101ARS

 1
16210 - COUPLING ASSY, FLUID
16210-38023

20R..RA42

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16193-33030

20R..RA42

L=20.5,S=5.5&9

 4
Common parts
90179-06070
91651-60628
92122-60622
