RA42L-BCHQSA (1977)
Toyota Celica
Production
Aug 1977
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

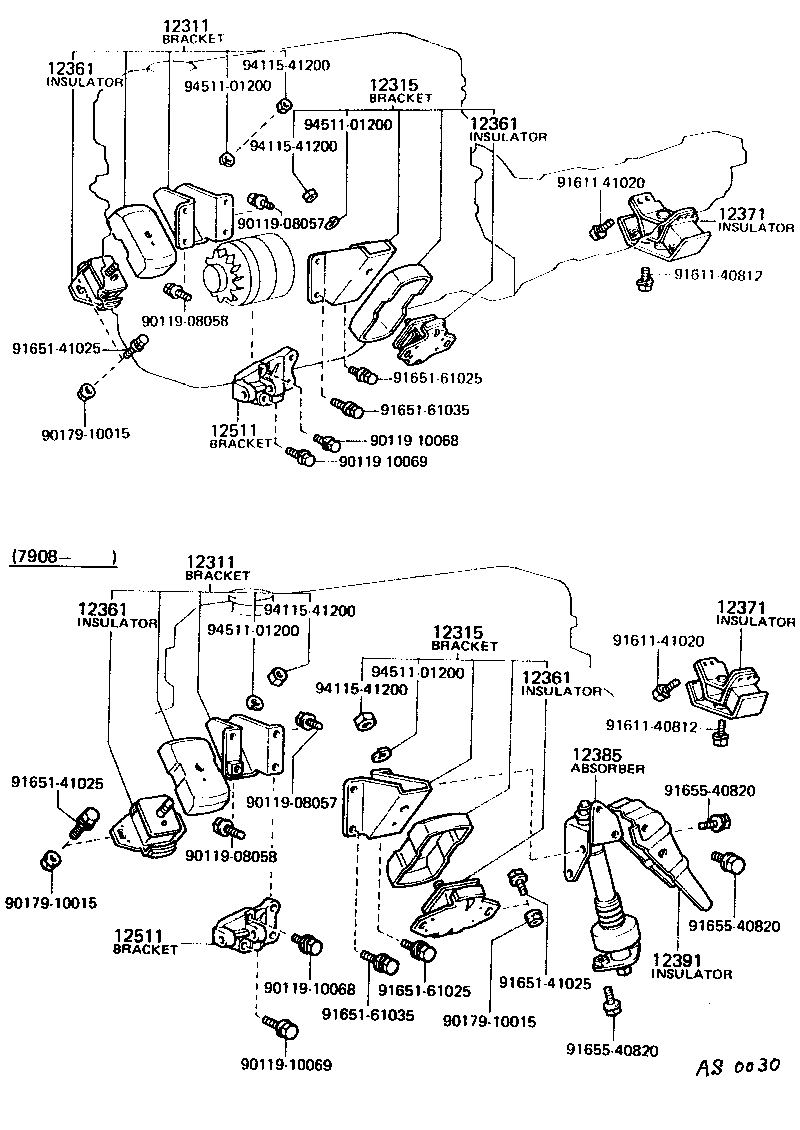

(7808-8008)20R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12301-39015 |
20R..RA42 |
1 | ||
| 12301-38160 |
20R..RA42 |
1 | ||
| 12301-38180 |
20R..RA42 |
1 | ||
| 12301-38120 |
20R..RA42 |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12301-39015 |
20R..RA42 |
1 | ||
| 12301-38160 |
20R..RA42 |
1 | ||
| 12301-38180 |
20R..RA42 |
1 | ||
| 12301-38120 |
20R..RA42 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12302-38071 |
20R..RA42 |
1 | ||
| 12302-38160 |
20R..RA42 |
1 | ||
| 12302-39035 |
20R..RA42 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12302-38071 |
20R..RA42 |
1 | ||
| 12302-38160 |
20R..RA42 |
1 | ||
| 12302-39035 |
20R..RA42 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-39115 |
20R..RA42 |
2 | ||
| 12361-38110 |
20R..RA42 |
2 | ||
| 12361-38150 |
20R..RA42 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-39115 |
20R..RA42 |
2 | ||
| 12361-38110 |
20R..RA42 |
2 | ||
| 12361-38150 |
20R..RA42 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-39115 |
20R..RA42 |
2 | ||
| 12361-38110 |
20R..RA42 |
2 | ||
| 12361-38150 |
20R..RA42 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-38150 |
20R..RA42 |
2 | ||
| 12361-39115 |
20R..RA42 |
2 | ||
| 12361-38110 |
20R..RA42 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
20R,22R..RA4# |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
20R,22R..RA4# |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-38022 |
20R..RA42 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-38022 |
20R..RA42 |
1 | ||
| Common parts | ||||
| 90119-08057 | ||||
| 90119-08058 | ||||
| 90119-10068 | ||||
| 90119-10069 | ||||
| 90179-10015 | ||||
| 91611-40812 | ||||
| 91611-41020 | ||||
| 91651-41025 | ||||
| 91651-61025 | ||||
| 91651-61035 | ||||
| 91655-40820 | ||||
| 94115-41200 | ||||
| 94511-01200 | ||||

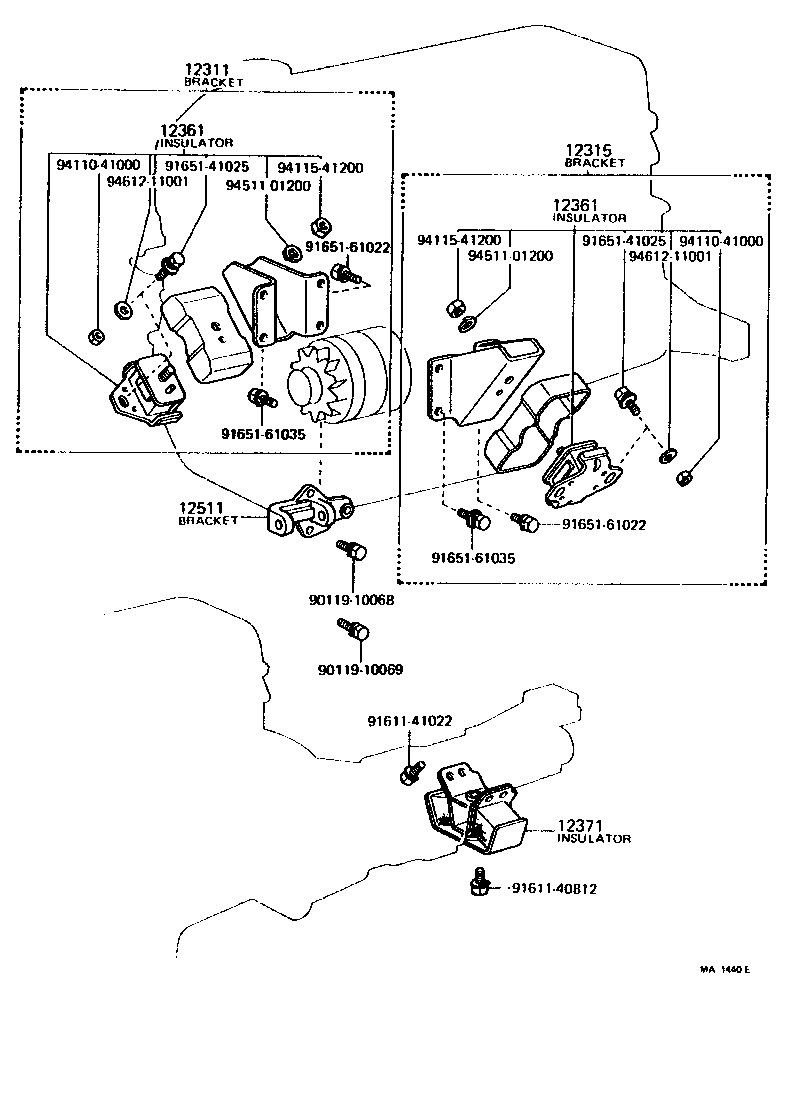

(7708-7808)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12301-39015 |
20R..RA42 |
1 | ||
| 12301-38160 |
20R..RA42 |
1 | ||
| 12301-38180 |
20R..RA42 |
1 | ||
| 12301-38120 |
20R..RA42 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12302-38071 |
20R..RA42 |
1 | ||
| 12302-38160 |
20R..RA42 |
1 | ||
| 12302-39035 |
20R..RA42 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-39115 |
20R..RA42 |
2 | ||
| 12361-38110 |
20R..RA42 |
2 | ||
| 12361-38150 |
20R..RA42 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-39115 |
20R..RA42 |
2 | ||
| 12361-38110 |
20R..RA42 |
2 | ||
| 12361-38150 |
20R..RA42 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
20R,22R..RA4# |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-38022 |
20R..RA42 |
1 | ||
| Common parts | ||||
| 90119-10068 | ||||
| 90119-10069 | ||||
| 91611-40812 | ||||
| 91611-41022 | ||||
| 91651-41025 | ||||
| 91651-61022 | ||||
| 91651-61035 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94511-01200 | ||||
| 94612-11001 | ||||
