RA42L-BCHDSA (1977)
Toyota Celica
(7708-7808)

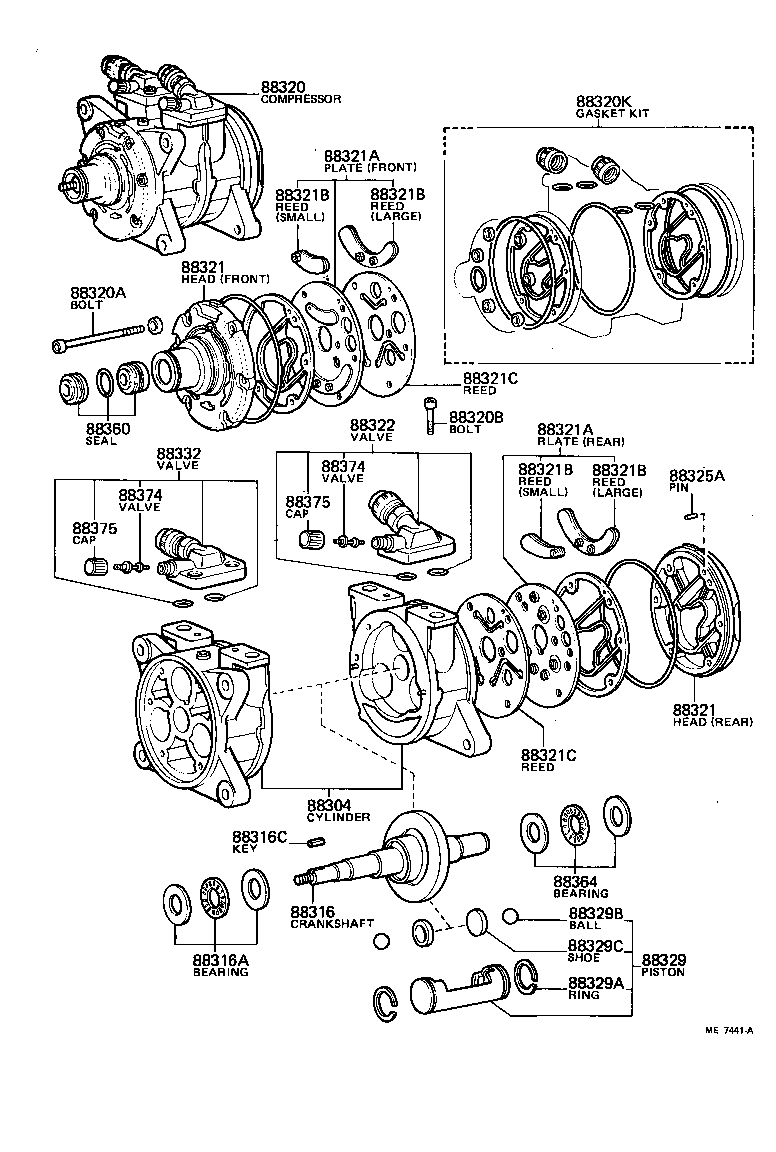

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-20030 |
RA42..3FC..LT |
1 | ||
| 88304-20050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-20060 |
RA42..3FC..LT |
1 | ||
| 88316-20070 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-20050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88366-20040 |
RA42..3FC..LT |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20160 |
RA42..3FC..LT 6P134 |
1 | ||
| 88320-20240 |
MA46,RA42..(3FC,5F)..(LT,SPR) 6P148A |
1 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 04881-20030 |
RA42..3FC..LT |
1 | ||
| 04881-14021 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 04881-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) RR |
1 | ||
| 88321-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) FR |
1 | ||
| 88322-20030 |
RA42..3FC..LT RR |
1 | ||
| 88321-20050 |
RA42..3FC..LT FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) RR |
1 | ||
| 88321-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) FR |
1 | ||
| 88322-20030 |
RA42..3FC..LT RR |
1 | ||
| 88321-20050 |
RA42..3FC..LT FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-20060 |
RA42..3FC..LT FR |
1 | ||
| 88306-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) RR |
1 | ||
| 88305-20070 |
MA46,RA42..(3FC,5F)..(LT,SPR) FR |
1 | ||
| 88306-20030 |
RA42..3FC..LT RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-20060 |
RA42..3FC..LT FR |
1 | ||
| 88306-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) RR |
1 | ||
| 88305-20070 |
MA46,RA42..(3FC,5F)..(LT,SPR) FR |
1 | ||
| 88306-20030 |
RA42..3FC..LT RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) LARGE |
2 | ||
| 88307-20050 |
MA46,RA42..(3FC,5F)..(LT,SPR) SMALL |
2 | ||
| 88307-30251 |
RA42..3FC..LT |
6 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) LARGE |
2 | ||
| 88307-20050 |
MA46,RA42..(3FC,5F)..(LT,SPR) SMALL |
2 | ||
| 88307-30251 |
RA42..3FC..LT |
6 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-20030 |
RA42..3FC..LT |
2 | ||
| 88343-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-20030 |
RA42..3FC..LT |
2 | ||
| 88343-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-20070 |
RA42..3FC..LT |
1 | ||
| 88371-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88325B - PLUG, CYLINDER BLOCK OIL | ||||
| 88339-60010 |
RA42..3FC..LT |
1 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-20040 |
RA42..3FC..LT |
3 | ||
| 88301-20050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
3 | ||
| 88329B - BALL, PISTON | ||||
| 88312-30250 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
6 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-20070 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
6 | ||
| 88313-20030 |
RA42..3FC..LT |
6 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-20060 |
RA42..3FC..LT |
1 | ||
| 88372-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-20050 |
RA42..3FC..LT |
1 | ||
| 88360-30270 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-20040 |
RA42..3FC..LT |
1 | ||
| 88366-20050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-12020 |
RA42..3FC..LT |
2 | ||
| 88375-30260 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88375-30260 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-12020 |
RA42..3FC..LT |
2 | ||
| 88375-30260 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88375-30260 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||

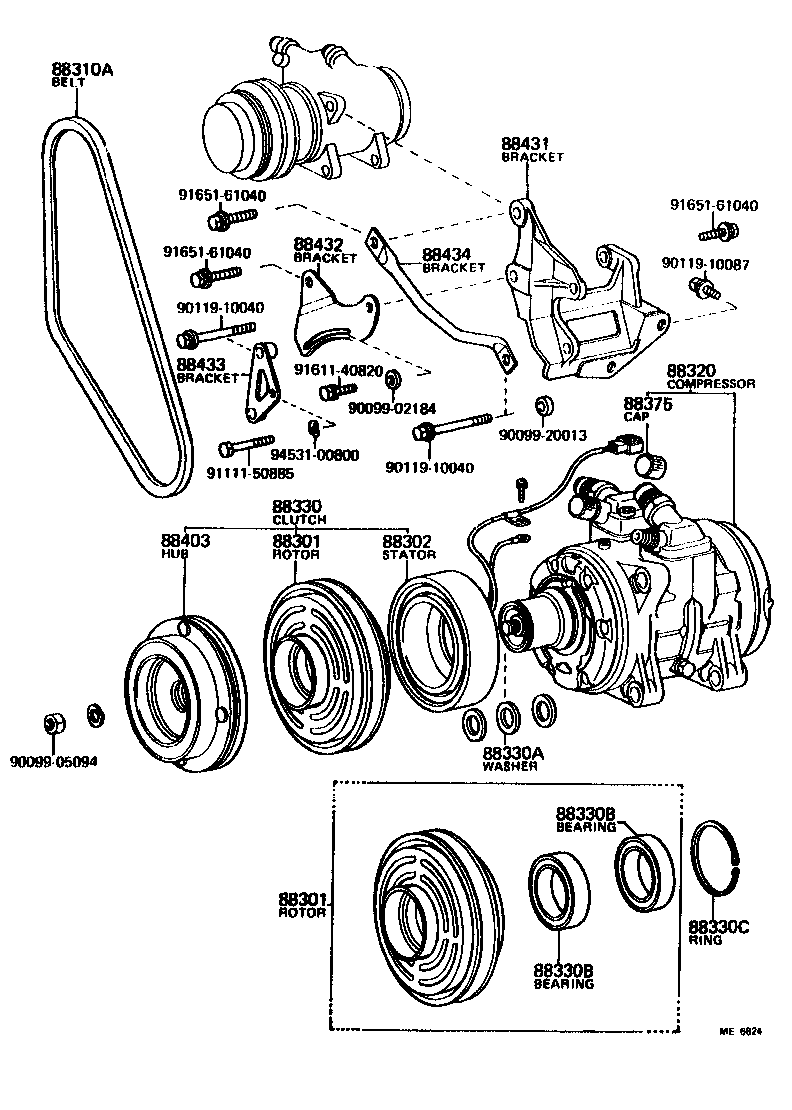

(7708-7808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-20050 |
RA42..3FC..LT |
1 | ||
| 88412-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-20050 |
RA42..3FC..LT |
1 | ||
| 88412-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88411-14020 |
RA42..3FC..LT |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-00970 |
MA46,RA42..(3FC,5F)..(LT,SPR) L=970,L=970 |
1 | ||
| 99332-01140 |
MA46,RA42..(3FC,5F)..(LT,SPR) L=1140 |
1 | ||
| 99332-01160 |
RA42..3FC..LT L=1160 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20160 |
RA42..3FC..LT 6P134 |
1 | ||
| 88320-20240 |
MA46,RA42..(3FC,5F)..(LT,SPR) 6P148A |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14040 |
RA42..3FC..LT |
1 | ||
| 88410-20130 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90099-01110 |
RA42..3FC..LT T=1.0 |
1 | ||
| 90099-01109 |
RA42..3FC..LT T=0.8 |
1 | ||
| 90099-01208 |
RA42..3FC..LT T=2.0 |
1 | ||
| 90099-01350 |
RA42..3FC..LT T=0.1 |
1 | ||
| 90099-01351 |
RA42..3FC..LT T=0.2 |
1 | ||
| 90099-01207 |
RA42..3FC..LT T=1.5 |
1 | ||
| 90099-01209 |
RA42..3FC..LT T=2.5 |
1 | ||
| 90099-01108 |
RA42..3FC..LT T=0.5 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10117 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 90099-10108 |
RA42..3FC..LT |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10117 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 90099-10108 |
RA42..3FC..LT |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-12020 |
RA42..3FC..LT |
2 | ||
| 88375-30260 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88375-30260 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14020 |
RA42..3FC..LT |
1 | ||
| 88403-22030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-20082 |
RA42..3FC..LT |
1 | ||
| 88431-20130 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88431-14090 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88437-20080 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88437-20040 |
RA42..3FC..LT |
1 | ||
| 88433 - BRACKET, COMPRESSOR MOUNTING, NO.3 | ||||
| 11324-38011 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88434 - BRACKET, COMPRESSOR MOUNTING, NO.4 | ||||
| 88434-20140 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88437-20053 |
RA42..3FC..LT |
1 | ||
| Common parts | ||||
| 90099-02184 | ||||
| 90099-05094 | ||||
| 90099-20013 | ||||
| 90119-10040 | ||||
| 90119-10087 | ||||
| 91111-50885 | ||||
| 91611-40820 | ||||
| 91651-61040 | ||||
| 94531-00800 | ||||

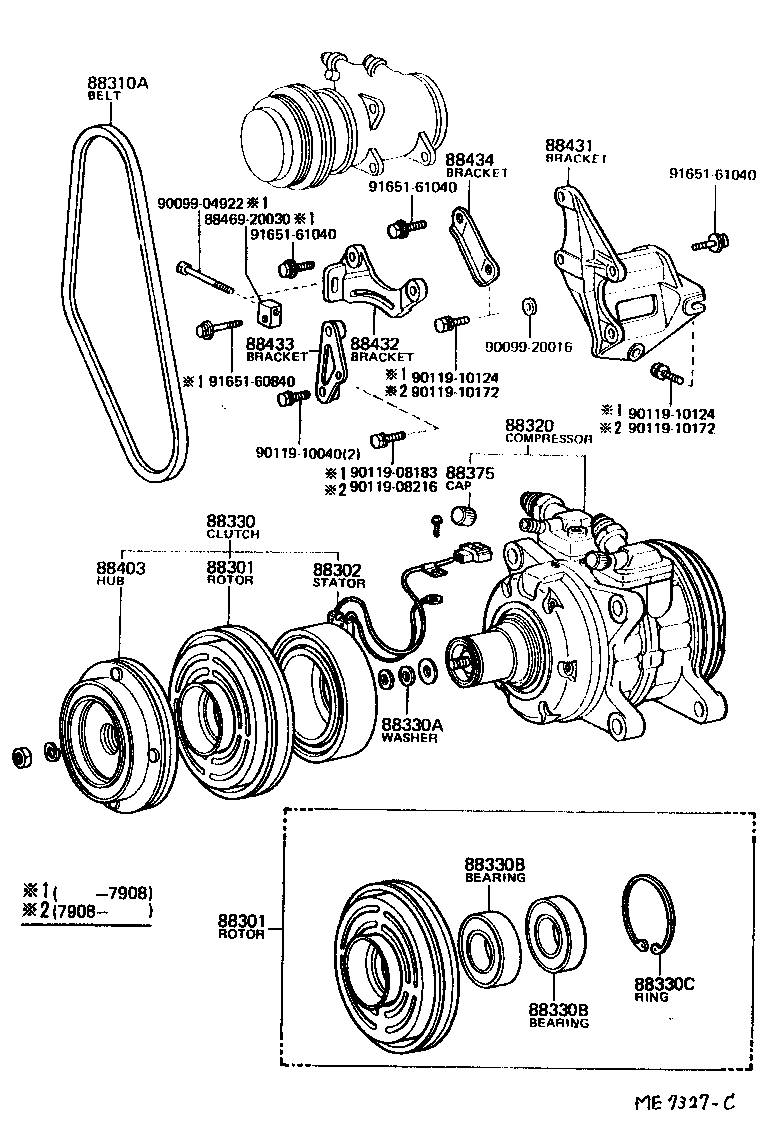

(7808- )RA4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-20050 |
RA42..3FC..LT |
1 | ||
| 88412-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-20050 |
RA42..3FC..LT |
1 | ||
| 88412-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88411-14020 |
RA42..3FC..LT |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-00970 |
MA46,RA42..(3FC,5F)..(LT,SPR) L=970,L=970 |
1 | ||
| 99332-01140 |
MA46,RA42..(3FC,5F)..(LT,SPR) L=1140 |
1 | ||
| 99332-01160 |
RA42..3FC..LT L=1160 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20160 |
RA42..3FC..LT 6P134 |
1 | ||
| 88320-20240 |
MA46,RA42..(3FC,5F)..(LT,SPR) 6P148A |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14040 |
RA42..3FC..LT |
1 | ||
| 88410-20130 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90099-01110 |
RA42..3FC..LT T=1.0 |
1 | ||
| 90099-01109 |
RA42..3FC..LT T=0.8 |
1 | ||
| 90099-01208 |
RA42..3FC..LT T=2.0 |
1 | ||
| 90099-01350 |
RA42..3FC..LT T=0.1 |
1 | ||
| 90099-01351 |
RA42..3FC..LT T=0.2 |
1 | ||
| 90099-01207 |
RA42..3FC..LT T=1.5 |
1 | ||
| 90099-01209 |
RA42..3FC..LT T=2.5 |
1 | ||
| 90099-01108 |
RA42..3FC..LT T=0.5 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10117 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 90099-10108 |
RA42..3FC..LT |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10117 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 90099-10108 |
RA42..3FC..LT |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-12020 |
RA42..3FC..LT |
2 | ||
| 88375-30260 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88375-30260 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14020 |
RA42..3FC..LT |
1 | ||
| 88403-22030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-20082 |
RA42..3FC..LT |
1 | ||
| 88431-20130 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88431-14090 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88437-20080 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88437-20040 |
RA42..3FC..LT |
1 | ||
| 88433 - BRACKET, COMPRESSOR MOUNTING, NO.3 | ||||
| 11324-38011 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88434 - BRACKET, COMPRESSOR MOUNTING, NO.4 | ||||
| 88434-20140 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88437-20053 |
RA42..3FC..LT |
1 | ||
| Common parts | ||||
| 88469-20030 | ||||
| 90099-04922 | ||||
| 90099-20016 | ||||
| 90119-08183 | ||||
| 90119-08216 | ||||
| 90119-10040 | ||||
| 90119-10124 | ||||
| 90119-10172 | ||||
| 91651-60840 | ||||
| 91651-61040 | ||||
(7808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-20030 |
RA42..3FC..LT |
1 | ||
| 88304-20050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-20060 |
RA42..3FC..LT |
1 | ||
| 88316-20070 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-20050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88366-20040 |
RA42..3FC..LT |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20160 |
RA42..3FC..LT 6P134 |
1 | ||
| 88320-20240 |
MA46,RA42..(3FC,5F)..(LT,SPR) 6P148A |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04926 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
6 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04905 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
4 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 04881-20030 |
RA42..3FC..LT |
1 | ||
| 04881-14021 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 04881-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) RR |
1 | ||
| 88321-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) FR |
1 | ||
| 88322-20030 |
RA42..3FC..LT RR |
1 | ||
| 88321-20050 |
RA42..3FC..LT FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) RR |
1 | ||
| 88321-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) FR |
1 | ||
| 88322-20030 |
RA42..3FC..LT RR |
1 | ||
| 88321-20050 |
RA42..3FC..LT FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-20060 |
RA42..3FC..LT FR |
1 | ||
| 88306-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) RR |
1 | ||
| 88305-20070 |
MA46,RA42..(3FC,5F)..(LT,SPR) FR |
1 | ||
| 88306-20030 |
RA42..3FC..LT RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-20060 |
RA42..3FC..LT FR |
1 | ||
| 88306-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) RR |
1 | ||
| 88305-20070 |
MA46,RA42..(3FC,5F)..(LT,SPR) FR |
1 | ||
| 88306-20030 |
RA42..3FC..LT RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) LARGE |
2 | ||
| 88307-20050 |
MA46,RA42..(3FC,5F)..(LT,SPR) SMALL |
2 | ||
| 88307-30251 |
RA42..3FC..LT |
6 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) LARGE |
2 | ||
| 88307-20050 |
MA46,RA42..(3FC,5F)..(LT,SPR) SMALL |
2 | ||
| 88307-30251 |
RA42..3FC..LT |
6 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) LARGE |
2 | ||
| 88307-20050 |
MA46,RA42..(3FC,5F)..(LT,SPR) SMALL |
2 | ||
| 88307-30251 |
RA42..3FC..LT |
6 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) LARGE |
2 | ||
| 88307-20050 |
MA46,RA42..(3FC,5F)..(LT,SPR) SMALL |
2 | ||
| 88307-30251 |
RA42..3FC..LT |
6 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-20030 |
RA42..3FC..LT |
2 | ||
| 88343-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-20030 |
RA42..3FC..LT |
2 | ||
| 88343-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-20070 |
RA42..3FC..LT |
1 | ||
| 88371-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-20040 |
RA42..3FC..LT |
3 | ||
| 88301-20050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
3 | ||
| 88329A - RING, COMPRESSOR PISTON SNAP | ||||
| 88317-20030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
6 | ||
| 88329B - BALL, PISTON | ||||
| 88312-30250 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
6 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-20070 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
6 | ||
| 88313-20030 |
RA42..3FC..LT |
6 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-20060 |
RA42..3FC..LT |
1 | ||
| 88372-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-20050 |
RA42..3FC..LT |
1 | ||
| 88360-30270 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-20040 |
RA42..3FC..LT |
1 | ||
| 88366-20050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-12020 |
RA42..3FC..LT |
2 | ||
| 88375-30260 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88375-30260 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-12020 |
RA42..3FC..LT |
2 | ||
| 88375-30260 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 88375-30260 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
