RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

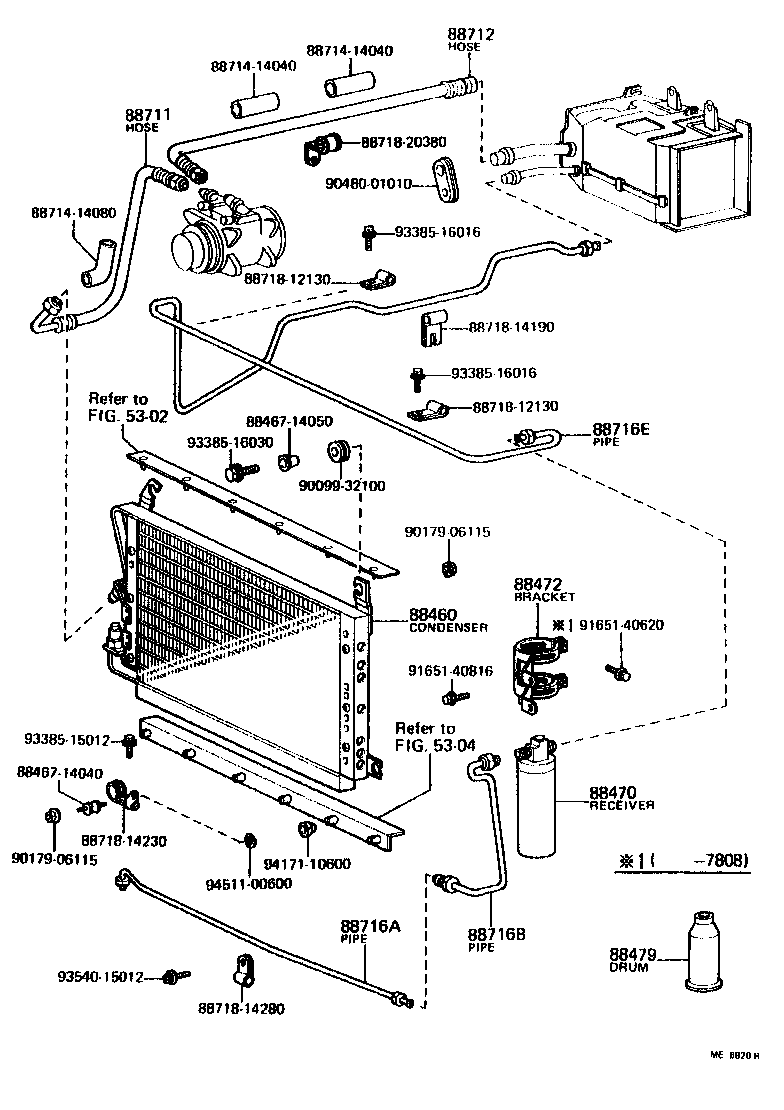

(7708-7908)RA42

Click highlighted areas on diagram

diagram 5302 5304 88460 8846714040 8846714050 88470 88472 88479 88711 88712 8871414040 8871414040 8871414080 88716A 88716B 88716E 8871812130 8871812130 8871814190 8871814230 8871814280 8871820380 9009932100 9017906115 9017906115 9048001010 9165140620 9165140816 9338515012 9338516016 9338516016 9338516030 9354015012 9417110600 9451100600
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-14120

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88460-14140

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-30270

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88470-20070

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88470-12021

RA42..3FC..LT

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-14110

RA42..3FC..LT

 1
88472-14111

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14330

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88711-14260

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14440

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88712-14400

RA42..3FC..LT

 1
88712-14430

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-14470

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88716-14410

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-14360

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88716-14520

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14530

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88716-14380

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
88467-14040
88467-14050
88714-14040
88714-14080
88718-12130
88718-14190
88718-14230
88718-14280
88718-20380
90099-32100
90179-06115
90480-01010
91651-40620
91651-40816
93385-15012
93385-16016
93385-16030
93540-15012
94171-10600
94511-00600
Linked diagrams
5302
5304

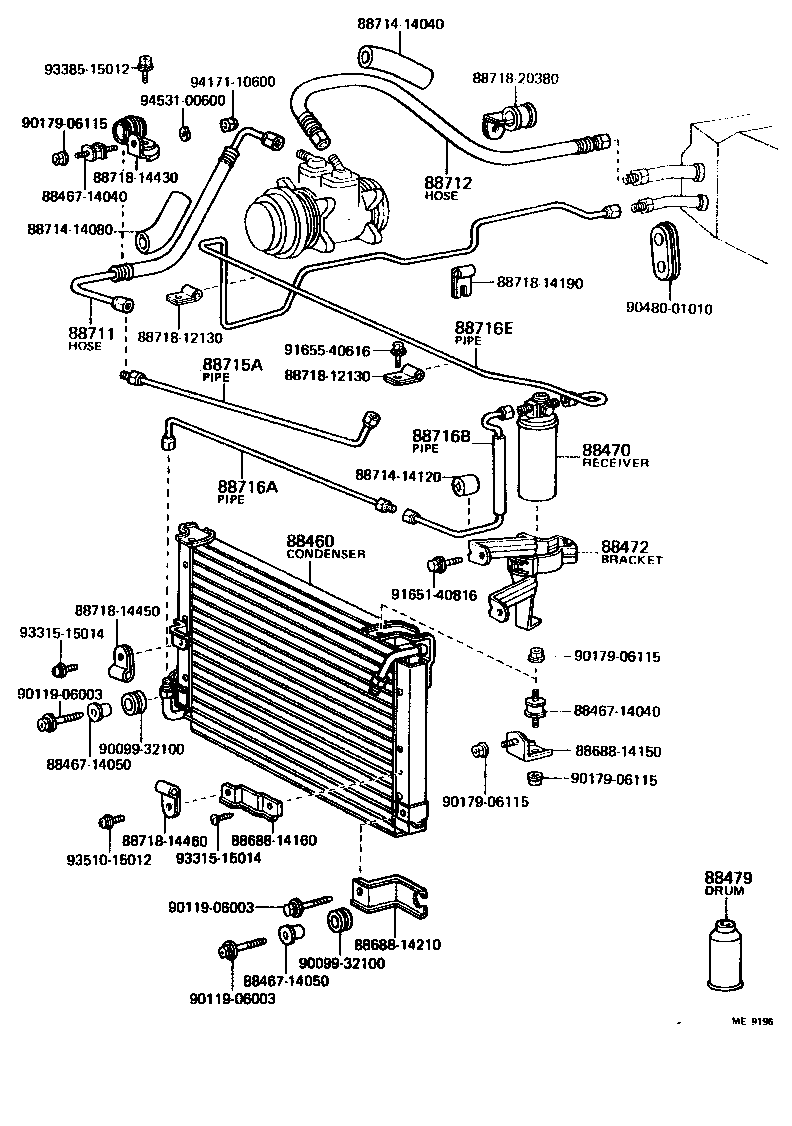

(7908- )RA4#

Click highlighted areas on diagram

diagram 88460 8846714040 8846714040 8846714050 8846714050 88470 88472 88479 8868814150 8868814160 8868814210 88711 88712 8871414040 8871414080 8871414120 88715A 88716A 88716B 88716E 8871812130 8871812130 8871814190 8871814430 8871814450 8871814460 8871820380 9009932100 9009932100 9011906003 9011906003 9011906003 9017906115 9017906115 9017906115 9017906115 9048001010 9165140816 9165540616 9331515014 9331515014 9338515012 9351015012 9417110600 9453100600
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-14120

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88460-14140

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-30270

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88470-20070

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88470-12021

RA42..3FC..LT

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-14110

RA42..3FC..LT

 1
88472-14111

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14330

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88711-14260

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14440

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88712-14400

RA42..3FC..LT

 1
88712-14430

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-14470

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88716-14410

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-14360

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88716-14520

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14530

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88716-14380

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
88467-14040
88467-14050
88688-14150
88688-14160
88688-14210
88714-14040
88714-14080
88714-14120
88718-12130
88718-14190
88718-14430
88718-14450
88718-14460
88718-20380
90099-32100
90119-06003
90179-06115
90480-01010
91651-40816
91655-40616
93315-15014
93385-15012
93510-15012
94171-10600
94531-00600
