RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708-7808)

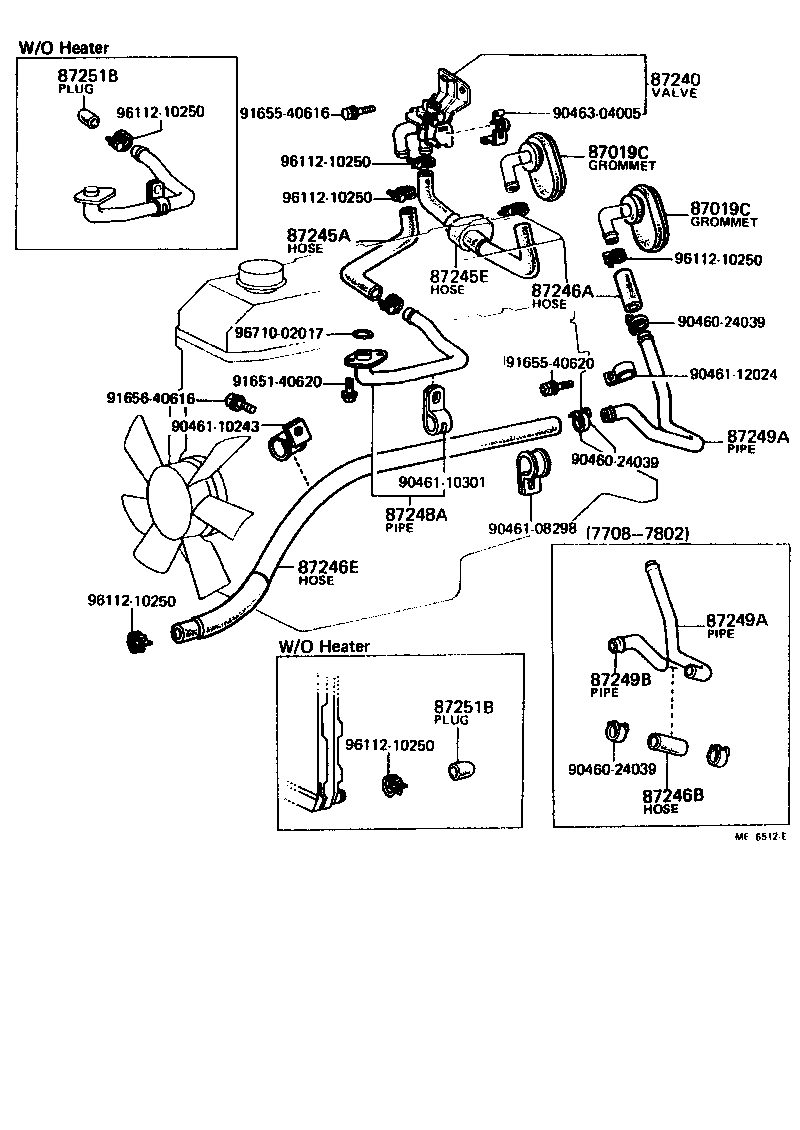

Click highlighted areas on diagram

diagram 87019C 87019C 87240 87245A 87245E 87246A 87246B 87246E 87248A 87249A 87249A 87249B 87251B 87251B 9046024039 9046024039 9046024039 9046108298 9046110243 9046110301 9046112024 9046304005 9165140620 9165540616 9165540620 9165640616 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9671002017
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
87019C - GROMMET, HEATER HOSE
90480-01015

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
87240 - VALVE ASSY, HEATER WATER
87240-14060

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-14400

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87245E - HOSE, HEATER WATER, INLET E
87209-14420

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-30055

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

L=55

 1
87245-14650

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87246B - HOSE, HEATER WATER, OUTLET B
99552-30055

RA42..3FC..LT

L=55

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-20381

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87245-14660

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87245-20382

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87209-14370

RA42..3FC..LT

 1
87248A - PIPE, HEATER WATER INLET, A
87208-20010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87208-14080

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14090

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87248-14110

RA42..3FC..LT

 1
87248-14111

RA42..3FC..LT

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14090

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87248-14110

RA42..3FC..LT

 1
87248-14111

RA42..3FC..LT

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-14130

RA42..3FC..LT

 1
87208-20061

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87251B - PLUG, HEATER WATER
90339-16007

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

W/O HEATER

 2
87251B - PLUG, HEATER WATER
90339-16007

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

W/O HEATER

 2
Common parts
90460-24039
90461-08298
90461-10243
90461-10301
90461-12024
90463-04005
91651-40620
91655-40616
91655-40620
91656-40616
96112-10250
96710-02017

(7808- )

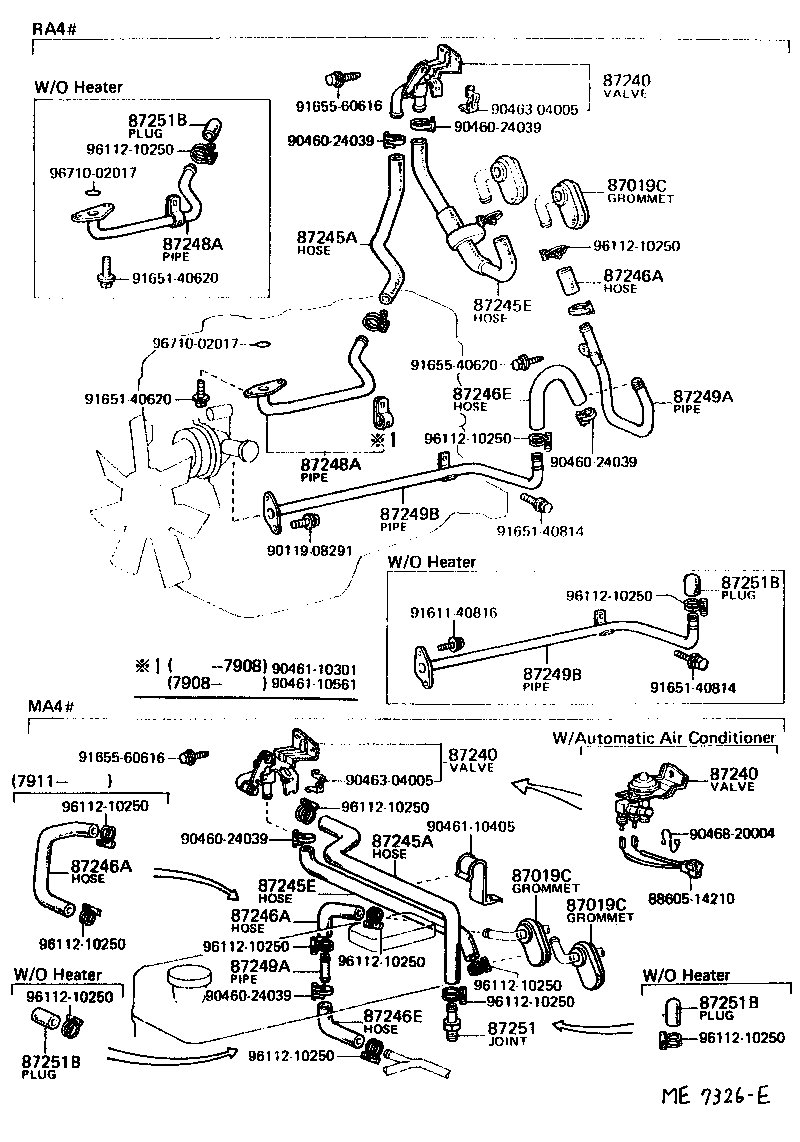

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87240 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87246A 87246E 87246E 87248A 87248A 87249A 87249A 87249B 87249B 87251 87251B 87251B 87251B 87251B 8860514210 9011908291 9046024039 9046024039 9046024039 9046024039 9046024039 9046110301 9046110405 9046110561 9046304005 9046304005 9046820004 9161140816 9165140620 9165140620 9165140814 9165140814 9165540620 9165560616 9165560616 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9671002017 9671002017
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
87019C - GROMMET, HEATER HOSE
90480-01015

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
87019C - GROMMET, HEATER HOSE
90480-01015

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
87240 - VALVE ASSY, HEATER WATER
87240-14060

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87240 - VALVE ASSY, HEATER WATER
87240-14060

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87240 - VALVE ASSY, HEATER WATER
87240-14060

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-14400

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-14400

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87245E - HOSE, HEATER WATER, INLET E
87209-14420

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87245E - HOSE, HEATER WATER, INLET E
87209-14420

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-30055

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

L=55

 1
87245-14650

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-30055

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

L=55

 1
87245-14650

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-30055

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

L=55

 1
87245-14650

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-20382

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87245-20381

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87245-14660

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87209-14370

RA42..3FC..LT

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-20382

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87245-20381

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87245-14660

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87209-14370

RA42..3FC..LT

 1
87248A - PIPE, HEATER WATER INLET, A
87208-20010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87208-14080

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87248A - PIPE, HEATER WATER INLET, A
87208-20010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87208-14080

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14090

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87248-14110

RA42..3FC..LT

 1
87248-14111

RA42..3FC..LT

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14090

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87248-14110

RA42..3FC..LT

 1
87248-14111

RA42..3FC..LT

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-14130

RA42..3FC..LT

 1
87208-20061

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-14130

RA42..3FC..LT

 1
87208-20061

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
87251B - PLUG, HEATER WATER
90339-16007

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

W/O HEATER

 2
87251B - PLUG, HEATER WATER
90339-16007

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

W/O HEATER

 2
87251B - PLUG, HEATER WATER
90339-16007

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

W/O HEATER

 2
87251B - PLUG, HEATER WATER
90339-16007

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

W/O HEATER

 2
Common parts
88605-14210
90119-08291
90460-24039
90461-10301
90461-10405
90461-10561
90463-04005
90468-20004
91611-40816
91651-40620
91651-40814
91655-40620
91655-60616
96112-10250
96710-02017
