RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708-7908)

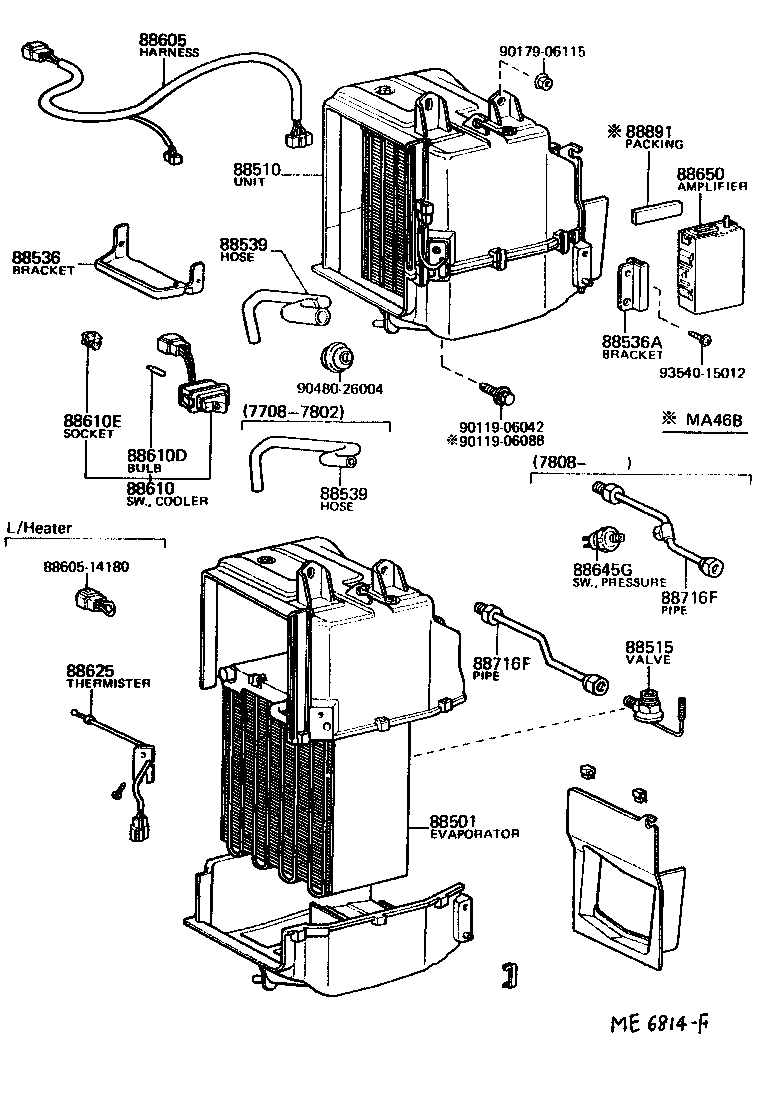

Click highlighted areas on diagram

diagram 88501 88510 88515 88536 88536A 88539 88539 88605 8860514180 88610 88610D 88610E 88625 88645G 88650 88716F 88716F 88891 9011906042 9011906088 9017906115 9048026004 9354015012
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-14110

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88501-14060

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88510 - UNIT ASSY, COOLER
88510-14150

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88510-14120

RA42..3FC..LT

 1
88510-14190

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88515 - VALVE, COOLER EXPANSION
88515-14020

RA42..3FC..LT

 1
88515-20040

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88536 - BRACKET, COOLING UNIT, NO.1
88688-14110

RA42..3FC..LT

 1
88536A - BRACKET, COOLING UNIT, NO.2
88688-14090

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-14030

RA42..3FC..LT

 1
88539-14031

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88539-14050

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-14030

RA42..3FC..LT

 1
88539-14031

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88539-14050

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-14100

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88605-14110

MA46,RA42..(3FC,5F)..(LT,SPR)

W/O HEATER

 1
88610 - SWITCH ASSY, COOLER CONTROL
84660-14030

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88610D - BULB, COOLER CONTROL SWITCH
90981-11018

MA46,RA42..(3FC,5F)..(LT,SPR)

12V 1.2W W/O SOCKET,12V 1.4W

 1
88610E - SOCKET SUB-ASSY, COOLER CONTROL SWITCH
83101-14010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20040

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88645G - SWITCH, PRESSURE
88645-22010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14050

RA42..3FC..LT

 1
88650-14051

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88650-14010

RA42..3FC..LT

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-14450

RA42..3FC..LT

 1
88716-14510

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-14450

RA42..3FC..LT

 1
88716-14510

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88891 - PACKING (FOR COOLER)
88578-14020

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
88605-14180
90119-06042
90119-06088
90179-06115
90480-26004
93540-15012

(7908- )

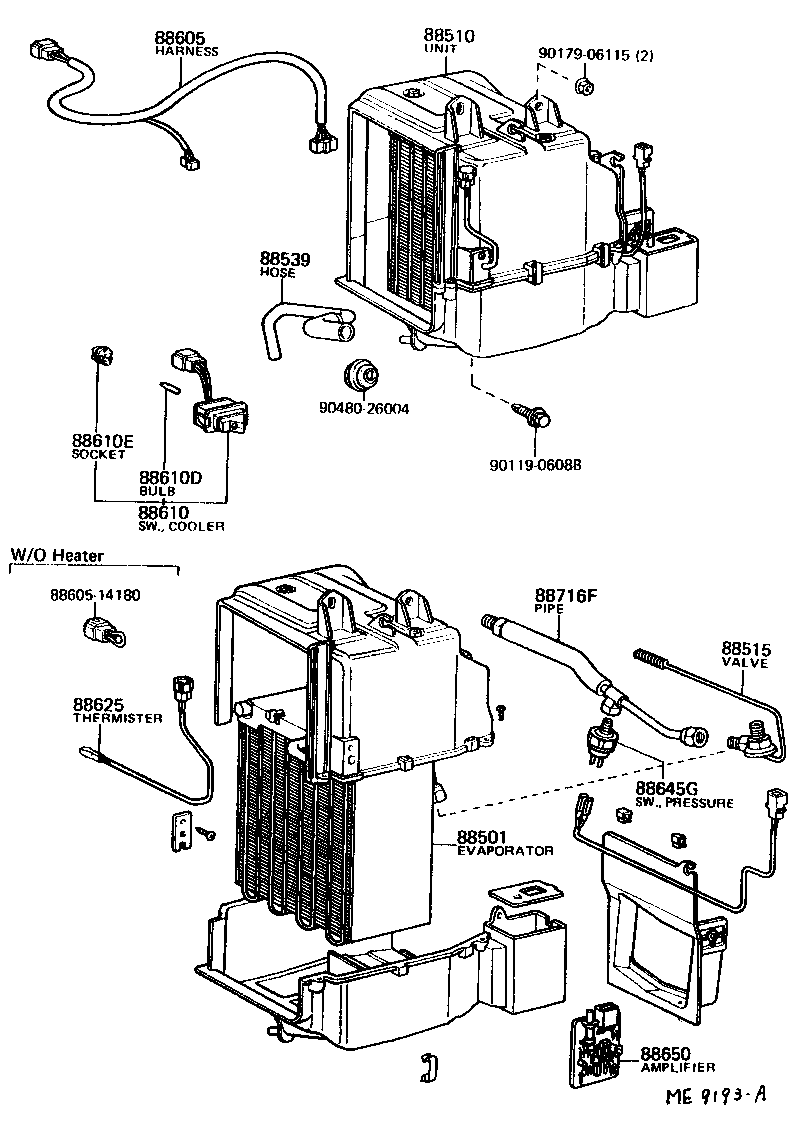

Click highlighted areas on diagram

diagram 88501 88510 88515 88539 88605 8860514180 88610 88610D 88610E 88625 88645G 88650 88716F 9011906088 9017906115 9048026004
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-14110

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88501-14060

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88510 - UNIT ASSY, COOLER
88510-14150

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88510-14120

RA42..3FC..LT

 1
88510-14190

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88515 - VALVE, COOLER EXPANSION
88515-14020

RA42..3FC..LT

 1
88515-20040

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-14030

RA42..3FC..LT

 1
88539-14031

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88539-14050

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-14100

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88605-14110

MA46,RA42..(3FC,5F)..(LT,SPR)

W/O HEATER

 1
88610 - SWITCH ASSY, COOLER CONTROL
84660-14030

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88610D - BULB, COOLER CONTROL SWITCH
90981-11018

MA46,RA42..(3FC,5F)..(LT,SPR)

12V 1.2W W/O SOCKET,12V 1.4W

 1
88610E - SOCKET SUB-ASSY, COOLER CONTROL SWITCH
83101-14010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20040

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88645G - SWITCH, PRESSURE
88645-22010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14050

RA42..3FC..LT

 1
88650-14051

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88650-14010

RA42..3FC..LT

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-14450

RA42..3FC..LT

 1
88716-14510

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
88605-14180
90119-06088
90179-06115
90480-26004

(7908- )

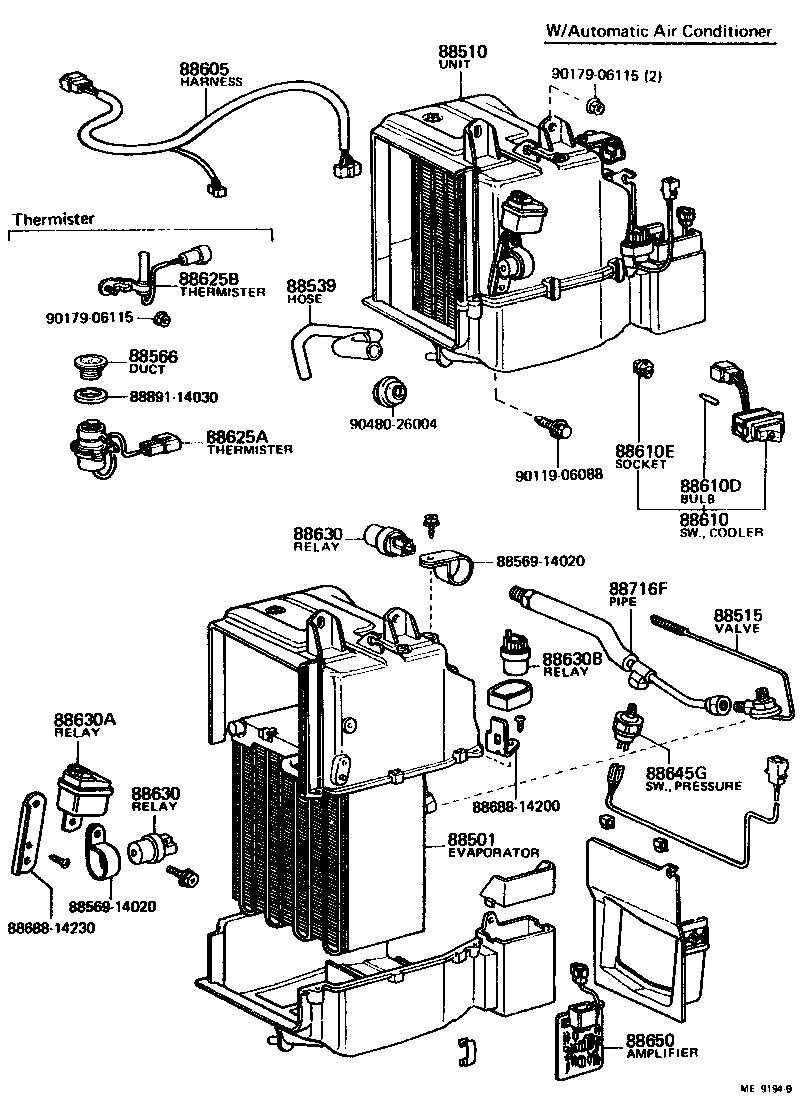

Click highlighted areas on diagram

diagram 88501 88510 88515 88539 88566 8856914020 8856914020 88605 88610 88610D 88610E 88625A 88625B 88630 88630 88630A 88630B 88645G 88650 8868814200 8868814230 88716F 8889114030 9011906088 9017906115 9017906115 9048026004
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-14110

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88501-14060

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88510 - UNIT ASSY, COOLER
88510-14150

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88510-14120

RA42..3FC..LT

 1
88510-14190

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88515 - VALVE, COOLER EXPANSION
88515-14020

RA42..3FC..LT

 1
88515-20040

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-14030

RA42..3FC..LT

 1
88539-14031

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88539-14050

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-14100

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88605-14110

MA46,RA42..(3FC,5F)..(LT,SPR)

W/O HEATER

 1
88610 - SWITCH ASSY, COOLER CONTROL
84660-14030

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88610D - BULB, COOLER CONTROL SWITCH
90981-11018

MA46,RA42..(3FC,5F)..(LT,SPR)

12V 1.2W W/O SOCKET,12V 1.4W

 1
88610E - SOCKET SUB-ASSY, COOLER CONTROL SWITCH
83101-14010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88625B - THERMISTOR, COOLER NO.3
88625-14020

MA46,RA42..(3FC,5F)..(LT,SPR)

W/AUTOMATIC AIR CONDITIONER

 1
88645G - SWITCH, PRESSURE
88645-22010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14050

RA42..3FC..LT

 1
88650-14051

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88650-14010

RA42..3FC..LT

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-14450

RA42..3FC..LT

 1
88716-14510

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
88569-14020
88688-14200
88688-14230
88891-14030
90119-06088
90179-06115
90480-26004
