RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

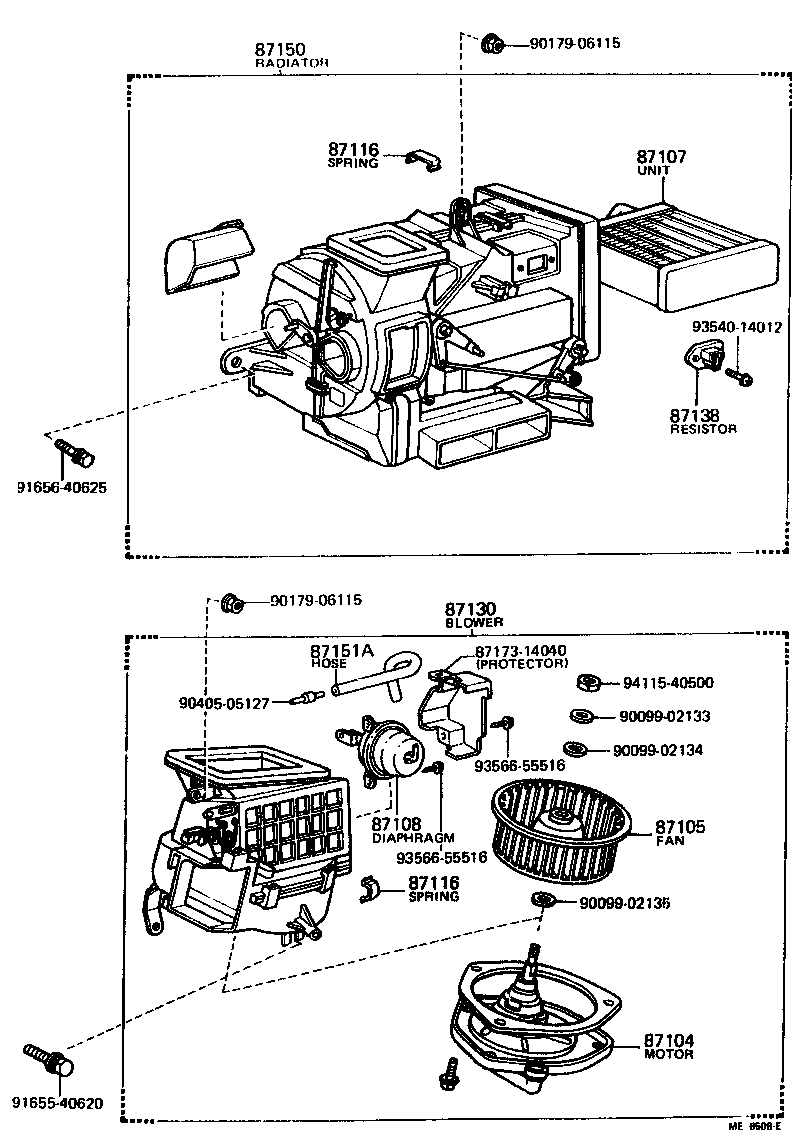

Click highlighted areas on diagram

diagram 87104 87105 87107 87108 87116 87116 87130 87138 87150 87151A 8717314040 9009902133 9009902134 9009902135 9017906115 9017906115 9040505127 9165540620 9165640625 9354014012 9356655516 9356655516 9411540500
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-14070

RA42

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

MA4#,RA4#

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-14070

RA42

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

MA4#,RA4#

 9
87116 - SPRING, HEATER CASE FASTENING
87116-14010

MA4#,RA4#

 9
87130 - BLOWER ASSY, HEATER, FRONT
87130-14040

RA42

 1
87130-14041

MA46,RA42

 1
87138 - RESISTOR, HEATER BLOWER
87138-14030

RA42

 1
87138-14040

RA42

 1
87150 - RADIATOR ASSY, HEATER
87150-14091

RA42

 1
87150-14090

RA42

 1
Common parts
87173-14040
90099-02133
90099-02134
90099-02135
90179-06115
90405-05127
91655-40620
91656-40625
93540-14012
93566-55516
94115-40500

(7708- )

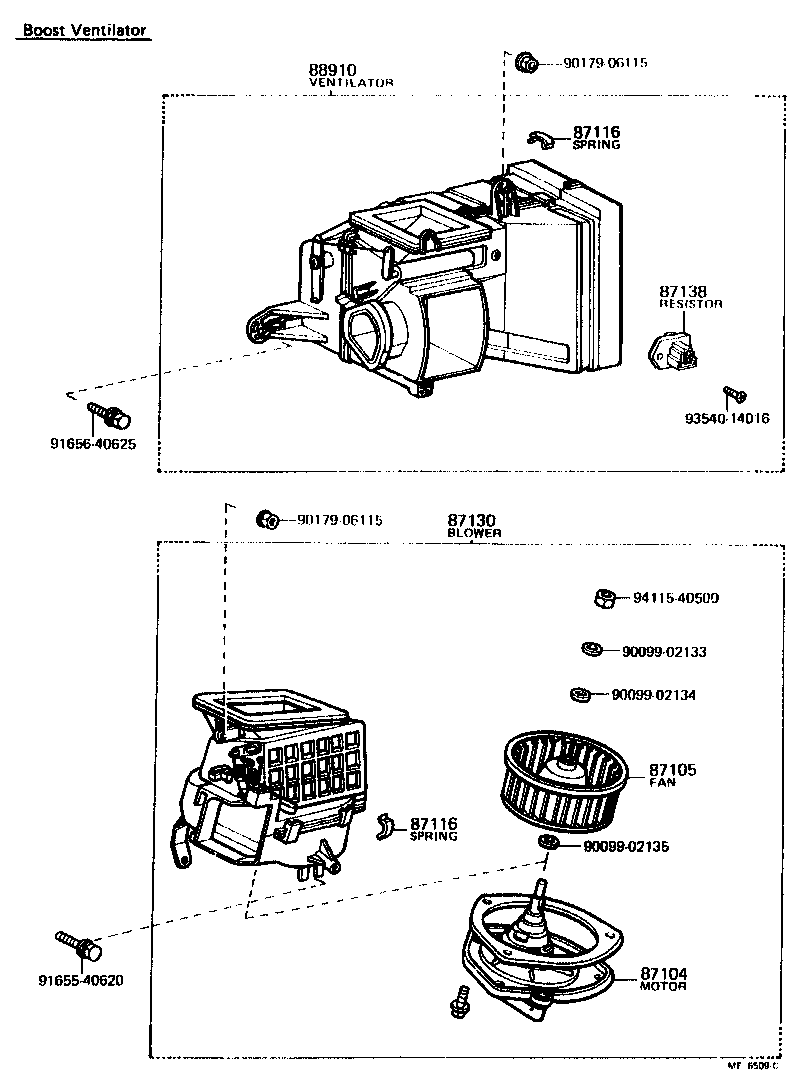

Click highlighted areas on diagram

diagram 87104 87105 87116 87116 87130 87138 88910 9009902133 9009902134 9009902135 9017906115 9017906115 9165540620 9165640625 9354014016 9411540500
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-14070

RA42

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

MA4#,RA4#

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

MA4#,RA4#

 9
87116 - SPRING, HEATER CASE FASTENING
87116-14010

MA4#,RA4#

 9
87130 - BLOWER ASSY, HEATER, FRONT
87130-14040

RA42

 1
87130-14041

MA46,RA42

 1
87138 - RESISTOR, HEATER BLOWER
87138-14030

RA42

 1
87138-14040

RA42

 1
88910 - VENTILATOR ASSY, BOOST
88910-14110

MA46,RA42

 1
Common parts
90099-02133
90099-02134
90099-02135
90179-06115
91655-40620
91656-40625
93540-14016
94115-40500
