RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

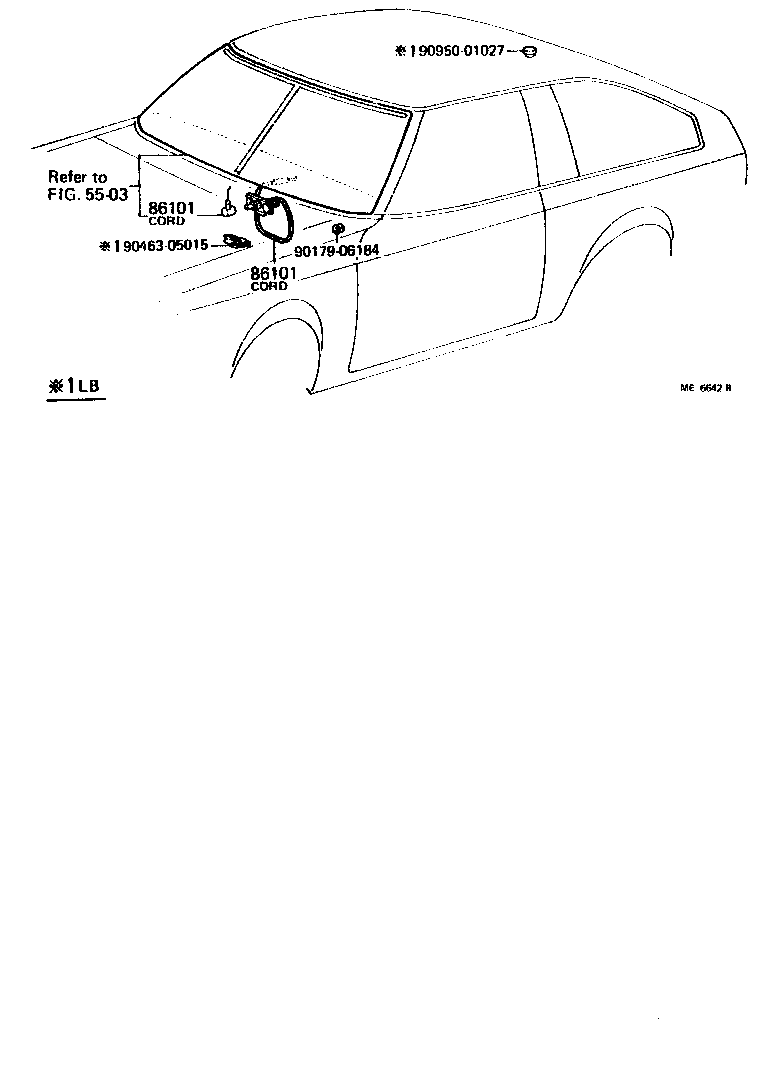

Click highlighted areas on diagram

diagram 5503 86101 86101 9017906184 9046305015 9095001027
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-14120

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

L=170

 1
86101-14130

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

L=560

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-14120

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

L=170

 1
86101-14130

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

L=560

 1
Common parts
90179-06184
90463-05015
90950-01027
Linked diagrams
5503
