RA42L-BCHDSA (1977)
Toyota Celica
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

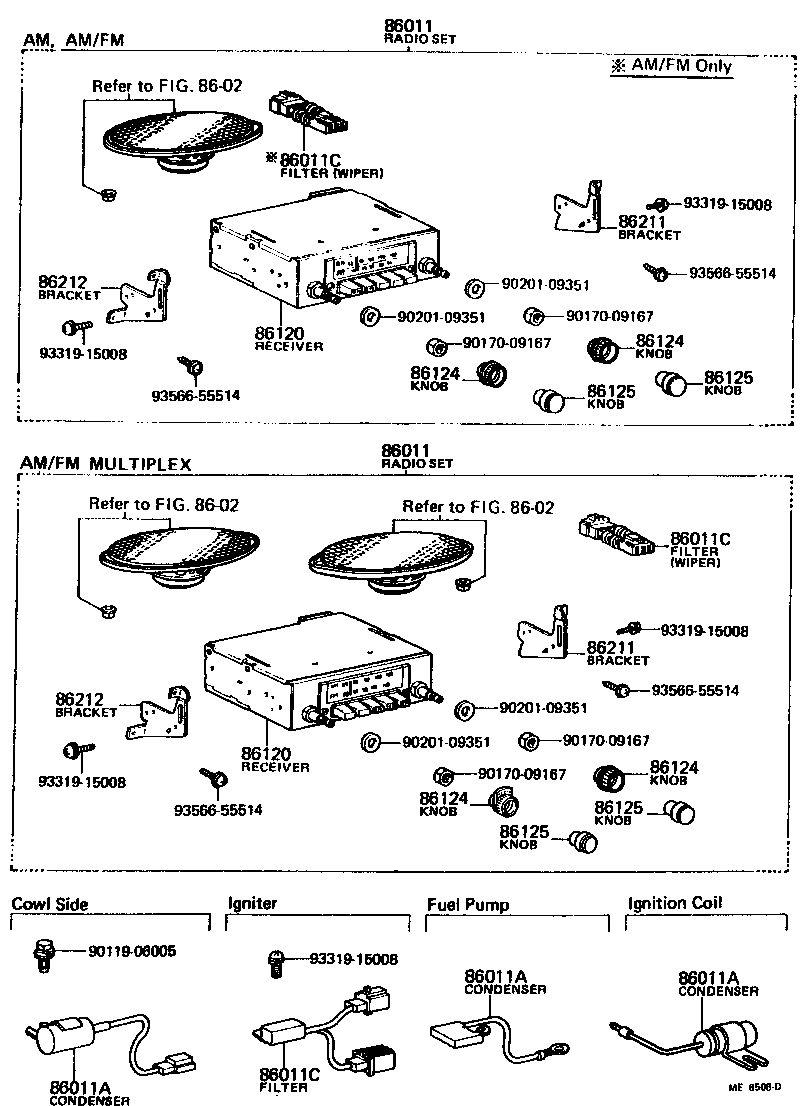

| 86011 - RADIO & SETTING PARTS SET | ||||
| 86011-19255 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM MULTIPLEX,5-BUTTON |
1 | ||
| 86011-19215 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM,5-BUTTON |
1 | ||
| 86011-19245 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM,5-BUTTON |
1 | ||
| 86011 - RADIO & SETTING PARTS SET | ||||
| 86011-19255 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM MULTIPLEX,5-BUTTON |
1 | ||
| 86011-19215 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM,5-BUTTON |
1 | ||
| 86011-19245 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM,5-BUTTON |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04025 |
MA46,RA42..(3FC,5F)..(LT,SPR) FUEL PUMP |
1 | ||
| 90980-04023 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) COWL SIDE |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04025 |
MA46,RA42..(3FC,5F)..(LT,SPR) FUEL PUMP |
1 | ||
| 90980-04023 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) COWL SIDE |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04025 |
MA46,RA42..(3FC,5F)..(LT,SPR) FUEL PUMP |
1 | ||
| 90980-04023 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) COWL SIDE |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05019 |
MA46,RA42..(3FC,5F)..(LT,SPR) WINDSHIELD WIPER MOTOR,AM/FM |
1 | ||
| 90980-05044 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) IGNITER |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05019 |
MA46,RA42..(3FC,5F)..(LT,SPR) WINDSHIELD WIPER MOTOR,AM/FM |
1 | ||
| 90980-05044 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) IGNITER |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05019 |
MA46,RA42..(3FC,5F)..(LT,SPR) WINDSHIELD WIPER MOTOR,AM/FM |
1 | ||
| 90980-05044 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) IGNITER |
1 | ||

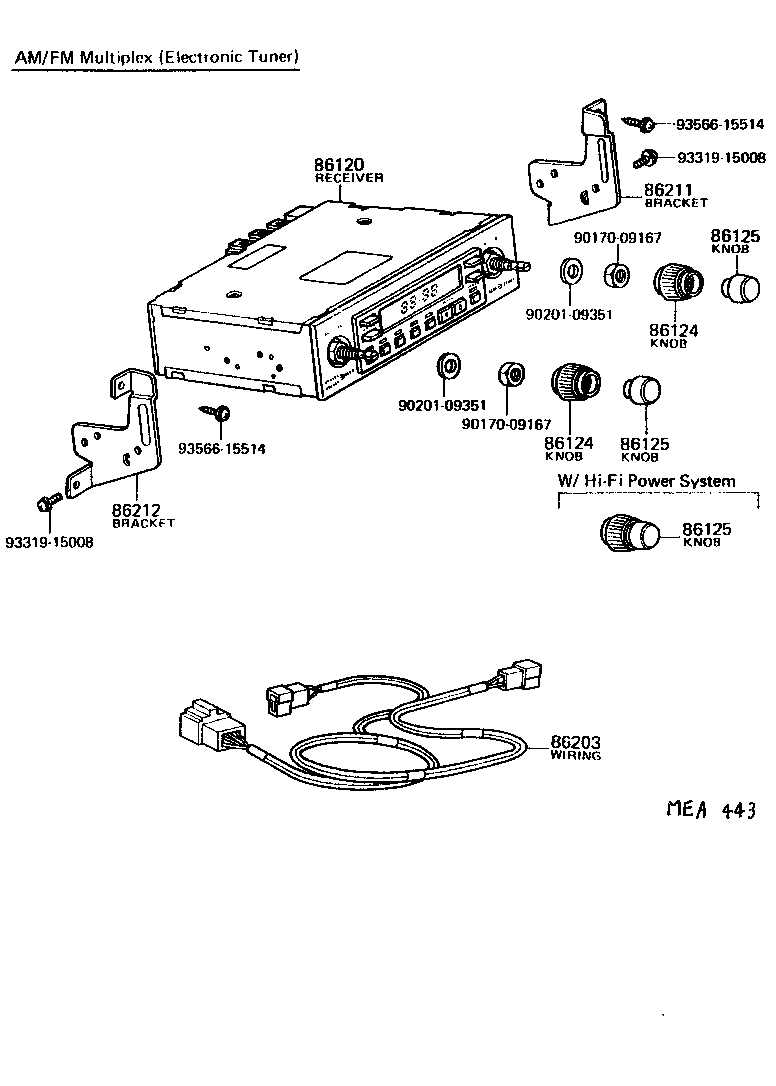

| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14130 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM,5-BUTTON |
1 | ||
| 86120-14230 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM MULTIPLEX,5-BUTTON |
1 | ||
| 86120-14340 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM-MPX.,ELECTRONIC TUNING |
1 | ||
| 86120-14350 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM-MPX.,ELECTRO.TU.,W/HI-FI |
1 | ||
| 86120-14160 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM,5-BUTTON |
1 | ||
| 86120-14231 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM MPX.5-BUTTON,W/4-SPEAKER |
1 | ||
| 86120-14170 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM MULTIPLEX,5-BUTTON |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14130 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM,5-BUTTON |
1 | ||
| 86120-14230 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM MULTIPLEX,5-BUTTON |
1 | ||
| 86120-14340 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM-MPX.,ELECTRONIC TUNING |
1 | ||
| 86120-14350 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM-MPX.,ELECTRO.TU.,W/HI-FI |
1 | ||
| 86120-14160 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM,5-BUTTON |
1 | ||
| 86120-14231 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM MPX.5-BUTTON,W/4-SPEAKER |
1 | ||
| 86120-14170 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM MULTIPLEX,5-BUTTON |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-12010 |
RA42..3FC..LT MULTIPLEX |
1 | ||
| 86124-12010 |
RA42..3FC..LT AM & AM/FM, 5-BUTTON |
2 | ||
| 86124-14040 |
RA42..3FC..LT BALANCE,MULTIPLEX |
1 | ||
| 86124-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) BALANCE,MULTIPLEX |
1 | ||
| 86124-14130 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86124-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) BALANCE,MULTIPLEX,W/4-SPEAKER |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-12010 |
RA42..3FC..LT MULTIPLEX |
1 | ||
| 86124-12010 |
RA42..3FC..LT AM & AM/FM, 5-BUTTON |
2 | ||
| 86124-14040 |
RA42..3FC..LT BALANCE,MULTIPLEX |
1 | ||
| 86124-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) BALANCE,MULTIPLEX |
1 | ||
| 86124-14130 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86124-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) BALANCE,MULTIPLEX,W/4-SPEAKER |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-12010 |
RA42..3FC..LT MULTIPLEX |
1 | ||
| 86124-12010 |
RA42..3FC..LT AM & AM/FM, 5-BUTTON |
2 | ||
| 86124-14040 |
RA42..3FC..LT BALANCE,MULTIPLEX |
1 | ||
| 86124-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) BALANCE,MULTIPLEX |
1 | ||
| 86124-14130 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86124-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) BALANCE,MULTIPLEX,W/4-SPEAKER |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-12010 |
RA42..3FC..LT MULTIPLEX |
1 | ||
| 86124-12010 |
RA42..3FC..LT AM & AM/FM, 5-BUTTON |
2 | ||
| 86124-14040 |
RA42..3FC..LT BALANCE,MULTIPLEX |
1 | ||
| 86124-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) BALANCE,MULTIPLEX |
1 | ||
| 86124-14130 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86124-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) BALANCE,MULTIPLEX,W/4-SPEAKER |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-12011 |
RA42..3FC..LT |
2 | ||
| 86125-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86125-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR RH |
1 | ||
| 86125-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86125-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR RH |
1 | ||
| 86125-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR LH |
1 | ||
| 86125-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-12011 |
RA42..3FC..LT |
2 | ||
| 86125-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86125-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR RH |
1 | ||
| 86125-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86125-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR RH |
1 | ||
| 86125-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR LH |
1 | ||
| 86125-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-12011 |
RA42..3FC..LT |
2 | ||
| 86125-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86125-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR RH |
1 | ||
| 86125-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86125-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR RH |
1 | ||
| 86125-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR LH |
1 | ||
| 86125-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-12011 |
RA42..3FC..LT |
2 | ||
| 86125-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86125-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR RH |
1 | ||
| 86125-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86125-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR RH |
1 | ||
| 86125-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR LH |
1 | ||
| 86125-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR LH |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-14030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) RH |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-14030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) RH |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-14030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) LH |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-14030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) LH |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90170-09167 | ||||
| 90201-09351 | ||||
| 93319-15008 | ||||
| 93566-55514 | ||||
| Linked diagrams | ||||
| 8602 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

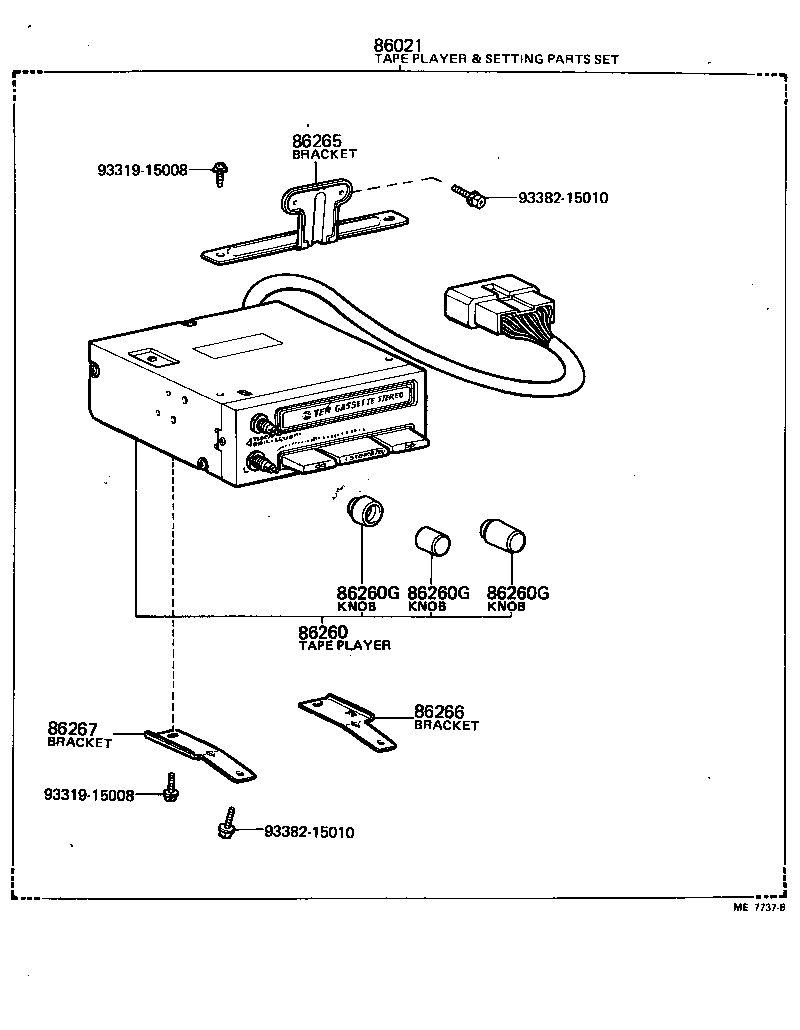

| 86021 - TAPE PLAYER AND SETTING PARTS SET | ||||
| 86021-14150 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 86021-14191 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER |
1 | ||
| 86021-14190 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 86021-14192 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-14132 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER |
1 | ||
| 86260-14110 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 86260-14131 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER |
1 | ||
| 86260-14130 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 86260G - KNOB, TAPE PLAYER | ||||
| 86128-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) 4-SPEAKER..(VOL/BAL) |
1 | ||
| 86128-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) 4-SPEAKER..(VOL/BAL) |
1 | ||
| 86128-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) 4-SPEAKER..(FAD) |
1 | ||
| 86128-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) 4-SPEAKER..(FAD) |
1 | ||
| 86128-12020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) 2-SPEAKER..(BAL) |
1 | ||
| 86128-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) (TONE/PRO) |
1 | ||
| 86128-12060 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) 2-SPEAKER..(VOL) |
1 | ||
| 86260G - KNOB, TAPE PLAYER | ||||
| 86128-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) 4-SPEAKER..(VOL/BAL) |
1 | ||
| 86128-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) 4-SPEAKER..(VOL/BAL) |
1 | ||
| 86128-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) 4-SPEAKER..(FAD) |
1 | ||
| 86128-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) 4-SPEAKER..(FAD) |
1 | ||
| 86128-12020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) 2-SPEAKER..(BAL) |
1 | ||
| 86128-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) (TONE/PRO) |
1 | ||
| 86128-12060 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) 2-SPEAKER..(VOL) |
1 | ||
| 86260G - KNOB, TAPE PLAYER | ||||
| 86128-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) 4-SPEAKER..(VOL/BAL) |
1 | ||
| 86128-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) 4-SPEAKER..(VOL/BAL) |
1 | ||
| 86128-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) 4-SPEAKER..(FAD) |
1 | ||
| 86128-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) 4-SPEAKER..(FAD) |
1 | ||
| 86128-12020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) 2-SPEAKER..(BAL) |
1 | ||
| 86128-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) (TONE/PRO) |
1 | ||
| 86128-12060 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) 2-SPEAKER..(VOL) |
1 | ||
| 86265 - BRACKET, TAPE PLAYER, NO.1 | ||||
| 86265-14050 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 86266 - BRACKET, TAPE PLAYER, NO.2 | ||||
| 86265-14060 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 86267 - BRACKET, TAPE PLAYER, NO.3 | ||||
| 86265-14090 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| Common parts | ||||
| 93319-15008 | ||||
| 93382-15010 | ||||
(8001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

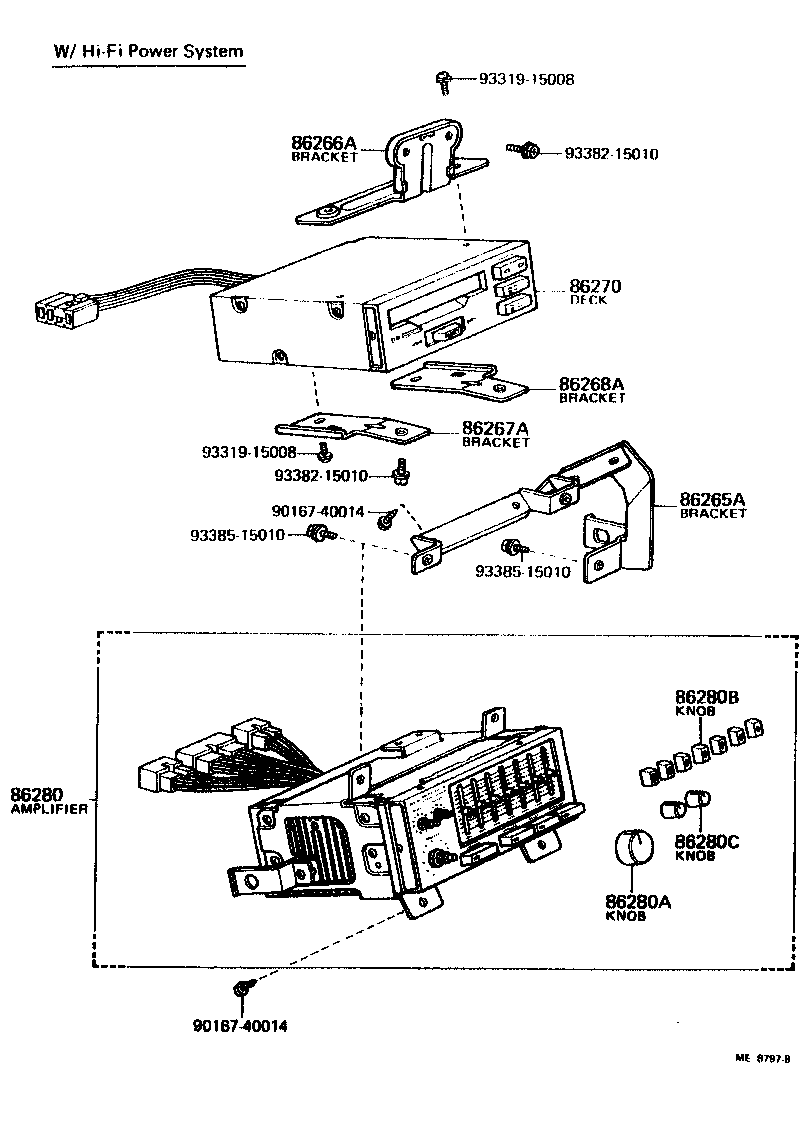

| 86265A - BRACKET, STEREO COMPONENT, NO.4 | ||||
| 86265-14220 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 86266A - BRACKET, STEREO COMPONENT, NO.5 | ||||
| 86265-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 86267A - BRACKET, STEREO COMPONENT, NO.6 | ||||
| 86265-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 86268A - BRACKET, STEREO COMPONENT, NO.7 | ||||
| 86265-14090 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 86270 - DECK ASSY, STEREO COMPONENT | ||||
| 86270-19015 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 86280A - KNOB, AMPLIFIER VOLUME | ||||
| 86128-14120 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 86280B - KNOB, AMPLIFIER GRAPHIC EQUALIZER | ||||
| 86128-14480 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
7 | ||
| 86280C - KNOB, AMPLIFIER BALANCE | ||||
| 86128-14140 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| Common parts | ||||
| 90167-40014 | ||||
| 93319-15008 | ||||
| 93382-15010 | ||||
| 93385-15010 | ||||
(8001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14130 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM,5-BUTTON |
1 | ||
| 86120-14230 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM MULTIPLEX,5-BUTTON |
1 | ||
| 86120-14340 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM-MPX.,ELECTRONIC TUNING |
1 | ||
| 86120-14350 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM-MPX.,ELECTRO.TU.,W/HI-FI |
1 | ||
| 86120-14160 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM,5-BUTTON |
1 | ||
| 86120-14231 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM MPX.5-BUTTON,W/4-SPEAKER |
1 | ||
| 86120-14170 |
MA46,RA42..(3FC,5F)..(LT,SPR) AM/FM MULTIPLEX,5-BUTTON |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-12010 |
RA42..3FC..LT MULTIPLEX |
1 | ||
| 86124-12010 |
RA42..3FC..LT AM & AM/FM, 5-BUTTON |
2 | ||
| 86124-14040 |
RA42..3FC..LT BALANCE,MULTIPLEX |
1 | ||
| 86124-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) BALANCE,MULTIPLEX |
1 | ||
| 86124-14130 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86124-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) BALANCE,MULTIPLEX,W/4-SPEAKER |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-12010 |
RA42..3FC..LT MULTIPLEX |
1 | ||
| 86124-12010 |
RA42..3FC..LT AM & AM/FM, 5-BUTTON |
2 | ||
| 86124-14040 |
RA42..3FC..LT BALANCE,MULTIPLEX |
1 | ||
| 86124-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) BALANCE,MULTIPLEX |
1 | ||
| 86124-14130 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86124-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) BALANCE,MULTIPLEX,W/4-SPEAKER |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-12011 |
RA42..3FC..LT |
2 | ||
| 86125-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86125-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR RH |
1 | ||
| 86125-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86125-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR RH |
1 | ||
| 86125-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR LH |
1 | ||
| 86125-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-12011 |
RA42..3FC..LT |
2 | ||
| 86125-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86125-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR RH |
1 | ||
| 86125-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86125-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR RH |
1 | ||
| 86125-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR LH |
1 | ||
| 86125-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR LH |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-12011 |
RA42..3FC..LT |
2 | ||
| 86125-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86125-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR RH |
1 | ||
| 86125-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/ELECTRONIC TUNING |
2 | ||
| 86125-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR RH |
1 | ||
| 86125-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR LH |
1 | ||
| 86125-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/4-SPEAKER,FOR LH |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-14030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) RH |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-14030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) LH |
1 | ||
| Common parts | ||||
| 90170-09167 | ||||
| 90201-09351 | ||||
| 93319-15008 | ||||
| 93566-15514 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
