RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )RA4#

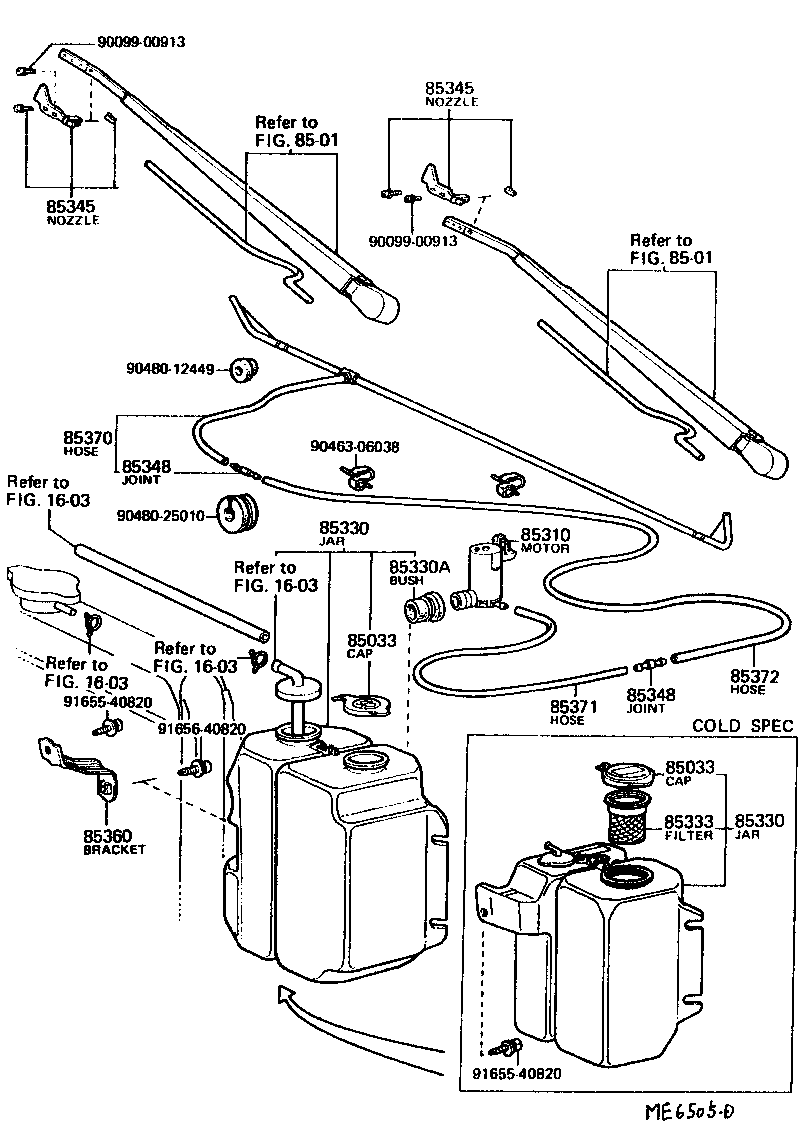

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 8501 8501 85033 85033 85310 85330 85330 85330A 85333 85345 85345 85348 85348 85360 85370 85371 85372 9009900913 9009900913 9046306038 9048012449 9048025010 9165540820 9165540820 9165640820
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-20020

RA42

 1
85332-20040

RA42

COLD SPEC

 1
85033 - CAP ASSY, WINDSHIELD WASHER
85332-20020

RA42

 1
85332-20040

RA42

COLD SPEC

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20110

RA42

COLD SPEC

 1
85310-20100

RA42

 1
85310-12060

RA42

COLD SPEC

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-14160

RA42

COLD SPEC

 1
85330-14012

RA42

 1
85330-14162

RA42

COLD SPEC

 1
85330-14161

RA42

COLD SPEC

 1
85330-20240

RA42

COLD SPEC

 1
85330-14013

RA42

 1
85330-20220

RA42

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-14160

RA42

COLD SPEC

 1
85330-14012

RA42

 1
85330-14162

RA42

COLD SPEC

 1
85330-14161

RA42

COLD SPEC

 1
85330-20240

RA42

COLD SPEC

 1
85330-14013

RA42

 1
85330-20220

RA42

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

MA4#,RA4#

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20010

RA42

COLD SPEC

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-14110

RA42

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-14110

RA42

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

MA4#,RA4#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

MA4#,RA4#

 2
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-14071

RA42

 1
85370 - HOSE ASSY, WINDSHIELD WASHER
85370-14080

RA4#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06236

RA4#

L=550

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06253

RA42

*H,L=1400

 1
Common parts
90099-00913
90463-06038
90480-12449
90480-25010
91655-40820
91656-40820
Linked diagrams
1603
8501
