RA42L-BCHDSA (1977)
Toyota Celica
Production
Aug 1977
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )

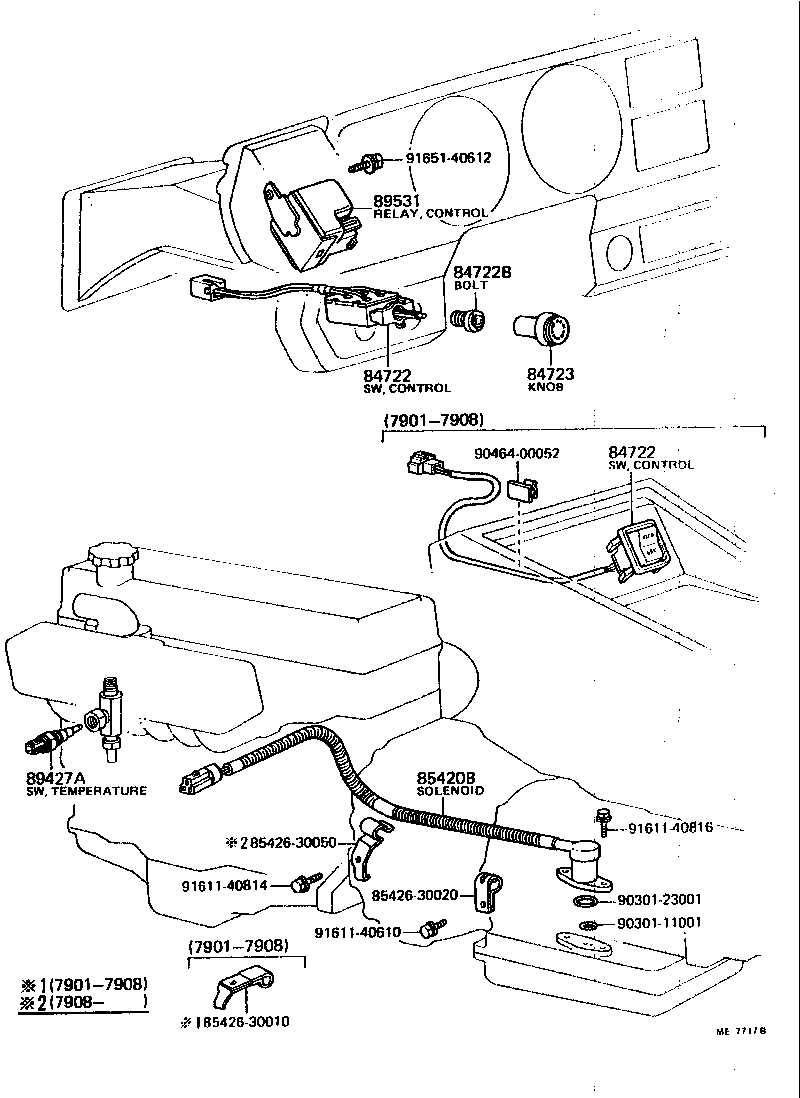

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-14021 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84722-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-14021 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84722-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84722B - BOLT, TRANSMISSION CONTROL SWITCH | ||||
| 90984-01007 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84723 - KNOB, TRANSMISSION CONTROL SWITCH | ||||
| 84723-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 89531 - RELAY, TRANSMISSION CONTROL | ||||
| 89531-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| Common parts | ||||
| 85426-30010 | ||||
| 85426-30020 | ||||
| 85426-30050 | ||||
| 90301-11001 | ||||
| 90301-23001 | ||||
| 90464-00052 | ||||
| 91611-40610 | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
| 91651-40612 | ||||
