RA42L-BCHDSA (1977)
Toyota Celica
(7708- )

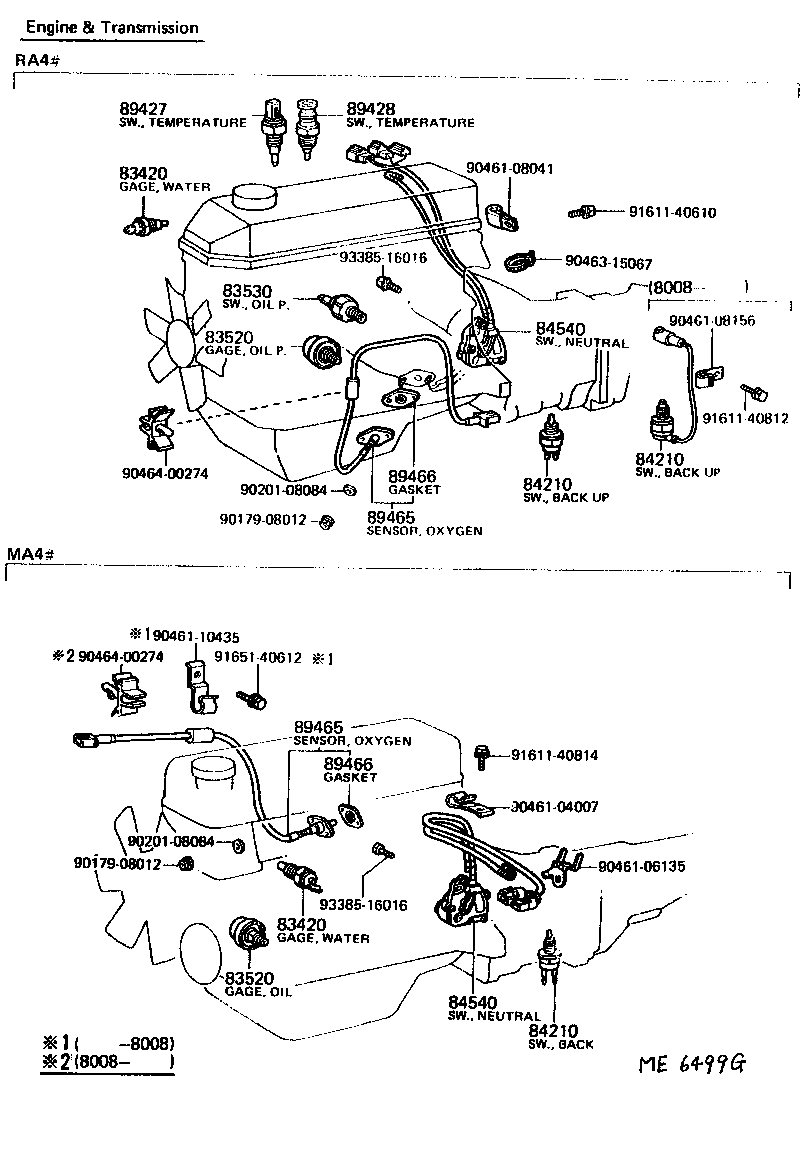

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-12010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-12010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 83520-14021 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 83520-14021 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-22140 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84540-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84540-12120 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-22140 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84540-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84540-12120 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19025 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 89465-19026 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19025 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 89465-19026 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| Common parts | ||||
| 90179-08012 | ||||
| 90201-08084 | ||||
| 90461-04007 | ||||
| 90461-06135 | ||||
| 90461-08041 | ||||
| 90461-08156 | ||||
| 90461-10435 | ||||
| 90463-15067 | ||||
| 90464-00274 | ||||
| 91611-40610 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91651-40612 | ||||
| 93385-16016 | ||||

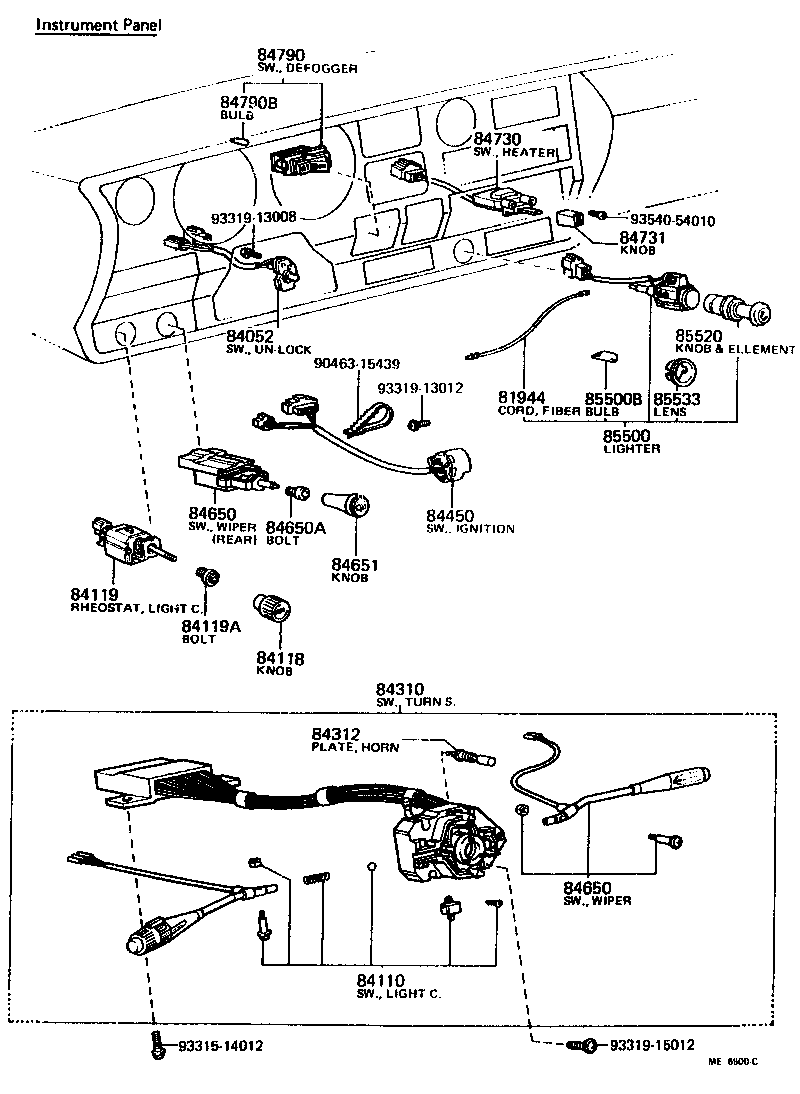

(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-20021 |
RA42..3FC..LT |
1 | ||
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12021 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19225 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/TILT STEERING |
1 | ||
| 84112-19026 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84112-19025 |
RA42..3FC..LT |
1 | ||
| 84112-19135 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84112-19235 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84118-20010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90984-01013 |
RA42..3FC..LT |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-14141 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/INTERMITTENT WIPER |
1 | ||
| 84310-14171 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84310-12260 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/INTERMITTENT WIPER |
1 | ||
| 84310-14151 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84310-14161 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/TILT STEERING |
1 | ||
| 84310-12221 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84310-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12051 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84450-22070 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19036 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84652-19045 |
RA42..3FC..LT W/INTERMITTENT WIPER |
1 | ||
| 84652-29065 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84653-21010 |
MA46,RA42..(3FC,5F)..(LT,SPR) RR WIPER |
1 | ||
| 84652-19035 |
RA42..3FC..LT |
1 | ||
| 84652-19255 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/INTERMITTENT WIPER |
1 | ||
| 84652-19046 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/INTERMITTENT WIPER |
1 | ||
| 84652-19275 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84652-19265 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/TILT STEERING |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19036 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84652-19045 |
RA42..3FC..LT W/INTERMITTENT WIPER |
1 | ||
| 84652-29065 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84653-21010 |
MA46,RA42..(3FC,5F)..(LT,SPR) RR WIPER |
1 | ||
| 84652-19035 |
RA42..3FC..LT |
1 | ||
| 84652-19255 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/INTERMITTENT WIPER |
1 | ||
| 84652-19046 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/INTERMITTENT WIPER |
1 | ||
| 84652-19275 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84652-19265 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/TILT STEERING |
1 | ||
| 84650A - BOLT OR NUT, WINDSHIELD WIPER SWITCH SET | ||||
| 90984-01012 |
RA42..3FC..LT RR WIPER |
1 | ||
| 84651 - KNOB, WINDSHIELD WIPER SWITCH | ||||
| 84651-21010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) RR WIPER |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-14100 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/BOOST VENTILATOR |
1 | ||
| 84732-14110 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84732-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 55905-22050 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84790-14050 |
RA42..3FC..LT |
1 | ||
| 84790-14081 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84790-14090 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11018 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) 12V 1.2W W/O SOCKET,12V 1.4W |
2 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-14030 |
RA42..3FC..LT |
1 | ||
| 85500-14040 |
RA42..3FC..LT |
1 | ||
| 85500-30231 |
RA42..3FC..LT |
1 | ||
| 85500-14050 |
RA42..3FC..LT |
1 | ||
| 85500-14070 |
RA42..3FC..LT |
1 | ||
| 85500-14071 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 85500-14070 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 85500-14060 |
RA42..3FC..LT |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 99132-11034 |
RA42..3FC..LT 12V 3.4W,12V 3.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
RA42..3FC..LT |
1 | ||
| Common parts | ||||
| 90463-15439 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93540-54010 | ||||

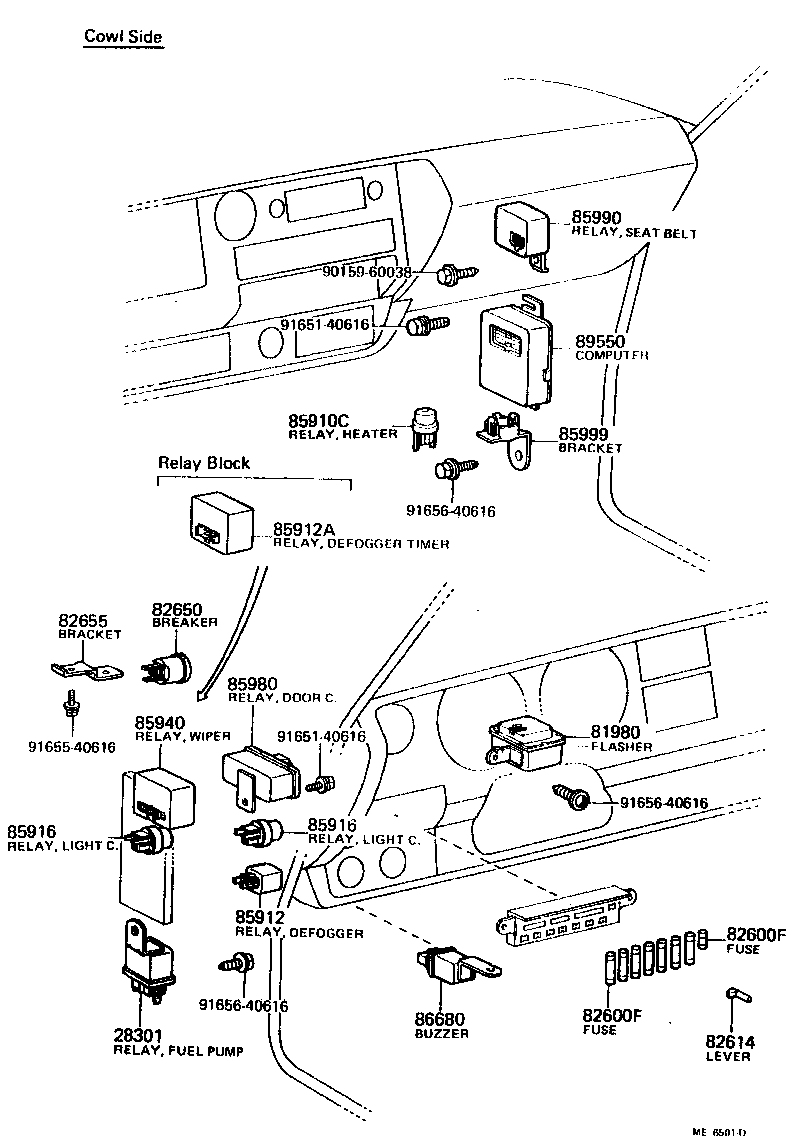

(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28301 - RELAY ASSY, FUEL PUMP | ||||
| 28380-20010 |
22R..RA43..CP..5F..GT;20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-14020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62920 |
MA46,RA42..(3FC,5F)..(LT,SPR) 20A,20A |
1 | ||
| 90982-07008 |
RA42..3FC..LT 5A |
1 | ||
| 99118-62915 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) 15A,15A |
1 | ||
| 99118-62930 |
MA46,RA42..(3FC,5F)..(LT,SPR) 30A |
1 | ||
| 99118-62920 |
MA46,RA42..(3FC,5F)..(LT,SPR) 20A,20A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62920 |
MA46,RA42..(3FC,5F)..(LT,SPR) 20A,20A |
1 | ||
| 90982-07008 |
RA42..3FC..LT 5A |
1 | ||
| 99118-62915 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) 15A,15A |
1 | ||
| 99118-62930 |
MA46,RA42..(3FC,5F)..(LT,SPR) 30A |
1 | ||
| 99118-62920 |
MA46,RA42..(3FC,5F)..(LT,SPR) 20A,20A |
1 | ||
| 82614 - LEVER, FUSE | ||||
| 82614-30010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02001 |
RA42..3FC..LT |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22051 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 85990 - RELAY OR COMPUTER ASSY, SEAT BELT WARNING | ||||
| 85991-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 85991-22010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-26010 |
RA42..3FC..LT HEATER RELAY |
1 | ||
| 86680 - BUZZER ASSY, UN-LOCK WARNING OR SEAT BELT WARNING | ||||
| 86650-22070 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-14160 |
RA42..3FC..LT |
1 | ||
| 89550-14150 |
RA42..3FC..LT *CAL & HA |
1 | ||
| 89550-20230 |
MA46,RA42..(3FC,5F)..(LT,SPR) USA SPEC |
1 | ||
| 89550-14310 |
MA46,RA42..(3FC,5F)..(LT,SPR) CALIFORNIA SPEC |
1 | ||
| 89550-14320 |
MA46,RA42..(3FC,5F)..(LT,SPR) FEDERAL SPEC |
1 | ||
| 89550-20280 |
MA46,RA42..(3FC,5F)..(LT,SPR) CANADA SPEC |
1 | ||
| 89550-14330 |
MA46,RA42..(3FC,5F)..(LT,SPR) CANADA SPEC |
1 | ||
| Common parts | ||||
| 90159-60038 | ||||
| 91651-40616 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||

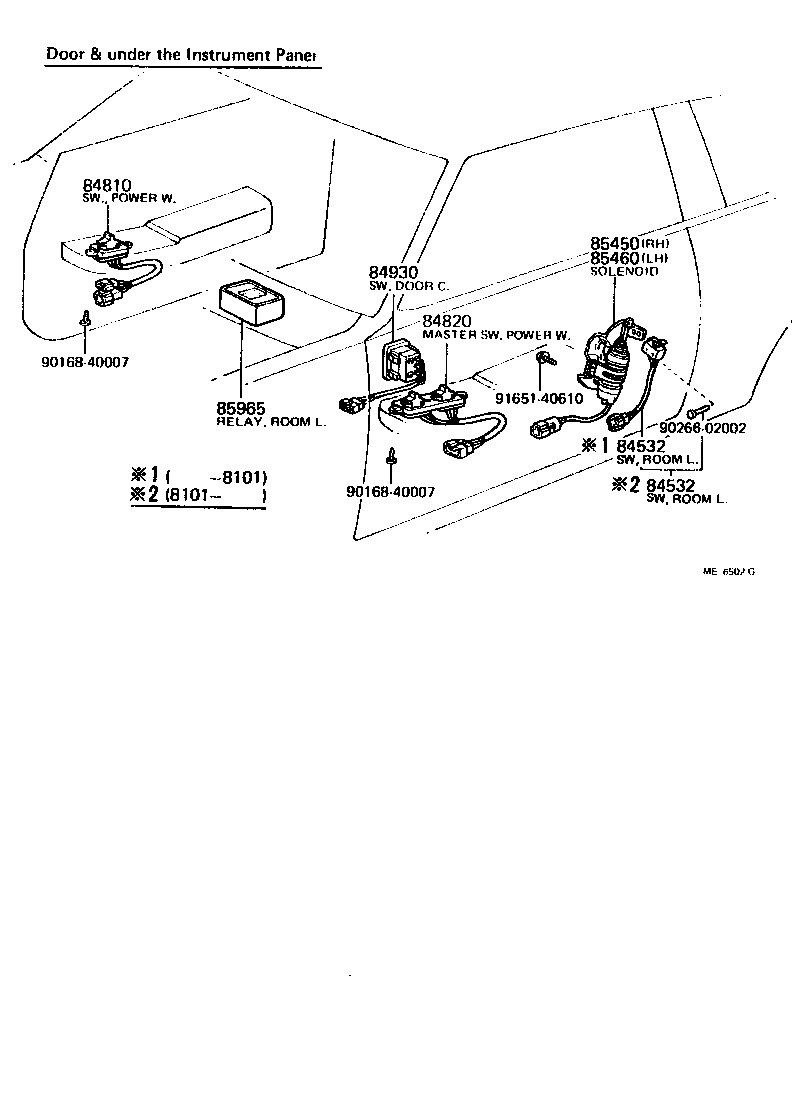

(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84532 - SWITCH, ROOM LAMP RETAINER | ||||
| 84532-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84532 - SWITCH, ROOM LAMP RETAINER | ||||
| 84532-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1402005 |
MA46,RA42..(3FC,5F)..(LT,SPR) BEIGE,BEIGE |
1 | ||
| 85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH | ||||
| 85450-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH | ||||
| 85450-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 85965-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| Common parts | ||||
| 90168-40007 | ||||
| 90266-02002 | ||||
| 91651-40610 | ||||

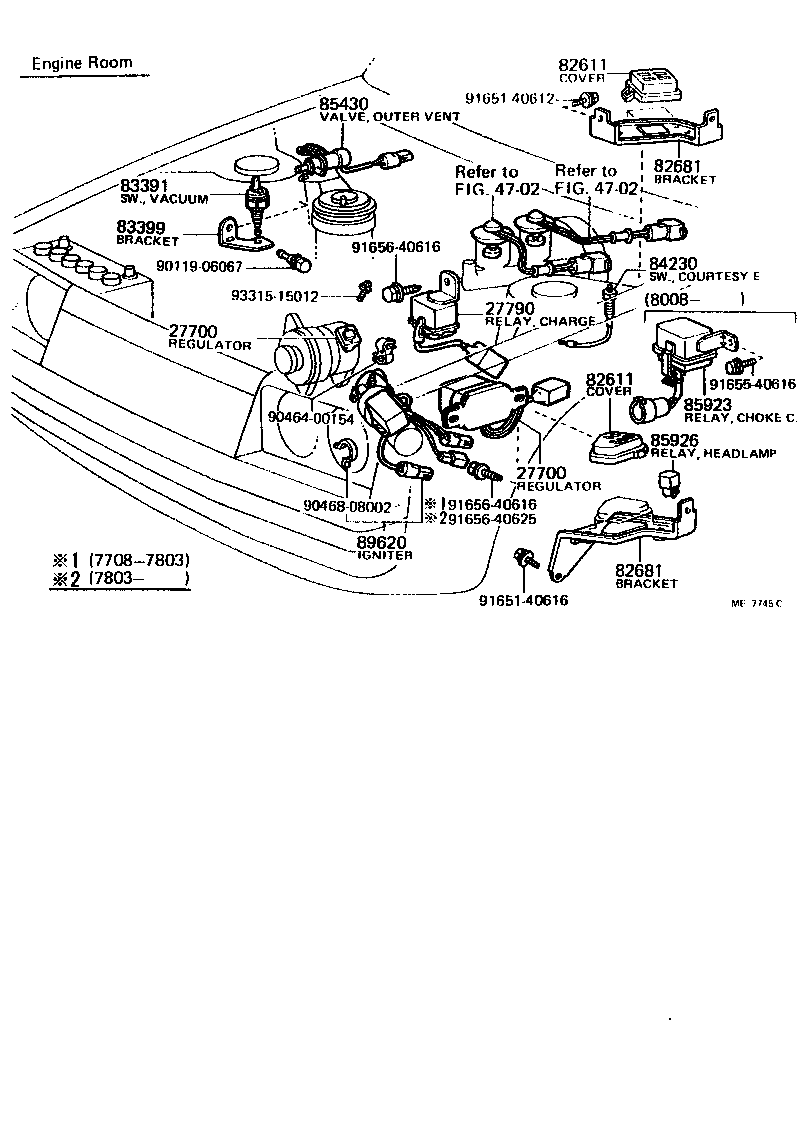

(7901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-38081 |
20R..RA42..3FC..LT ALTERNATOR=12V 55A(A TYPE) |
1 | ||
| 27700-38080 |
20R..RA42..3FC..LT ALTERNATOR=12V 45A,55A(A TYPE) |
1 | ||
| 27700-38100 |
20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 27700-45020 |
20R..RA42..3FC..LT ALTERNATOR=12V 55A(B TYPE) |
1 | ||
| 27700-26050 |
20R..RA42..3FC..LT |
1 | ||
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-38081 |
20R..RA42..3FC..LT ALTERNATOR=12V 55A(A TYPE) |
1 | ||
| 27700-38080 |
20R..RA42..3FC..LT ALTERNATOR=12V 45A,55A(A TYPE) |
1 | ||
| 27700-38100 |
20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 27700-45020 |
20R..RA42..3FC..LT ALTERNATOR=12V 55A(B TYPE) |
1 | ||
| 27700-26050 |
20R..RA42..3FC..LT |
1 | ||
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-38021 |
20R..RA42..3FC..LT |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14010 |
RA42..3FC..LT *CAL & HA |
1 | ||
| 83391-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) USA SPEC |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-22011 |
RA42..3FC..LT *CAL & HA |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 85430-14011 |
MA46,RA42..(3FC,5F)..(LT,SPR) USA SPEC |
1 | ||
| 85430-14010 |
RA42..3FC..LT USA SPEC |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-35040 |
RA42..3FC..LT |
1 | ||
| 89620-14150 |
RA42..3FC..LT CANADA SPEC |
1 | ||
| 89620-35041 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 89620-35052 |
MA46,RA42..(3FC,5F)..(LT,SPR) FEDERAL SPEC |
1 | ||
| 89620-35051 |
MA46,RA42..(3FC,5F)..(LT,SPR) USA COLD SPEC |
1 | ||
| 89620-35050 |
RA42..3FC..LT USA COLD SPEC |
1 | ||
| 89620-14200 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 89620-14151 |
MA46,RA42..(3FC,5F)..(LT,SPR) CANADA SPEC |
1 | ||
| 89620-14152 |
MA46,RA42..(3FC,5F)..(LT,SPR) CANADA SPEC |
1 | ||
| 89620-35042 |
MA46,RA42..(3FC,5F)..(LT,SPR) CALIFORNIA SPEC |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90464-00154 | ||||
| 90468-08002 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||
| 91656-40625 | ||||
| 93315-15012 | ||||
| Linked diagrams | ||||

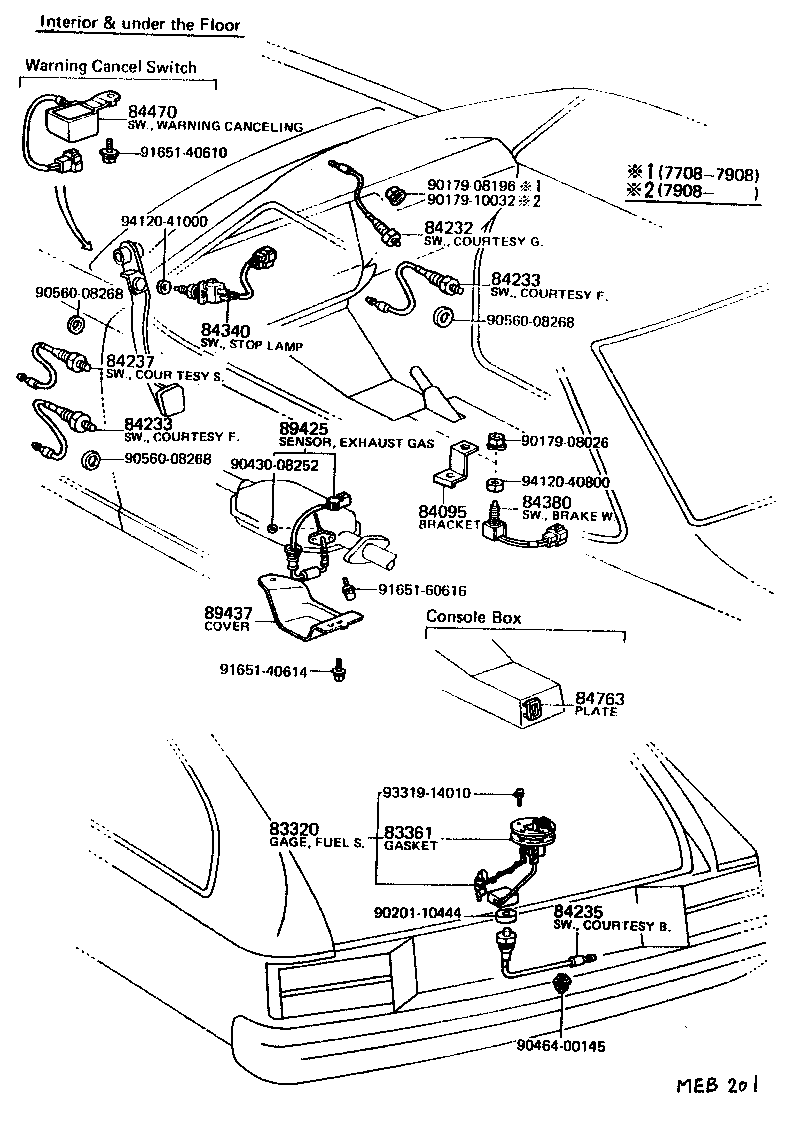

| 4702 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19306 |
MA46,RA42..(3FC,5F)..(LT,SPR) DENSO |
1 | ||
| 83320-19295 |
RA42..3FC..LT |
1 | ||
| 83320-19296 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 83320-19306 |
MA46,RA42..(3FC,5F)..(LT,SPR) DENSO |
1 | ||
| 83320-29275 |
MA46,RA42..(3FC,5F)..(LT,SPR) YAZAKI |
1 | ||
| 83320-19307 |
MA46,RA42..(3FC,5F)..(LT,SPR) DENSO |
1 | ||
| 83320-29276 |
MA46,RA42..(3FC,5F)..(LT,SPR) YAZAKI |
1 | ||
| 83320-29275 |
MA46,RA42..(3FC,5F)..(LT,SPR) YAZAKI |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-20030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84230-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-20020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 84231-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-20020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 84231-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84237 - SWITCH ASSY, COURTESY LAMP (FOR STEERING UN-LOCK WARNIN | ||||
| 84230-20020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84231-20040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22060 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-20010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84470 - SWITCH ASSY, WARNING CANCELING | ||||
| 84470-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 55384-2001104 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,CONSOLE SWITCH HOLE,BLUE |
1 | ||
| 55384-2001105 |
MA46,RA42..(3FC,5F)..(LT,SPR) BEIGE,CONSOLE SWITCH HOLE,BEIGE |
1 | ||
| 55384-2001101 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,CONSOLE SWITCH HOLE,BLACK |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-19046 |
MA46,RA42..(3FC,5F)..(LT,SPR) CANADA SPEC |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) USA SPEC |
1 | ||
| Common parts | ||||
| 90179-08026 | ||||
| 90179-08196 | ||||
| 90179-10032 | ||||
| 90201-10444 | ||||
| 90430-08252 | ||||
| 90464-00145 | ||||
| 90560-08268 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 91651-60616 | ||||
| 93319-14010 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
