RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

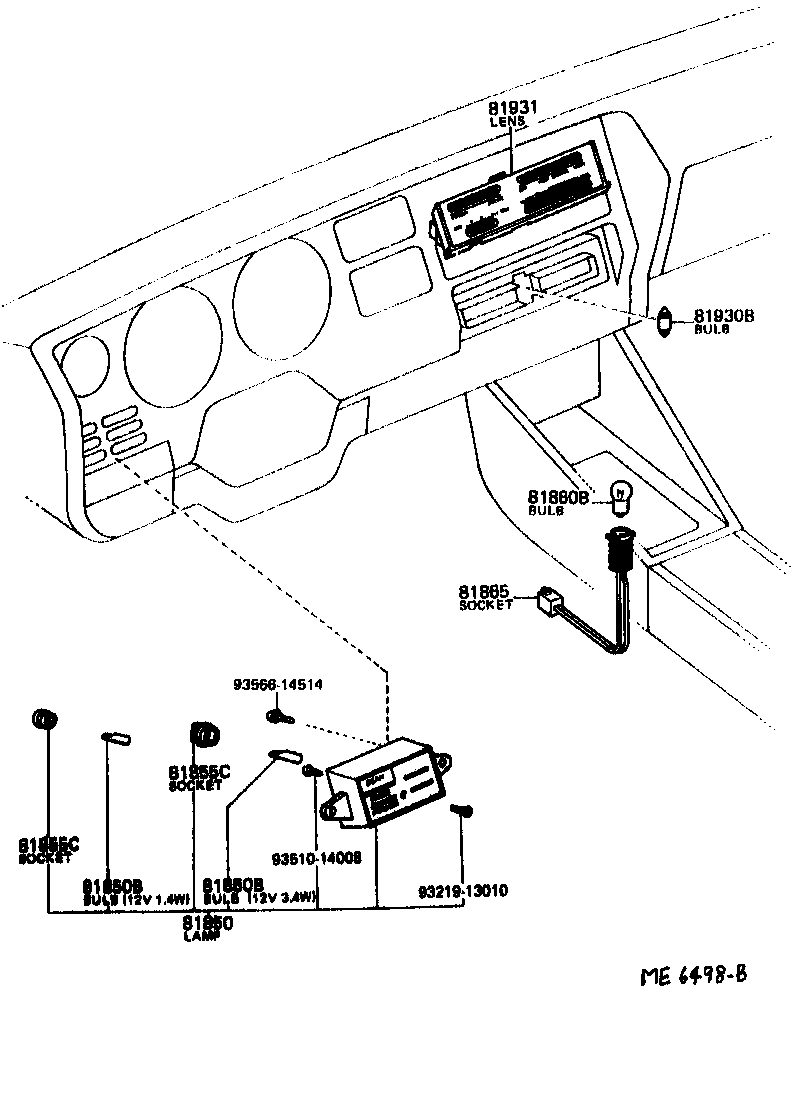

Click highlighted areas on diagram

diagram 81850 81850B 81850B 81855C 81855C 81860B 81865 81930B 81931 9321913010 9351014008 9356614514
Part # Description Qty Price
81850 - LAMP ASSY, INDICATOR
81850-14340

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81850-14490

MA46,RA42..(3FC,5F)..(LT,SPR)

W/TILT STEERING

 1
81850-14230

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81850-14350

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81850B - BULB, INDICATOR LAMP
99132-12034

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

12V 3.4W,12V 3.4W

 2
90981-11018

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

12V 1.2W W/O SOCKET,12V 1.4W

 3
81850B - BULB, INDICATOR LAMP
99132-12034

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

12V 3.4W,12V 3.4W

 2
90981-11018

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

12V 1.2W W/O SOCKET,12V 1.4W

 3
81855C - SOCKET & WIRE, INDICATOR LAMP
83101-22010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

12V 1.4W

 3
83101-10010

MA46,RA42..(3FC,5F)..(LT,SPR)

12V 3.4W

 2
81855C - SOCKET & WIRE, INDICATOR LAMP
83101-22010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

12V 1.4W

 3
83101-10010

MA46,RA42..(3FC,5F)..(LT,SPR)

12V 3.4W

 2
81860B - BULB, TRANSMISSION INDICATOR LAMP
99132-11034

MA46,RA42..(3FC,5F)..(LT,SPR)

12V 3.4W,12V 3.4W

 1
81865 - SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP
35906-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

12V 2W,12V 2W

 1
81931 - LENS, HEATER CONTROL INDICATOR
81943-14120

MA46,RA42..(3FC,5F)..(LT,SPR)

W/*BV,W/*BV & COOLER

 1
81943-14080

MA46,RA42..(3FC,5F)..(LT,SPR)

W/HEATER,W/HEATER & COOLER

 1
81943-14160

MA46,RA42..(3FC,5F)..(LT,SPR)

W/HEATER & *AAC

 1
Common parts
93219-13010
93510-14008
93566-14514
