RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

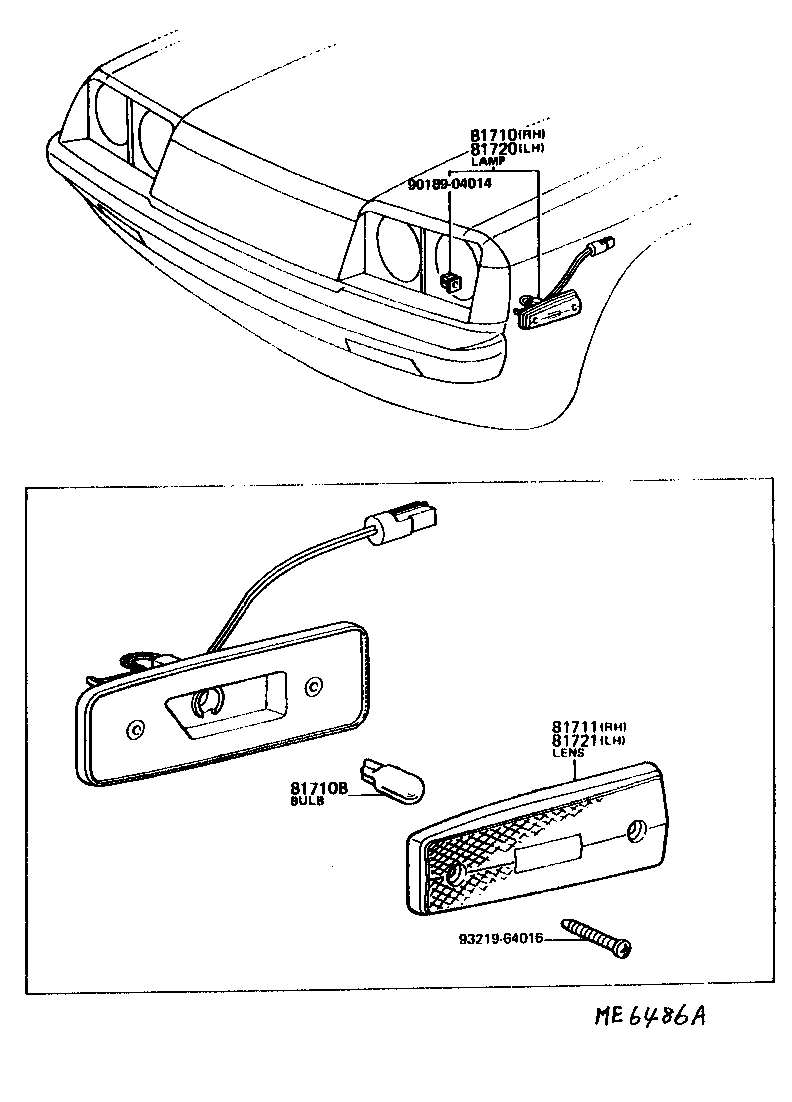

Click highlighted areas on diagram

diagram 81710 81710B 81711 81720 81721 9018904014 9321964016
Part # Description Qty Price
81710 - LAMP ASSY, FRONT MARKER, RH
81730-19305

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81710B - BULB, FRONT MARKER LAMP
90981-11020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

12V 3.8W,12V 3.8W

 2
81711 - LENS, FRONT MARKER LAMP, RH
81731-14110

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81720 - LAMP ASSY, FRONT MARKER, LH
81740-19285

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81721 - LENS, FRONT MARKER LAMP, LH
81741-14110

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
90189-04014
93219-64016
