RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

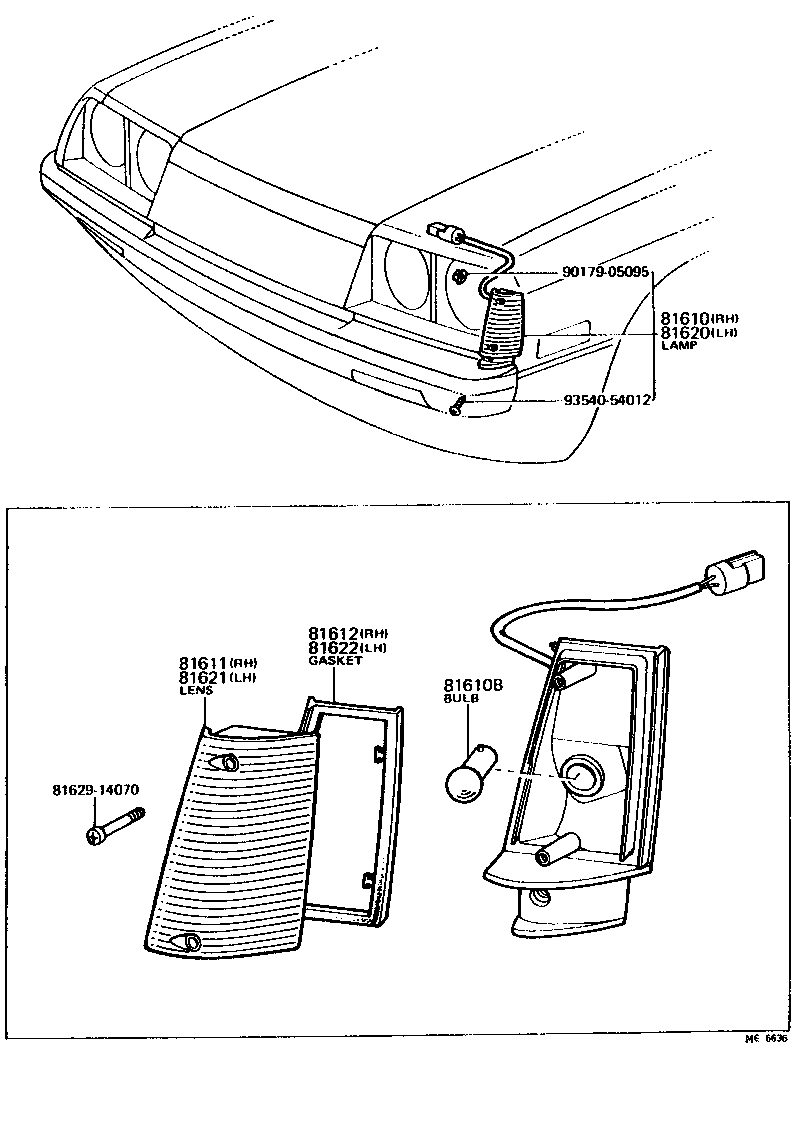

(7708-7908)RA42

Click highlighted areas on diagram

diagram 81610 81610B 81611 81612 81620 81621 81622 8162914070 9017905095 9354054012
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-19175

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81610-19135

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12080

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

12V 8W,12V 8W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-14110

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81612 - GASKET, PARKING AND CLEARANCE LAMP LENS, RH
81612-14110

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-19135

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81620-19175

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-14110

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81622 - GASKET, PARKING AND CLEARANCE LAMP LENS, LH
81622-14110

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
81629-14070
90179-05095
93540-54012

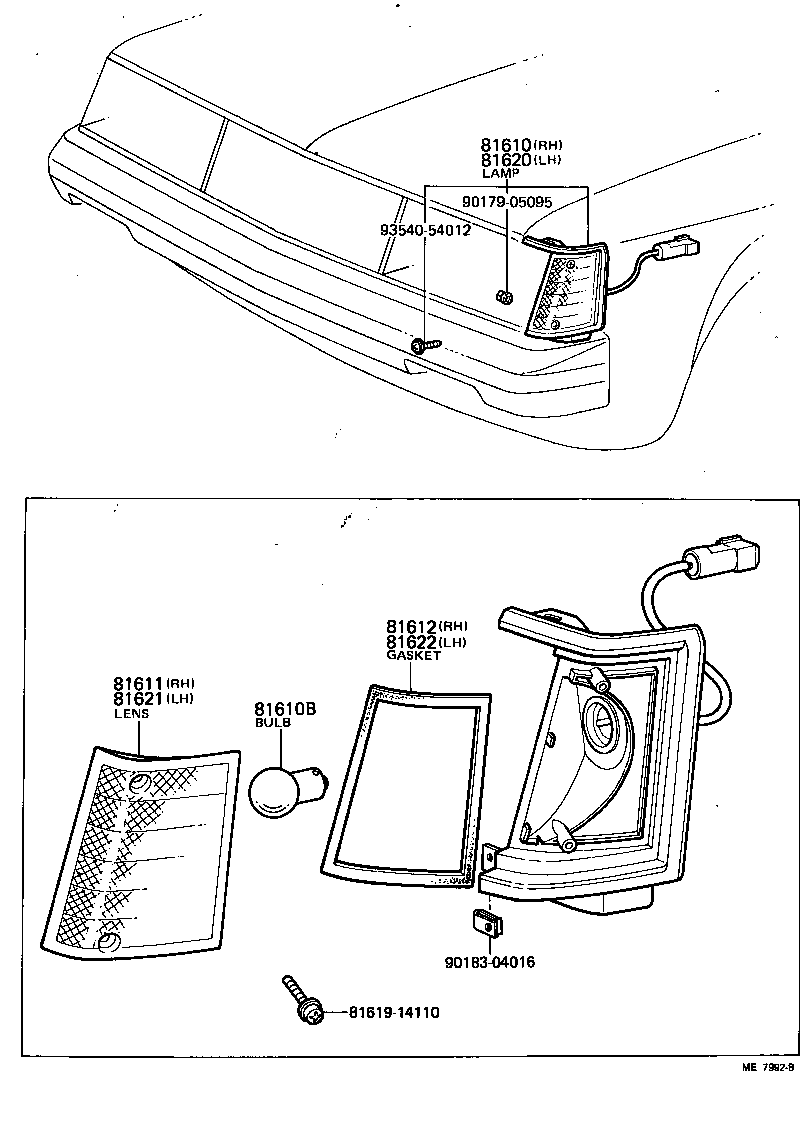

(7908- )RA4#

Click highlighted areas on diagram

diagram 81610 81610B 81611 81612 8161914110 81620 81621 81622 9017905095 9018304016 9354054012
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-19175

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81610-19135

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12080

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

12V 8W,12V 8W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-14110

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81612 - GASKET, PARKING AND CLEARANCE LAMP LENS, RH
81612-14110

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-19135

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81620-19175

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-14110

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81622 - GASKET, PARKING AND CLEARANCE LAMP LENS, LH
81622-14110

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
81619-14110
90179-05095
90183-04016
93540-54012
