RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

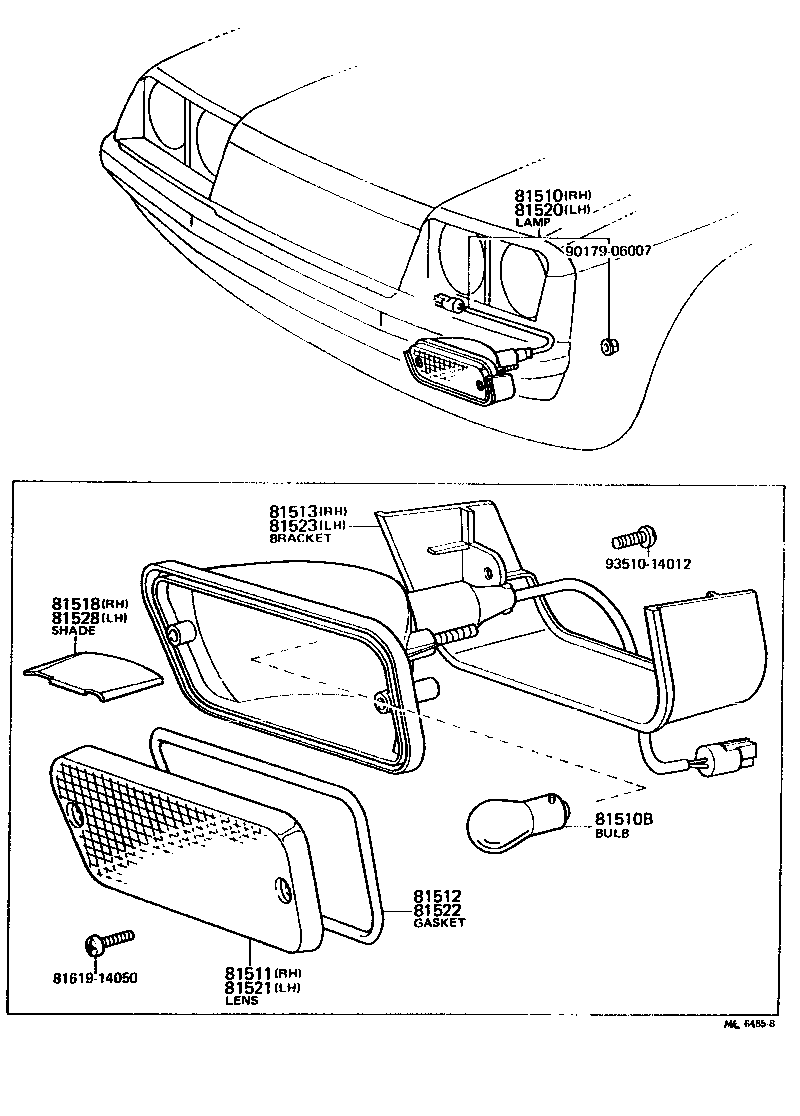

Click highlighted areas on diagram

diagram 81510 81510B 81511 81512 81513 81518 81520 81521 81522 81523 81528 8161914050 9017906007 9351014012
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-19545

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11270

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

12V 27W,12V 27W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-14170

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-14150

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81513 - BRACKET, FRONT TURN SIGNAL LAMP, RH
81516-14170

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81518 - SHADE, FRONT TURN SIGNAL LAMP, RH
81517-14170

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-19545

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-14170

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-14150

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81523 - BRACKET, FRONT TURN SIGNAL LAMP, LH
81526-14170

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
81528 - SHADE, FRONT TURN SIGNAL LAMP, LH
81517-14170

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
81619-14050
90179-06007
93510-14012
