RA42L-BCHDSA (1977)
Toyota Celica

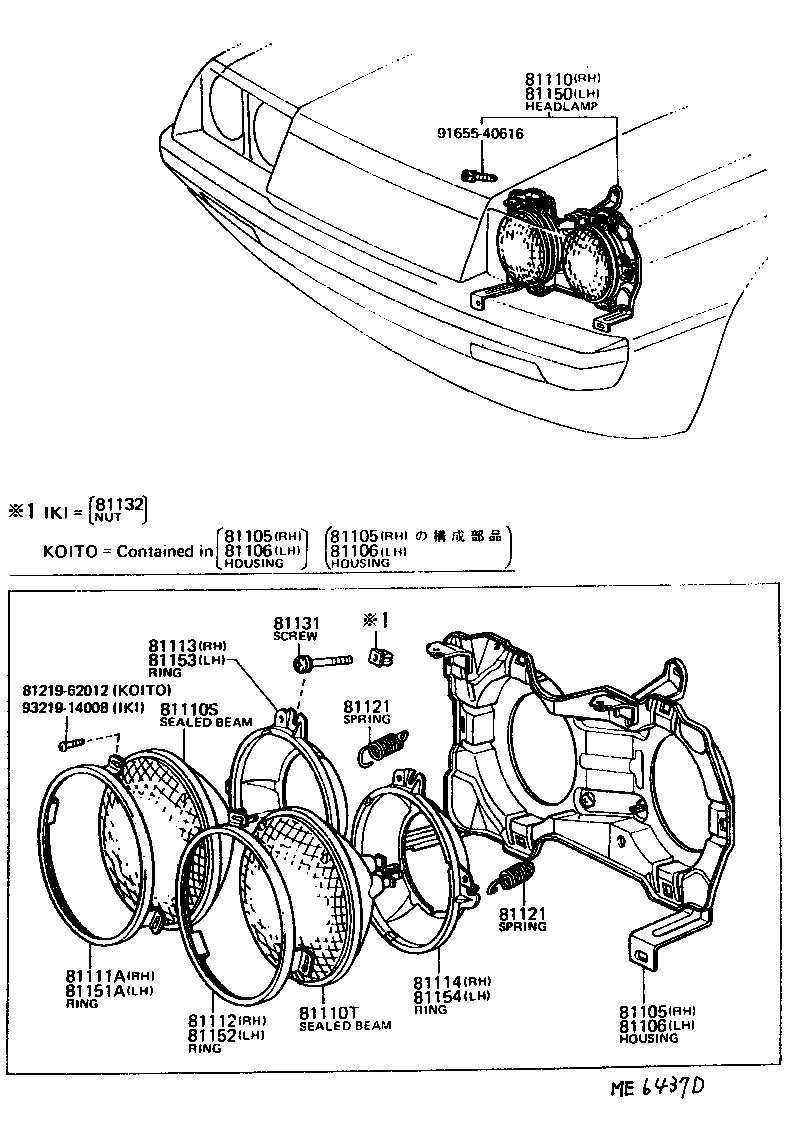

(7708-7908)RA42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81105-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81105-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81105-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81106-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81106-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81106-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-19635 |
RA42..3FC..LT IKI |
1 | ||
| 81110-19636 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81110-19625 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-02039 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 37.5W,*WB,12V 37.5W,IKI |
2 | ||
| 90981-05002 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 50W,*WB,12V 50W,KOITO |
2 | ||
| 90981-05001 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 50W,IKI |
2 | ||
| 90981-02023 |
RA42..3FC..LT 12V 37.5W,TOSHIBA |
2 | ||
| 90981-05001 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 50W,IKI |
2 | ||
| 90981-02011 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 37.5W,*WB,12V 37.5W,KOITO |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-02006 |
RA42..3FC..LT 12V 37.5/50W,TOSHIBA |
2 | ||
| 90981-05005 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 40/60W,WHITE,12V 40/60W,IKI |
2 | ||
| 90981-02041 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 37.5/50W,*WB,12V 37.5/50W,IKI |
2 | ||
| 90981-05006 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 40/60W,KOITO |
2 | ||
| 90981-02013 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 37.5/50W,*WB,12V 37.5/50W,KOITO |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-14340 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81111-20110 |
RA42..3FC..LT IKI |
1 | ||
| 81111-14380 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81111-14261 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81111-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81112 - RING, SEALED BEAM RETAINING, NO.2 RH | ||||
| 81111-20110 |
RA42..3FC..LT IKI |
1 | ||
| 81112-14380 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81111-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81111-14261 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81112-14340 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81113-14320 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81113-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81113-14370 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81114 - RING, SEALED BEAM MOUNTING, NO.2 RH | ||||
| 81114-14370 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81114-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81114-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81114-14320 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 90506-18018 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
4 | ||
| 81121-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
4 | ||
| 81121-14320 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
4 | ||
| 81121-14370 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
4 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 90506-18018 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
4 | ||
| 81121-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
4 | ||
| 81121-14320 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
4 | ||
| 81121-14370 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
4 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-14370 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
8 | ||
| 81131-14320 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
8 | ||
| 81131-20053 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
8 | ||
| 81131-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
8 | ||
| 81132 - NUT, HEADLAMP SELF LOCKING | ||||
| 81132-10062 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
8 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-19585 |
RA42..3FC..LT IKI |
1 | ||
| 81150-19586 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81150-19575 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-20110 |
RA42..3FC..LT IKI |
1 | ||
| 81151-14380 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81111-14261 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81111-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81111-14340 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81152 - RING, SEALED BEAM RETAINING, NO.2 LH | ||||
| 81152-14380 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81111-14261 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81111-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81111-20110 |
RA42..3FC..LT IKI |
1 | ||
| 81152-14340 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-14370 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81153-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81153-14320 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81153-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81154 - RING, SEALED BEAM MOUNTING, NO.2 LH | ||||
| 81154-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81154-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81154-14320 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81154-14370 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| Common parts | ||||
| 81219-62012 | ||||
| 91655-40616 | ||||
| 93219-14008 | ||||

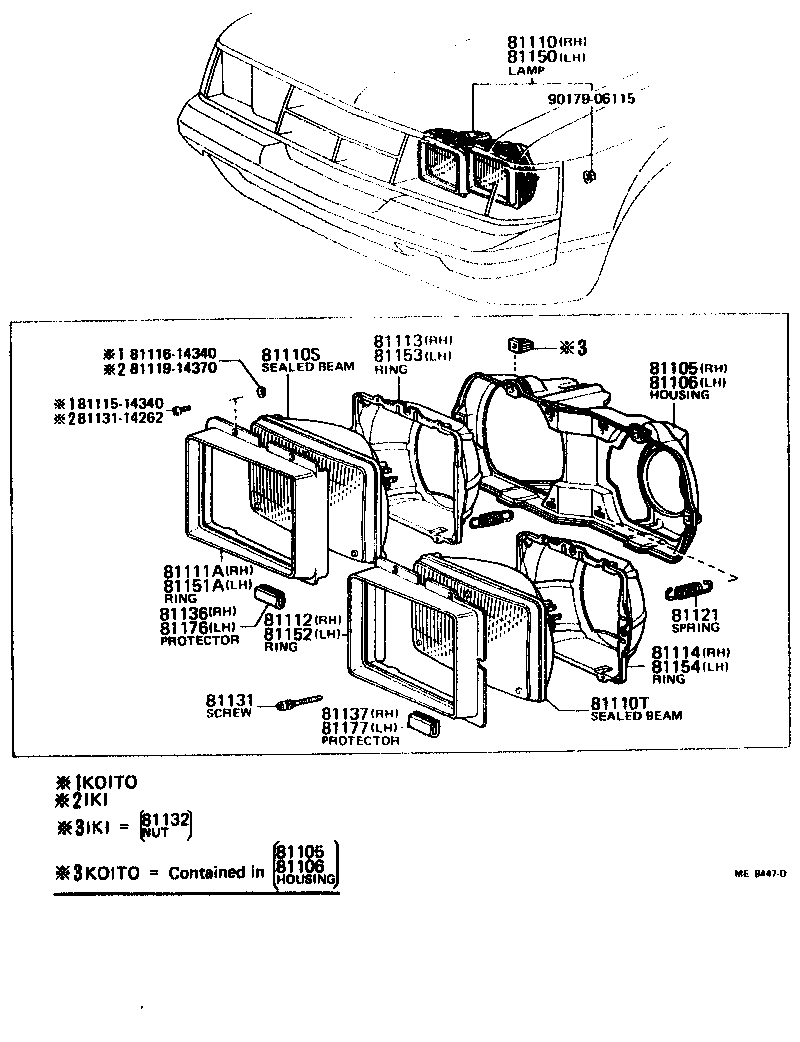

(7901- )MA4# ; (7908- )RA4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81105-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81105-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81106-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81106-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-19635 |
RA42..3FC..LT IKI |
1 | ||
| 81110-19636 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81110-19625 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-02039 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 37.5W,*WB,12V 37.5W,IKI |
2 | ||
| 90981-05002 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 50W,*WB,12V 50W,KOITO |
2 | ||
| 90981-05001 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 50W,IKI |
2 | ||
| 90981-02023 |
RA42..3FC..LT 12V 37.5W,TOSHIBA |
2 | ||
| 90981-05001 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 50W,IKI |
2 | ||
| 90981-02011 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 37.5W,*WB,12V 37.5W,KOITO |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-02006 |
RA42..3FC..LT 12V 37.5/50W,TOSHIBA |
2 | ||
| 90981-05005 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 40/60W,WHITE,12V 40/60W,IKI |
2 | ||
| 90981-02041 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 37.5/50W,*WB,12V 37.5/50W,IKI |
2 | ||
| 90981-05006 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 40/60W,KOITO |
2 | ||
| 90981-02013 |
MA46,RA42..(3FC,5F)..(LT,SPR) 12V 37.5/50W,*WB,12V 37.5/50W,KOITO |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-14340 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81111-20110 |
RA42..3FC..LT IKI |
1 | ||
| 81111-14380 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81111-14261 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81111-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81112 - RING, SEALED BEAM RETAINING, NO.2 RH | ||||
| 81111-20110 |
RA42..3FC..LT IKI |
1 | ||
| 81112-14380 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81111-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81111-14261 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81112-14340 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81113-14320 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81113-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81113-14370 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81114 - RING, SEALED BEAM MOUNTING, NO.2 RH | ||||
| 81114-14370 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81114-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81114-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81114-14320 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 90506-18018 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
4 | ||
| 81121-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
4 | ||
| 81121-14320 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
4 | ||
| 81121-14370 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
4 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-14370 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
8 | ||
| 81131-14320 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
8 | ||
| 81131-20053 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
8 | ||
| 81131-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
8 | ||
| 81132 - NUT, HEADLAMP SELF LOCKING | ||||
| 81132-10062 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
8 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-19585 |
RA42..3FC..LT IKI |
1 | ||
| 81150-19586 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81150-19575 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-20110 |
RA42..3FC..LT IKI |
1 | ||
| 81151-14380 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81111-14261 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81111-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81111-14340 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81152 - RING, SEALED BEAM RETAINING, NO.2 LH | ||||
| 81152-14380 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81111-14261 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81111-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81111-20110 |
RA42..3FC..LT IKI |
1 | ||
| 81152-14340 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-14370 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81153-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81153-14320 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81153-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81154 - RING, SEALED BEAM MOUNTING, NO.2 LH | ||||
| 81154-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81154-14260 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| 81154-14320 |
MA46,RA42..(3FC,5F)..(LT,SPR) KOITO |
1 | ||
| 81154-14370 |
MA46,RA42..(3FC,5F)..(LT,SPR) IKI |
1 | ||
| Common parts | ||||
| 81115-14340 | ||||
| 81116-14340 | ||||
| 81119-14370 | ||||
| 81131-14262 | ||||
| 90179-06115 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
