RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

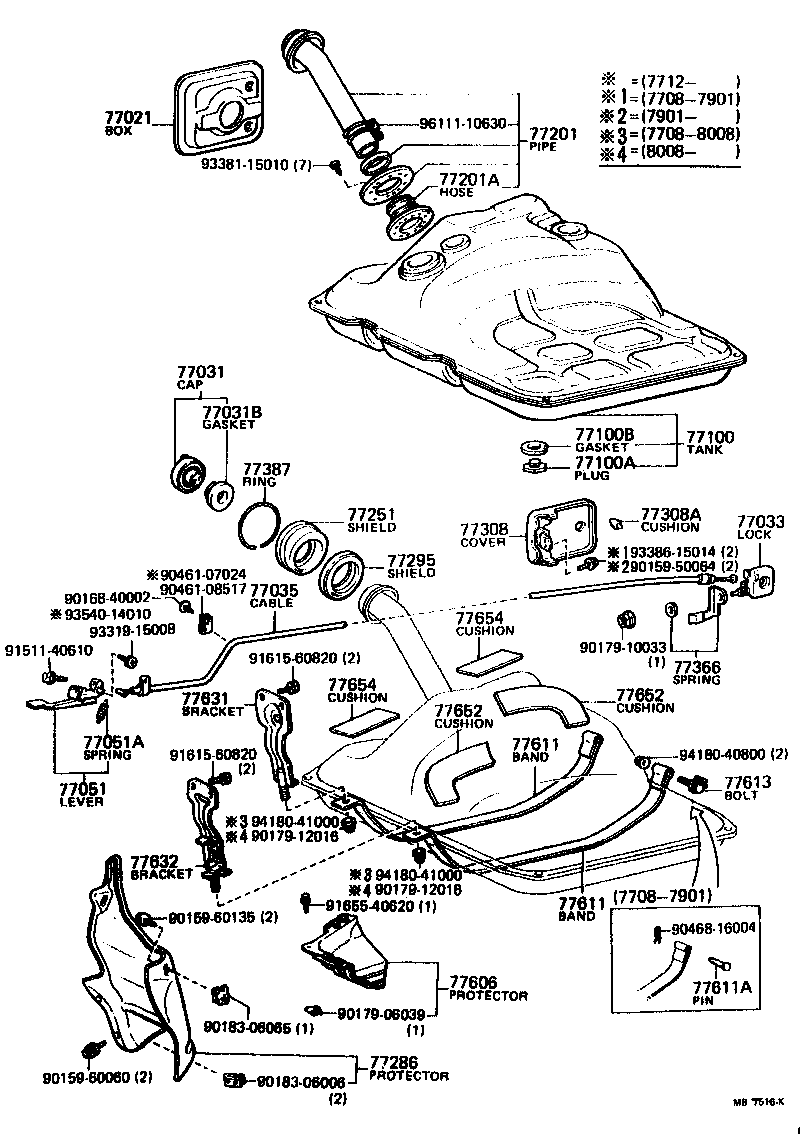

(7708- )

Click highlighted areas on diagram

diagram 77021 77031 77031B 77033 77035 77051 77051A 77100 77100A 77100B 77201 77201A 77251 77286 77295 77308 77308A 77366 77387 77606 77611 77611 77611A 77613 77631 77632 77652 77652 77654 77654 9015950064 9015960060 9015960135 9016840002 9017906039 9017910033 9017912016 9017912016 9018306006 9018306065 9046107024 9046108517 9046816004 9151140610 9161560820 9161560820 9165540620 9331915008 9338115010 9338615014 9354014010 9418040800 9418041000 9418041000 9611110630
Part # Description Qty Price
77021 - BOX ASSY, FUEL TANK INLET
61709-14050

RA4#..CP

W/FUEL LID OPENER

 1
61709-14020

RA4#..CP..(LT,ST)

 1
77031 - CAP ASSY, FUEL TANK
77310-14070

MA46,RA42

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

MA4#,RA4#

 1
77033 - LOCK SUB-ASSY, FUEL TANK CAP
77033-14020

MA4#,RA4#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-14060

RA42..CP

 1
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77051-14010

RA42..CP

 1
77051A - SPRING, TENSION (FOR FUEL LID LEVER)
90506-09004

RA4#..CP

 1
77100 - TANK ASSY, FUEL
77001-14926

MA46,RA42

 1
77100A - PLUG(FOR FUEL TANK)
90341-24036

MA4#,RA4#

 1
77100B - GASKET(FOR FUEL TANK)
90430-24047

MA4#,RA4#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-14170

MA46,RA42

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213-14090

MA4#,RA4#

 1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77291-14020

MA4#,RA4#

 1
77286 - PROTECTOR, FUEL TANK INLET PIPE
77277-14030

MA4#,RA4#

 1
77295 - SHIELD, FUEL FILLER PIPE
77292-14010

MA4#,RA4#

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77350-14020

MA4#,RA4#

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-08003

MA4#,RA4#

 2
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-14010

MA46,RA42

 1
77387 - RING, FUEL INLET BOX
77391-14010

MA4#,RA4#

 1
77611 - BAND, FUEL TANK
77601-14040

MA4#,RA4#

 2
77611 - BAND, FUEL TANK
77601-14040

MA4#,RA4#

 2
77611A - PIN (FOR FUEL TANK BAND)
90240-08150

RA42

 2
77613 - BOLT, FUEL TANK BAND SET
91121-50875

MA46,RA42

 2
77631 - BRACKET, FUEL TANK, NO.1
77613-14020

MA46,RA42

 1
77632 - BRACKET, FUEL TANK, NO.2
77614-14020

MA46,RA42

 1
77652 - CUSHION, FUEL TANK, NO.1
77651-14050

MA46,RA42

 2
77652 - CUSHION, FUEL TANK, NO.1
77651-14050

MA46,RA42

 2
77654 - CUSHION, FUEL TANK, NO.2
77652-14060

MA46,RA42

120X70

 2
77654 - CUSHION, FUEL TANK, NO.2
77652-14060

MA46,RA42

120X70

 2
Common parts
90159-50064
90159-60060
90159-60135
90168-40002
90179-06039
90179-10033
90179-12016
90183-06006
90183-06065
90461-07024
90461-08517
90468-16004
91511-40610
91615-60820
91655-40620
93319-15008
93381-15010
93386-15014
93540-14010
94180-40800
94180-41000
96111-10630

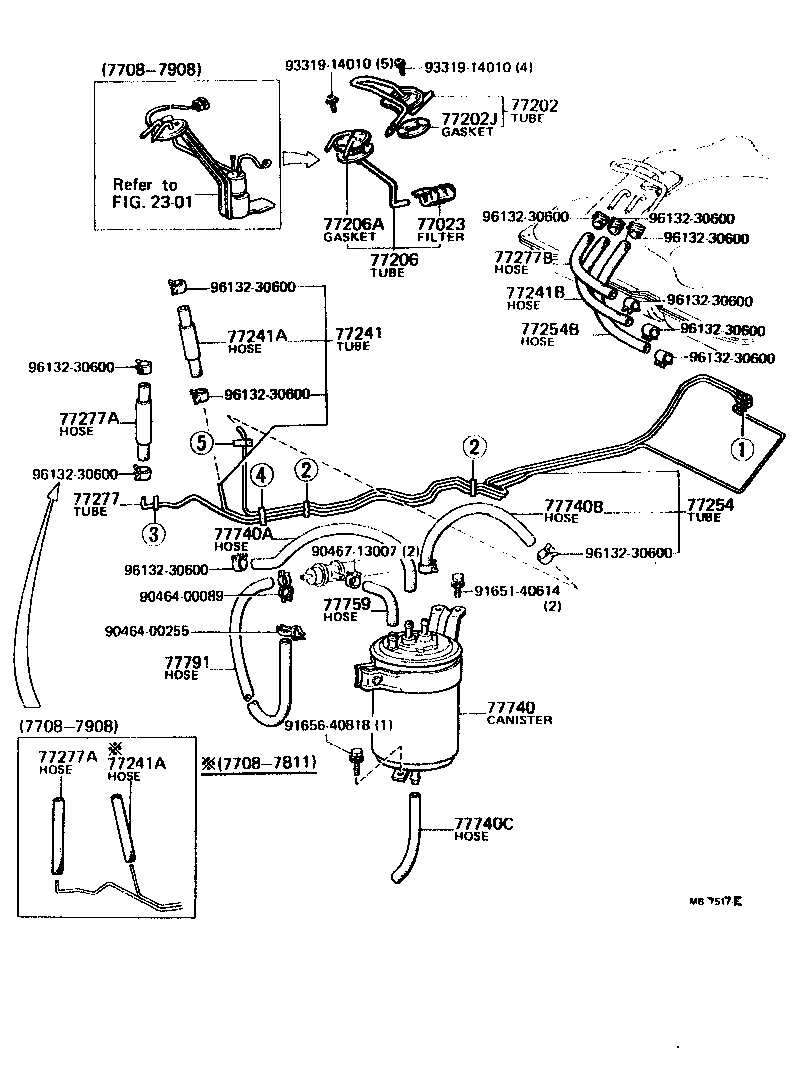

(7708- )RA4#

Click highlighted areas on diagram

diagram 2301 77023 77202 77202J 77206 77206A 77241 77241A 77241A 77241B 77254 77254B 77277 77277A 77277A 77277B 77740 77740A 77740B 77740C 77759 77791 9046400089 9046400255 9046713007 9165140614 9165640818 9331914010 9331914010 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600
Part # Description Qty Price
77202 - TUBE SUB-ASSY, BREATHER
77012-14020

RA42

 1
77202J - GASKET (FOR BREATHER TUBE)
77179-14020

RA42

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77203-14040

RA42

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-14100

RA42

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06030

RA42

*H,L=300

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06030

RA42

*H,L=300

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-06026

MA46,RA42

*H,L=260

 1
95332-06030

MA46,RA42

*H,L=260

 1
95332-06030

RA42

*H,L=260

 1
77254 - TUBE, FUEL EMISSION, NO.1
77261-14050

RA4#

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06026

MA46,RA42

*H,L=260

 1
95332-06030

MA46,RA42

*H,L=260

 1
95332-06030

RA42

*H,L=260

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-14090

RA42

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-06040

RA42

*H,L=380

 1
90445-12075

RA42

 1
90447-12090

RA42

L=240

 1
95332-06038

RA42

*H,L=380

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-06040

RA42

*H,L=380

 1
90445-12075

RA42

 1
90447-12090

RA42

L=240

 1
95332-06038

RA42

*H,L=380

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06030

MA46,RA42

*H,L=260

 1
95332-06030

RA42

*H,L=260

 1
95332-06026

RA42

*H,L=260

 1
77740 - CANISTER ASSY, CHARCOAL
77740-14242

RA42

*CAL

 1
77740-14200

RA42

CANADA SPEC

 1
77740-14290

RA42

USA SPEC

 1
77740-14242

RA42

USA SPEC

 1
77740-14190

RA42

USA SPEC

 1
77740-14240

RA42

USA SPEC

 1
77740-14251

RA42

CANADA SPEC

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95331-06040

RA42

*H,L=400

 1
95411-19930

RA42

*H,L=240,MARK=#*,CANADA SPEC

 1
95411-19930

RA42

*H,L=300,MARK=#*

 1
95411-19930

RA42

*H,L=300,MARK=#*

 1
95411-19960

RA42

*H,L=330,MARK=#*,CANADA SPEC

 1
77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
95332-06015

RA42

*H,L=150

 1
95332-06020

RA42

*H,L=200

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
95332-08020

RA42

*H,L=130,ID=7.6

 1
77759 - HOSE, CHARCOAL CANISTER
77759-14011

RA42

 1
77791 - HOSE, OUTER VENT VALVE TO CARBURETOR
77791-14011

RA42

 1
Common parts
90464-00089
90464-00255
90467-13007
91651-40614
91656-40818
93319-14010
96132-30600
Linked diagrams
2301

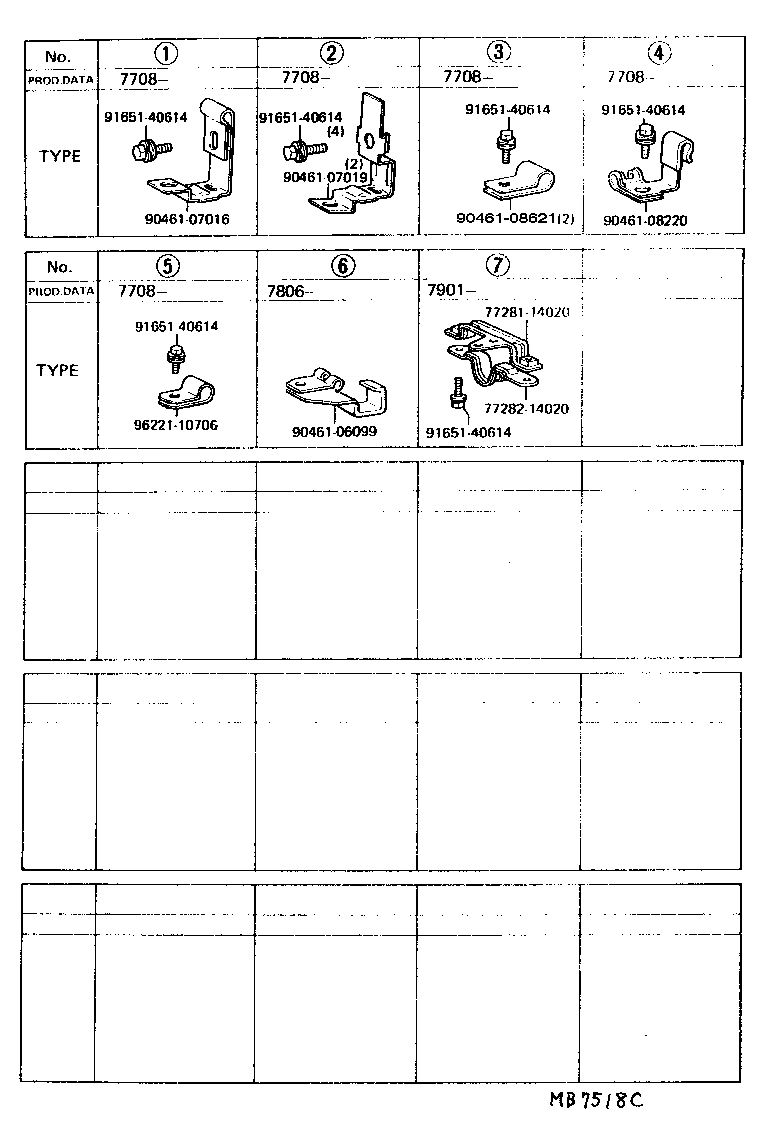

(7708- )

Click highlighted areas on diagram

diagram 7728114020 7728214020 9046106099 9046107016 9046107019 9046108220 9046108621 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9622110706
Part # Description Qty Price
Common parts
77281-14020
77282-14020
90461-06099
90461-07016
90461-07019
90461-08220
90461-08621
91651-40614
96221-10706
