RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )CP

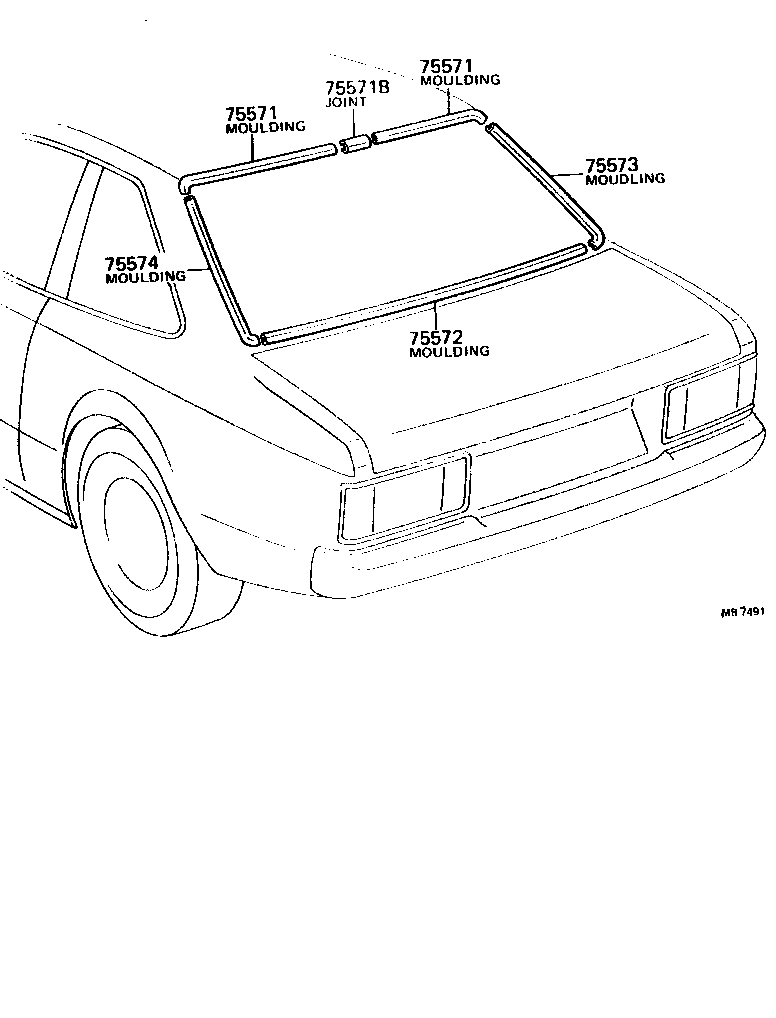

Click highlighted areas on diagram

diagram 75571 75571 75571B 75572 75573 75574
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-14130

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
75572-14050

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

LH

 1
75571-14100

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
75571-14090

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

RH

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-14130

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
75572-14050

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

LH

 1
75571-14100

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
75571-14090

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

RH

 1
75571B - JOINT, BACK WINDOW MOULDING, UPPER
75581-14060

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
75572 - MOULDING, BACK WINDOW, LOWER
75575-14100

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
75816-14020

MA46,RA42..(3FC,5F)..(LT,SPR)

LH

 1
75575-14120

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
75815-14020

MA46,RA42..(3FC,5F)..(LT,SPR)

RH

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-14110

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
75573-14140

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
75573-14100

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-14070

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
75573-14100

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
75574-14120

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
