RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

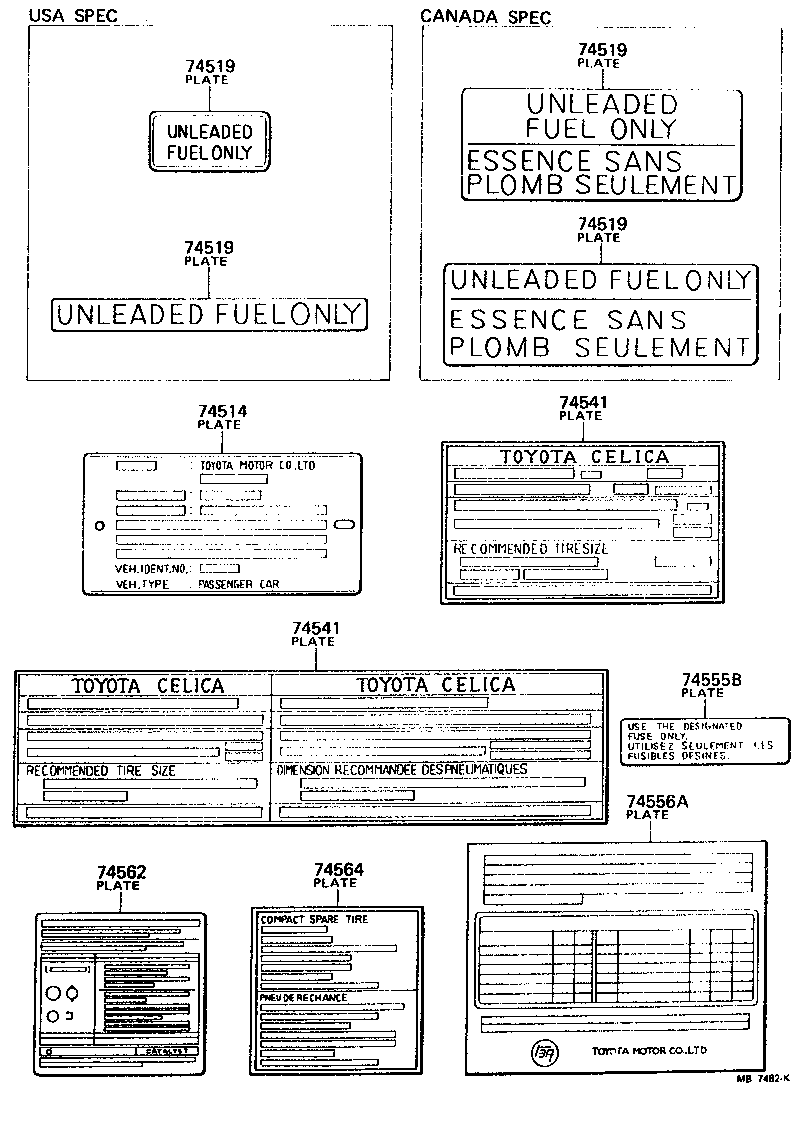

Click highlighted areas on diagram

diagram 74514 74519 74519 74519 74519 74541 74541 74555B 74556A 74562 74564
Part # Description Qty Price
74514 - PLATE, CERTIFICATION REGULATION
74514-14051

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
74514-14060

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
74519 - PLATE, FUEL CAUTION
74559-20030

RA42..3FC..LT

INSTRUMENT PANEL

 1
74559-20040

RA42..3FC..LT

QUARTER PANEL

 1
74559-20090

MA46,RA42..(3FC,5F)..(LT,SPR)

QUARTER PANEL

 1
74559-22021

RA42..3FC..LT

QUARTER PANEL,CANADA SPEC

 1
74559-22021

MA46,RA42..(3FC,5F)..(LT,SPR)

INSTRUMENT PANEL,CANADA SPEC

 1
74559-20041

MA46,RA42..(3FC,5F)..(LT,SPR)

QUARTER PANEL,USA SPEC

 1
74559-22020

RA42..3FC..LT

QUARTER PANEL,CANADA SPEC

 1
74559-20041

RA42..3FC..LT

QUARTER PANEL

 1
74519 - PLATE, FUEL CAUTION
74559-20030

RA42..3FC..LT

INSTRUMENT PANEL

 1
74559-20040

RA42..3FC..LT

QUARTER PANEL

 1
74559-20090

MA46,RA42..(3FC,5F)..(LT,SPR)

QUARTER PANEL

 1
74559-22021

RA42..3FC..LT

QUARTER PANEL,CANADA SPEC

 1
74559-22021

MA46,RA42..(3FC,5F)..(LT,SPR)

INSTRUMENT PANEL,CANADA SPEC

 1
74559-20041

MA46,RA42..(3FC,5F)..(LT,SPR)

QUARTER PANEL,USA SPEC

 1
74559-22020

RA42..3FC..LT

QUARTER PANEL,CANADA SPEC

 1
74559-20041

RA42..3FC..LT

QUARTER PANEL

 1
74519 - PLATE, FUEL CAUTION
74559-20030

RA42..3FC..LT

INSTRUMENT PANEL

 1
74559-20040

RA42..3FC..LT

QUARTER PANEL

 1
74559-20090

MA46,RA42..(3FC,5F)..(LT,SPR)

QUARTER PANEL

 1
74559-22021

RA42..3FC..LT

QUARTER PANEL,CANADA SPEC

 1
74559-22021

MA46,RA42..(3FC,5F)..(LT,SPR)

INSTRUMENT PANEL,CANADA SPEC

 1
74559-20041

MA46,RA42..(3FC,5F)..(LT,SPR)

QUARTER PANEL,USA SPEC

 1
74559-22020

RA42..3FC..LT

QUARTER PANEL,CANADA SPEC

 1
74559-20041

RA42..3FC..LT

QUARTER PANEL

 1
74519 - PLATE, FUEL CAUTION
74559-20030

RA42..3FC..LT

INSTRUMENT PANEL

 1
74559-20040

RA42..3FC..LT

QUARTER PANEL

 1
74559-20090

MA46,RA42..(3FC,5F)..(LT,SPR)

QUARTER PANEL

 1
74559-22021

RA42..3FC..LT

QUARTER PANEL,CANADA SPEC

 1
74559-22021

MA46,RA42..(3FC,5F)..(LT,SPR)

INSTRUMENT PANEL,CANADA SPEC

 1
74559-20041

MA46,RA42..(3FC,5F)..(LT,SPR)

QUARTER PANEL,USA SPEC

 1
74559-22020

RA42..3FC..LT

QUARTER PANEL,CANADA SPEC

 1
74559-20041

RA42..3FC..LT

QUARTER PANEL

 1
74541 - PLATE, TIRE PRESSURE CAUTION
42661-14041

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
42661-14042

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
42661-14110

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
42661-14130

MA46,RA42..(3FC,5F)..(LT,SPR)

W/LSD

 1
42661-14111

MA46,RA42..(3FC,5F)..(LT,SPR)

W/O LSD

 1
74541 - PLATE, TIRE PRESSURE CAUTION
42661-14041

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
42661-14042

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
42661-14110

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
42661-14130

MA46,RA42..(3FC,5F)..(LT,SPR)

W/LSD

 1
42661-14111

MA46,RA42..(3FC,5F)..(LT,SPR)

W/O LSD

 1
74556A - PLATE, EXHAUST EMISSION DATA
74556-12110

MA46,RA42..(3FC,5F)..(LT,SPR)

CALIFORNIA SPEC

 1
74556-12109

MA46,RA42..(3FC,5F)..(LT,SPR)

CALIFORNIA SPEC

 1
74556-12111

MA46,RA42..(3FC,5F)..(LT,SPR)

CALIFORNIA SPEC

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
11298-38030

MA46,RA42..(3FC,5F)..(LT,SPR)

CANADA SPEC

 1
11298-38010

MA46,RA42..(3FC,5F)..(LT,SPR)

USA SPEC

 1
11298-38020

MA46,RA42..(3FC,5F)..(LT,SPR)

CALIFORNIA SPEC

 1
11298-45060

MA46,RA42..(3FC,5F)..(LT,SPR)

CALIFORNIA SPEC

 1
11298-38031

MA46,RA42..(3FC,5F)..(LT,SPR)

CANADA SPEC

 1
11298-45050

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
11298-38021

MA46,RA42..(3FC,5F)..(LT,SPR)

CALIFORNIA SPEC

 1
11298-45040

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
11298-38011

MA46,RA42..(3FC,5F)..(LT,SPR)

USA SPEC

 1
