RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

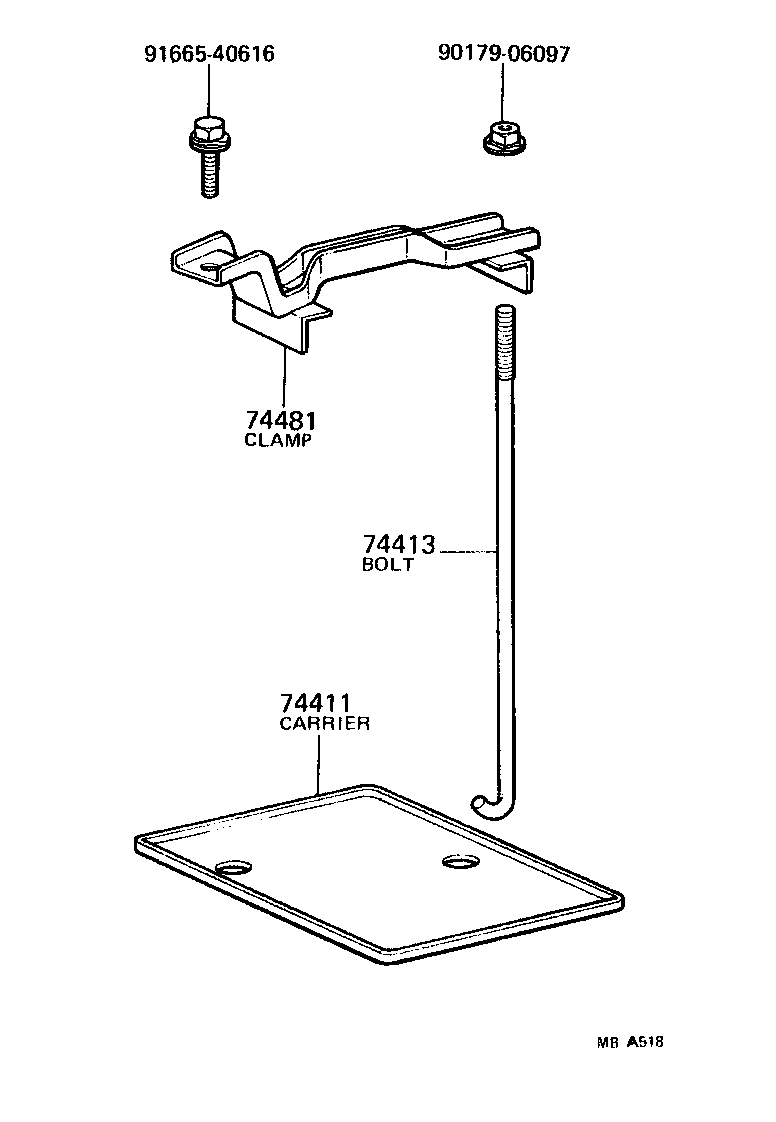

diagram 74411 74413 74481 9017906097 9166540616
Part # Description Qty Price
74411 - CARRIER, BATTERY
74431-14020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

N40

 1
74431-14030

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

N50,N50Z,N50ZL

 1
74413 - BOLT, BATTERY CLAMP
74451-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-14180

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

N50,N50Z

 1
74404-14170

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

N40Z

 1
Common parts
90179-06097
91665-40616
