RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )RA4#

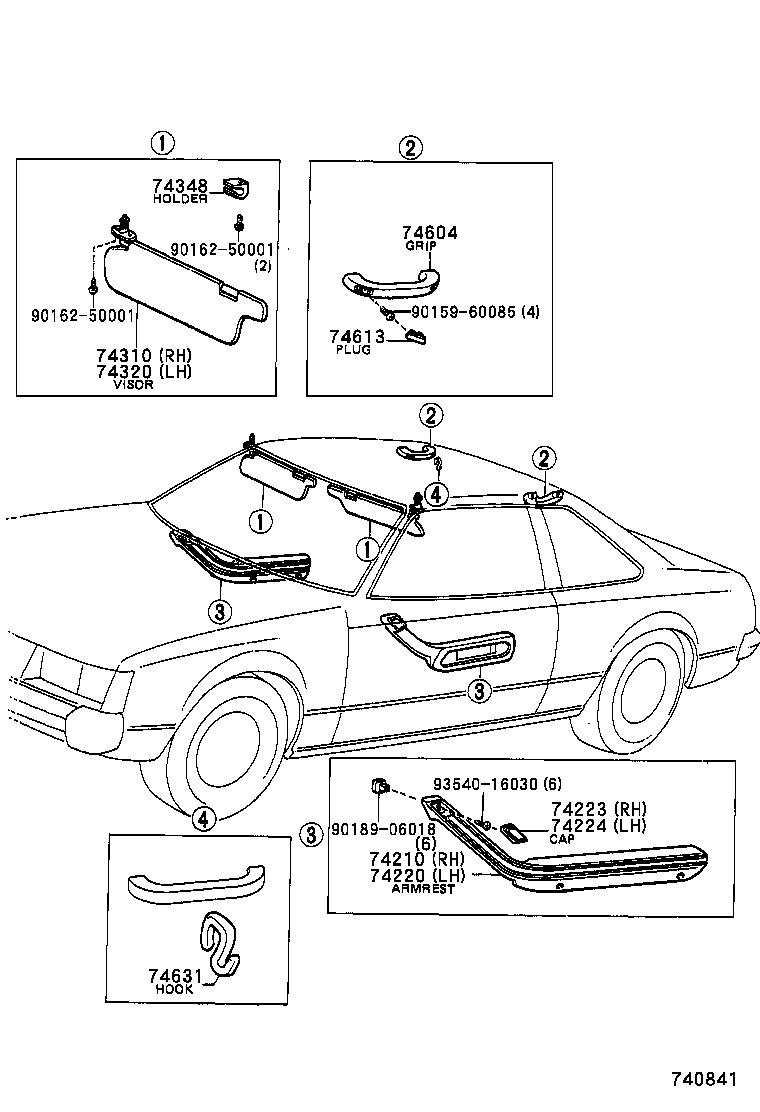

Click highlighted areas on diagram

diagram 74210 74220 74223 74224 74310 74320 74348 74604 74613 74631 9015960085 9016250001 9016250001 9018906018 9354016030
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-1404004

MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 1
74210-1404001

MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 1
74210-1404006

MA46,RA42..(3FC,5F)..(LT,SPR)

L-BROWN,BROWN

 1
74220 - ARMREST ASSY, FRONT, LH
74220-1404004

MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 1
74220-1404001

MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 1
74220-1404006

MA46,RA42..(3FC,5F)..(LT,SPR)

L-BROWN,BROWN

 1
74223 - CAP, DOOR ARMREST, RH
74223-1401004

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 1
74223-1401006

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

L-BROWN,BROWN

 1
74223-1401001

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 1
74224 - CAP, DOOR ARMREST, LH
74224-1401001

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 1
74224-1401006

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

L-BROWN,BROWN

 1
74224-1401004

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 1
74266-1402006

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

W/*PW,L-BROWN,BROWN

 2
74310 - VISOR ASSY, RH
74320-1414003

RA42..3FC..LT

GRAY,GRAY

 1
74310-1414006

RA42..3FC..LT

L-BROWN

 1
74320-1414006

RA42..3FC..LT

L-BROWN,BROWN

 1
74310-1414108

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC,IVORY,IVORY

 1
74320-1408006

RA42..3FC..LT

L-BROWN,BROWN

 1
74320-1408004

RA42..3FC..LT

BLUE,BLUE

 1
74310-1414003

RA42..3FC..LT

GRAY

 1
74320-1408003

RA42..3FC..LT

GRAY,GRAY

 1
74310-1414103

MA46,RA42..(3FC,5F)..(LT,SPR)

W/MIRROR, GRAY,GRAY

 1
74310-1415003

MA46,RA42..(3FC,5F)..(LT,SPR)

W/MIRROR & LAMP,GRAY,GRAY

 1
74310-1414004

RA42..3FC..LT

BLUE

 1
74320-1414004

RA42..3FC..LT

BLUE,BLUE

 1
74320-1408103

MA46,RA42..(3FC,5F)..(LT,SPR)

GRAY,GRAY

 1
74320 - VISOR ASSY, LH
74320-1409003

RA42..3FC..LT

GRAY,GRAY

 1
74320-1409108

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC,IVORY,IVORY

 1
74320-1409006

RA42..3FC..LT

L-BROWN,BROWN

 1
74320-1415004

RA42..3FC..LT

BLUE,BLUE

 1
74320-1424003

MA46,RA42..(3FC,5F)..(LT,SPR)

GRAY,GRAY

 1
74320-1409004

RA42..3FC..LT

BLUE,BLUE

 1
74320-1415006

RA42..3FC..LT

L-BROWN,BROWN

 1
74320-1409103

MA46,RA42..(3FC,5F)..(LT,SPR)

GRAY,GRAY

 1
74320-1415003

RA42..3FC..LT

GRAY,GRAY

 1
74348 - HOLDER, VISOR
74348-1402004

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 2
74348-1402003

MA46,RA42..(3FC,5F)..(LT,SPR)

GRAY,GRAY

 2
74348-1402008

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC,IVORY,IVORY

 2
74348-1402006

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

L-BROWN,BROWN

 2
74604 - GRIP SUB-ASSY, ASSIST, REAR
74610-1402004

RA42..3FC..LT

BLUE,BLUE

 2
74610-1402003

RA42..3FC..LT

GRAY,GRAY

 2
74610-1402006

RA42..3FC..LT

L-BROWN,BROWN

 2
74610-2003003

MA46,RA42..(3FC,5F)..(LT,SPR)

GRAY,GRAY

 2
74610-2003008

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC,IVORY,IVORY

 2
74613 - PLUG, ASSIST GRIP
74617-1401004

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 4
74617-1401008

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC,IVORY,IVORY

 4
74617-1401006

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

L-BROWN,BROWN

 4
74617-1401003

MA46,RA42..(3FC,5F)..(LT,SPR)

GRAY,GRAY

 4
74631 - HOOK, COAT, A
74631-1401004

MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 1
74631-1401003

MA46,RA42..(3FC,5F)..(LT,SPR)

GRAY,GRAY

 1
74631-1401008

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC,IVORY,IVORY

 1
74631-1401003

MA46,RA42..(3FC,5F)..(LT,SPR)

GRAY,GRAY

 1
74631-1401006

MA46,RA42..(3FC,5F)..(LT,SPR)

L-BROWN,BROWN

 1
Common parts
90159-60085
90162-50001
90189-06018
93540-16030
