RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708-7908)

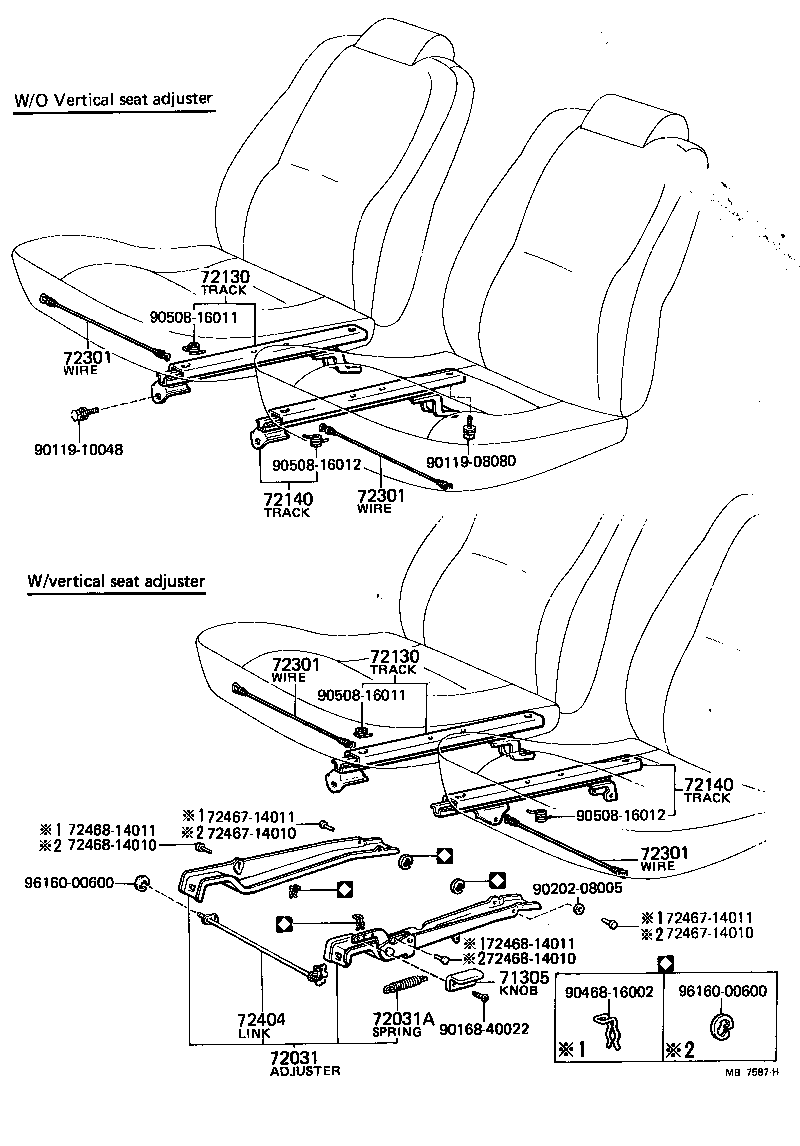

Click highlighted areas on diagram

diagram 71305 72031 72031A 72130 72130 72140 72140 72301 72301 72301 72301 72404 7246714010 7246714010 7246714011 7246714011 7246814010 7246814010 7246814011 7246814011 9011908080 9011910048 9016840022 9020208005 9046816002 9050816011 9050816011 9050816012 9050816012 9616000600 9616000600
Part # Description Qty Price
71305 - KNOB SUB-ASSY, FRONT SEAT ADJUSTING
72457-1402004

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 1
72457-1402006

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

LIGHT BROWN,BROWN

 1
72457-1402001

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 1
72031 - ADJUSTER ASSY, FRONT SEAT VERTICAL
72310-14030

RA42..3FC..LT

 1
72310-14031

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
72031A - SPRING, TENSION (FOR VERTICAL ADJUSTER)
90506-16015

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-14131

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
72130-14100

RA42..3FC..LT

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-14131

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
72130-14100

RA42..3FC..LT

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-14150

RA42..3FC..LT

 1
72140-14170

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
72140-14120

RA42..3FC..LT

 1
72140-14180

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-14150

RA42..3FC..LT

 1
72140-14170

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
72140-14120

RA42..3FC..LT

 1
72140-14180

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-14020

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-14020

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-14020

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-14020

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
Common parts
72467-14010
72467-14011
72468-14010
72468-14011
90119-08080
90119-10048
90168-40022
90202-08005
90468-16002
90508-16011
90508-16012
96160-00600

(7908- )

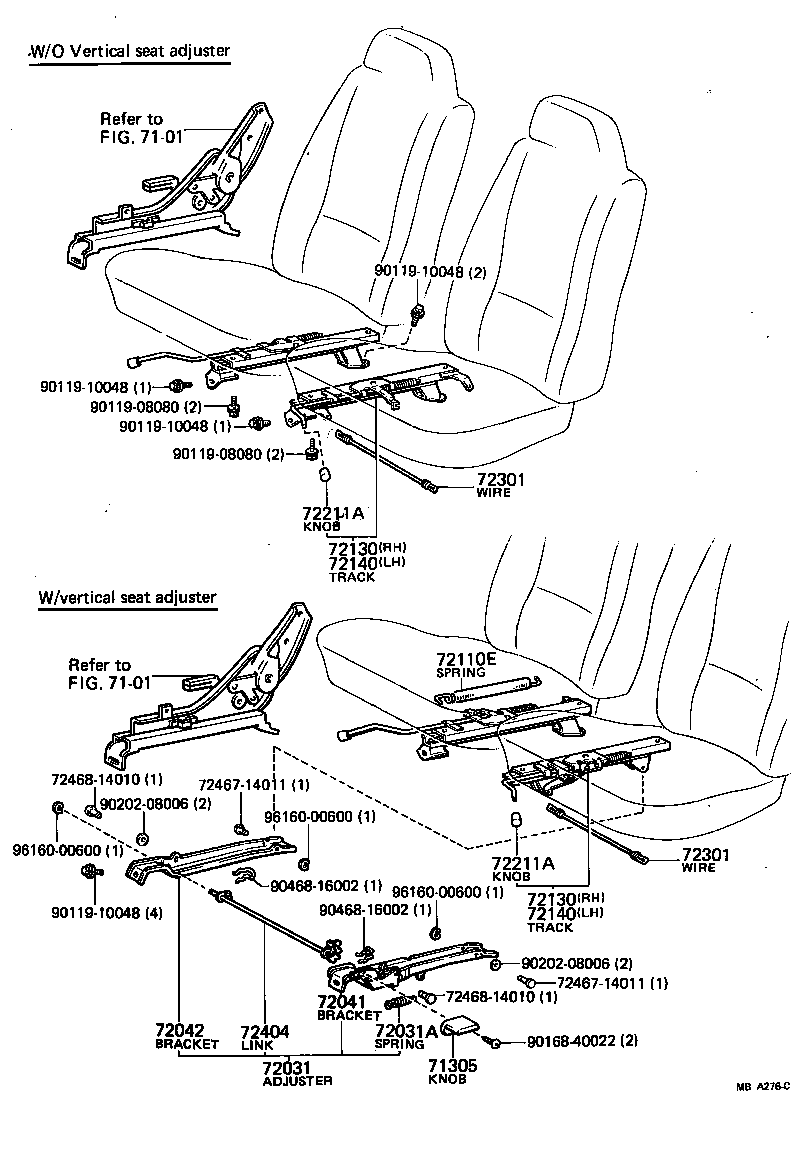

Click highlighted areas on diagram

diagram 7101 7101 71305 72031 72031A 72041 72042 72110E 72130 72130 72140 72140 72211A 72211A 72301 72301 72404 7246714011 7246714011 7246814010 7246814010 9011908080 9011908080 9011910048 9011910048 9011910048 9011910048 9016840022 9020208006 9020208006 9046816002 9046816002 9616000600 9616000600 9616000600
Part # Description Qty Price
71305 - KNOB SUB-ASSY, FRONT SEAT ADJUSTING
72457-1402004

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 1
72457-1402006

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

LIGHT BROWN,BROWN

 1
72457-1402001

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 1
72031 - ADJUSTER ASSY, FRONT SEAT VERTICAL
72310-14030

RA42..3FC..LT

 1
72310-14031

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
72031A - SPRING, TENSION (FOR VERTICAL ADJUSTER)
90506-16015

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-14131

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
72130-14100

RA42..3FC..LT

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-14131

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
72130-14100

RA42..3FC..LT

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-14150

RA42..3FC..LT

 1
72140-14170

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
72140-14120

RA42..3FC..LT

 1
72140-14180

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-14150

RA42..3FC..LT

 1
72140-14170

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
72140-14120

RA42..3FC..LT

 1
72140-14180

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-14020

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-14020

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
Common parts
72467-14011
72468-14010
90119-08080
90119-10048
90168-40022
90202-08006
90468-16002
96160-00600
Linked diagrams
7101
